Underground Mining Special Tu312 Series Utility Vehicle Mining Equipment with CE

Customization:	Available
Type:	Underground Service Vehicle
Structure:	Chass + Working Body

Basic Info.

Model NO.TU312

MaterialStainless Steel

Material FeatureHeat Resistant

CertificationISO9001:2000

Energy SavingEnergy Saving

Warranty2 Years

ColorWhite or Customized Color

CustomizedCustomized

ConditionNew

After-sales Service2 Years

ModelTu312

Transport PackageStandard

Specificationas request

OriginChina

Production Capacity200 Units/Year

Product Description

Underground Utility Vehicle TU312 Technical Data

Payload 12 ton Chassis for Underground Mining Multifunction Application

New generation of Drive-Train product lines

UNDERGROUND UTILITY VEHICLE PRODUCT RANGE:

Underground Mining Special Tu312 Series Utility Vehicle Mining Equipment with CE

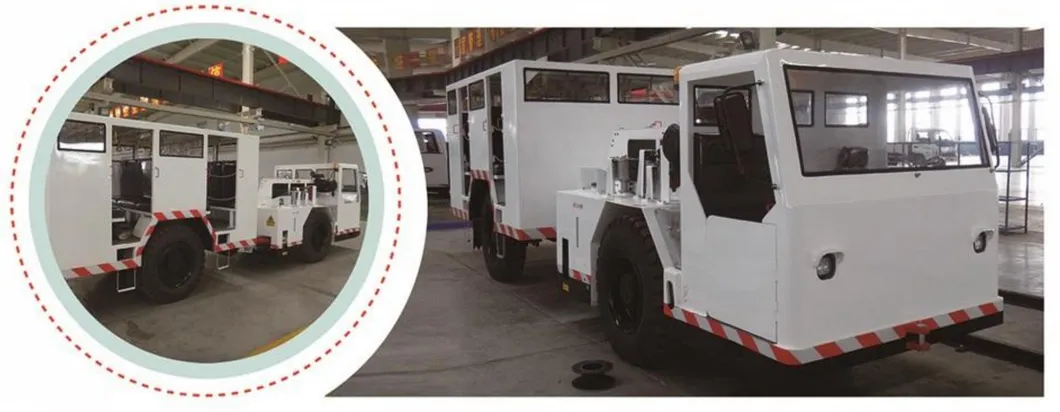

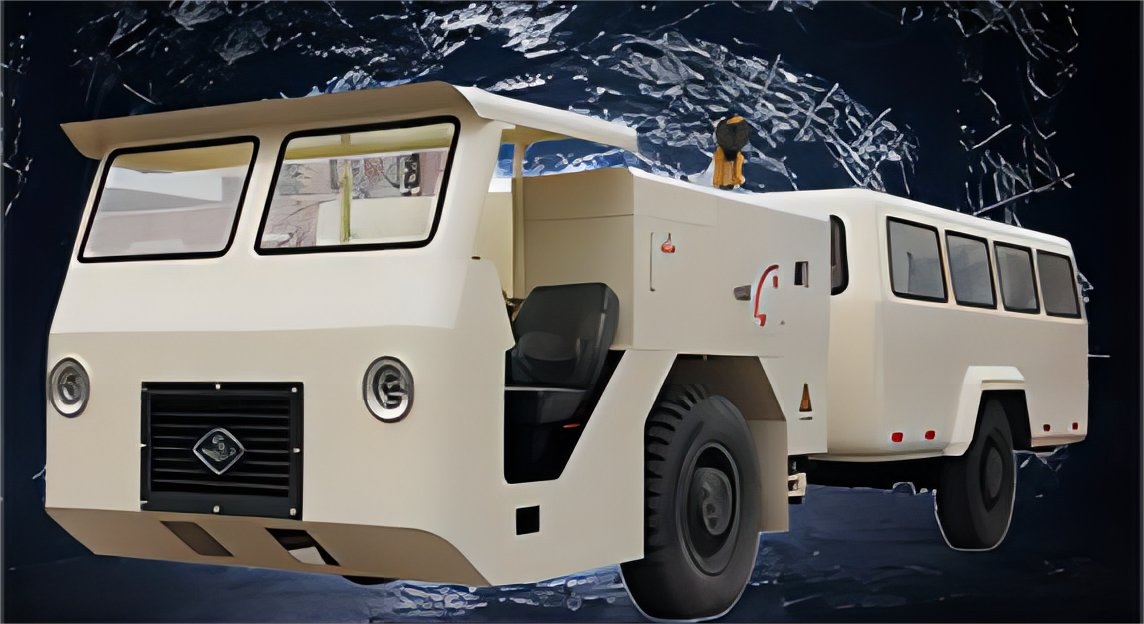

Miner Carrier Vehicle

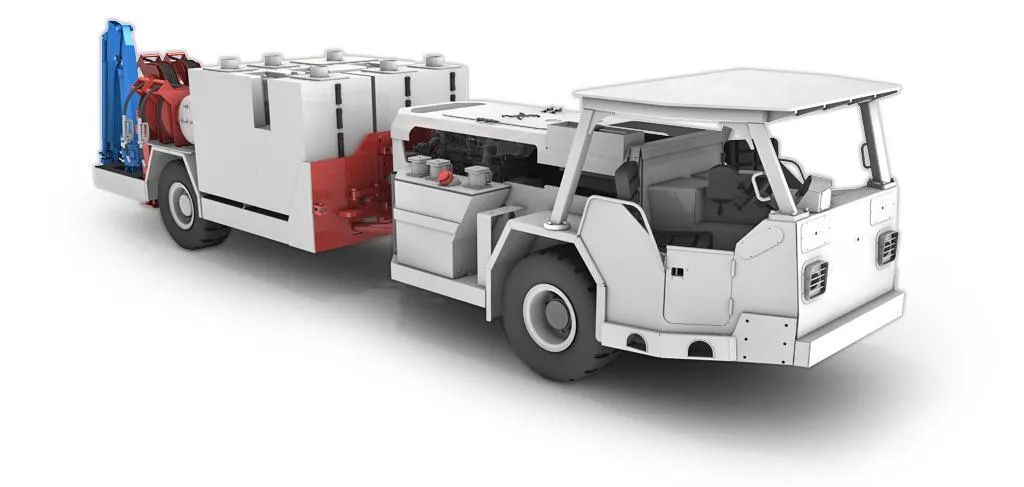

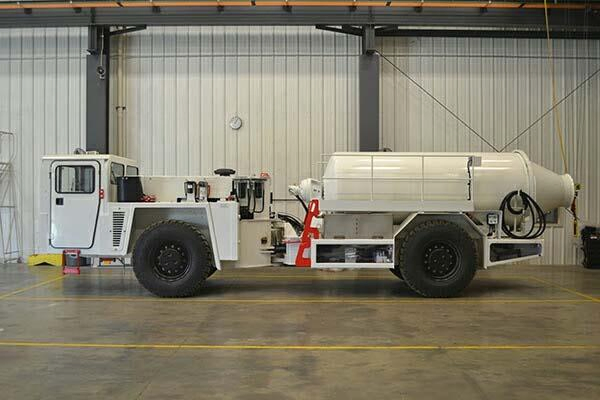

Lube Tank for Underground Mining Application

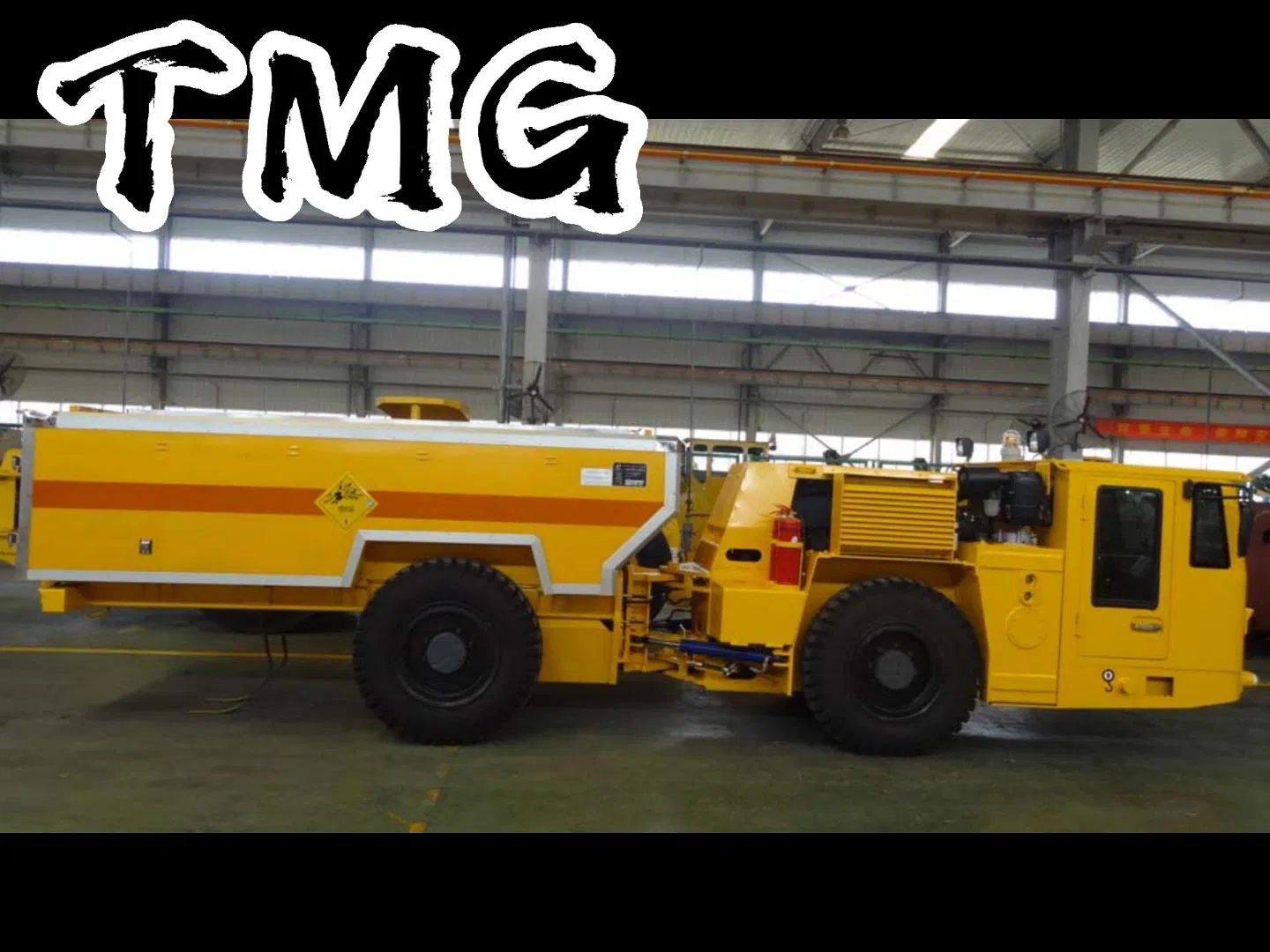

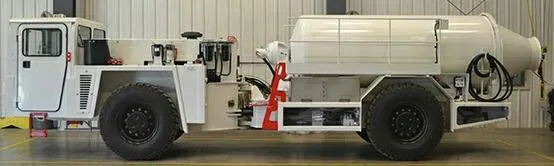

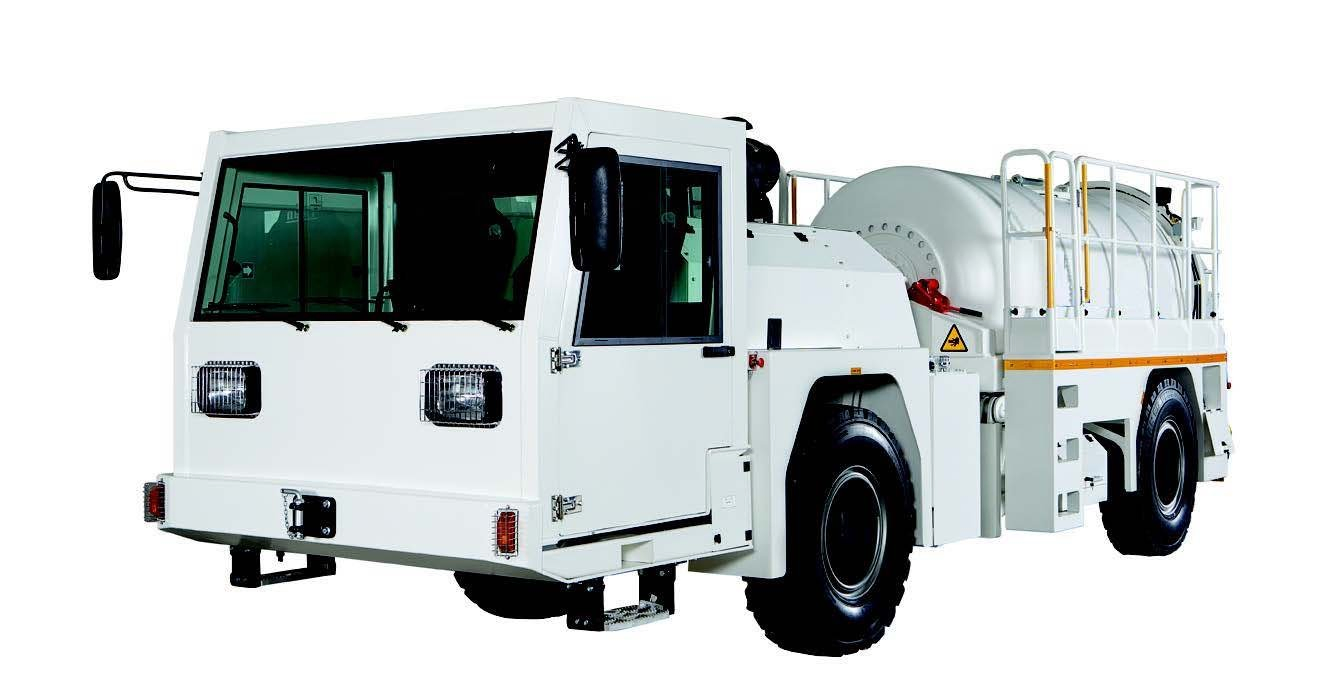

Underground Oil Tank for Underground Mining Application

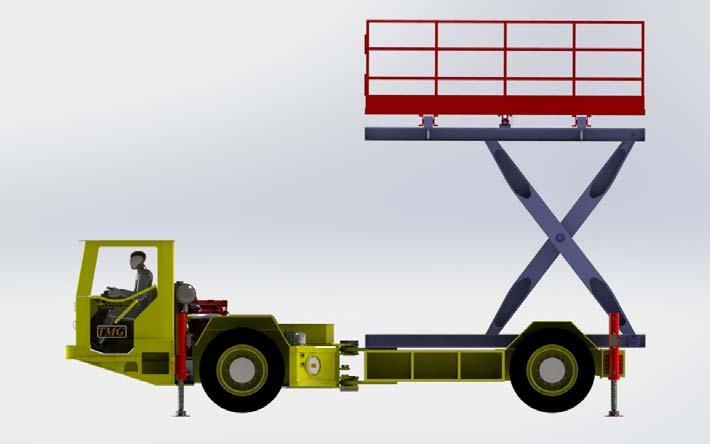

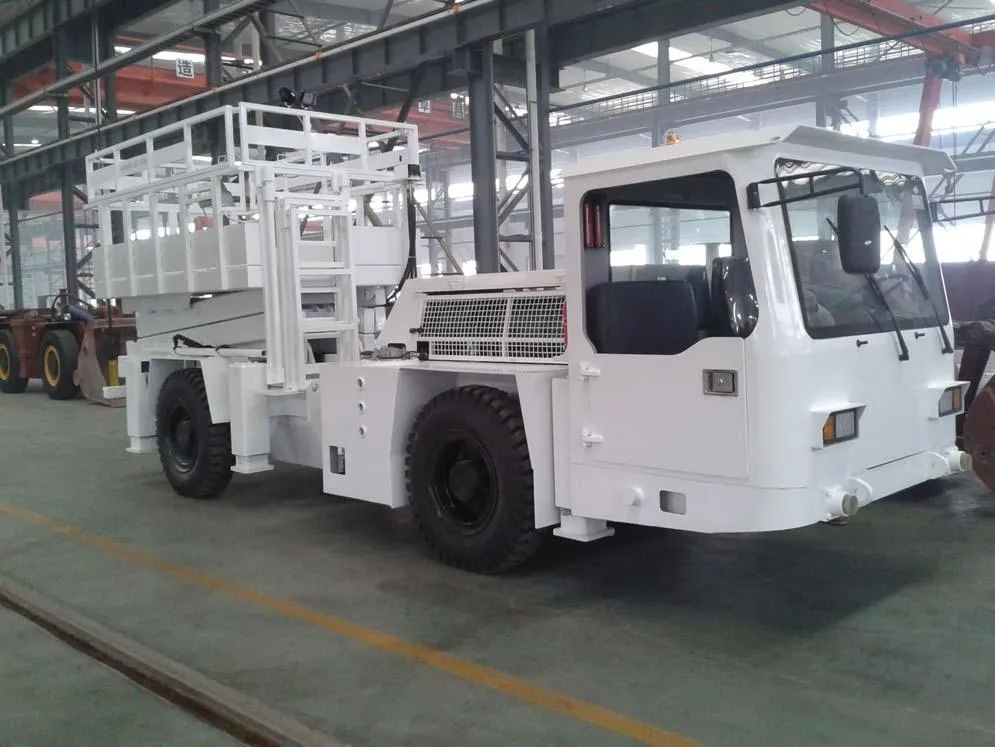

UNDERGROUND SCISSOR LIFT VEHICLE FOR UNDERGROUND MINING APPLICATION

TECHNICAL SPECIFICATIONS:

Specification Detail	System & Capacity
Engine F6L914 Air-Cooled 112 Kw/2300 rpm Tier II Approved	Fuel Tank Volume 112L
Exhaust system Catalytic exhaust Gas purifier and muffler	Hydraulic System Fixed displacement pump system: Bar L/min/2200rpm Hydraulic tank capacity Return oil filtration 10μm Indication of level, filtration, temperature
Transmission C273+R32000 series power shift pump drive group 3 speed forward and reverse 4 wheel drive Optional Powerful: C270+R32000 Series	24 VDC Electrical System Exposed components are min IP 65 standard
Axle Planetary type Dana 113 Load end axle fixed or China Axle of XCMG or LiuZhou ZF Angle axle oscillation +/- 10°	Battery Lead-Acid 2X115Ah Alternator 100A Driving halogen light (4+2) 70W Working light (2+2) 70KW LED parking braking and indicator light LED side lights amber Side reversing halogen light 70KW Rotating beacon, amber Wire harness (Self extinguishing) with tinned wires and water tight conduits
Tyres 12.00-20 TL 20 / 14.00-24 TL 24	Cab 2 man Cab FOPS / ROPS Approved Air suspended driver's seat Seat with retractable Lap seat belt Drive convention as Auto vehicle Panel include: Customized design Mico pedal and William pedal location as Auto Operation hours
Performance 1st: 6km/h 2nd: 12km/h 3rd: 25km/h Max tractive effort: 132KN Max speed in 1:7 inclined tunnel: 9km/h Performance curve Available	Fuel level Transmission temperature gauge Cooling water temperature gauge
Brakes Service brake: hydraulically powered dual-circuit oil immerse multidisc brake in both axles Safety/Parking brake: Spring applied hydraulically release fail-safe type brake. Brake testing possible from Cabin	Greasing system Centralized grease fittings for the carriers
Steering Hydraulic frame steering Orbitrol pilot type Articulation angle: +/- 40°	Other optionals: Fire suppression system Ansul system Jack leg at load end with engine end. Enclosed Cab with Air-condition

Available Attachment mounted on universal chassis	Engine Standards Options
a. Lifting platforms (Hydro Pipe jack or tilting) b. Crane 12Knm for lifting, Rig crane c. Grapple for crane d. Sliding safety Roof (Adjustable for height) e. Lube Tank (At most 7 kinds of Lube) f. Miner Carrier	Engine: Liquid Cooled Turbo charged Cummins QSB4.5 or any compacted design engines for MSHA standard.

TECHNICAL DEVELOPMENT & VEHICLE CAPABILITIES

Established since 2016 with an 11-professional technical expert and engineers team to develop off-highway underground mining trackless vehicles.

Modifies low-pollution engines designed specifically for underground mines.

Develops shaft-fixed Power shift Transmission and Torque converters.

Features heavy-duty axles with SAHR brake as well as integrated brakes.

Provides reliable cable and battery vehicles to support modern trackless mining applications.

Frequently Asked Questions

What is the payload capacity and primary application of the TU312 vehicle?

The TU312 is designed with a 12-ton payload chassis specially configured for underground mining and multifunction applications.

What engine options are available for the TU312 utility vehicle?

The standard engine is an air-cooled F6L914 engine producing 112 Kw at 2300 rpm (Tier II Approved). There is also an option for a liquid-cooled turbo-charged engine standard for MSHA applications.

What types of attachments can be mounted on the chassis?

The universal chassis can be fitted with various attachments including lifting platforms, a 12Knm rig crane, a crane grapple, a sliding safety roof with adjustable height, lube tanks supporting up to 7 kinds of lube, and a miner carrier configuration.

What is the maximum speed and performance on inclines?

The TU312 features a 3-speed transmission, reaching speeds of 6km/h in 1st gear, 12km/h in 2nd gear, and 25km/h in 3rd gear. It has a maximum speed of 9km/h in a 1:7 inclined tunnel with a maximum tractive effort of 132KN.

What safety and braking systems are equipped on the vehicle?

It features a dual-circuit oil-immersed multi-disc service brake in both axles and a spring-applied, hydraulically-released fail-safe parking/safety brake that can be tested directly from the cabin. It also comes with a FOPS/ROPS approved cabin.

What warranties and post-purchase support are provided?

The product is supplied new with a 2-year warranty and includes 2 years of dedicated after-sales service.
