72V 4X4 Electric Utvs 10kw Farm Utility Vehicles with Coc EEC Certification

Product Introduction

⚡ 4X4 Electric UTV

This multi-functional all-terrain off-road 4WD electric vehicle is designed for farms, parks, and other outdoor operations. It features an electric tipping cargo box, a front-mounted electric winch, and a rear multi-functional trailer hitch suited for towing various equipment.

Equipped with a high-performance 72V / 10kW power system and a robust 4WD system with a differential lock, this vehicle offers exceptional performance. It seats 2 passengers comfortably, supports a loading capacity of 700kg, and delivers a towing capability of 3000kg. Options include lithium battery upgrades and customized colors.

Specifications

Electrical System
Motor	72V 10KW permanent magnet synchronous motor
Battery	9*8V Large capacity deep cycle traction power battery or lithium battery
Charger	Fully automatic high-frequency high-efficiency pulse charger, Input 110V/220V, 50Hz; Output 48V, 25A
Controller	CMOS Continuously variable transmission system, equipped with automatic anti-slip function, downhill speed limit, and personalized program design
Accelerator	Original Inductive Contactless Transmission System
Chassis & Mechanical Systems
Chassis Frame	Frame style, high-strength steel structure, double rust prevention treatment with hot sprayed zinc coating
Body Cover	High strength impact resistant composite material cover (PT+PBT Alloy injection molded front cover) with anti-impact function and long life span
Rear Axle	Motor direct connected integral rear axle with main reduction and differential
4x4 System	Rear drive with main reduction and differential; Front wheel drive with secondary reduction and differential, connected through a middle drive shaft. Available switch between rear wheel drive, four-wheel drive, and four-wheel drive front differential lock.
Brake System	Dual circuit four-wheel hydraulic brake (front disc brakes with rear drum brakes), mechanical parking (handbrake)
Front Suspension	Single A-arm shape, Spiral spring shock absorber
Rear Suspension	Multi-plate leaf spring and cylinder hydraulic shock absorber non-independent suspension
Steering System	Single reduction rack and pinion with auto return
Accessories & Comfort
Trailer Setup	Equipped with trailer hook, front electric winch, offering excellent rescue and towing functions
Lighting System	Headlights, brake lights, reverse buzzer, electric horn
Seat System	Single seat system, adjustable distance back and forth, ergonomic design for comfortable riding
Tires	Vacuum radial micro car tires, F/R 23×11-12
Dashboard	Ignition switch, power meter, direction selector switch, turn signal indicator light, hour meter, etc.
Windshield	Automotive safety tempered glass
Roof	Lightweight and sturdy PP injection molded parts
Optional Extras	Rain curtain, cargo box protective aluminum plate, road/grass/off-road tires, lithium battery, electric power steering gear
Technical Parameters & Performance
Curb Weight	880kg	Loading Capacity	1000kg (Including driver, passenger, cargo)
Dimensions (L×W×H)	2880×1590×1940mm	Max Range	≥100km
Cargo Tray Size	1200×1280×230mm (Tipping tray)	Min. Ground Clearance	190mm
Wheelbase (Front/Rear)	Front: 1330mm / Rear: 1180mm	Braking Distance	≤5m
Shaft Distance	1920mm	Gradeability	30%
Min. Turning Radius	3700mm	Maximum Noise	≤60db
Seats	2 seats	Forward Max Speed	24-30km/h

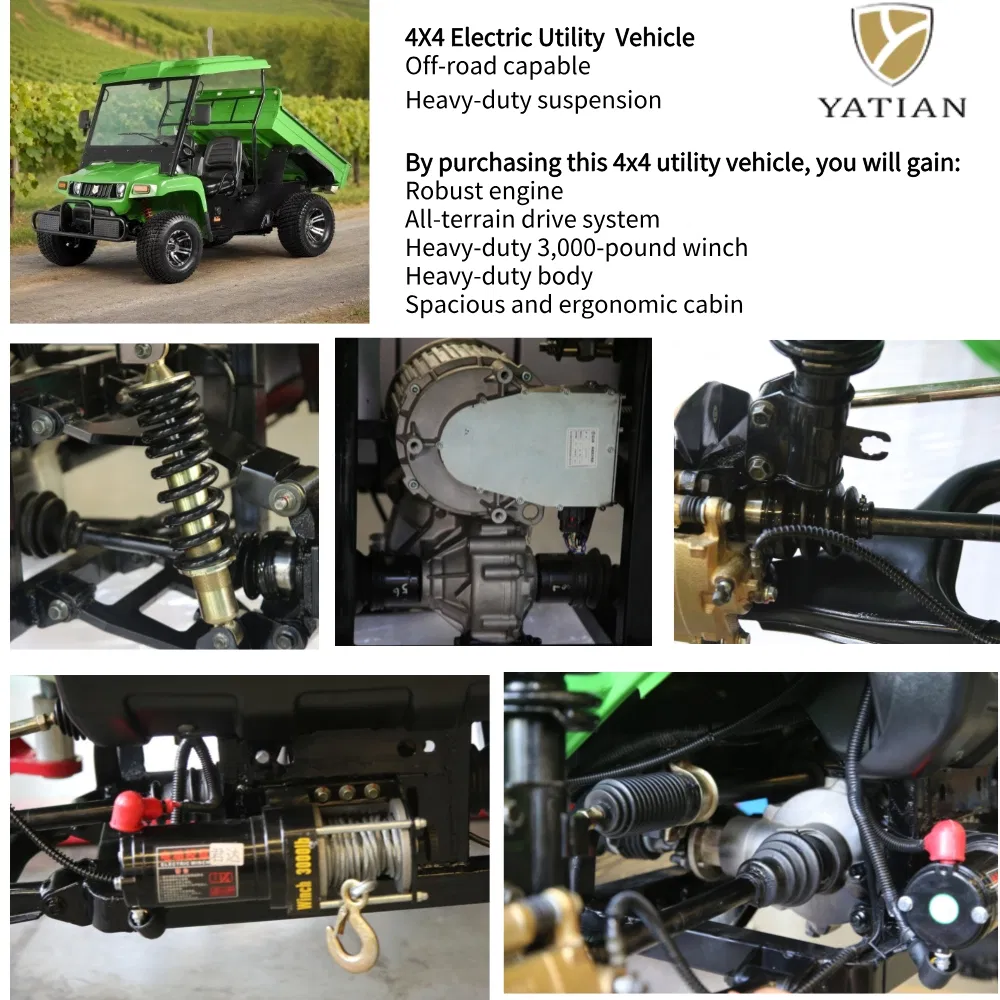

Electric UTV 10kw Farm Vehicle detail view

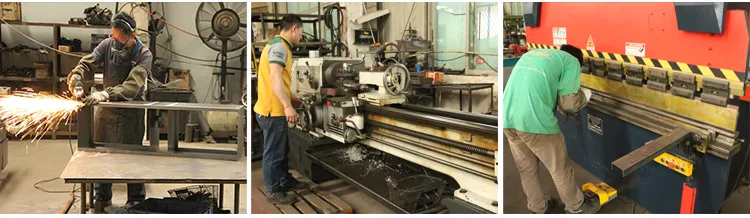

Electric UTV certifications and quality design details

Frequently Asked Questions

Q What type of battery powers this 4X4 Electric UTV?

The UTV is powered by a high-capacity 72V configuration, featuring either nine 8V deep-cycle traction lead-acid batteries or an optional high-performance lithium battery upgrade depending on your operating requirements.

Q What is the maximum driving range on a single charge?

The vehicle offers a maximum driving range of ≥100km on a full charge. Real-world range depends on payload weight, driving terrain, and battery configurations.

Q How much weight can this electric utility vehicle load and tow?

This UTV has a maximum loading capacity of 1000kg (inclusive of driver, passenger, and cargo inside the tipping tray) and can tow up to 3000kg using its rear multi-functional trailer hitch.

Q How does the 4x4 drive system operate on steep terrains?

The vehicle features an switchable system allowing operators to toggle between rear-wheel drive, four-wheel drive, and front differential lock. Combined with a 30% gradeability capacity, it delivers excellent traction control on steep or muddy slopes.

Q What safety components are standard on the vehicle?

Standard safety components include a dual-circuit four-wheel hydraulic braking system (front disc brakes and rear drum brakes), mechanical parking brake, automotive safety tempered glass windshield, headlights, brake lights, a reverse buzzer, and an electric horn.

Q What is the capacity of the tipping cargo tray?

The electric tipping cargo tray measures 1200mm in length, 1280mm in width, and 230mm in depth, allowing easy unloading of soil, harvest, toolsets, and other heavy farming equipment.
