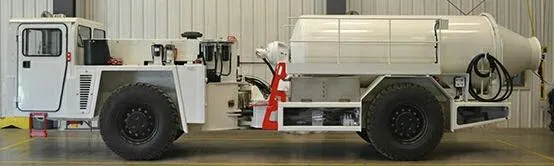

Underground Utility Vehicle - Lube Tank for Underground Mining Application

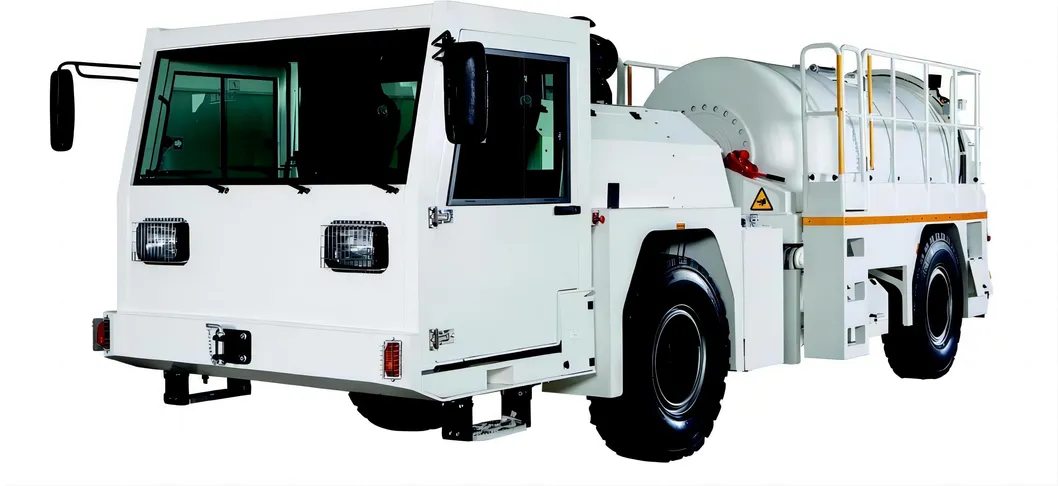

Underground Oil Tank for Underground Mining Application

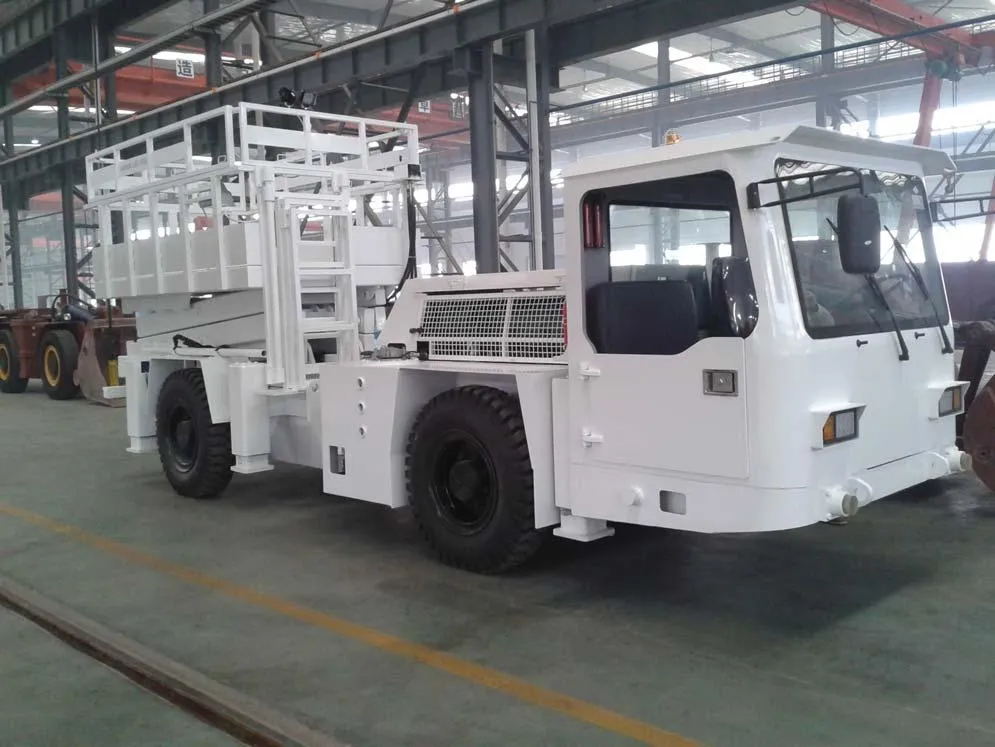

Underground Scissor Lift Vehicle for Underground Mining Application

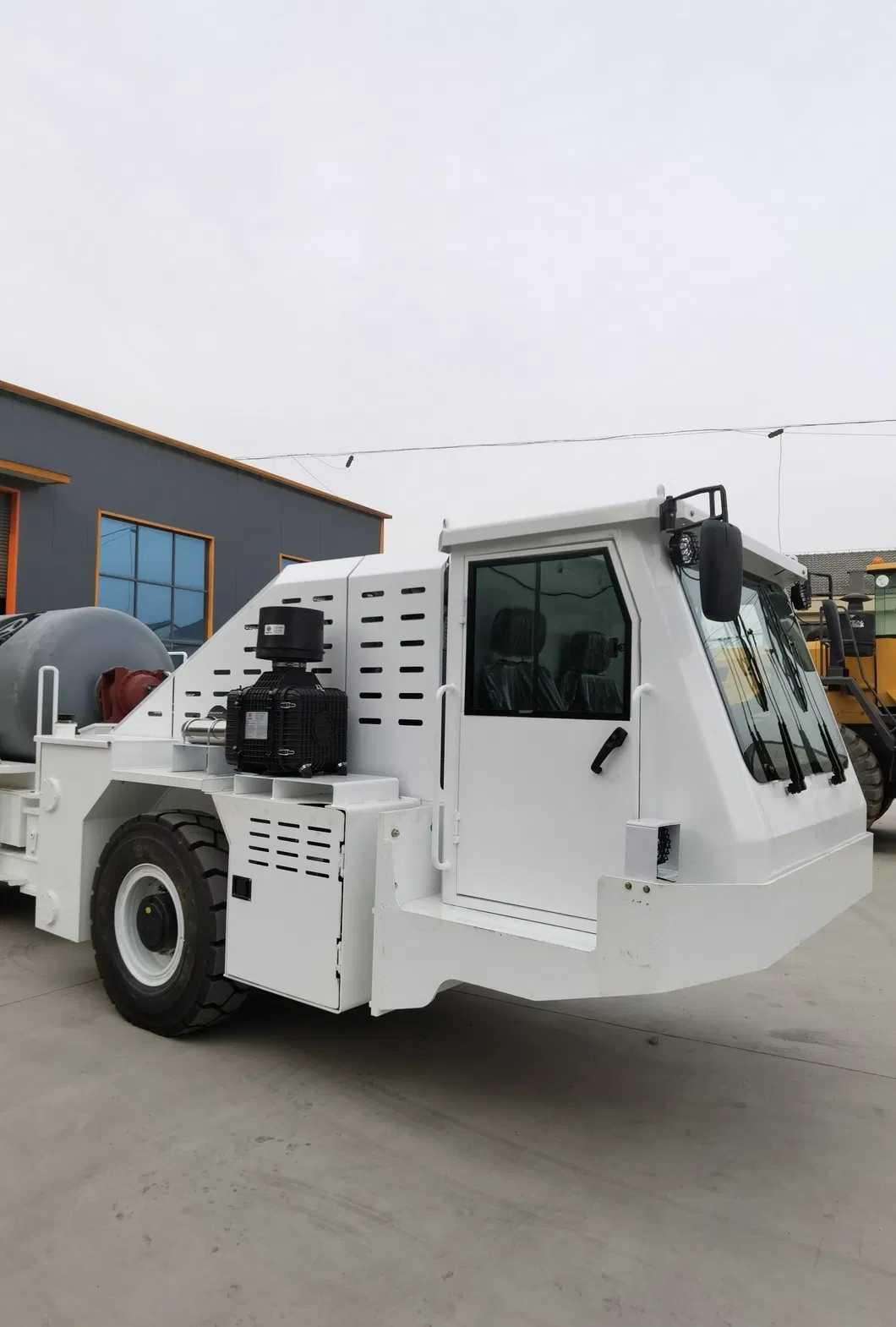

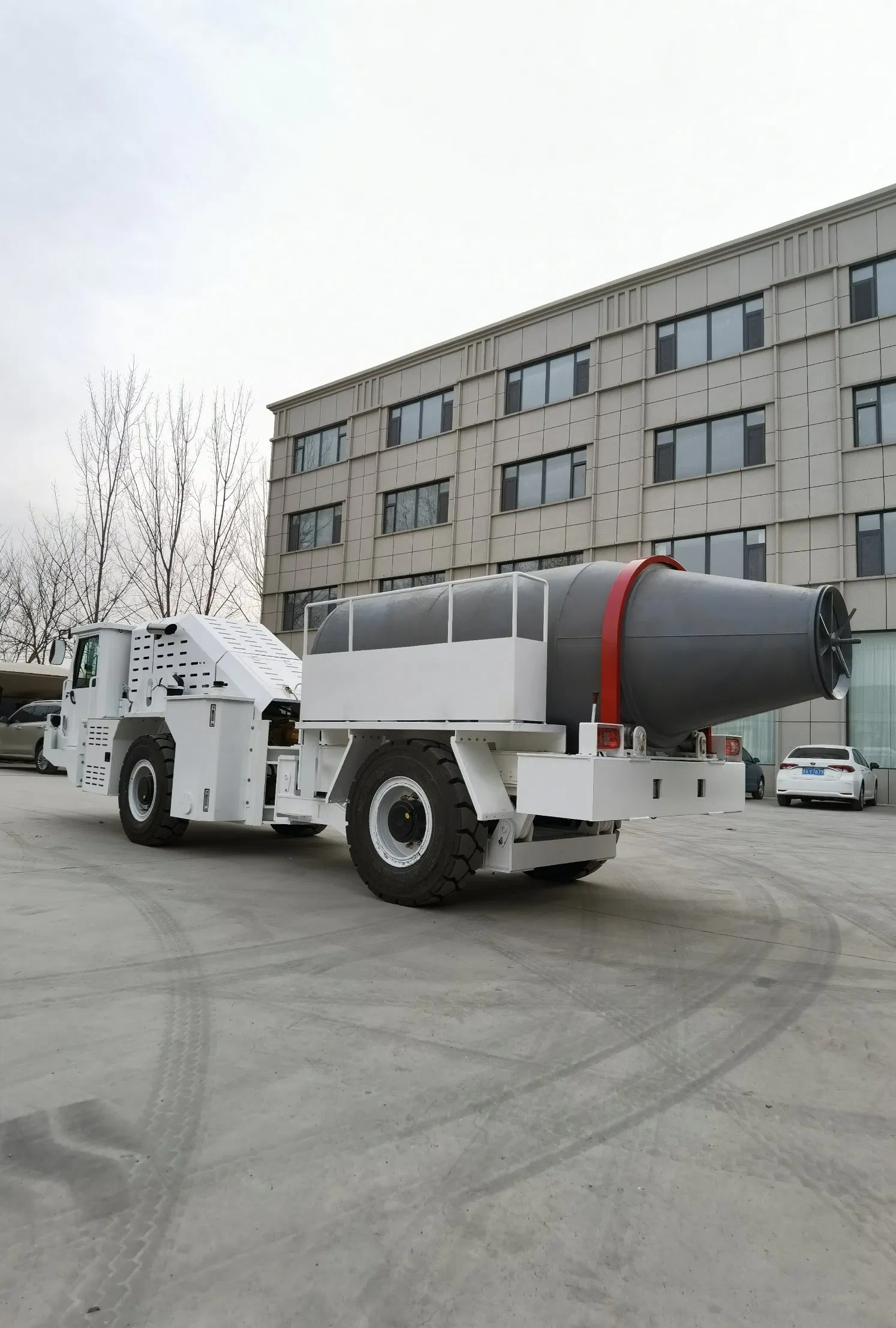

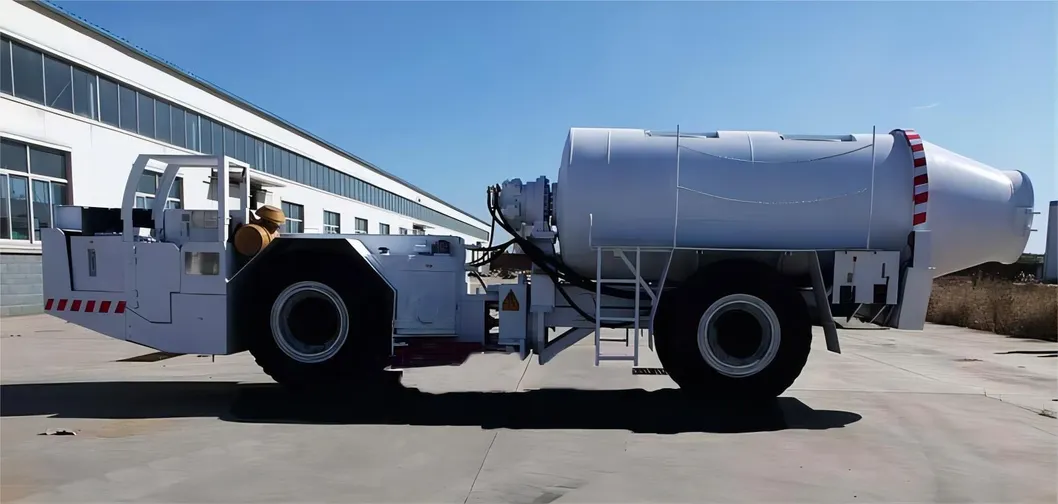

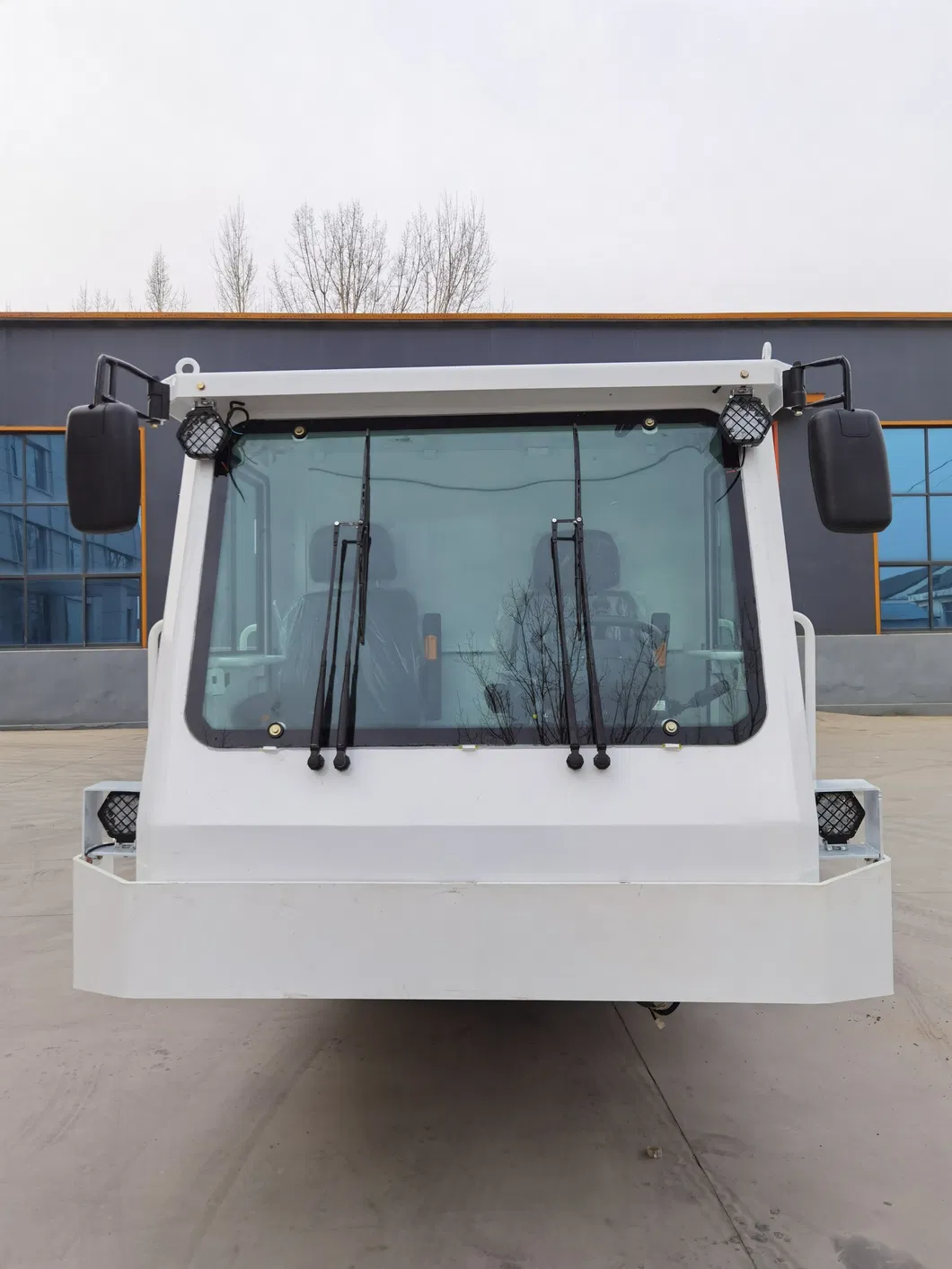

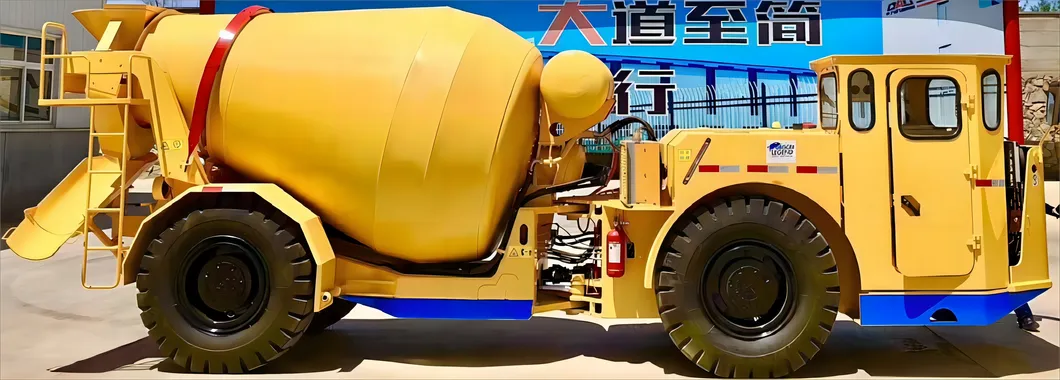

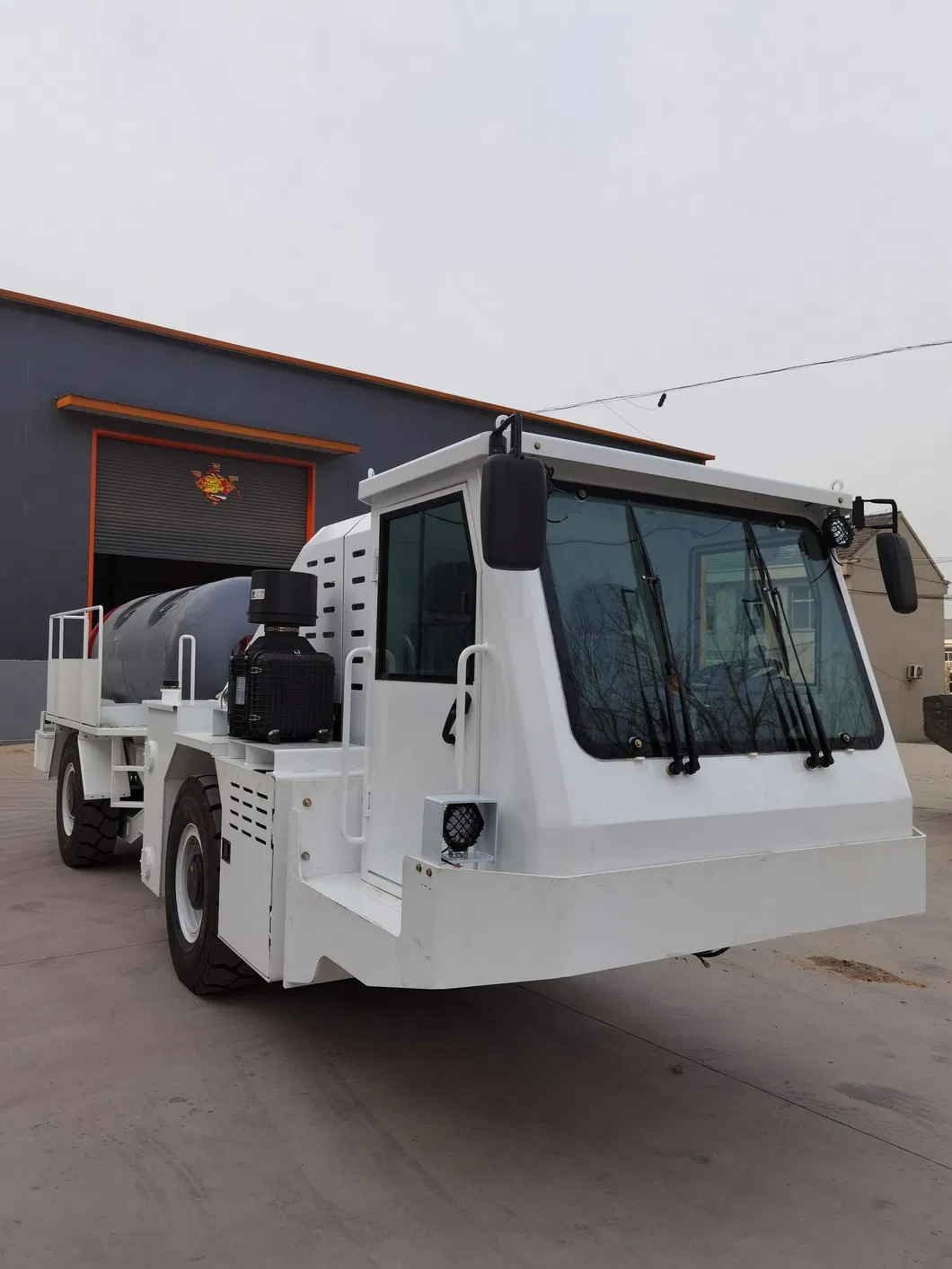

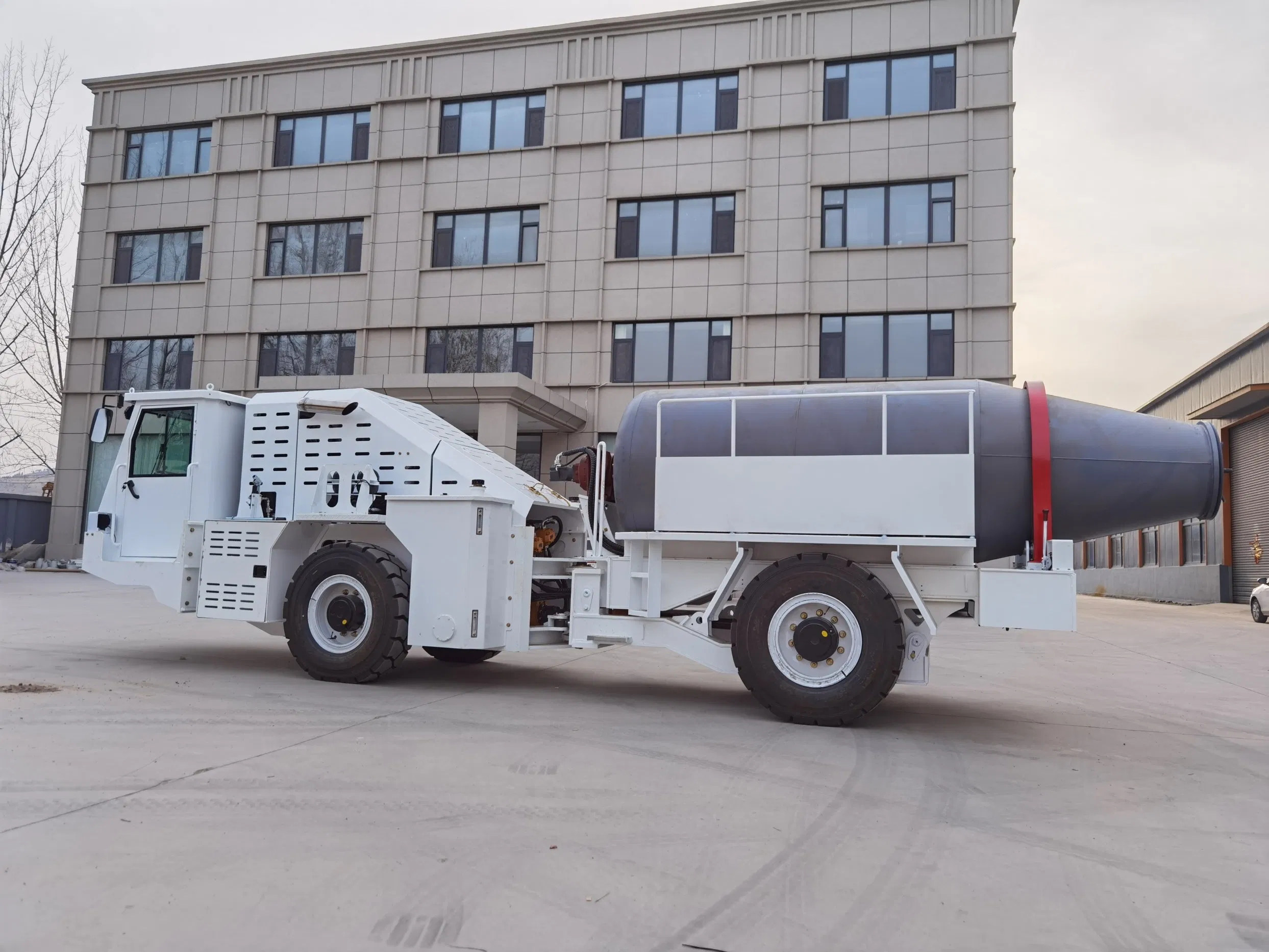

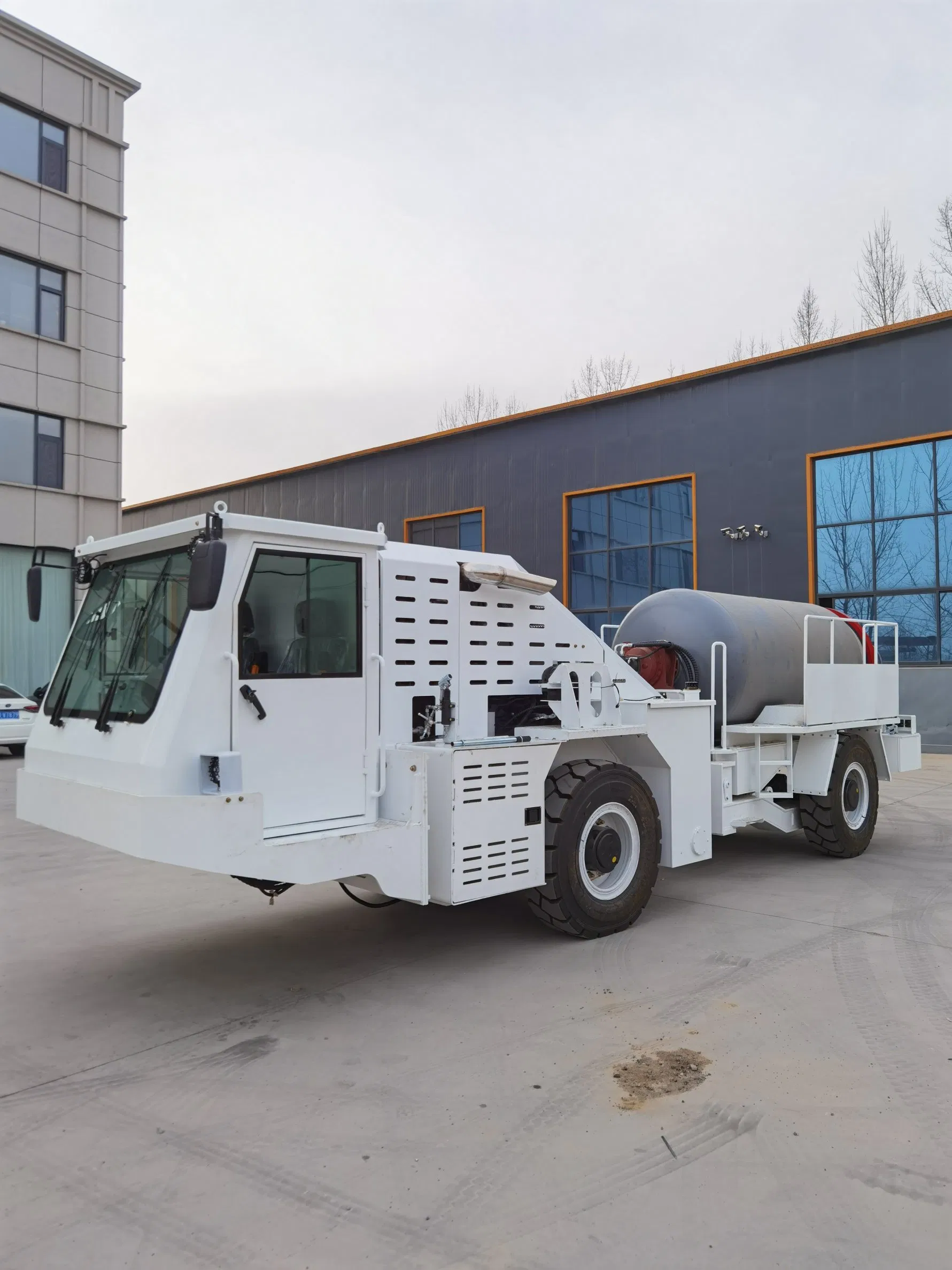

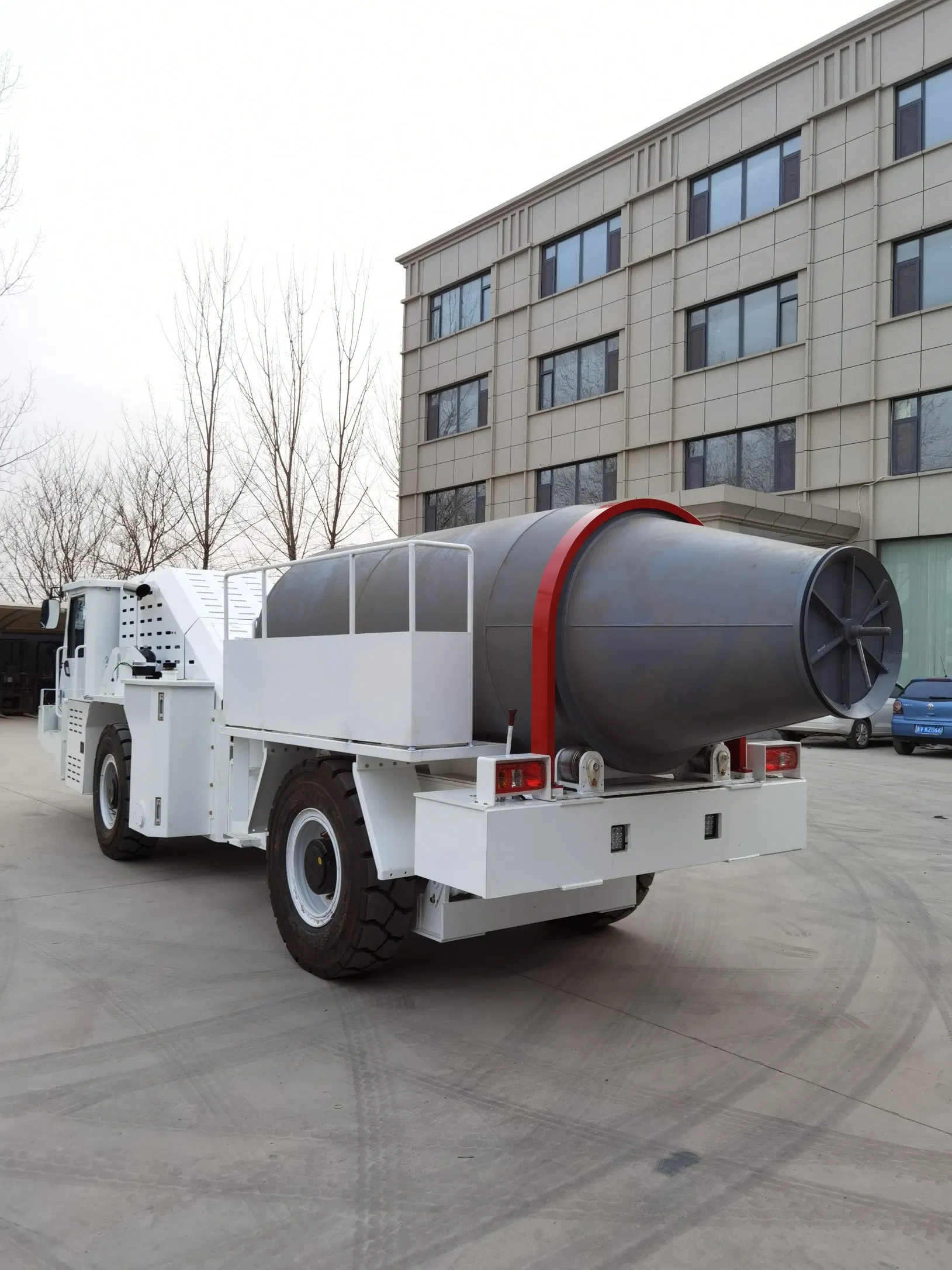

Underground Concrete Mixer Truck Utility Vehicle
Product Series of Concrete Mixer Vehicle-Utility Vehicle
Capacity
Effective Capacity
Total Volume
Diameters
Tilting Angle
Motor
Pumps
Outline Dimension (LxWxH mm)
Weight
1-1.5m³
1-1.5 m³
2.5 m³
1.4 m
13°
BMT30-125
50 Variable Piston
3600 x 1600 x 1750
1150 KG
2-2.5m³
2-2.5 m³
3.6 m³
1.6 m
13°
BMT30-125
50 Variable Piston
3750 x 1600 x 1810
1200 KG
3m³
3 m³
5.2 m³
1.8 m
15°
BMT30-125
50 Variable Piston
4220 x 1800 x 2160
1400 KG
4m³
4 m³
6.1 m³
1.8 m
15°
BMT30-160
50 Variable Piston
4610 x 1800 x 2215
1500 KG
5m³
5 m³
8.5 m³
2.05 m
14°
BMT50-250
63 Variable Piston
4690 x 2050 x 2320
2280 KG
6m³
6 m³
9.6 m³
2.05 m
14°
BMT50-250
63 Variable Piston
5100 x 2050 x 2432
2330 KG
7m³
7 m³
10.2 m³
2.15 m
16°
BMT50-250
63 Variable Piston
5180 x 2150 x 2510
2450 KG
8m³
8 m³
11.8 m³
2.2 m
16°
BMT50-400
80 Variable Piston
5374 x 2200 x 2573
2670 KG
9m³
9 m³
13.2 m³
2.3 m
14°
SUNNY-90
SUNNY-90
5640 x 2300 x 2687
2980 KG
10m³
10m³
15 m³
2.3 m
14°
SUNNY-90
SUNNY-90
6120 x 2300 x 2742
3210 KG
Introduction of Products

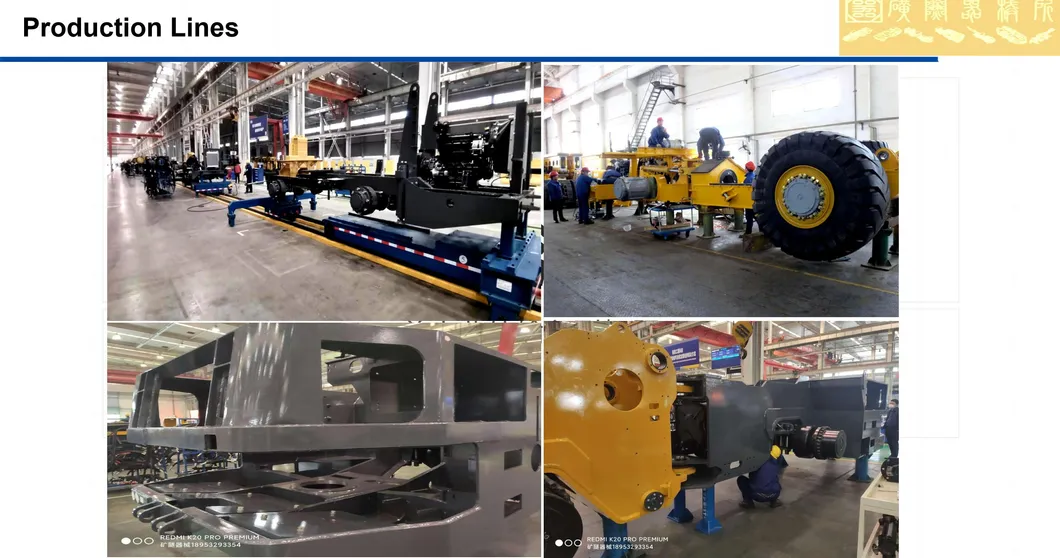

Factory Review
Frequently Asked Questions
1. What is the mixing capacity range of these underground concrete mixer vehicles?
The product series offers an effective capacity range starting from 1-1.5 m³ up to a large capacity of 10 m³ to suit various sizes of underground mining projects.

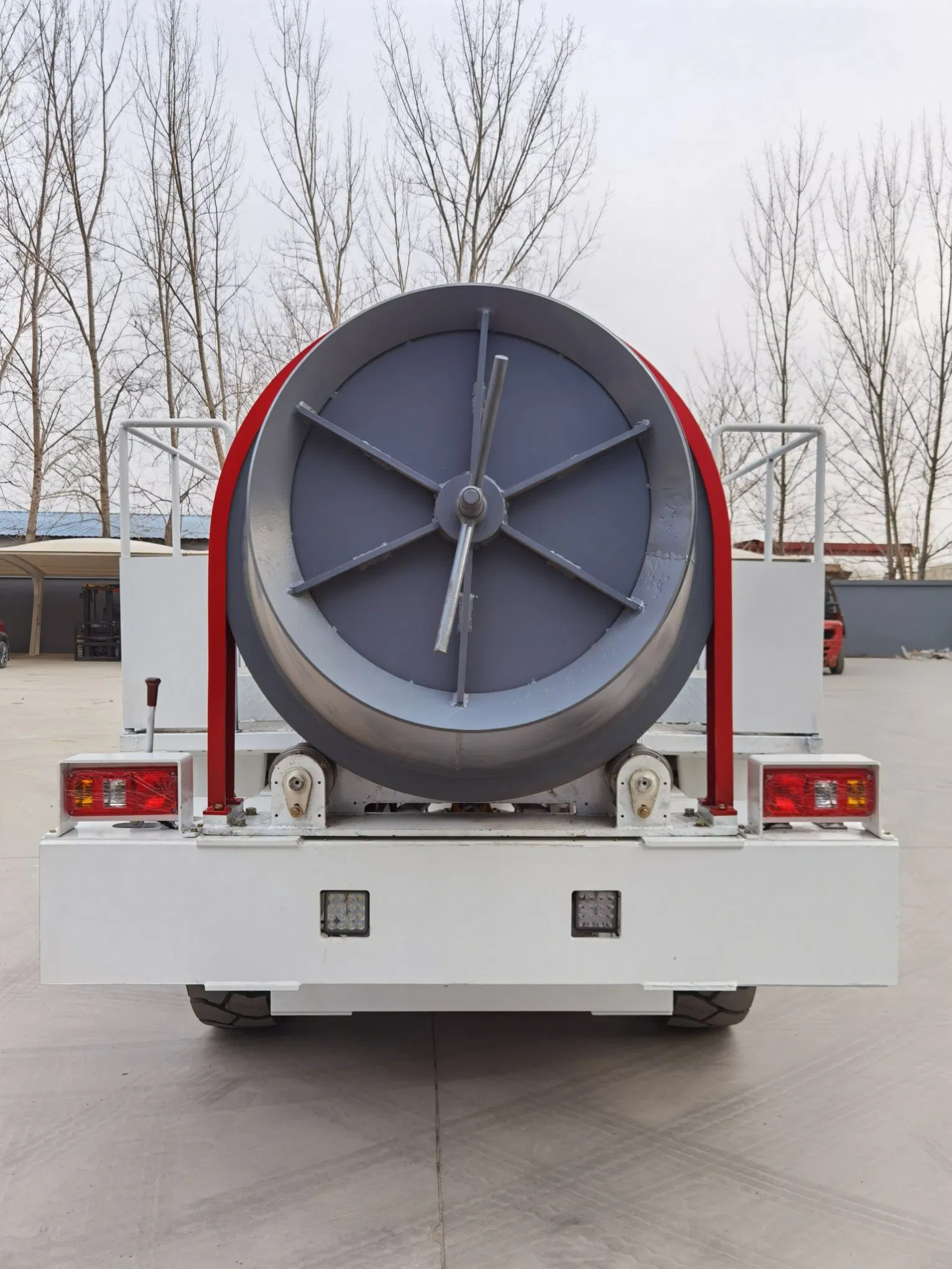

2. How durable is the agitator drum under harsh mining environments?
The utility vehicle uses high-grade stainless steel with heat-resistant treatment, ensuring high resistance to corrosion, heat, and physical wear during prolonged underground operations.
3. What braking systems are implemented to ensure safety underground?
The vehicle is engineered with a redundant braking setup: a hydraulic release Posi-stop service brake, an independent park brake button, and an emergency brake system activated by a button coupled with a solenoid valve.
4. What is the maximum gradient climb capacity of the KJCJ-4?
The vehicle is equipped with a high-torque transmission system allowing it to safely negotiate a maximum admissible climbing gradient of up to 16° under full load conditions.
5. Are customized color schemes and specification adjustments possible?
Yes, we provide customization options. Both the external paint color (such as white or custom themes) and specific configuration features can be tailored based on request.
6. What warranty and after-sales support are standard?
Each vehicle model comes standard with a comprehensive 2-year warranty period and 2 years of dedicated after-sales engineering service support.
