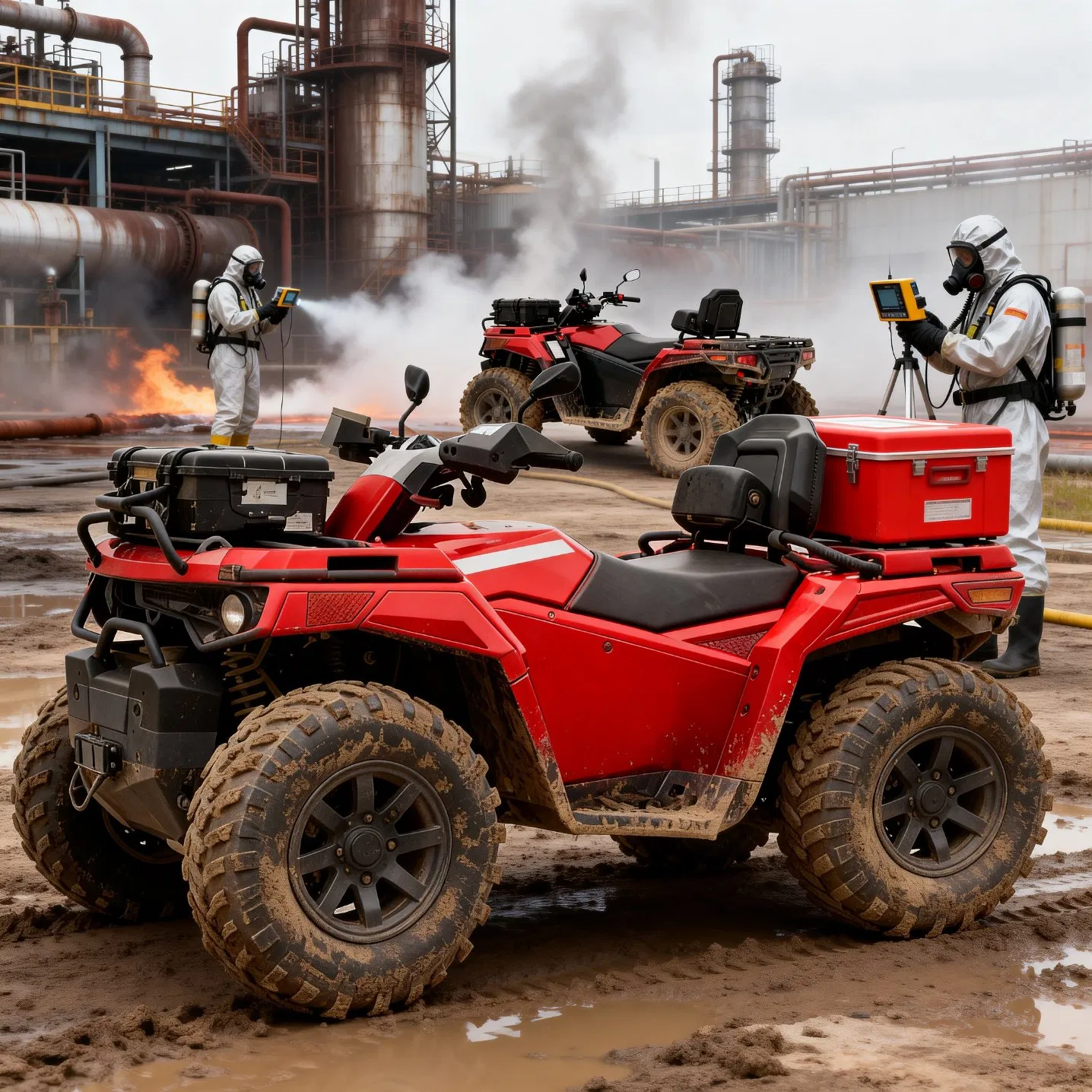

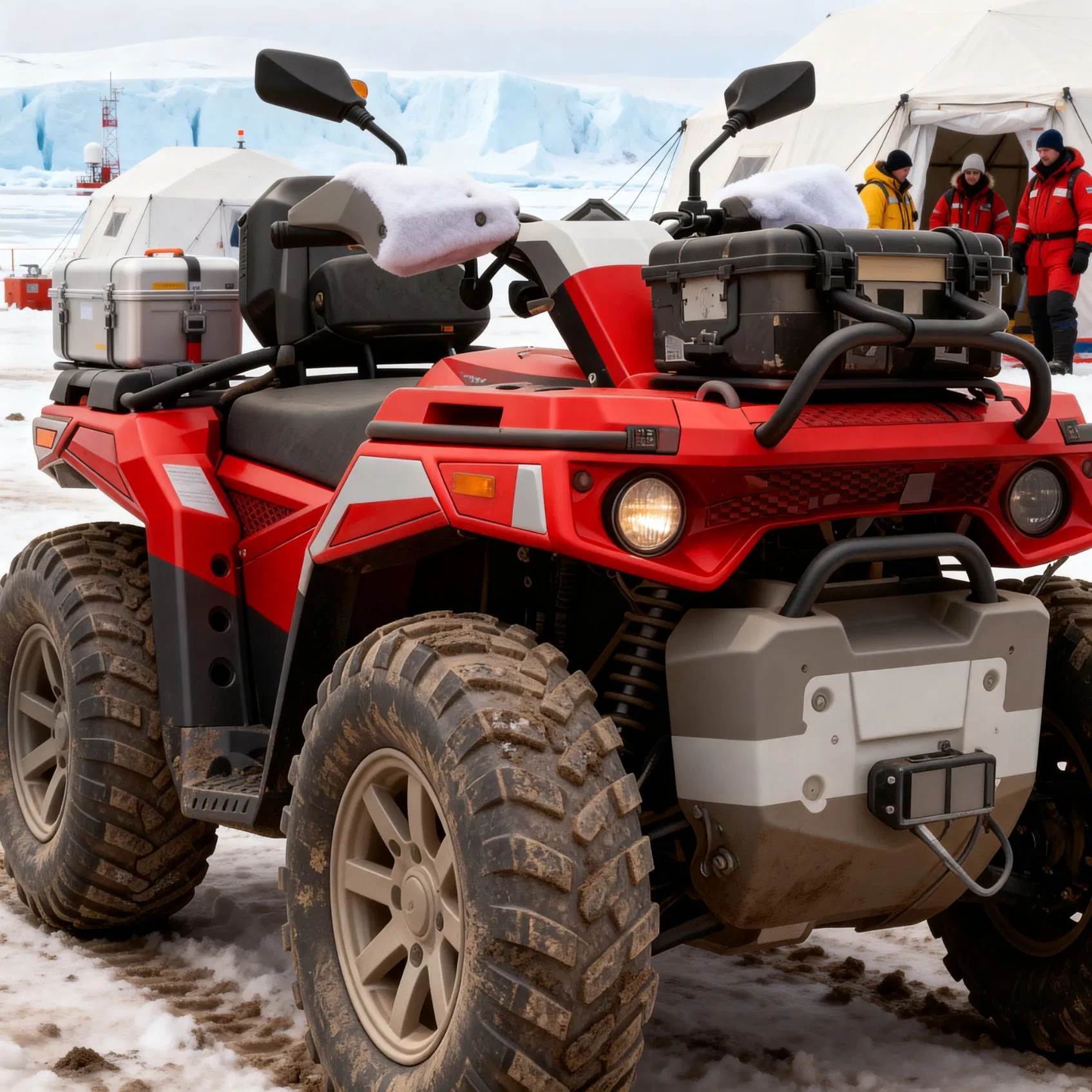

4X4 Utility Patrol Vehicle for Industrial Parks

1 / 5

4X4 Utility Patrol Vehicle for Industrial Parks

Send Inquiry

Product Description

Technical Specifications

Type	Rock 12 Pro	Rock 12	Rock 12 i
DIMENSIONS
Overall Vehicle Size (L x W x H)	92.5 x 50.3 x 55 in (2350x1278x1400 mm)	92.5 x 50.3 x 55 in (2350x1278x1400 mm)	92.5 x 50.3 x 55 in (2350x1278x1400 mm)
Wheelbase	57.5 in (1460 mm)	57.5 in (1460 mm)	57.5 in (1460 mm)
Ground Clearance	11.8 in (300 mm)	11.8 in (300 mm)	11.8 in (300 mm)
Seat Height	35.4 in (900 mm)	35.4 in (900 mm)	35.4 in (900 mm)
Person Capacity	2	2	2
Max. Power	22.8HP (17kw)	22.8HP (17kw)	22.8HP (17kw)
Max. Speed	70km/h	70km/h	70km/h
Max. Wheel Torque	1923N·m	1923N·m	1923N·m
Estimated Dry Weight	992lb (450kg)	992lb (450kg)	992lb (450kg)
Payload Capacity	540lb (245kg)	540lb (245kg)	540lb (245kg)
Climbing Capacity	40°	40°	40°
Drive System Type	2WD/4WD	2WD/4WD	2WD/4WD
Towing Capacity	1500lb (680kg)	1500lb (680kg)	1500lb (680kg)
CHASSIS
Steering	EPS	EPS	EPS
Brakes	Hydraulic Disc Brake	Hydraulic Disc Brake	Hydraulic Disc Brake
Parking Brake	Lockable Handle, Mechanical Parking Brake	Lockable Handle, Mechanical Parking Brake	Lockable Handle, Mechanical Parking Brake
Front Suspension	Dual A-Arm Independent Suspension	Dual A-Arm Independent Suspension	Dual A-Arm Independent Suspension
Rear Suspension	Dual A-Arm Independent Suspension, With Balance Bar	Dual A-Arm Independent Suspension, With Balance Bar	Dual A-Arm Independent Suspension, With Balance Bar
Shock Absorber Type	Adjustable Hydraulic/Gas	Adjustable Hydraulic/Gas	Adjustable Hydraulic/Gas
Differential lock	Front Differential Lock	Front Differential Lock	Front Differential Lock
Wheels	14 in. (35.6 cm) Aluminum	14 in. (35.6 cm) Aluminum	14 in. (35.6 cm) Aluminum
Front Tires	27 x 9-14	27 x 9-14	27 x 9-14
Rear Tires	27 x 11-14	27 x 11-14	27 x 11-14
ELECTRICAL SYSTEM
Instrument Panel	5in TFT	5in TFT	5in TFT
Lights	LED headlights, LED taillights	LED headlights, LED taillights	LED headlights, LED taillights
BATTERY PACK
Rated Voltage	144V	144V	144V
Battery Core Material	Ternary Lithium	Ternary Lithium	LFP
BMS	√	√	√
Battery Capacity	110Ah	70Ah	72Ah
Charging Time	1.65h(20%-80%)	1h(20%-80%)	1.1h(20%-80%)
Estimated Range	120km	80km	80km
ELECTRICAL MOTOR
Motor Type	Permanent Magnet Synchronous Motor	Permanent Magnet Synchronous Motor	Permanent Magnet Synchronous Motor
Rated Power	12kw	12kw	12kw
Max. torque	136N·m	136N·m	136N·m

Frequently Asked Questions

What is the maximum speed and climbing capacity of the Rock 12 series?

All models in the Rock 12 series (Rock 12 Pro, Rock 12, and Rock 12 i) can reach a maximum speed of 70 km/h and feature a climbing capacity of 40 degrees.

What are the differences in battery configurations between the models?

The Rock 12 Pro features a 110Ah Ternary Lithium battery with a range of 120km. The Rock 12 features a 70Ah Ternary Lithium battery with an 80km range. The Rock 12 i is equipped with a 72Ah LFP battery that also delivers an 80km range.

How long does it take to charge the vehicles?

To charge from 20% to 80%, the Rock 12 Pro takes approximately 1.65 hours, the Rock 12 takes about 1 hour, and the Rock 12 i takes around 1.1 hours.

What are the towing and payload capacities?

All three models have a payload capacity of 540 lbs (245 kg) and a robust towing capacity of up to 1500 lbs (680 kg).

What kind of suspension and steering system is used?

The chassis is configured with EPS (Electronic Power Steering), a Dual A-Arm Independent Suspension for the front, and a Dual A-Arm Independent Suspension with a Balance Bar for the rear, providing high stability and comfort.
