High-Capacity Underground Mine Multifunctional Service Vehicle Mining Utilitiy Machine

Customization: Available
Type: Underground Utility Vehicle
Structure: Underground Utilities Service Vehicle

Product Description

Overview Specification After Sales Service Company Profile FAQ

Basic Info.

Model NO. SKUV0.5
Material Stainless Steel
Certification ISO9001:2008
Energy Saving Energy Saving
Warranty 1 Year
Color Yellow
Customized Customized
Condition New
After-sales Service 1 Year or 2000 Hours Which Come First.
Power Diesel, Electric, Battery Power Are All Available.
Introduction 1 Underground Mine Service Vehicle
Other Products Underground Mine Material Transport Vehicle
Other Products2 Mine Utility Transport Car
Other Products 3 Underground Cargo Service Vehicle
Other Products 4 Underground Mine Maintenance Vehicle
Other Products 5 Mining Engineering Service Vehicle
Other Products 6 Underground Repair Vehicle
Other Products 7 Underground Concrete Mixer Vehicle
Other Products 8 Underground Shotconcrete Vehicle
Other Products 9 Mine UTV
Other Products 10 Underground Personnel Carrier
Other Products 11 Mining Shuttle Car
Other Products 12 Underground Shuttle Vehicle
Other Products 13 Underground Crane Vehicle
Transport Package Nude Packing.
Origin China
Production Capacity 900 Units/Year

Packaging & Delivery

Package Size 8100.00cm * 1800.00cm * 2200.00cm
Package Gross Weight 9000.000kg

Product Description

High-performance Multifunctional Diesel Underground Utility Vehicle for Underground Mining Operation

We supply a wide classification of multifunctional underground utility vehicle products working in underground tunnels for special purposes and targets. Whether it requires a universal interchangeable chassis or a non-universal chassis, regardless of the purpose of the vehicle used in underground mines, we have corresponding products and technologies, and can even customize according to the customer's mining conditions. Currently, our main metal mining vehicle series includes: diesel concrete mixer trucks, diesel wet concrete spraying trucks, trackless personnel carriers, underground mining vehicles, trackless rubber-tired mining vehicles, trackless explosives transport vehicles, etc. All of our products obtain the China Mining Safety Certificate.

The SKUB0.5 lifting platform is a trackless lifting platform independently developed and designed according to the requirements of the latest national safety standards and on the basis of integrating advanced technologies at home and abroad. It is widely applicable to the ride of commuters in non-coal mines.

Specification

Key Features

  • The scientific and reasonable structure configuration design can meet the requirements of different working conditions such as turning radius, climbing slope and roadway passage in different mines. Special chassis design, fully sealed wet bridge (pressure loss protection type) and matched American MICO brake system are safe, stable and reliable, leading the industry.
  • Adopting high-strength structural steel stamping process, stress aging process and gas shielded welding technology, the structural parts of the whole vehicle can withstand strong loads after strength check. The driver's cab and commuter's carriage have passed the FOPS and ROPS standard testing certification, providing safety protection for the driver and passenger.
  • The driving and control system adopts a reasonable ergonomic layout design, sealed air-conditioned cab and centralized control design configuration, which is convenient, comfortable and easy to operate. The main electrical components and controllers, hydraulic components, and key components of the transmission system are made by well-known domestic and foreign brands, with reliable performance.
  • After strict shot blasting and rust removal, the antirust primer can meet the technical requirements of aircraft carrier grade, making the antirust, anti-corrosion ability and service life of the equipment stronger under various working conditions.
High-Capacity Underground Mine Multifunctional Service Vehicle Mining Utilitiy Machine

Key Configurations

  • Model No: SKUV0.5
  • Engine: High-torque, low-emission diesel engine (QSB5.9-C180)
  • Hydraulic System: Precision-controlled pumps and valves for smooth operation with Linde, Parker & MICO brands.
  • Drivetrain System: DANA CLARK & KESSLER transmission, torque converter and axles.
  • Cab: Ergonomic ROPS/FOPS-certified cabin with air conditioning.
  • Lifting Capacity: 0.5ton, 1 ton for your option.
  • Cabin: Enclosed cabin with air conditioner, ROPS & FOPS.
High-Capacity Underground Mine Multifunctional Service Vehicle Mining Utilitiy Machine

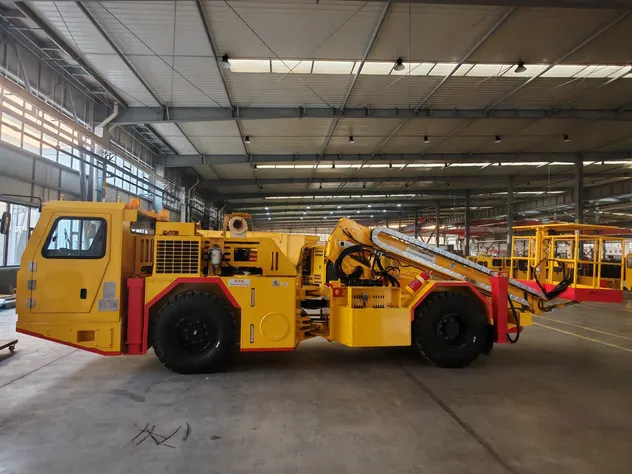

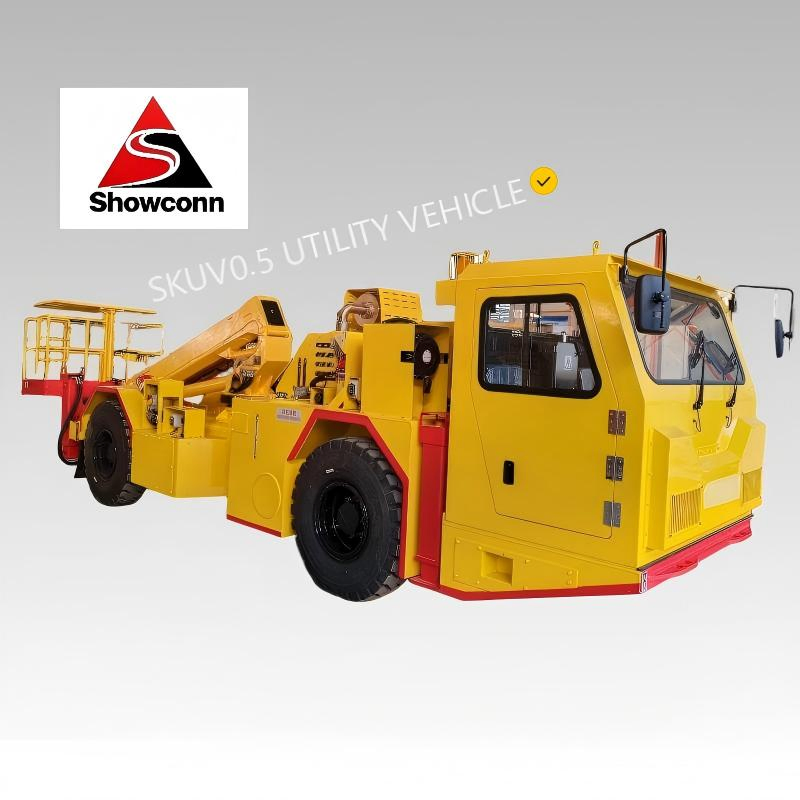

SKUV0.5 underground lifting platform
High-Capacity Underground Mine Multifunctional Service Vehicle Mining Utilitiy Machine

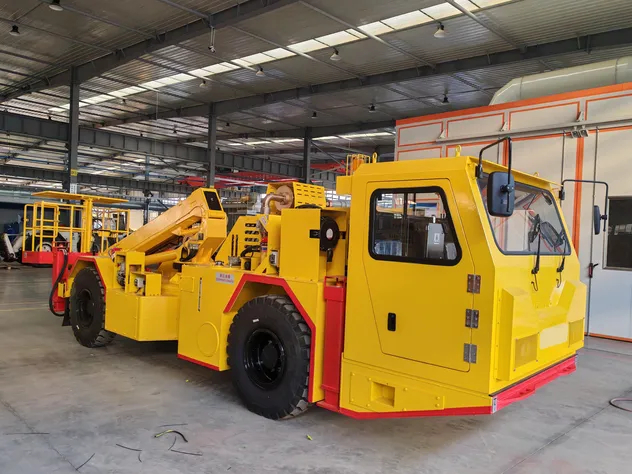

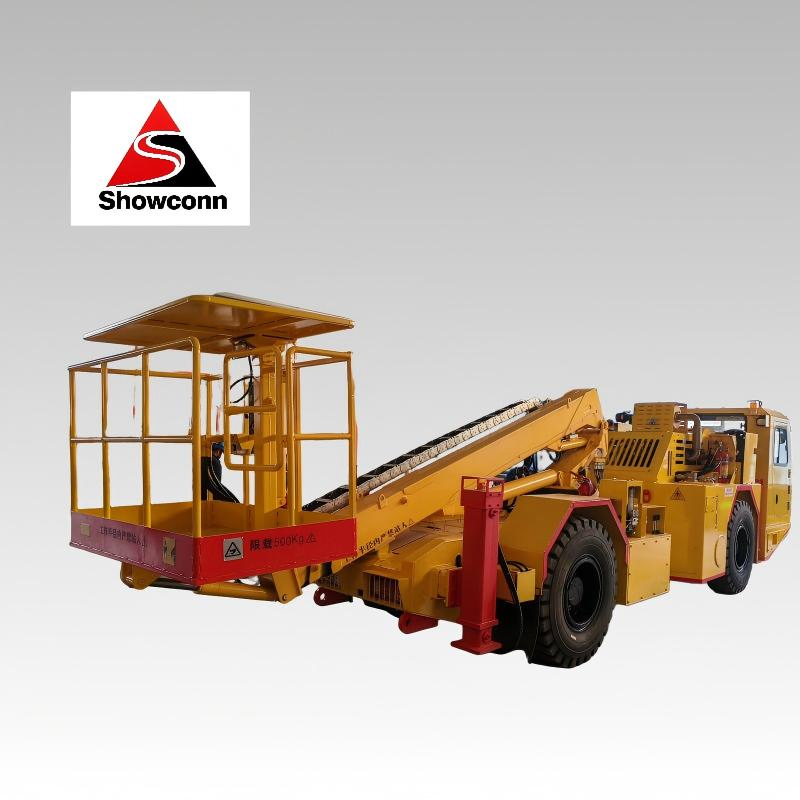

SKUV0.5 underground multifunctional utility vehicle
High-Capacity Underground Mine Multifunctional Service Vehicle Mining Utilitiy Machine

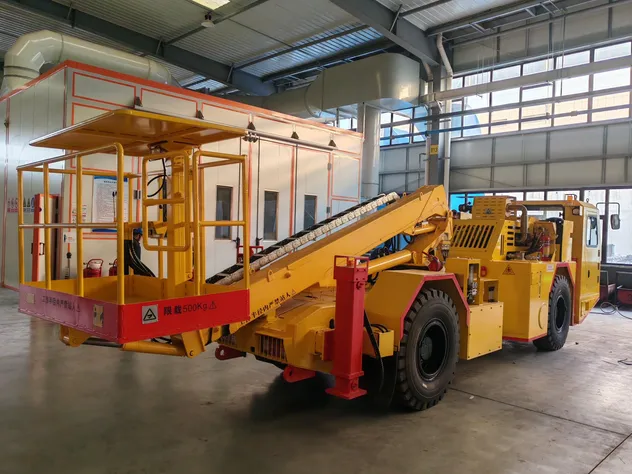

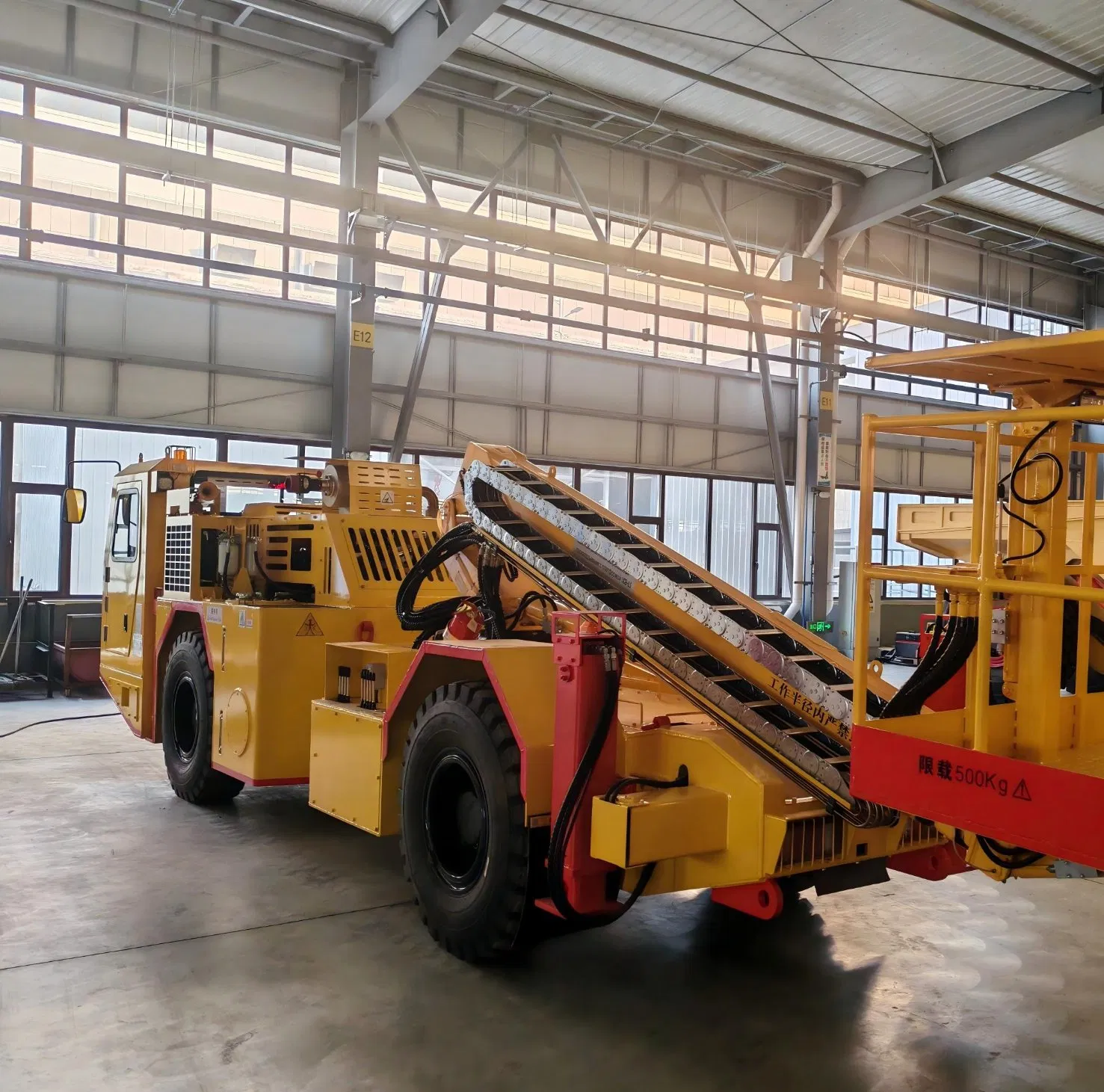

SKUV0.5 underground multifunctional utilities

Technical Specifications

(Custom configurations available upon request.)

Model SKUV0.5
Operating Weight (kg) 9000 Climbing ability (vertical) (°) 17
Engine Power (kW) 132 Drive Type 4x4 four-wheel drive
Lifting Capacity (T) 0.5 standard /1.0 as optional Emission standard National III
Lifting Form Scissor type/Arm type Inner Turning Radius (mm) 3765
Outer Dimensions (mm) 8100x1800x2200 Outer Turning Radius (mm) 5920
Traveling Speed (km/h) 0~25 Min. Ground Clearance (mm) ≥295
Drawings & Dimensions: Detailed CAD drawings and dimensional diagrams are available for download or upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.

After Sales Service

  • Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
  • Extended Warranty: Optional coverage up to 36 months.
  • Global Support: 24/7 technical assistance and service support.
  • Training: On-site or remote operation/maintenance training.

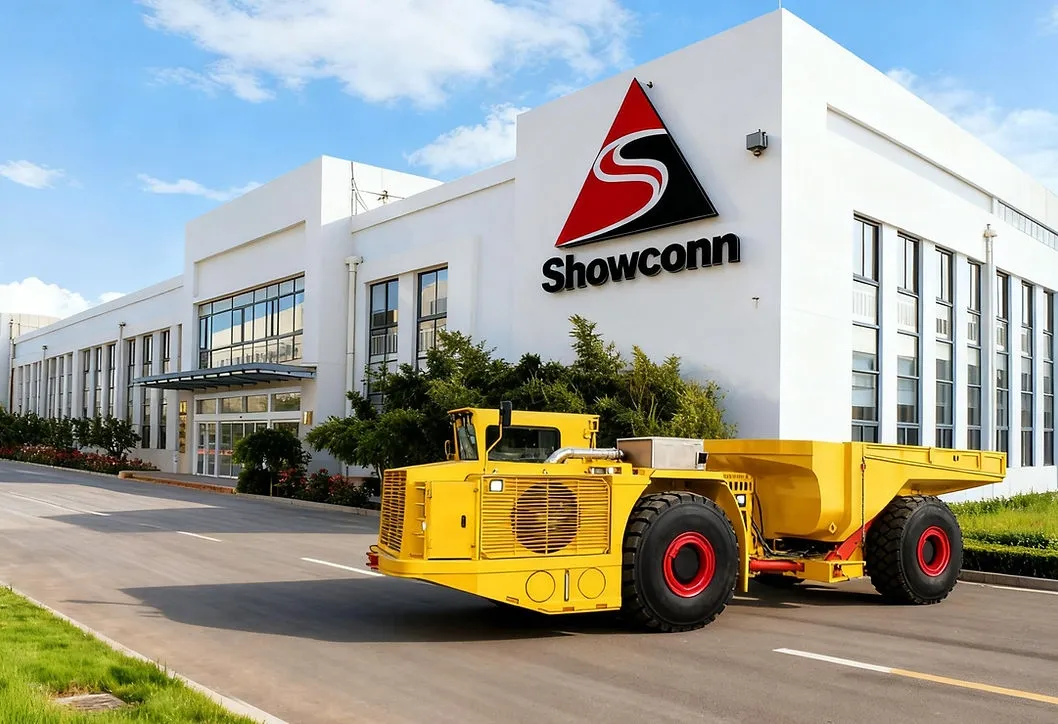

Company Profile

High-Capacity Underground Mine Multifunctional Service Vehicle Mining Utilitiy Machine

We are a professional enterprise providing customers with high-quality mining machinery for mining, construction and heavy industry field. Certified with ISO 9001, offering reliable machinery backed by R&D innovation and strict quality control. Our key products includes underground loaders, underground mining trucks, utility vehicles, drill jumbos etc. We also accept customized service of machines according to our clients' special requirement.

Why Choose Us?

  • 20 Years' Expertise
  • ODM capabilities
  • Competitive pricing & discounts
  • Good after service support
  • Mining Turnkey project solutions

Other Products

  • Underground Mining Truck
  • Scooptram
  • Diesel LHD
  • Utility Vehicles
  • Drill Jumbos
High-Capacity Underground Mine Multifunctional Service Vehicle Mining Utilitiy Machine
High-Capacity Underground Mine Multifunctional Service Vehicle Mining Utilitiy Machine

FAQ

What's the lead time for orders?
Standard models ship in 30 days; customized units require 60 days.
Do you provide after-sales service overseas?
Yes, we supply on-site after-sales service in overseas in key regions.
Can I request a customized bucket size?
Absolutely! We offer tailored attachments.
What documents do you provide for export?
Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
How do I place an order?
Contact us for a quote, then confirm with a PO.
What is the standard warranty on your underground utility vehicles?
The standard warranty is 12 months or 2,000 operating hours (whichever comes first), with optional extended coverage up to 36 months.
