Heavy Duty Underground Utility Vehicle Mining Equipment with Mining Safety Certificate

1 / 5

Heavy Duty Underground Utility Vehicle Mining Equipment with Mining Safety Certificate

Customization:	Available
Type:	Underground Service Vehicle
Structure:	Chass + Working Body

Send Inquiry

Product Description

Basic Info.

Model NO. TU312

Material Stainless Steel

Material Feature Heat Resistant

Certification ISO9001:2000

Energy Saving Energy Saving

Warranty 2 Years

Color White or Customized Color

Customized Customized

Condition New

After-sales Service 2 Years

Model Tu312

Transport Package Standard

Specification as request

Origin China

Production Capacity 200 Units/Year

Product Description

Underground Utility Vehicle TU312 Technical Data

Payload 12 ton Chassis for Underground Mining Multifunction Application

New generation of Drive-Train product lines

ℹ UNDERGROUND UTILITY VEHICLE PRODUCT RANGE:

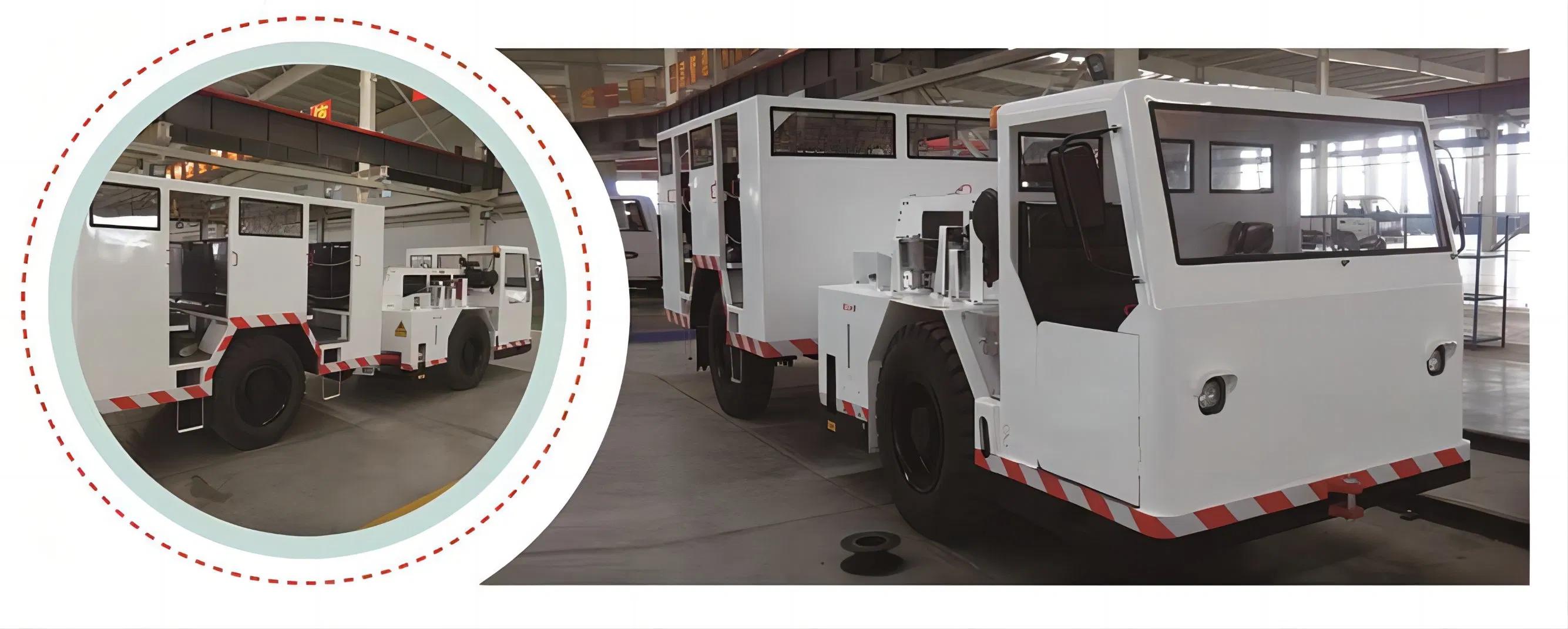

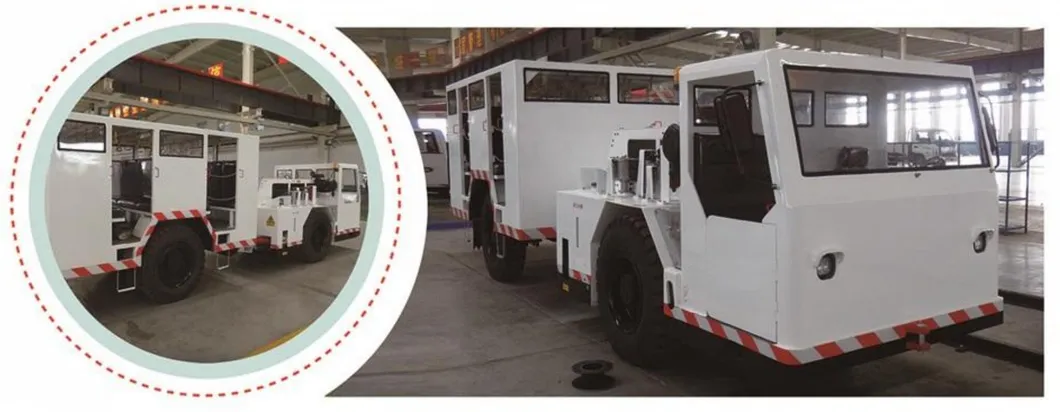

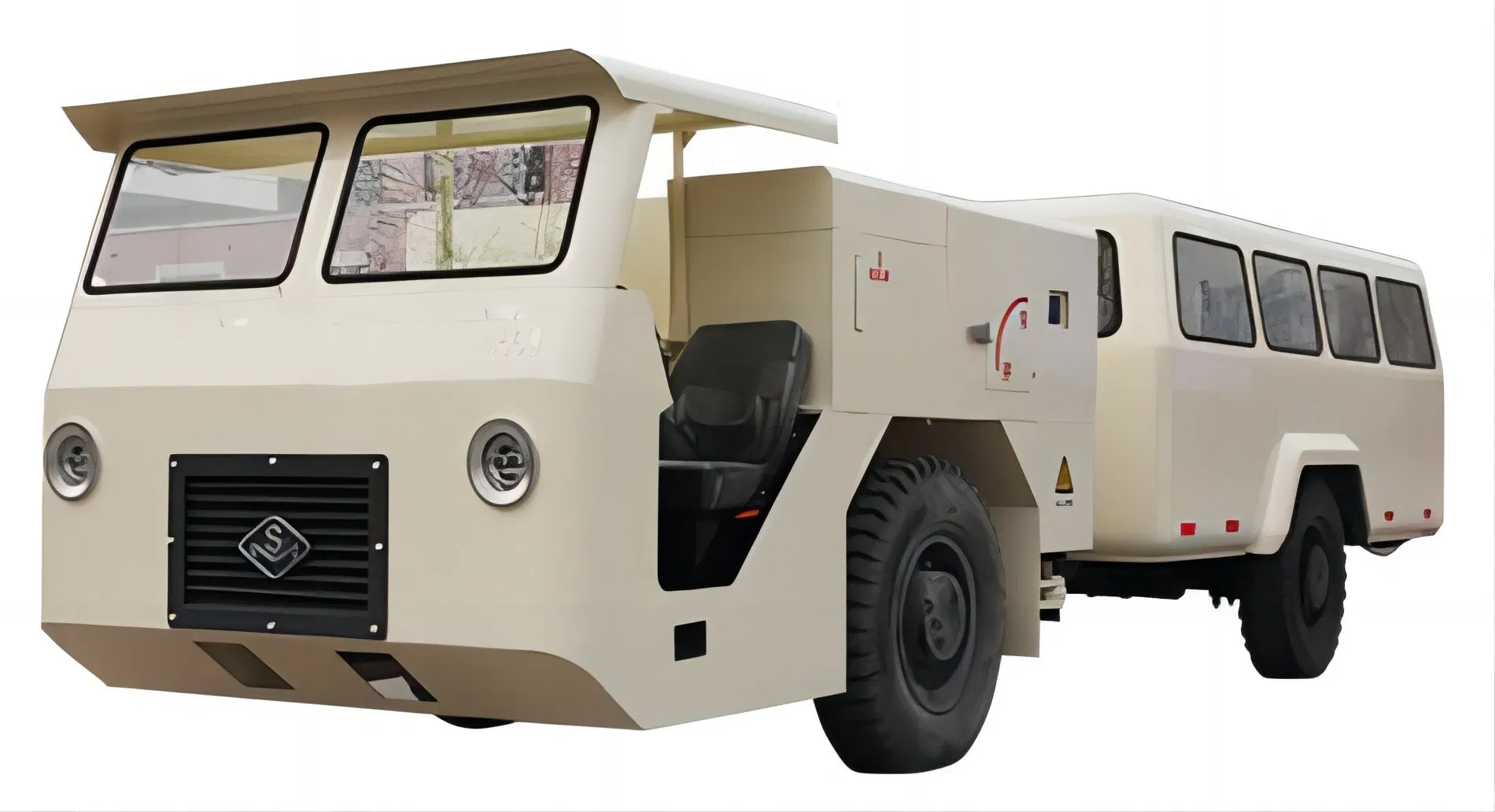

UNDERGROUND UTILITY VEHICLE - MINER CARRIER VEHICLE

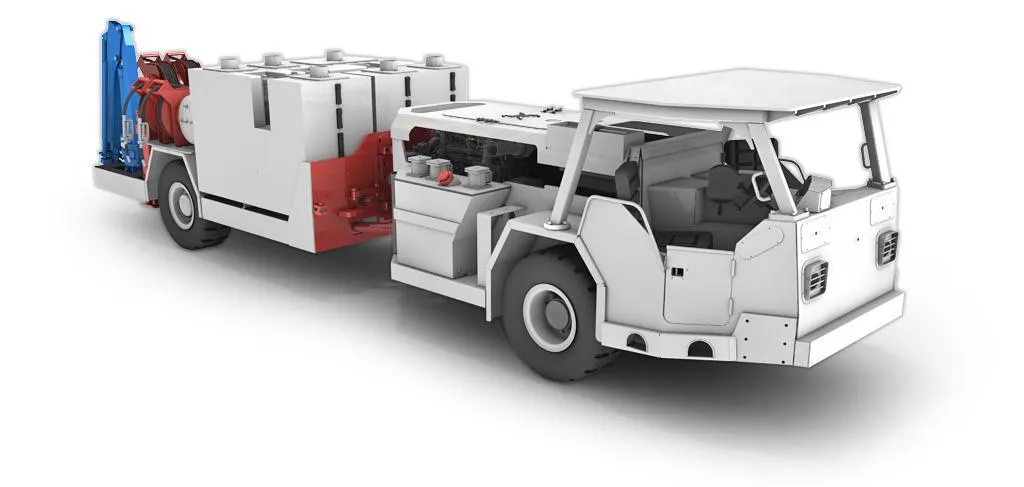

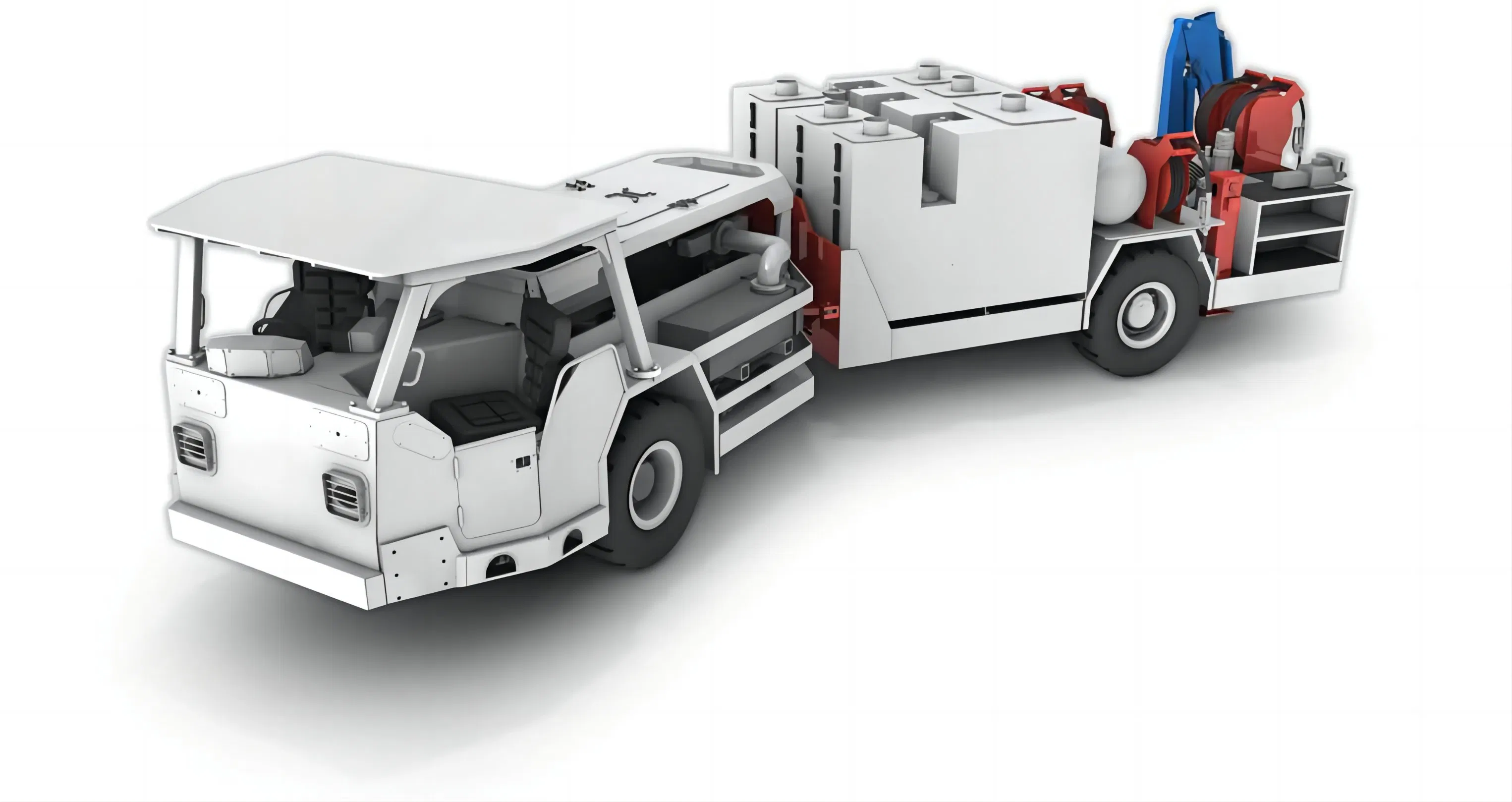

UNDERGROUND UTILITY VEHICLE - LUBE TANK FOR UNDERGROUND MINING APPLICATION

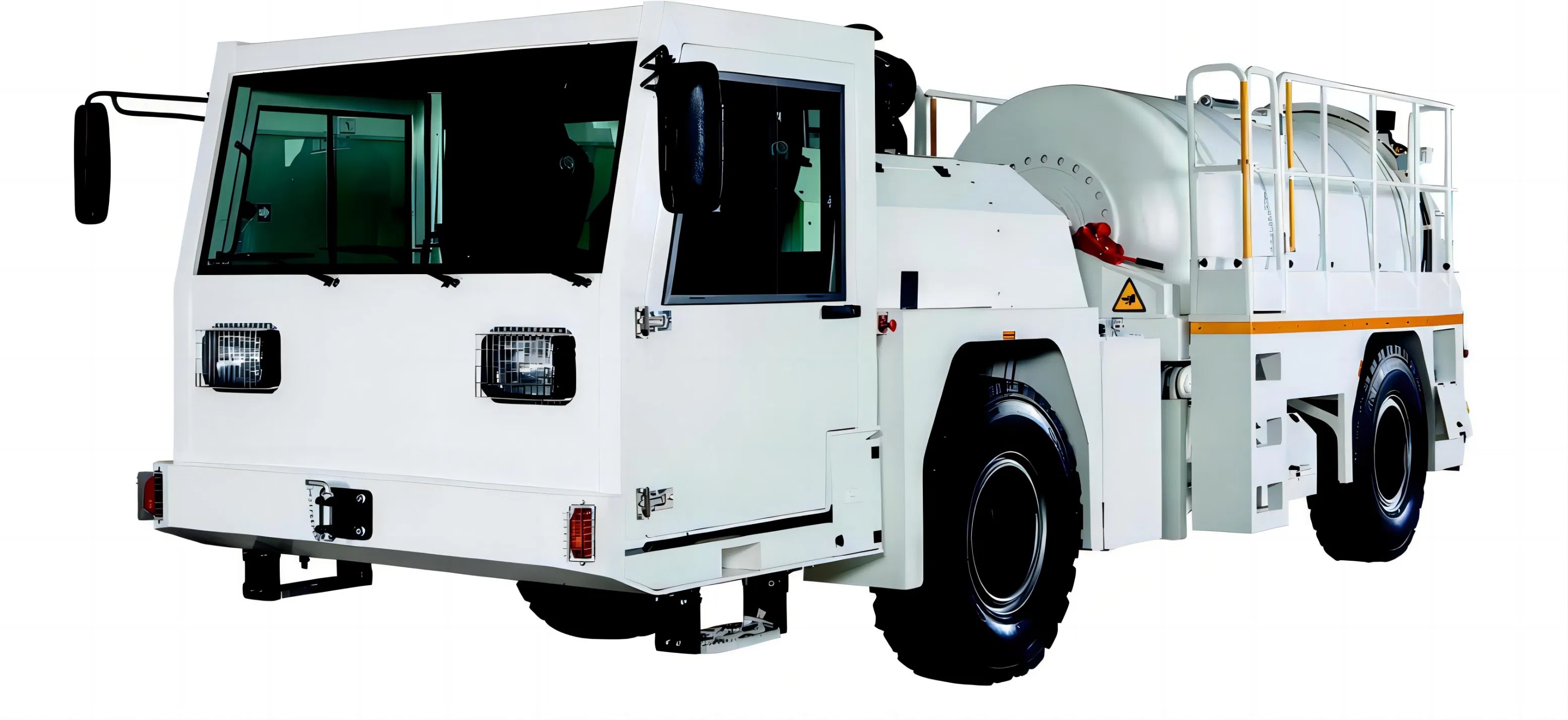

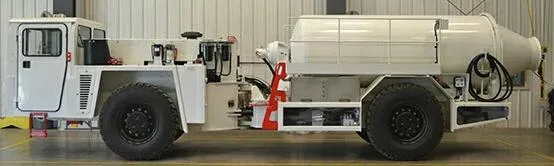

UNDERGROUND OIL TANK FOR UNDERGROUND MINING APPLICATION

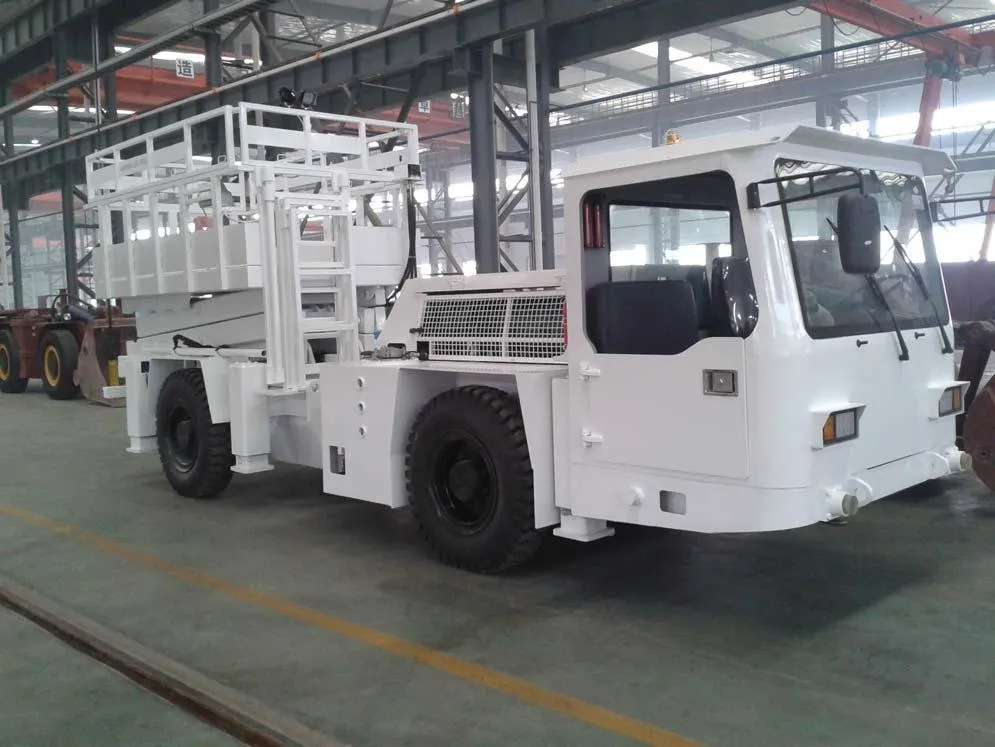

⚙ UNDERGROUND SCISSOR LIFT VEHICLE FOR UNDERGROUND MINING APPLICATION

Technical Specifications

Specification	Fuel Tank
Engine F6L914 Air-Cooled 112 Kw/2300 rpm Tire II Approved	Volume 112L
Exhaust system Catalytic exhaust Gas purifier and muffler	Hydraulic System Fixed displacement pump system: Bar L/min/2200rpm Hydraulic tank capacity Return oil filtration 10μm Indication of level, filtration, temperature
Transmission C273+R32000 series power shift pump drive group 3 speed forward and reverse 4 wheel drive Optional Powerful: C270+R32000 Series	24 VDC Electrical System Exposed components are min IP 65 standard

Axle & Performance	Electrical, Cab & Others
Axle Planetary type Dana 113 Load end axle fixed or China Axle of XCMG or LiuZhou ZF Angle axle oscillation +/- 10°	Battery Lead-Acid 2X115Ah Alternator 100A Driving halogen light (4+2) 70W Working light (2 +2) 70KW LED parking braking and indicator light LED side lights amber Side reversing halogen light 70KW Rotating beacon, amber Wire harness (Self extinguishing) with tinned wires and water tight conduits
Tyre 12.00-20 TL 20 / 14.00-24 TL 24	Cab 2 man Cab FOPS / FOPs Approved Air suspended driver's seat Seat with retractable Lap seat belt Drive convention as Auto vehicle Panel include: Customized design Mico pedal and William pedal location as Auto Operation hours
Performance 1st: 6km/h 2nd: 12km/h 3rd: 25km/h Max tractive effort: 132KN Max speed in 1:7 inclined tunnel: 9km/h Performance curve	Fuel level Transmission temperature gauge Cooling water temperature gauge
Brakes Service brake: hydraulically powered dual-circuit oil immerse multidisc brake in both axles Safety/Parking brake: Spring applied hydraulically release fail-safe type brake. Brake testing possible from Cabin	Greasing system Centralized grease fittings for the carriers
Steering Hydraulic frame steering Orbitrol pilot type Articulation angle: +/- 40°	Other optional: Fire suppression system Ansul system Jack leg at load end with engine end. Enclosed Cab with Air-condition

Available Attachment mounted on universal chassis	Engine Options
a. Lifting platforms (Hydro Pipe jack or tilting) b. Crane 12Knm for lifting, Rig crane c. Grapple for crane d. sliding safety Roof (Adjustable for height) e. Lube Tank (At most 7 kinds of Lube) f. Miner Carrier	Engine: Liquid Cooled Turbo charged Cummins QSB4.5 or any compacted design engines for MSHA standard.

🛠 Engine modification options include low-pollution Engines for underground mines, self-developed power shift transmissions, torque converters, and heavy-duty axles with SAHR brakes.

Frequently Asked Questions

Q1: What is the payload capacity of the TU312 chassis?

The TU312 chassis has a payload capacity of 12 tons, designed specifically for underground mining multifunction applications.

Q2: What types of engines are available for the TU312?

It features an air-cooled F6L914 engine (112 Kw/2300 rpm, Tier II Approved) as standard. An optional liquid-cooled turbocharged Cummins QSB4.5 engine or other compact MSHA standard engines can also be equipped.

Q3: What standard attachments can be mounted on the universal chassis?

Available attachments include lifting platforms (hydro pipe jack or tilting), a 12Knm lifting crane, a crane grapple, a height-adjustable sliding safety roof, a lube tank (supporting up to 7 types of lube), and a miner carrier.

Q4: What are the speed and incline capabilities of the vehicle?

The vehicle has a 3-speed transmission: 1st gear goes up to 6km/h, 2nd gear up to 12km/h, and 3rd gear up to 25km/h. It can reach a maximum speed of 9km/h in a 1:7 inclined tunnel.

Q5: What safety certification and warranty does the vehicle carry?

The vehicle holds ISO9001:2000 certification and comes with a 2-year warranty and 2 years of after-sales service support.
