Guangzhou Electric Patrol Vehicle Electrical Golf Buggy Electric Utility Vehicle

Customization:	Available
Type:	Buggy/Golf Carts
Seats:	3-4

Send Inquiry

Product Description

5000W

High-Efficient AC Motor

48V

Battery Voltage

4 Seats

Passenger Capacity

100 km

Endurance Mileage

Basic Info

Model NO.

XL04A

Power

5000W

Power Fuel

Electric

Maximum Speed

20-30 km/h

Gradeability

>30%

Suitable for

Villa

Certification

CE, EEC, ISO

Voltage of Battery

48V

Color

Black

Transport Package

Steel Frame Covered by Carton

Specification

2930× 1550× 1185mm

HS Code

8703800000

Production Capacity

300unit/Months

Product Specifications

Specifications & Performance Details
Performance
Passenger capacity	4 seats
Max.Speed	30 km/h
Endurance mileage	100 km
Climbing Ability(loaded)	30%
Braking Distance	≤5m
Min.Turning Radius	5.5 m
Min. Ground Clearance	170 mm
Recharge time	8~10h
Dimensions
L×W×H	2930×1550×1185mm
F/R Tread	12220/1120mm
Axle Distance	2000 mm
Curb Weight	750 kg
Max. loading	500 kg
Standard Configurations
Motor	48V/5KW, high-efficient Alternating Current (AC) motor
Controller	48V, INPOWER
Battery	Free maintenance, Long lasting battery, 48V/ 8V(150Ah)×6pcs
Body & Roof	steel metal, hard to break, and easy to fix like a car
Windshield	Foldable & high-strength organic glass
Steering	Single reduction rack and pinion
Brake system	Front: hydraulic disc, Rear: hydraulic drum brake
Tire	185/70R13

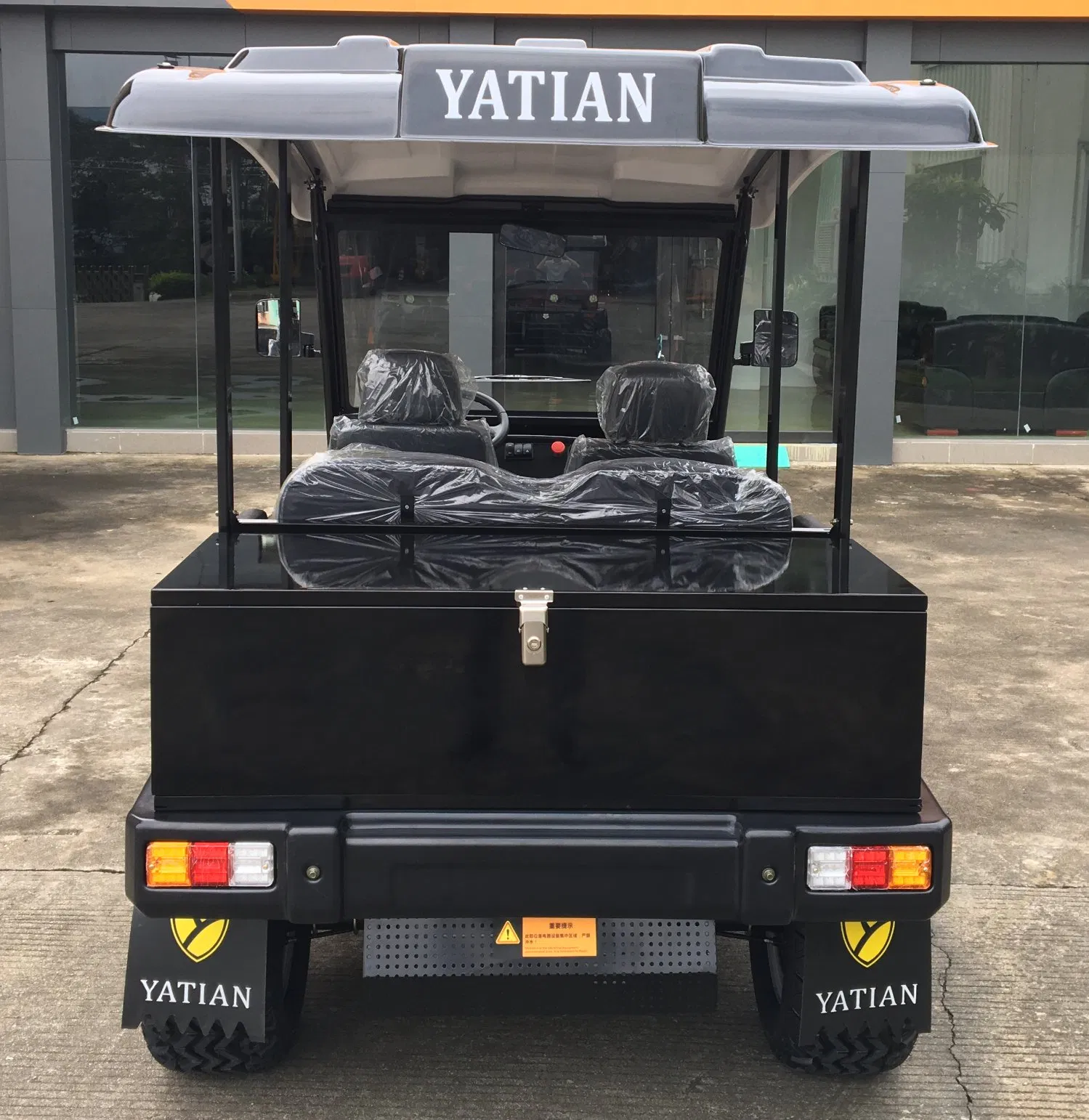

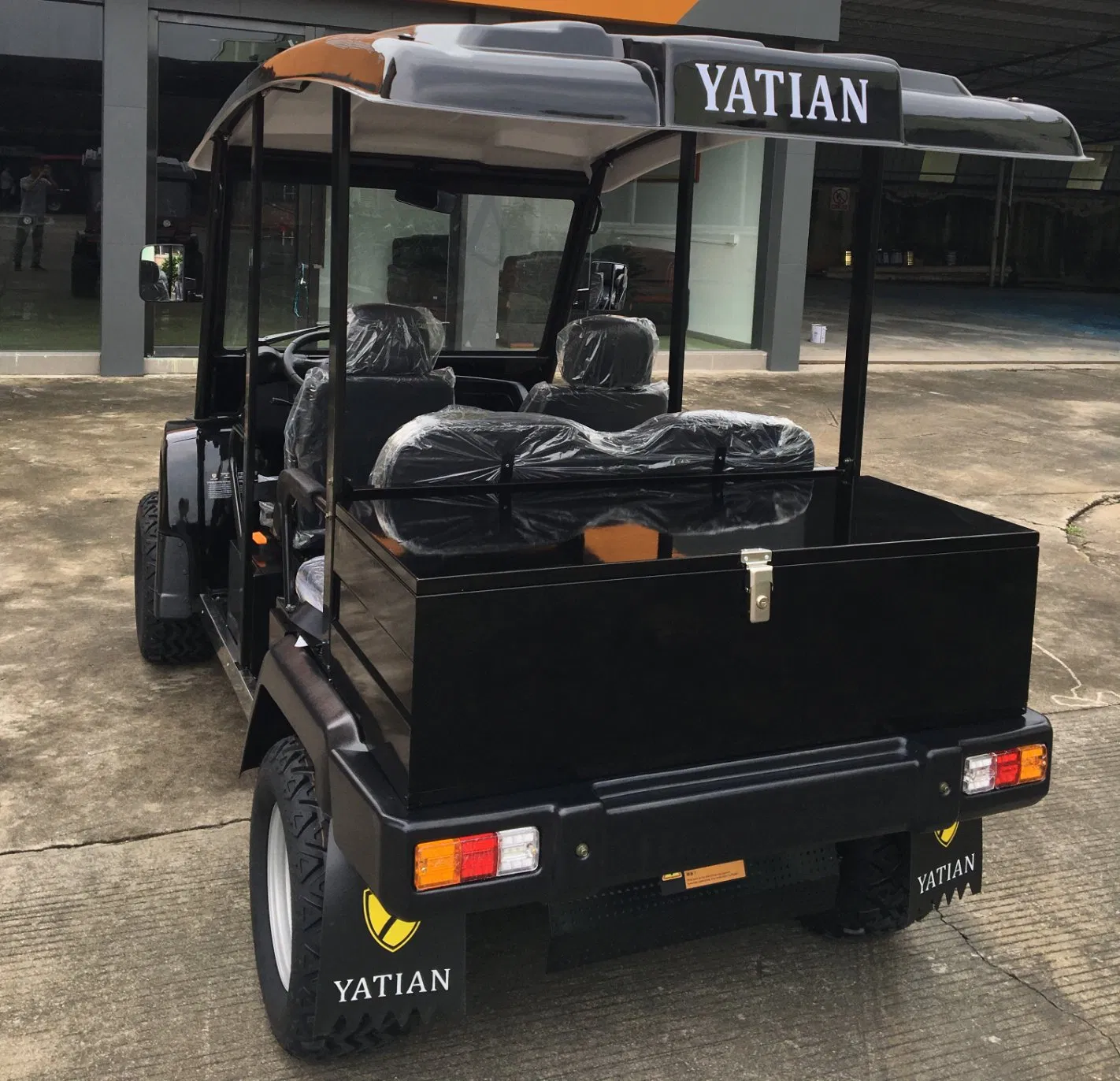

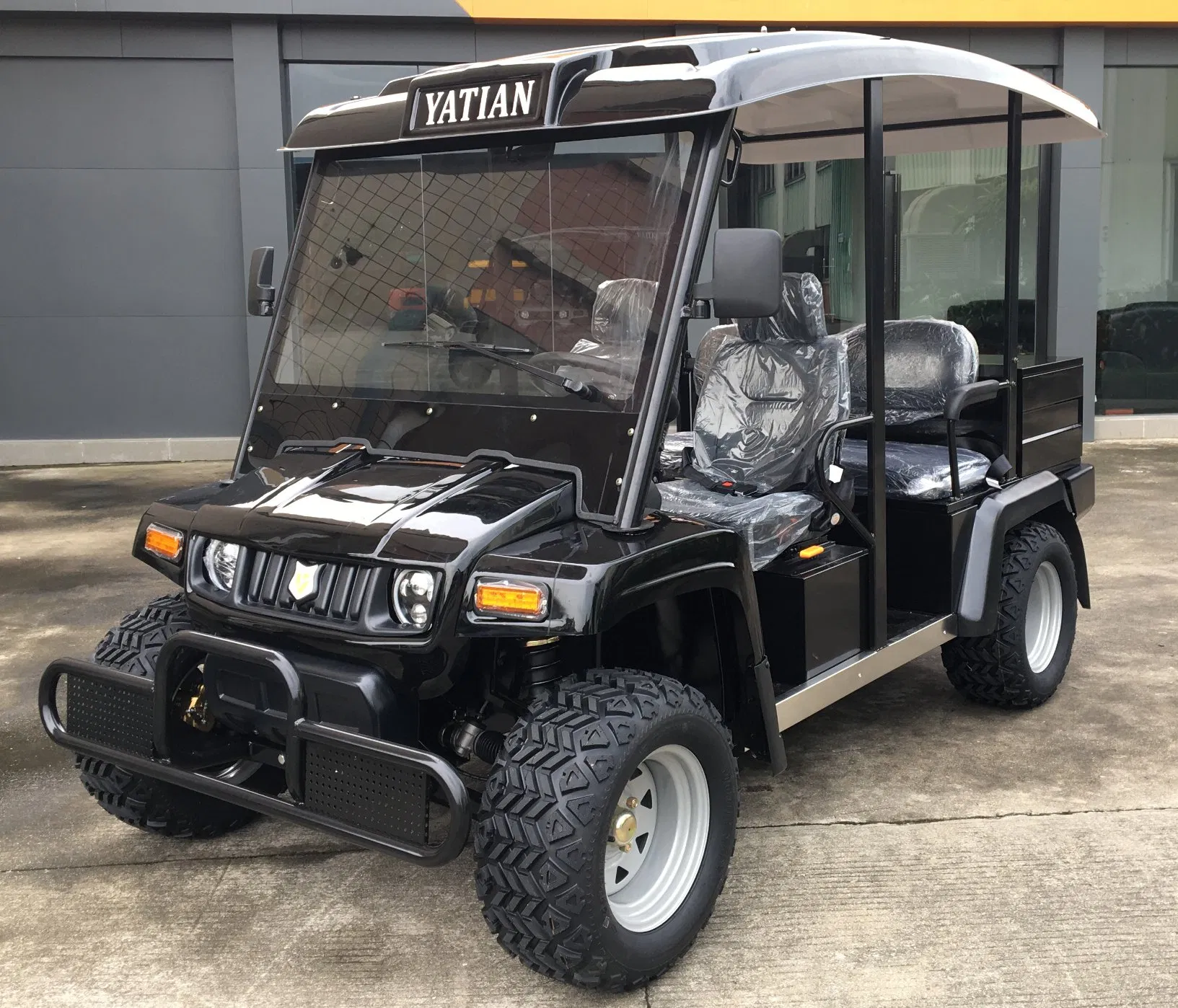

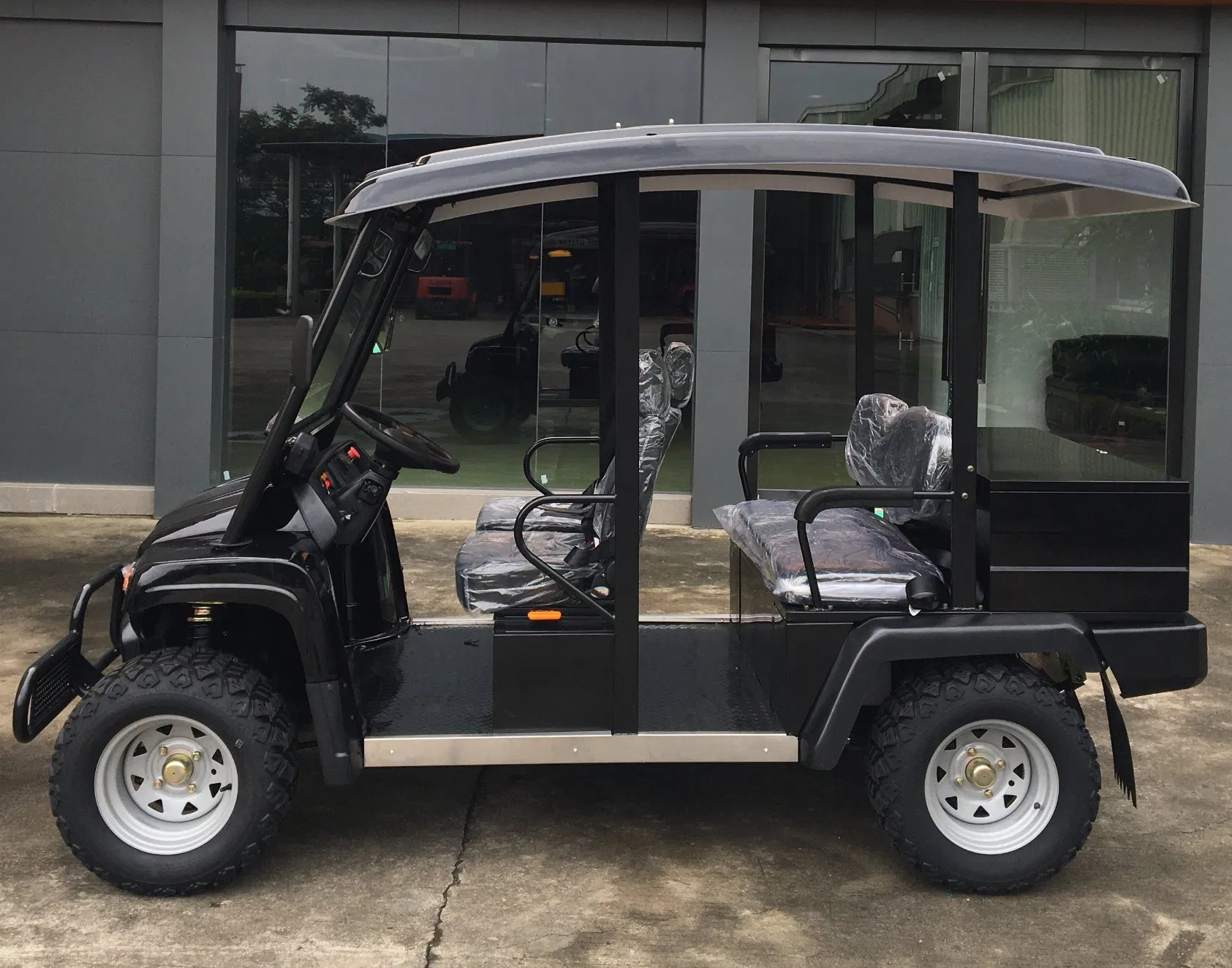

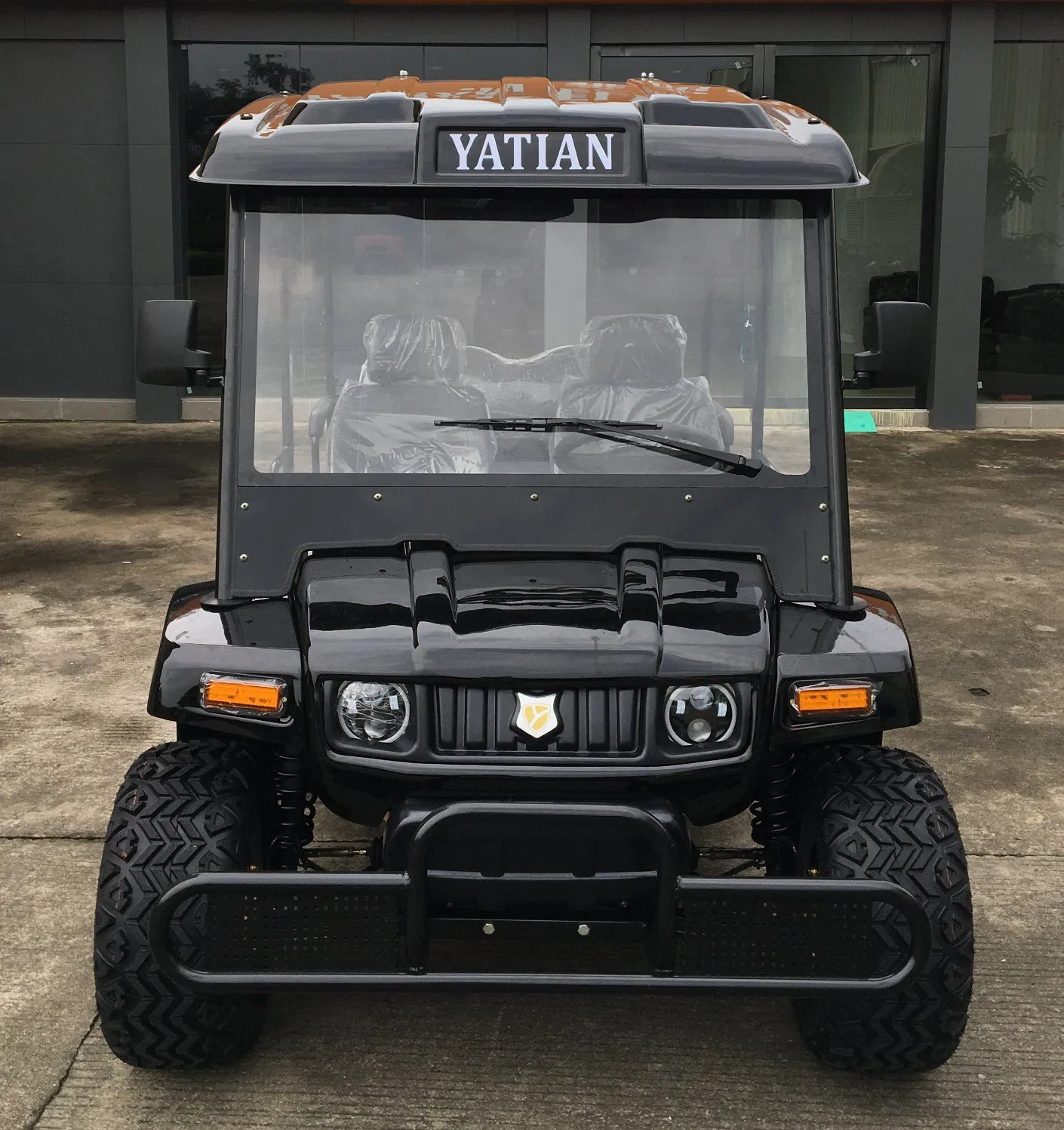

Product Gallery

Electric Patrol Vehicle Electrical Golf Buggy Electric Utility Vehicle

Frequently Asked Questions (FAQ)

QWhat is the passenger capacity and maximum speed of this electric vehicle?

The electric buggy has a passenger capacity of 4 seats and can reach a maximum speed of 30 km/h.

QWhat is the battery specifications and estimated recharge time?

It uses a maintenance-free, long-lasting battery configuration of 48V/8V(150Ah)×6pcs. A full recharge takes between 8 to 10 hours.

QWhat is the driving range and climbing capability of the XL04A?

The vehicle offers an endurance mileage of 100 km on a single charge and is capable of handling grades greater than 30% when loaded.

QHow durable is the body construction of this vehicle?

The body and roof are constructed from high-quality steel metal, which is extremely hard to break and as easy to repair as a standard automobile.

QWhat type of braking and steering systems are integrated?

The steering features a single reduction rack and pinion system. The braking system consists of hydraulic discs at the front and hydraulic drum brakes at the rear for optimal safety.

QWhat international quality certifications does the vehicle carry?

The vehicle is certified under CE, EEC, and ISO standards, ensuring compliance with international safety and quality requirements.
