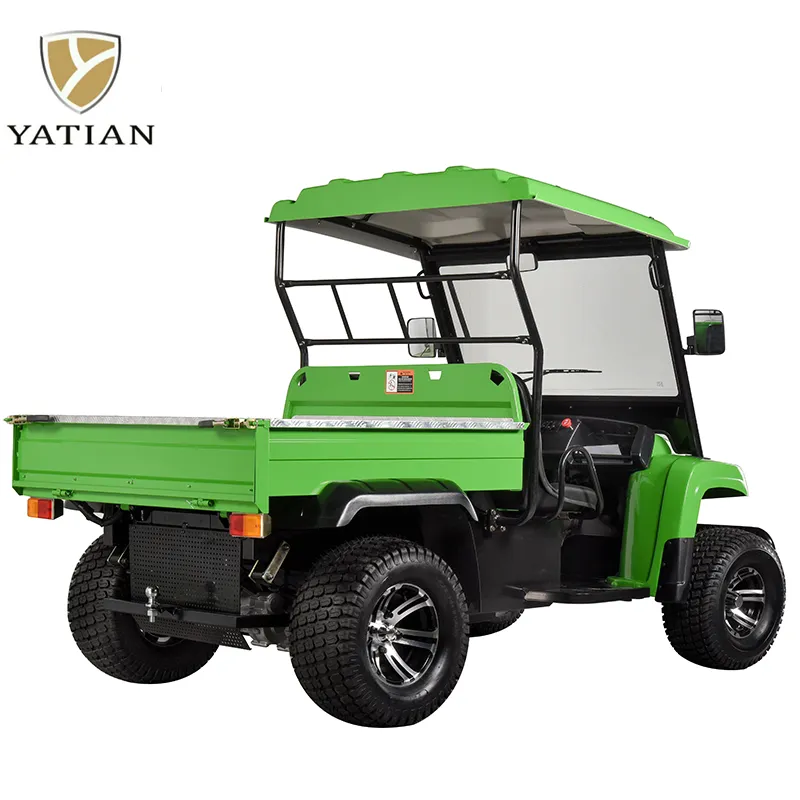

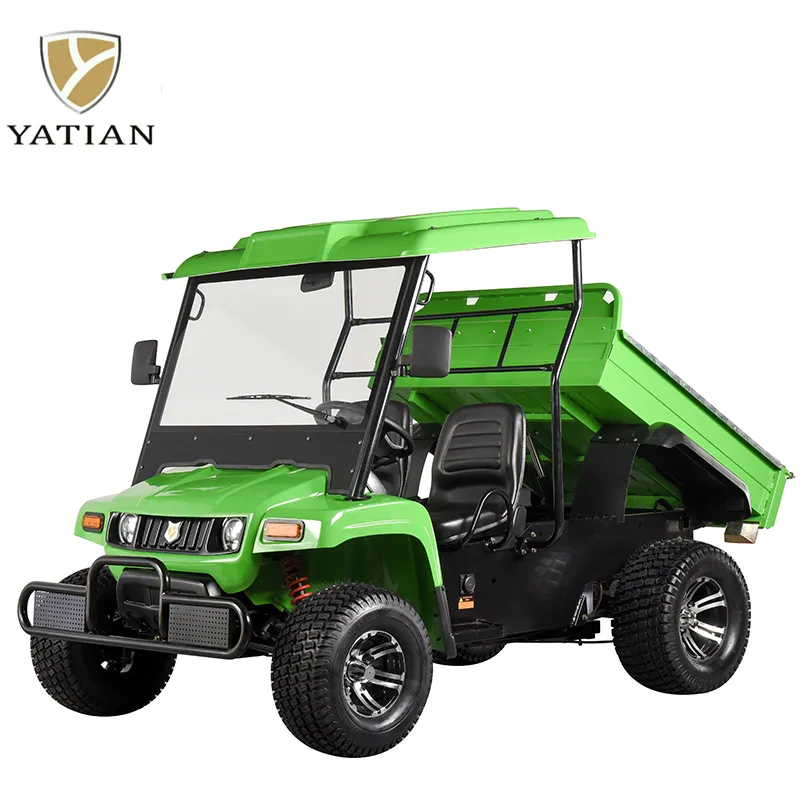

Durable off Road Farm Truck Electric Utility Vehicle

1 / 5

Durable off Road Farm Truck Electric Utility Vehicle

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info

Model NO.

PB05A

Transmission Type

Automatic

Displacement

5000W

Fuel

Electric

Certificate

Range

100km

Max Speed

30km/H

Battery

48V Lead-Acid

Climbing

30%

Dump Box

Yes

Charge Time

6~10 Hours

Transport Package

Steel Frame Covered by Carton

Specification

2750*1550*1185mm

HS Code

8704103000

Production Capacity

1000unit/Months

Packaging & Delivery

Package Size

288.00cm * 159.00cm * 190.00cm

Package Gross Weight

880.000kg

Lead Time

20 days (1 - 5 unit)
To be negotiated ( > 5 unit)

Product Description

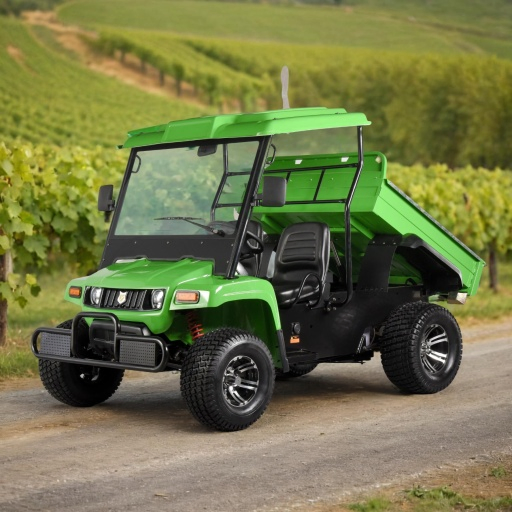

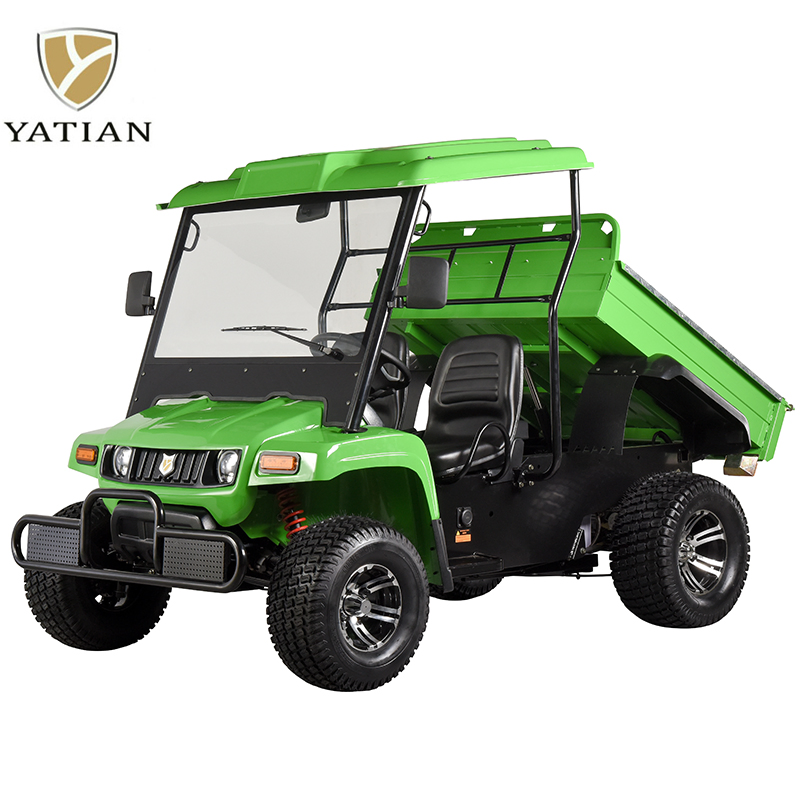

Durable off Road Farm Truck Electric Utility Vehicle

Specifications

WEIGHTS AND DIMENSIONS	Length:	2750mm
	Width:	1750mm
	Height:	1185mm
	Wheel Base:	1860mm
	Dry Weight:	685kg
	Laden Weight:	1340kg
SOUND LEVEL (DBA)	At ear level:	65dba
	At 3ft (0.914m):	60dba
	At 30ft (0.914m):	50dba
DRIVE SYSTEM	Motor:	Direct drive
	Controller:	Separately excited, 400 amp max.
	Braking & Safety:	Anti-roll away braking and alarm
	Motor Protection:	Antistall motor protection. Regenerative braking.
	Diagnostics & Reverse:	Diagnostic indicator. Full torque, reduced speed reverse.
ELECTRICAL SYSTEM	Battery Configuration:	48volt 8*6V Lead Acid batteries
FRAME	Frame Construction:	MIG welded uni-body, high strength steel
TIRES & BRAKES	Front Wheel:	Two 22x9.50-10, 4PR
	Rear Wheel:	Two 24x12-10, 4PR
	Brake Type:	Front-Disc / Rear-Drum / Mechanical parking brake
SPEED/ENDURANCE	Forward Speed:	0-24kph
	Reverse Speed:	0-15kph
	Endurance Mileage:	100km
CHARGER	Type of Charger:	Ferroresonant transformer. Ferroresonant
	Input Voltage:	240VAC +/-10% input, 50HZ
	Estimated Recharge Time:	6-8 hours
OTHER FEATURES	Standard Features:	Battery discharge indicator, reverse warning indicator
	Operator Safety:	Operator presence switch
	Lighting & Display:	Hour meter, headlight switch
	Convenience:	Two cup holders, glove box

Durable off Road Farm Truck Electric Utility Vehicle Dimensions

Durable off Road Farm Truck Electric Utility Vehicle Spec Info

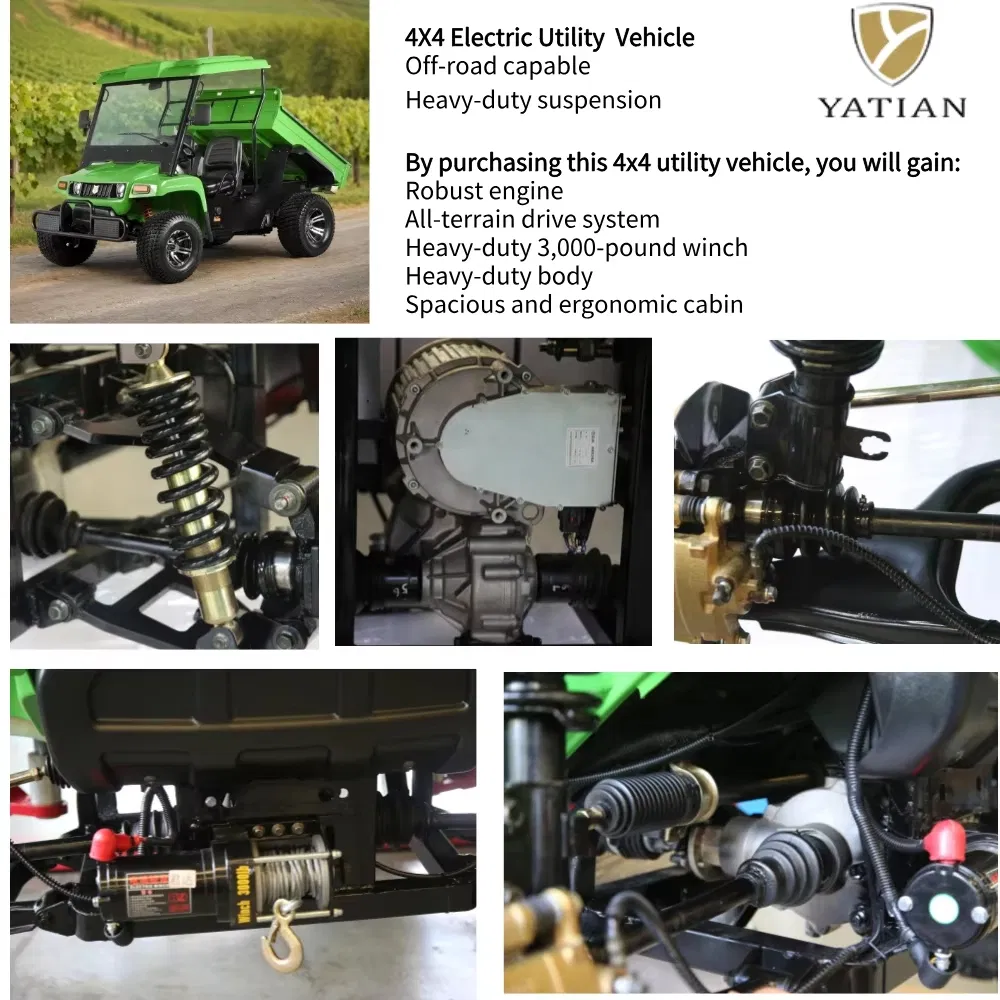

Durable off Road Farm Truck Electric Utility Vehicle Chassis

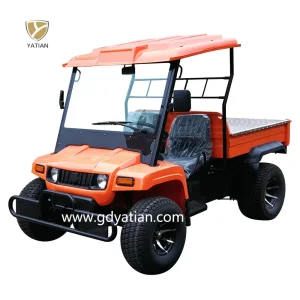

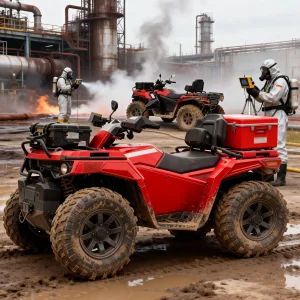

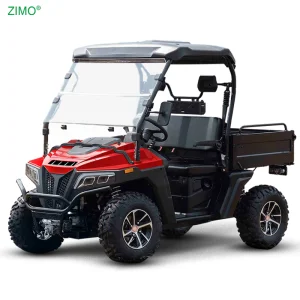

Other Electric Vehicles Available

Frequently Asked Questions

What is the maximum speed and driving range of this electric utility vehicle?

The electric utility vehicle features a maximum forward speed of 24kph and a reverse speed of 15kph. On a full charge, it can achieve a driving range of approximately 100km, depending on terrain and load.

What type of battery system does the vehicle use, and how long does it take to charge?

It is equipped with a 48V electrical system powered by eight 6V Lead-Acid batteries. With the standard ferroresonant transformer charger (240VAC input), the estimated full recharge time is between 6 and 10 hours.

What are the load-carrying and climbing capabilities?

The vehicle is highly capable for off-road duties, boasting a climbing ability grade of up to 30%. It has a dry weight of 685kg and a fully laden weight capacity of up to 1340kg, complete with an integrated functional dump box.

What braking and safety features are integrated into the drive system?

The vehicle utilizes front-disc and rear-drum brakes combined with a mechanical parking brake. The drive controller includes built-in safety mechanisms such as anti-roll away braking with an alarm, anti-stall motor protection, and regenerative braking.

How is the vehicle packaged for secure international shipping?

Each unit is securely packed using a robust steel frame structure covered with a protective outer carton to ensure maximum protection against damage during transit.
