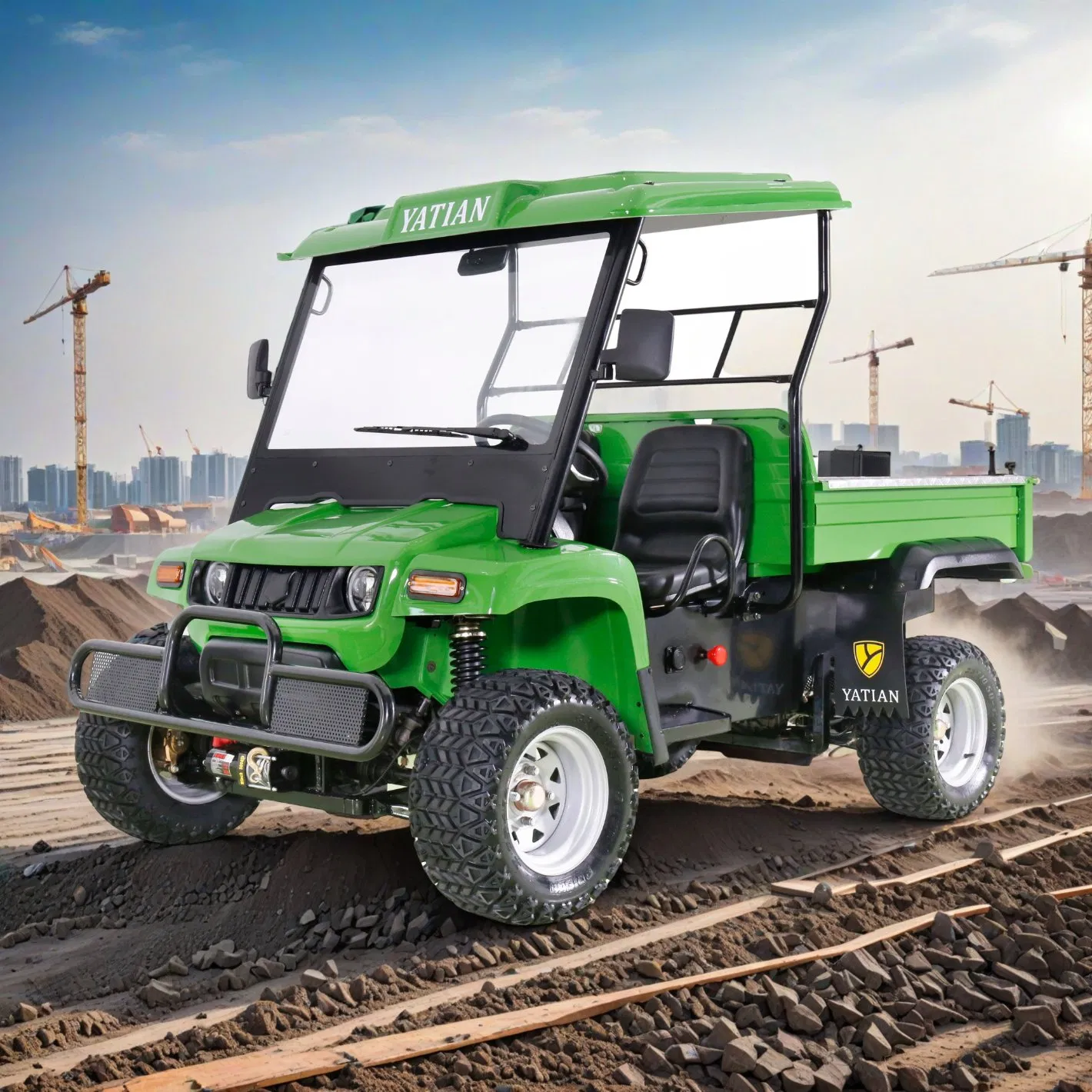

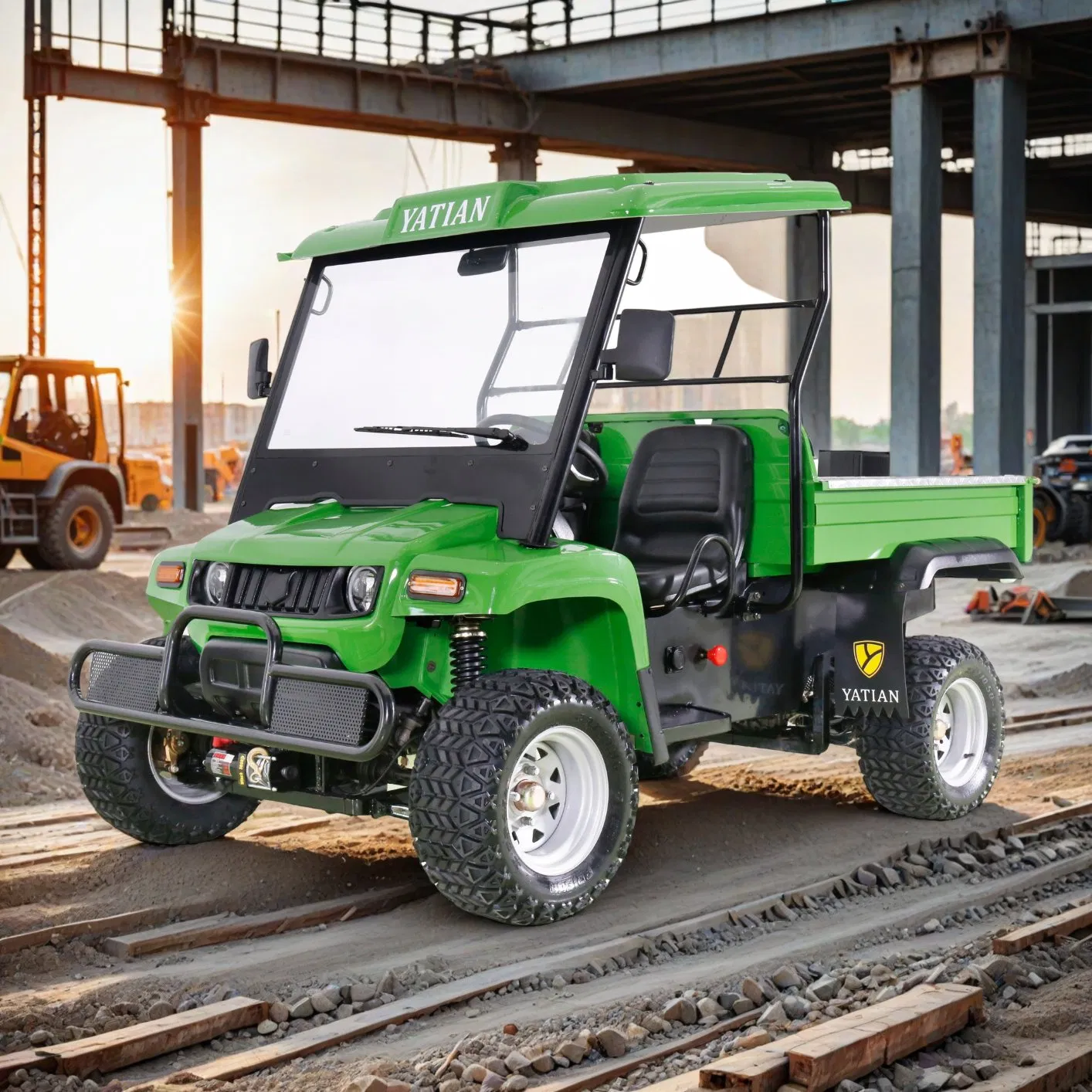

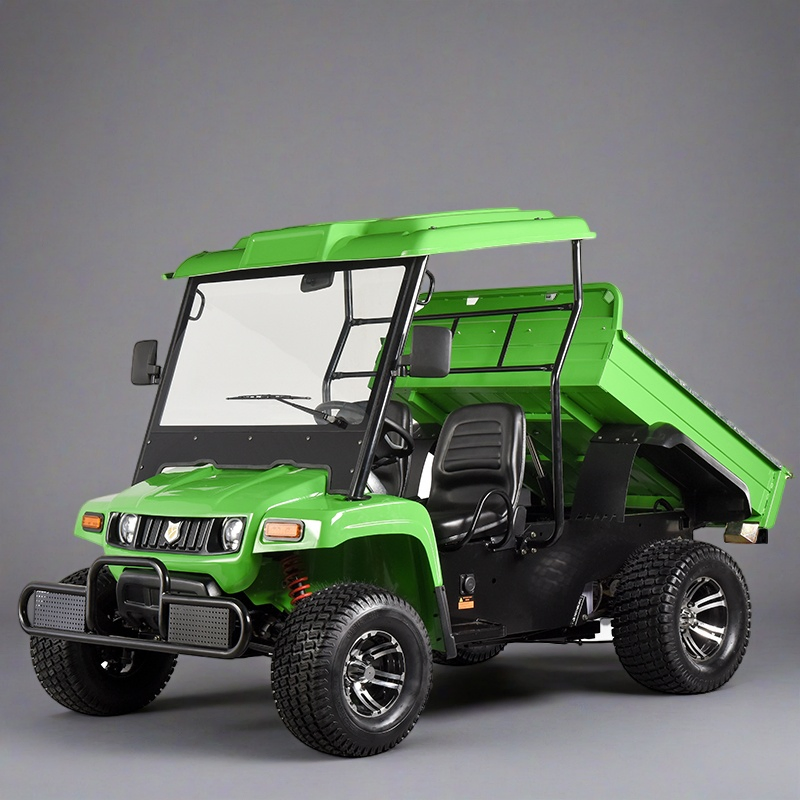

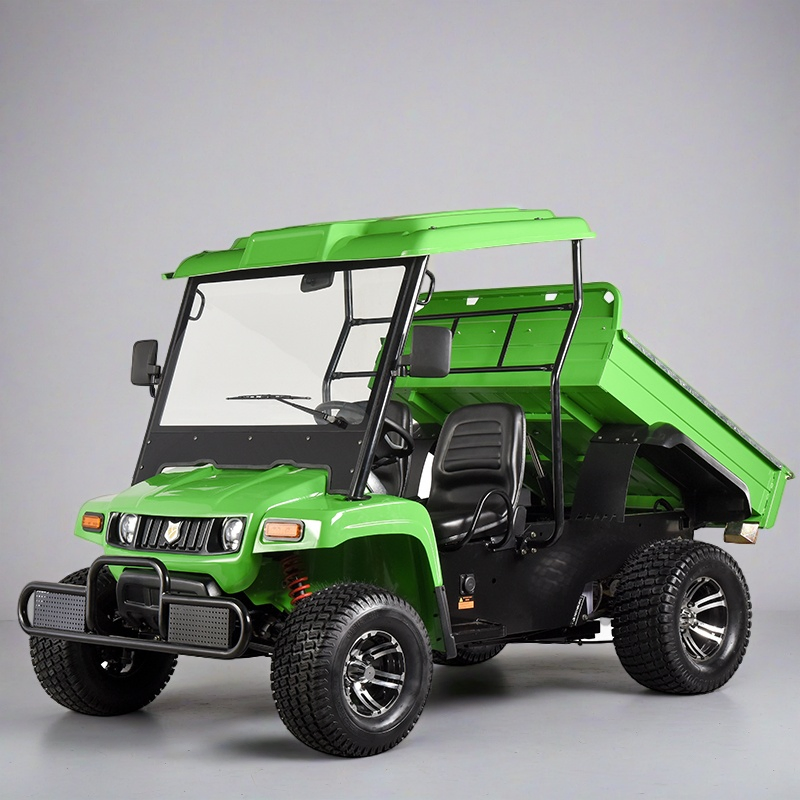

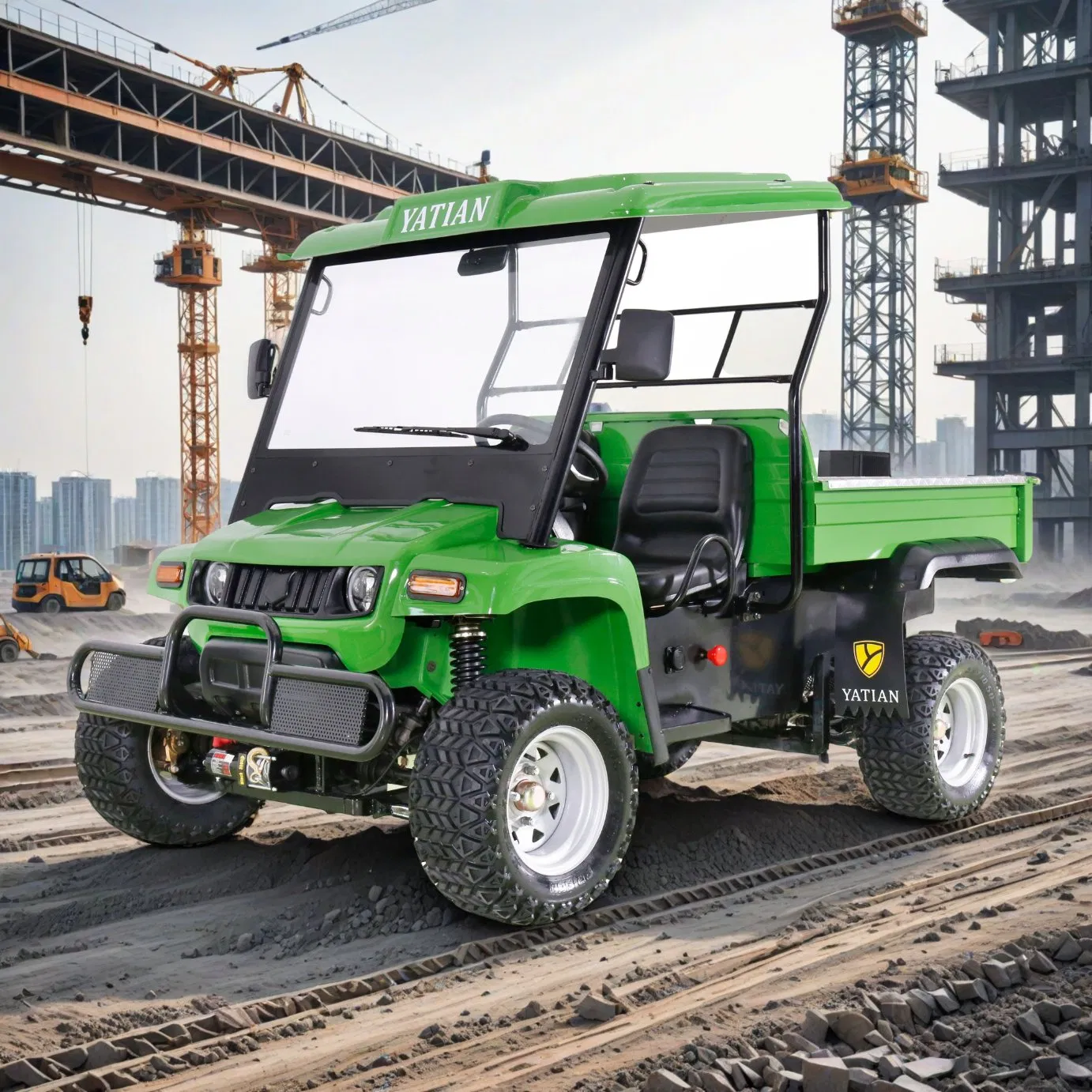

Deposit 48V 5kw Electric UTV Utility Vehicle for Farm

Customization:	Available
After-sales Service:	12 Months
Warranty:	12 Months

💡 Key Highlights

⚡

Motor Power

5000W Electric

🔋

Battery

48V Lead-Acid

📍

Max Range

100km

🚀

Max Speed

30km/H

📊 Basic Info.

Model NO. PB05A

Transmission Type Automatic

Displacement 5000W

Fuel Electric

Certificate CE

Range 100km

Max Speed 30km/H

Battery 48V Lead-Acid

Climbing 30%

Dump Box Yes

Charge Time 6~10 Hours

Transport Package Steel Frame Covered by Carton

Specification 2750*1550*1185mm

HS Code 8704103000

Production Capacity 1000unit/Months

📦 Packaging & Delivery

Package Size 280.00cm * 150.00cm * 190.00cm

Package Gross Weight 640.000kg

🔧 Technical Specification

Category	Parameter	Details
Weights and Dimensions	Length	2750mm
	Width	1750mm
	Height	1185mm
	Wheel Base	1860mm
	Dry Weight	685kg
	Laden Weight	1340kg
Sound Level (dBA)	At ear level	65dba
	At 3ft (0.914m)	60dba
	At 30ft (0.914m)	50dba
Drive System	Motor	Direct drive
	Controller	Separately excited, 400 amp max.
	Braking & Protection	Anti-roll away braking and alarm, Antistall motor protection
	Braking System	Regenerative braking, Diagnostic indicator, Full torque, reduced speed reverse
Electrical System	Batteries	48volt 8*6V Lead Acid batteries
Frame	Construction	MIG welded uni-body, high strength steel
Tires & Brakes	Front Wheel	Two 22x9.50-10, 4PR
	Rear Wheel	Two 24x12-10, 4PR
	Brakes Type	Front-Disc / Rear-Drum / Mechanical parking brake
Speed & Endurance	Forward Speed	0-24kph
	Reverse Speed	0-15kph
	Endurance Mileage	100km
Charger	Type of Charger	Ferroresonant transformer
	Input Voltage	240VAC +/-10% input, 50HZ
	Estimated Full Recharge Time	6-8 hours
Other Features	Standard Features	Battery discharge indicator, reverse warning indicator, operator presence switch, hour meter, headlight switch, two cup holders, glove box

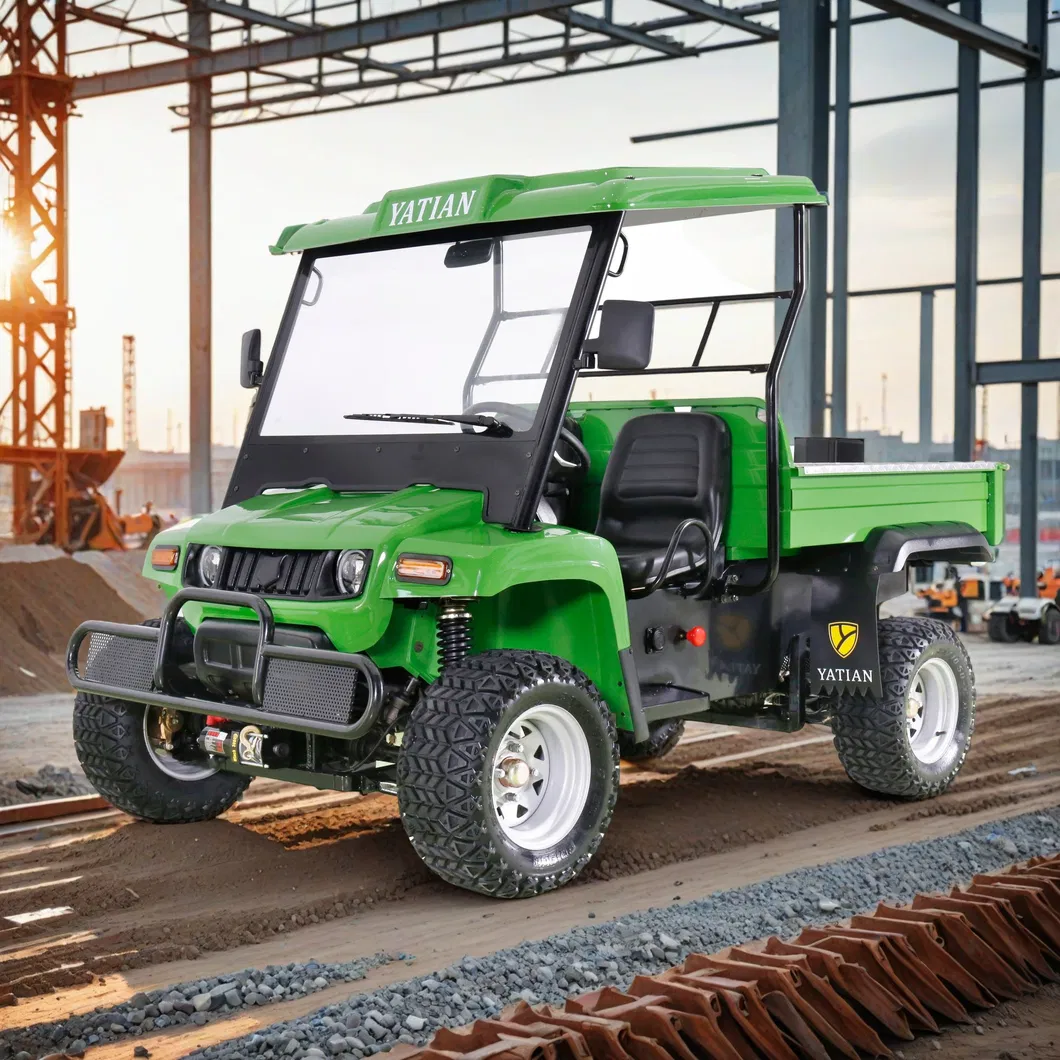

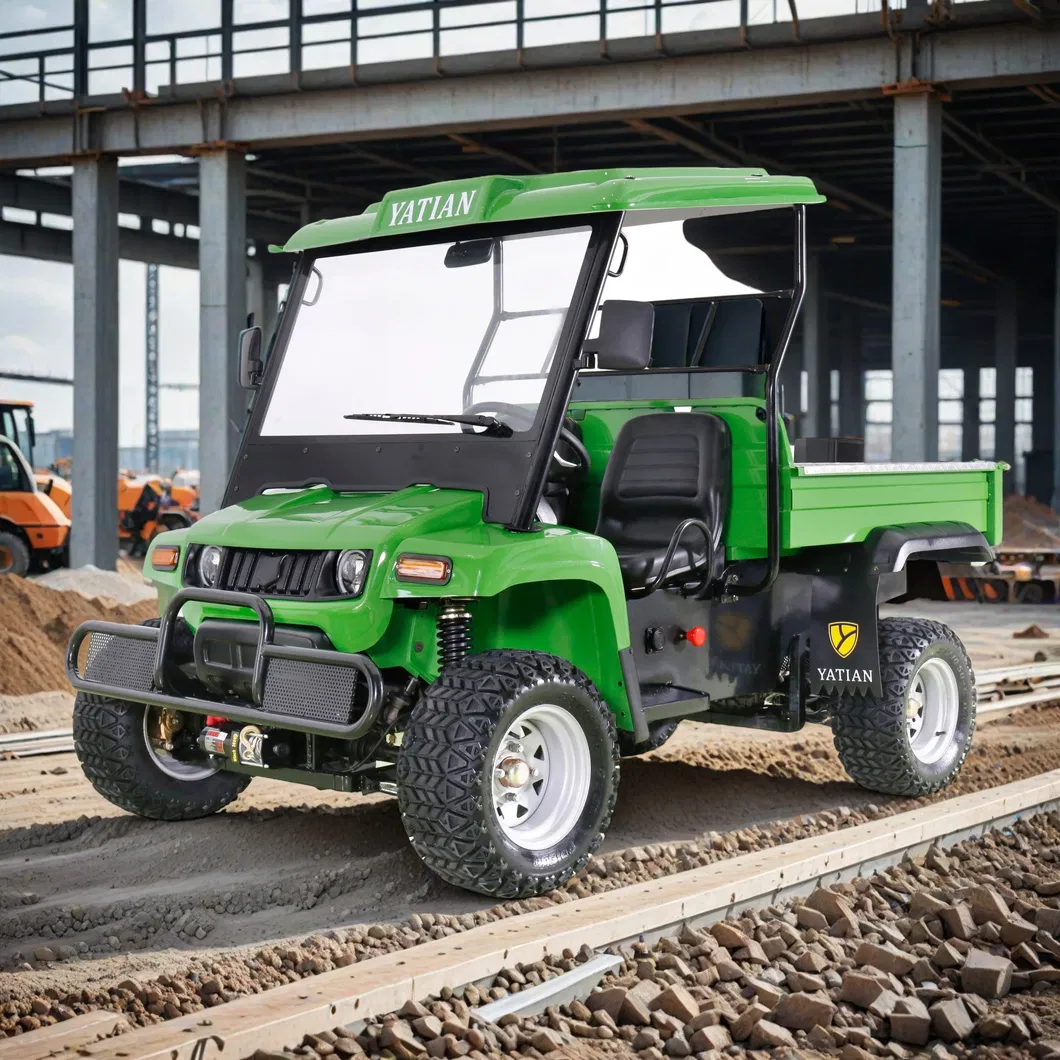

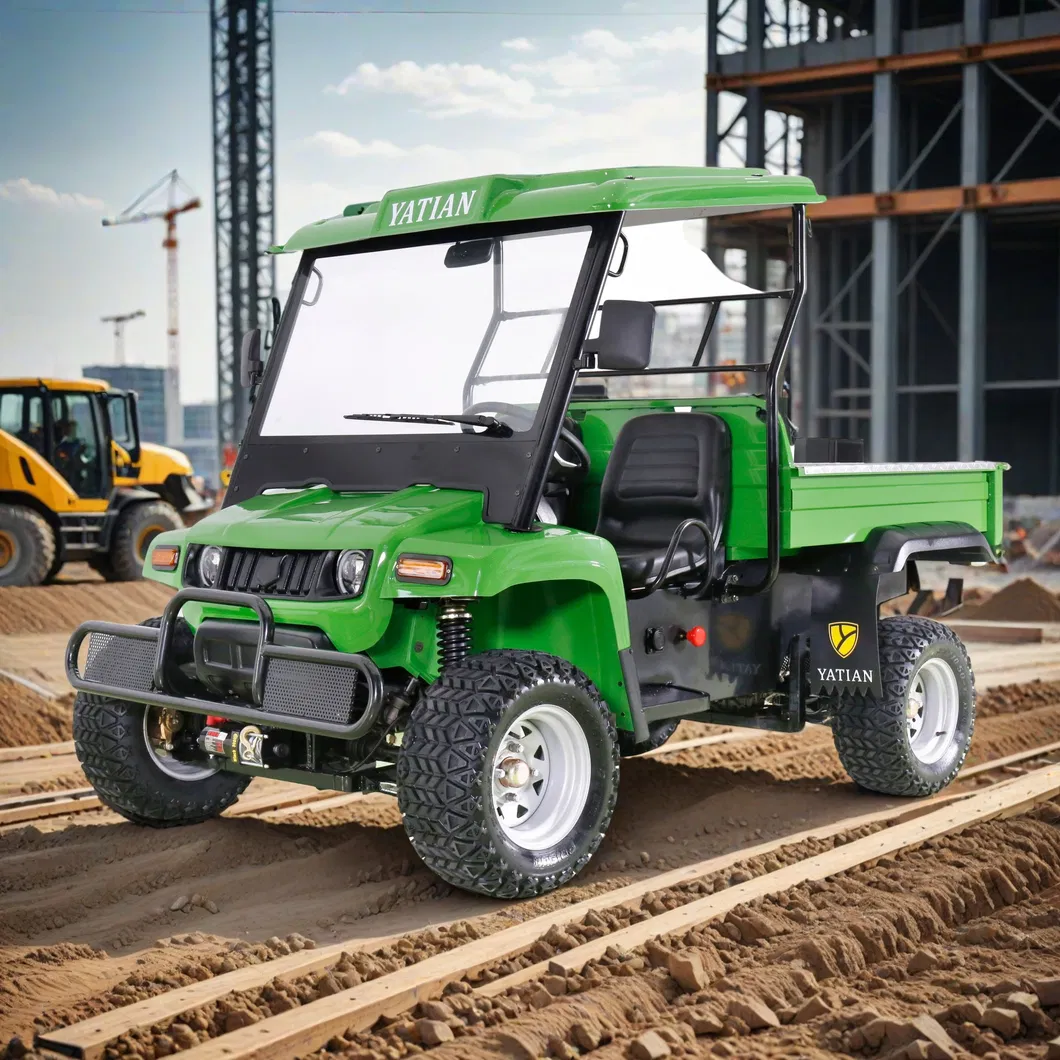

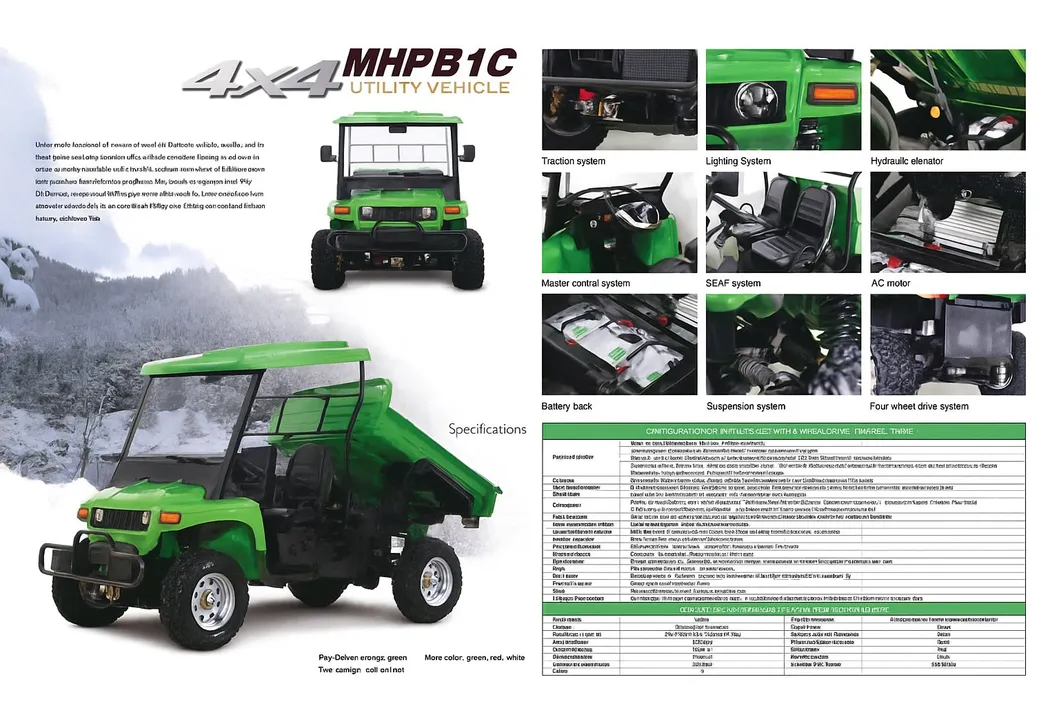

📷 Product Image Gallery

🚜 Alternative Electric Vehicles Range

❓ Frequently Asked Questions (FAQ)

What type of battery system does the UTV use and how long does it take to charge?

The UTV is equipped with a 48-volt system powered by eight 6V Lead-Acid batteries. Using the standard ferroresonant transformer charger with 240VAC input, it takes approximately 6 to 10 hours for a full recharge.

What is the range and maximum speed of this electric vehicle?

The vehicle has an estimated endurance mileage range of up to 100km on a full charge. The forward speed ranges between 0-24kph (with a rated maximum speed of up to 30km/H depending on operating conditions).

What are the motor details and built-in safety features of the drive system?

It features a 5000W direct drive motor governed by a separately excited controller (400 amp max). Safety features include anti-roll away braking with alarm, antistall motor protection, regenerative braking, diagnostic indicator, and reduced speed reverse functionality.

What are the load weight capacity and dimensions of this UTV?

The overall dimensions of the vehicle are 2750mm in length, 1750mm in width, and 1185mm in height, with a wheelbase of 1860mm. It has a dry weight of 685kg and a maximum laden weight capacity of 1340kg.

What kind of braking and tire configuration is installed?

It is designed with front disc brakes and rear drum brakes, supplemented by a mechanical parking brake. The front wheel tires are two 22x9.50-10, 4PR, and the rear tires are two 24x12-10, 4PR.

What other standard features are included on the vehicle dashboard and body?

The UTV is equipped with a battery discharge indicator, reverse warning indicator, operator presence switch, hour meter, headlight switch, two cup holders, and a glove box. It also includes an integrated rear dump box.
