Kabar Golf
1 / 5

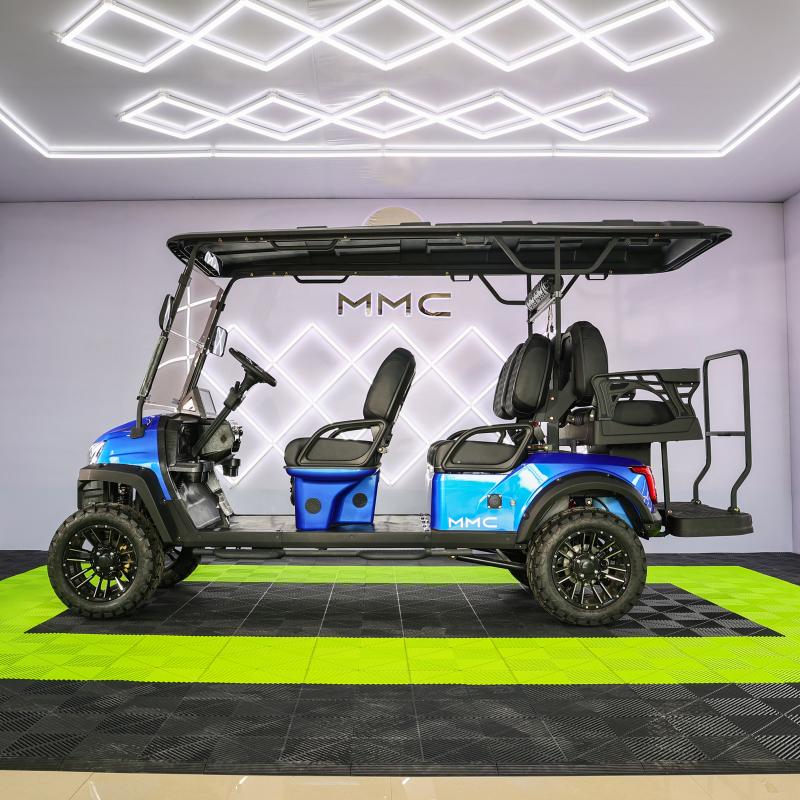

| Overall Size: | 2300*1200*1800mm (L*W*H) |
| Seating Capacity: | 2/4/6/8 Seats |
| Speed Range: | 20-30 km/h |
| Climbing Capacity: | 30% |
| Storage Battery: | 12V*4PCS, 100AH |
| Motor Power: | 48V 4000W |
| Traveling Range: | 90-120km |
| Charging Time: | 8-10 Hours |
| Audio System: | Two 4-inch loudspeakers |
| Frame (Chassis) | Welded steel framework, with anti-rust treatment of acid washing, phosphating and electro-coating (electrophoresis + highlight) |
| Body and Roof | PP plastic front body and rear body; PP vacuum form roof |
| Windshield | Acrylic plexiglass, tempered glass + wiper |
| Body of car | The front cover, seat barrel, body and rear tail cover are injection molded for automobiles; Frosted black square pipe ceiling column |

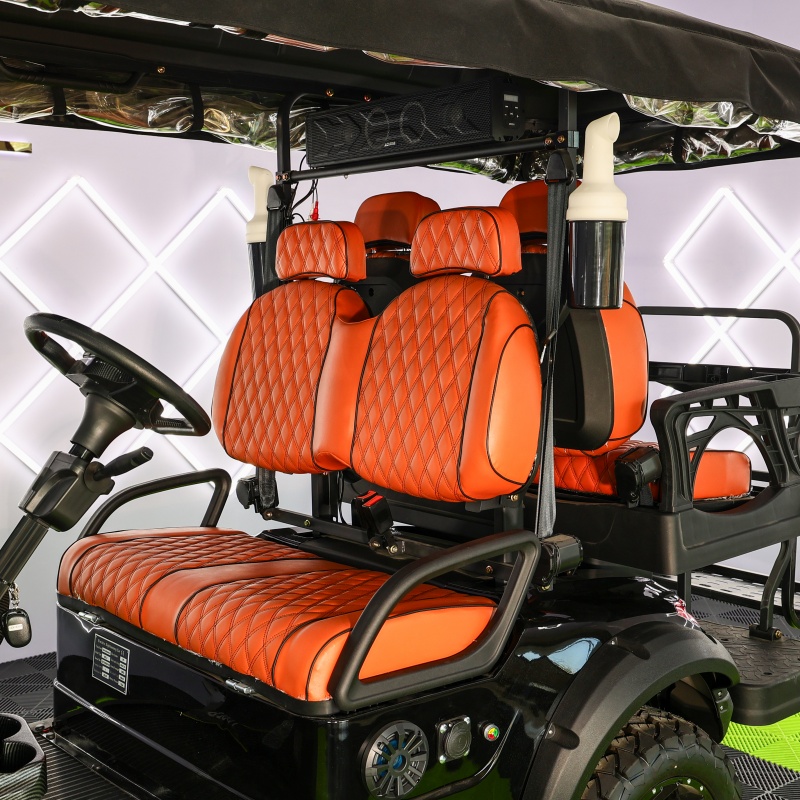

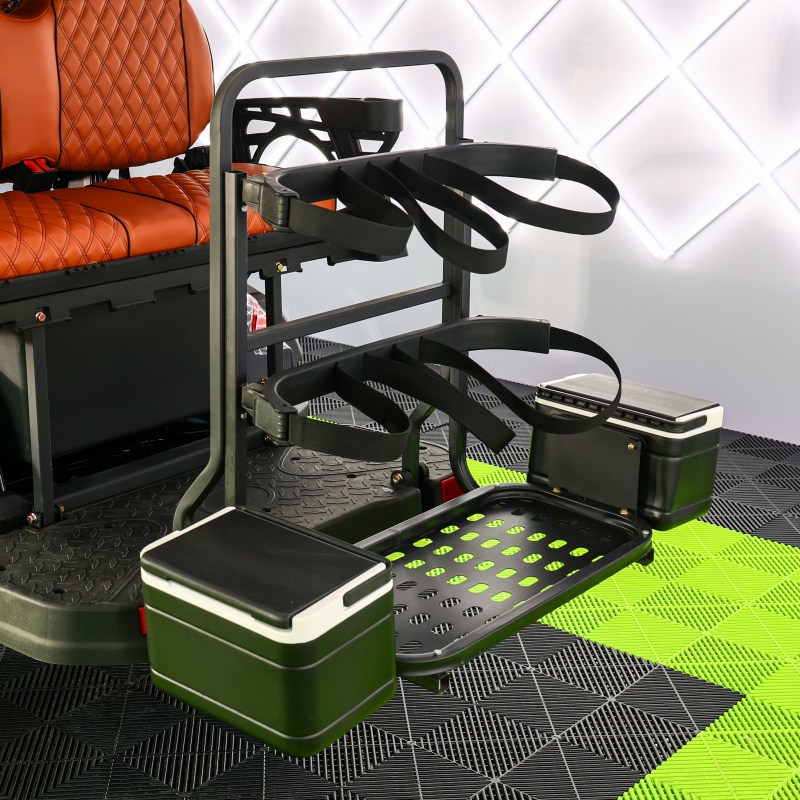

| Backrest and Seat | Integral foam forming cushion; High grade imported leather; Reverse row seat can be turned over, including storage box |
| Floor | Galvanized Steel plate and anti-slip rubber floor mat, high strength structure, corrosion resistance and aging resistance |
| Rearview mirror | One manually adjustable and foldable exterior rearview mirror on the left and right with turn signal display |

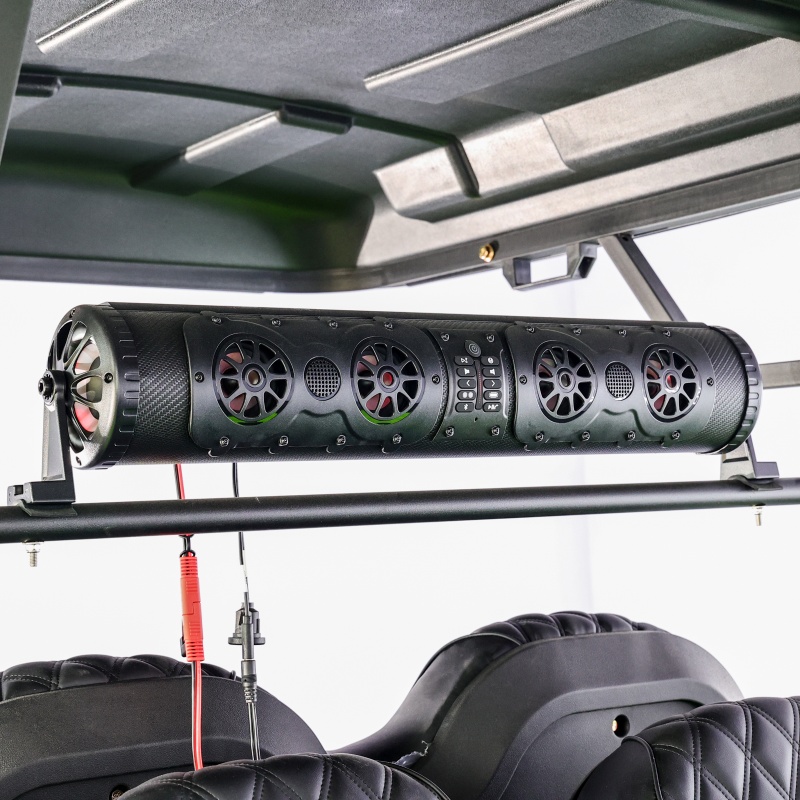

| Lighting system and horn | LED front combination lamp (low beam lamp, high beam lamp, turn signal lamp, daytime running lamp, position lamp), LED rear tail lamp (brake lamp, position lamp, turn signal lamp); Snail horn, Two 4/ 6.5 inch loudspeakers, Bluetooth soundbar. |

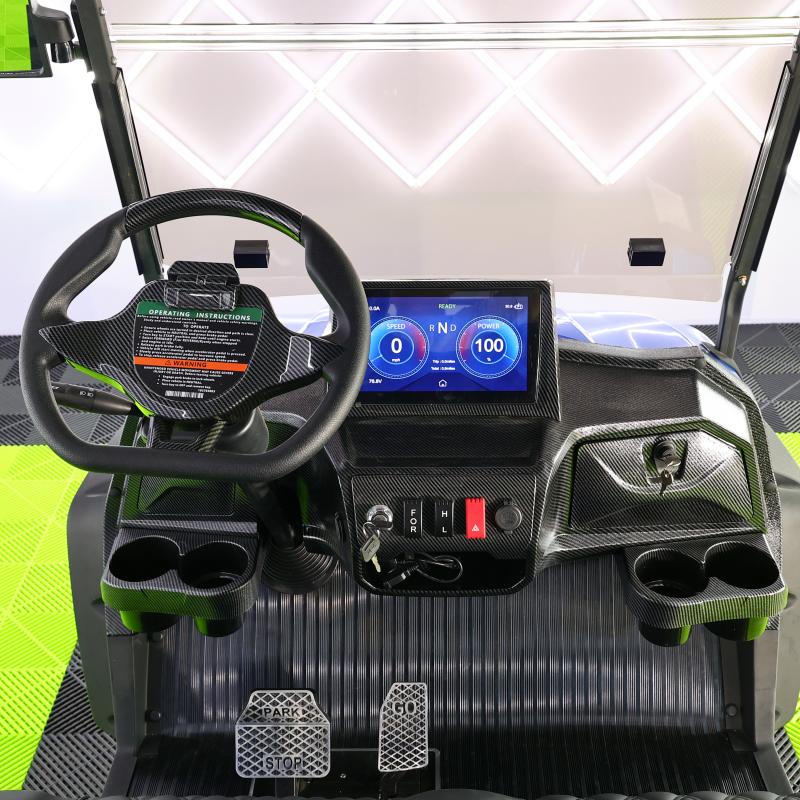

| Instrument panel | Injection molding instrument panel, 2 glove storage box, electric lock switch, gear switch, High and low light switch, Daytime running lamp, hazard warning light switch, water cup holder, USB + type-C fast charging. 10.1 inch LCD screen, with speedometer, odometer, battery power meter and various indicators, Optional reverse image. |
| Charger | Smart charger, input 110V-240V~50Hz-60Hz, output 48/60/72V, 20A |
| DC converter | High power non-isolated DC-DC 12v-300w |
| Steering System | Bidirectional rack and pinion steering system with automatic clearance compensation function |
| Brake system | 4 Wheels hydraulic front disc rear drum brake, regen brake. Rear Disc Brake/ Electromagnetic parking |

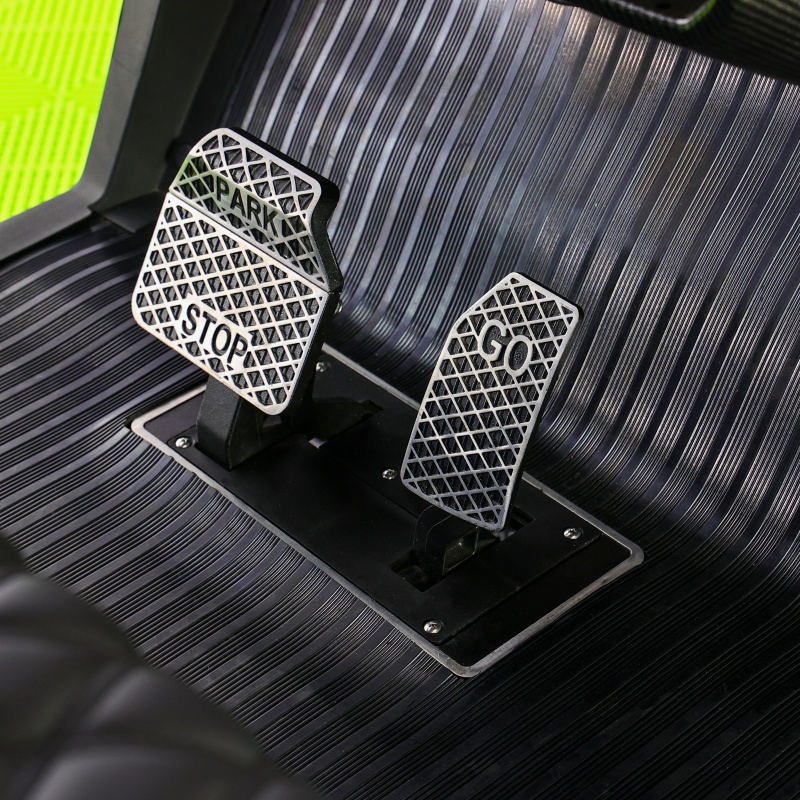

| Accelerator | Stepless speed change |
| Driving mode | Rear axle two stage deceleration, motor direct driving |

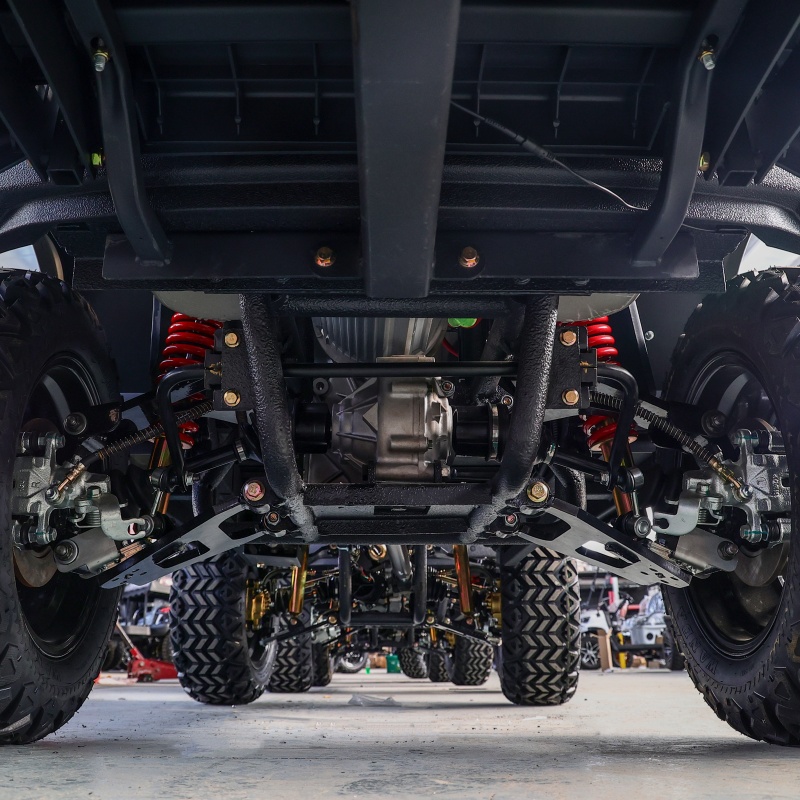

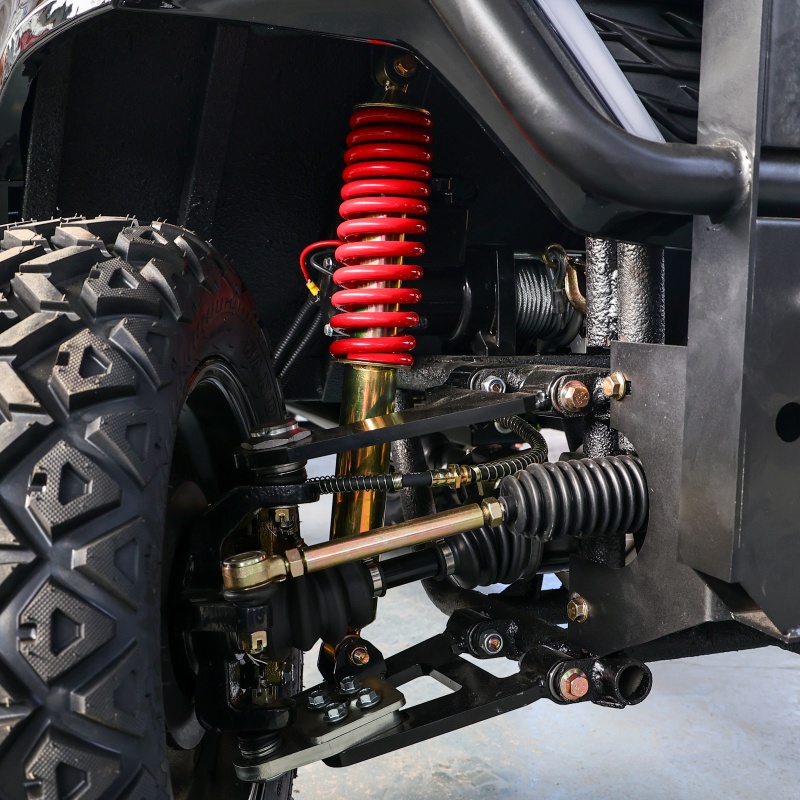

| Suspension system | Front MacPherson Independent and rear trailing arm suspension + cylinder hydraulic shock absorber. Integral rear axle, speed ratio 16:1, coil spring damping + barrel hydraulic pressure damping + rear stabilizer bar. Double swing arm and independent front suspension. |

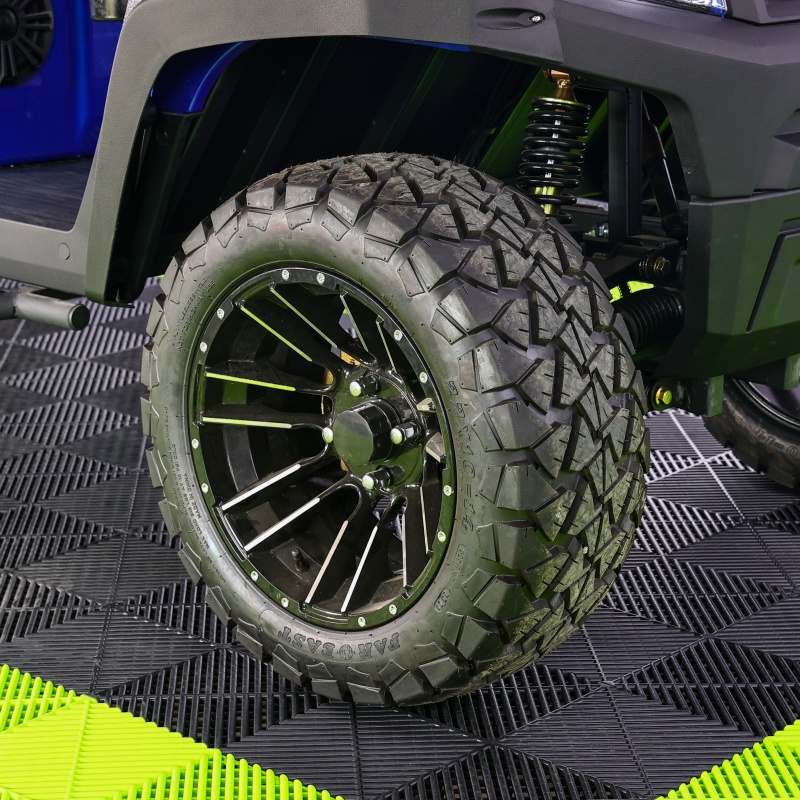

| Wheel & Tyre | DOT certification; Road tire 205/50-10 (tire diameter 520mm) 10 inch aluminum wheel hub. 12/ 14 inch tire |
