| Dimension | 3500*1340*2000mm |
| Packaging Dimension | 3700*1350*1250mm |
| Max. Speed | 45km/h |
| Max. Gradeability | 30% |
| Endurance Mileage | 80-100Km |
| Seating | 6 |
| Wheelbase | 2400mm |
| Total Weight | 620kg |
| Motor | 4KW AC Motor |
| Vehicle Voltage | 60V/72V |
| Battery Type | Lithium Battery/Lead-acid maintenance-free battery (Optional) |
| Battery Quantity | 5 (Optional) |

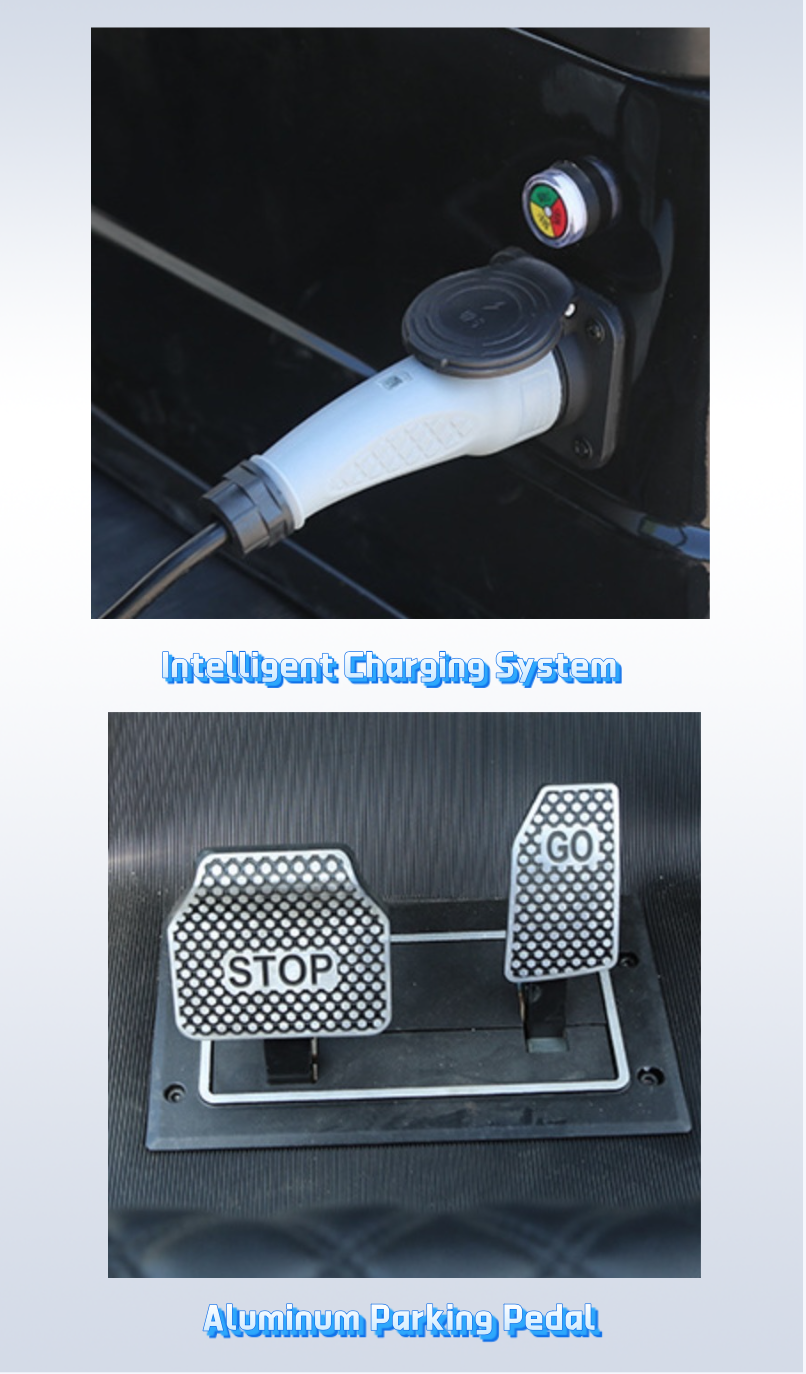

| Charger | Vehicle-mounted smart charger, charging time <8 hours (discharge rate 80%) |
| Controller | Enpower controller |
| DC Converter | High power non-isolated DC-DC12V |
| Steering | Double acting rack and pinion steering system with automatic gap compensation function |
| Brake | Four wheel hydraulic brake, four wheel disc brake + electric brake power |
| Front Suspension | Double swing arms and independent front suspension + coil spring + cylinder type hydraulic shock absorber |
| Rear Suspension | Integral rear axle, speed ratio 16:1, coil spring damping + barrel hydraulic damping |

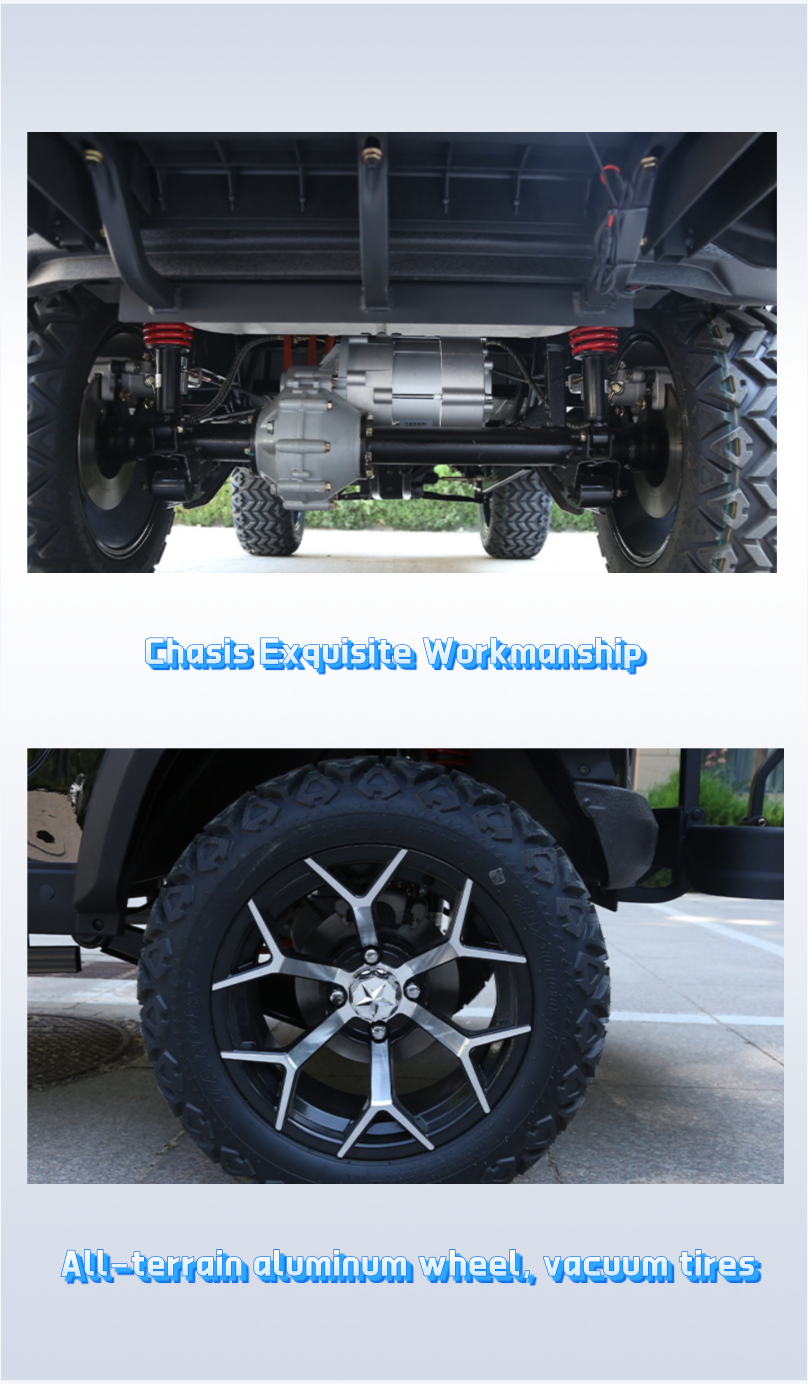

| Tire Size | All-terrain 23*10.5-12 12-inch aluminum wheels, vacuum tires. |
| Suntop | Frosted black square tube frame + polypropylene injection molded large top |
| Floor | Non-slip floor, high strength structure, corrosion resistance, aging resistance. |
| Body | The front cover, seat barrel, body and rear cover are automobile injection molding: frosted black square tube top column; |
| Seat | Integral foam molding cushion: high grade imported leather (optional) Color separation: inverted seats are reversible, including storage boxes |

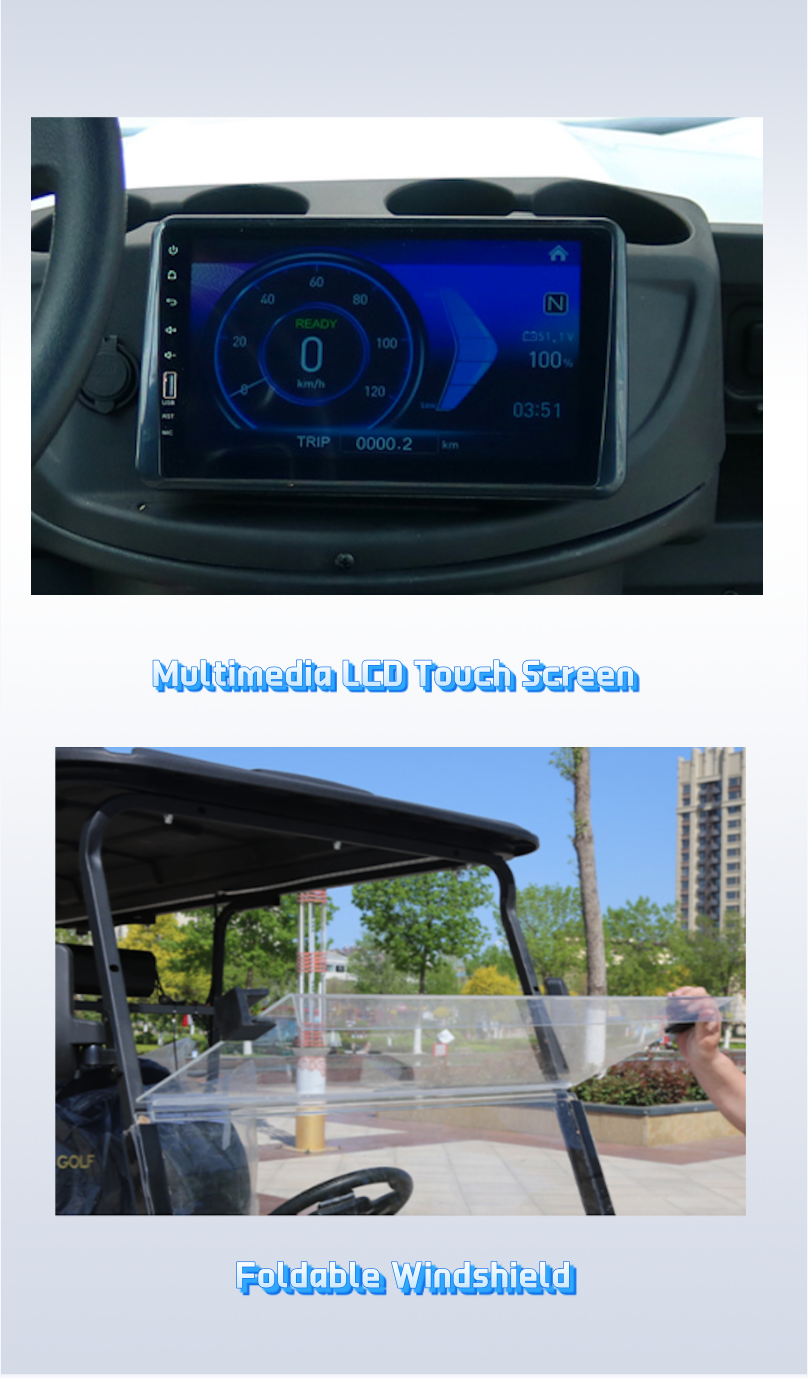

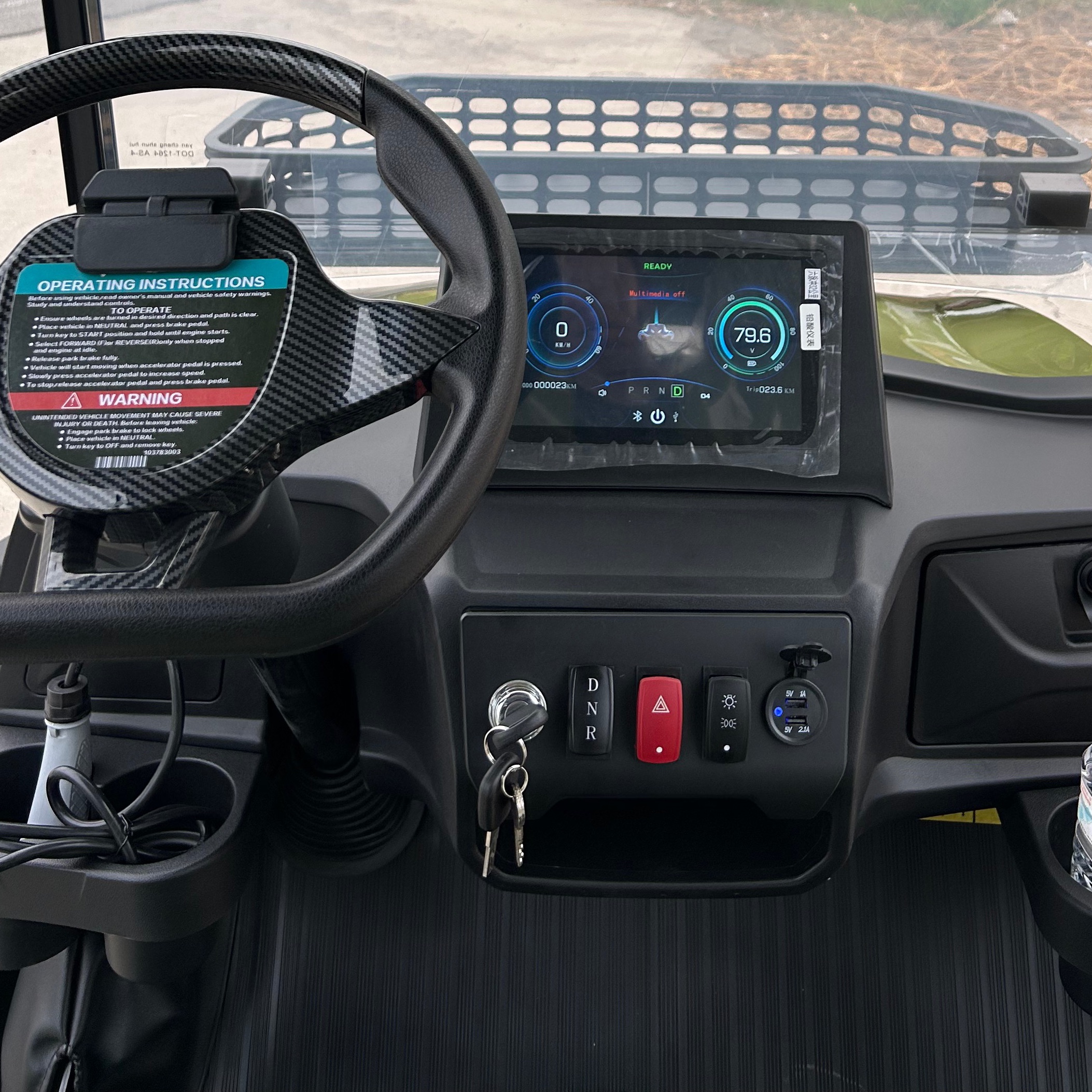

| Dash Instrumentation | Injection molding instrument panel, electric lock switch, double arm combination switch, gear switch, water cup holder :USB data interface. 10.1 inch LCD embedded multimedia touch LCD screen. |
| Rear View Mirror | One hand-adjustable, foldable rear view mirror on each side |
| Lights and Signals | Led front combination lights (low light, high beam, turn lights, daytime running lights, position lights LED rear tail lights (brake lights, position lights, turn lights): snail horn, reverse buzzer |
| Front Windshield Cover | Acrylic plexiglass (foldable) |
- Yes, we accept customization as per customer's special request with reasonable cost and lead time.
- We accept small orders, no MOQ request. But price will be different based on order quantity.
- Sample order within 7 days and 15-30 days for bulk order.
- We provide 1 year warranty. For any failed part under warranty, we can send you replacements and provide technical support.
- Yes, we provide technical support. If necessary, our engineer can go to your place.
- 50% T/T in advance as deposit, 50% be paid by copy of B/L.
