| PERFORMANCE | ELECTRICAL PARAMETERS | ||
|---|---|---|---|
| Passenger Capacity | 4 Seats | Electronic Control | AC intelligent controller |
| Max Speed | 25km/H | Charger | On Board Charger, Full Automatic Efficiency Pulse Charger |
| Climbing Capacity | 25% | Motor | Three-phase asynchronous AC traction motor (power 4kw) |
| Wheelbase | 1680mm | Battery | Lithium battery 48V180AH (lead-acid 48V150AH) |
| Front Track | 935mm | Recharge Time | 7-8 hours |
| Rear Track | 990mm | Max. Travelling Range | 80-100km |
| Size | 3100x1350x1950 | Brake Range | ≤4m |
| Curb Weight | 370kg | Rated Weight | 525kg |
The golf cart is designed to achieve a maximum traveling range of 80 to 100 kilometers under optimal conditions, depending on the terrain, speed, and overall load.
It takes approximately 7 to 8 hours to fully charge. The onboard fully automatic efficiency pulse charger prevents overcharging and optimizes battery lifespan.
We offer two primary options to suit your needs: a high-capacity 48V 180AH Lithium battery or a traditional 48V 150AH Lead-acid battery configuration.
Yes. Supported by a robust 4kW three-phase asynchronous AC traction motor, this golf cart delivers a climbing capacity of up to 25% incline.

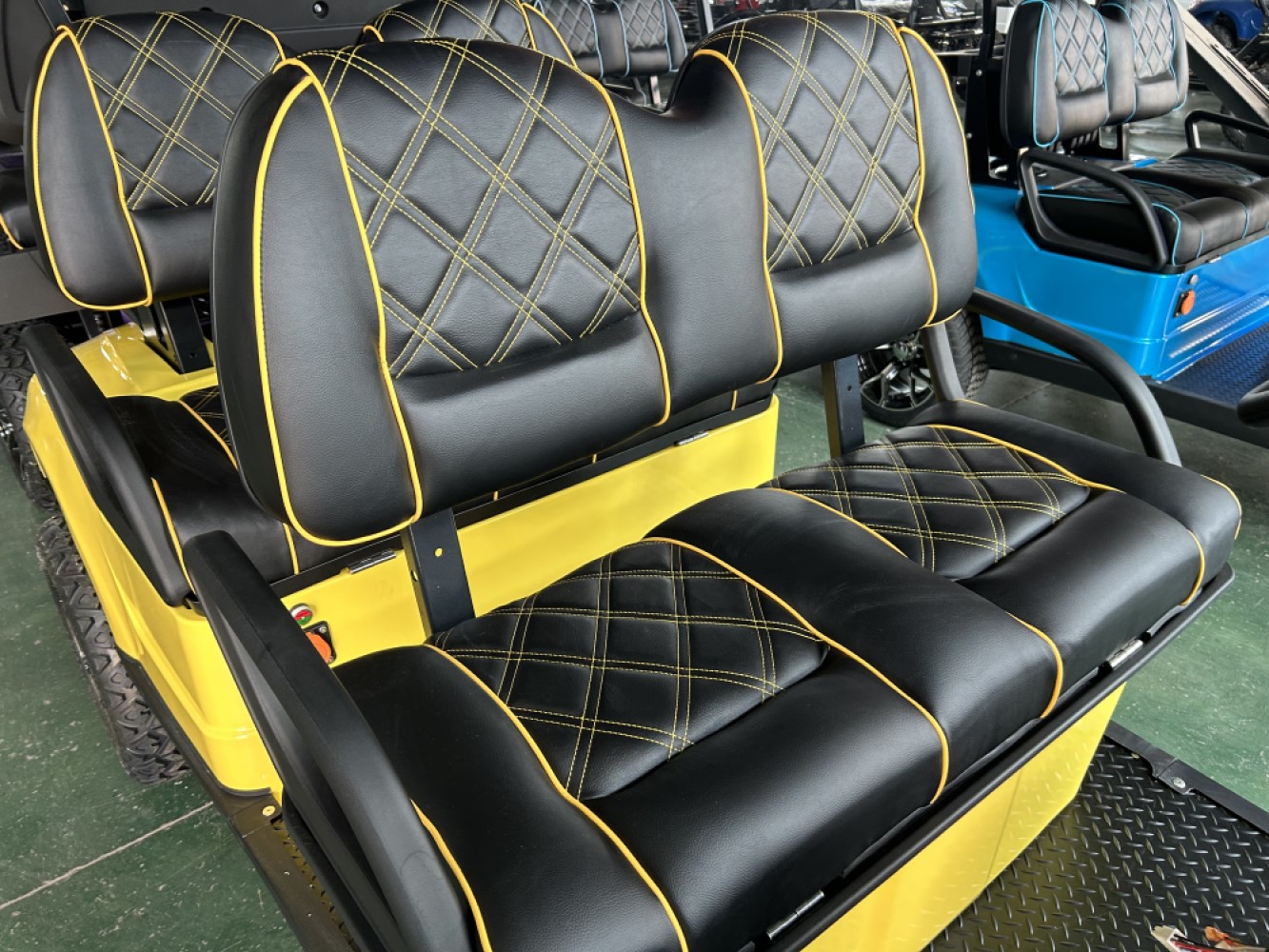

This model is built as a 4-seater vehicle with a rated weight capacity of 525 kg (curb weight is 370 kg), ensuring a safe and stable ride for all passengers.
The vehicle features a highly reliable braking system with a response brake range of 4 meters or less, providing excellent control and safety on various pathways.
