| Model Details | System Configuration | ||
|---|---|---|---|
| Model NO. | ZH-A2 | Configure system | 48V AC system |
| Electric system | |||
| Controller | AC intelligent controller | ||
| Battery | Maintain-free battery 8V/pc, 6pc 150AH (3 hour rate) Install lithium batteries according to customer needs |
||
| Motor | AC asynchronous 48V/5KW | ||
| Charging | Intelligent charging 48V/25A (natural switching), charging time < 10 hours (discharging rate 80%) | ||
| DC converters | High power non-isolated DC-DC 48V/12V-300W | ||
| Bodywork configuration | |||
| Front gear & windshield wiper | PMMA | ||
| Ceiling | Automotive engineering material ABS blister molding | ||
| Seat | Ergonomic seat, leather fabric | ||
| Floor | Patterned aluminum plate / anti-aging rubber non-slip floor | ||
| Bodywork | The front cover, seat barrel and body cover parts are injection molded with special PP materials for automobiles; high-quality steel profiles for ceiling columns | ||
| Rearview mirror | One manual exterior rearview mirror on the left and right | ||
| Light & warning light | Front combination lights (front lights, turn signals), combined rear tail lights (brake lights, position lights, turn lights), Snail horn, reversing buzzer | ||
| Instrument desk | Plastic molding instrument panel, LCD electric vehicle combination instrument, electric lock switch, single arm combination switch, gear switch; water cup holder; dual USB power supply. | ||
| Steering system | Two-way rack and pinion steering system, automatic backlash compensation function | ||
| Sharking system | Rear hub brake + compound pedal parking | ||
| Front suspension system | McPherson independent suspension; coil spring + cylinder hydraulic shock absorber | ||
| Rear suspension system | Integral rear axle, coil spring shock absorber + cylinder hydraulic shock absorber + rear stabilizer bar | ||

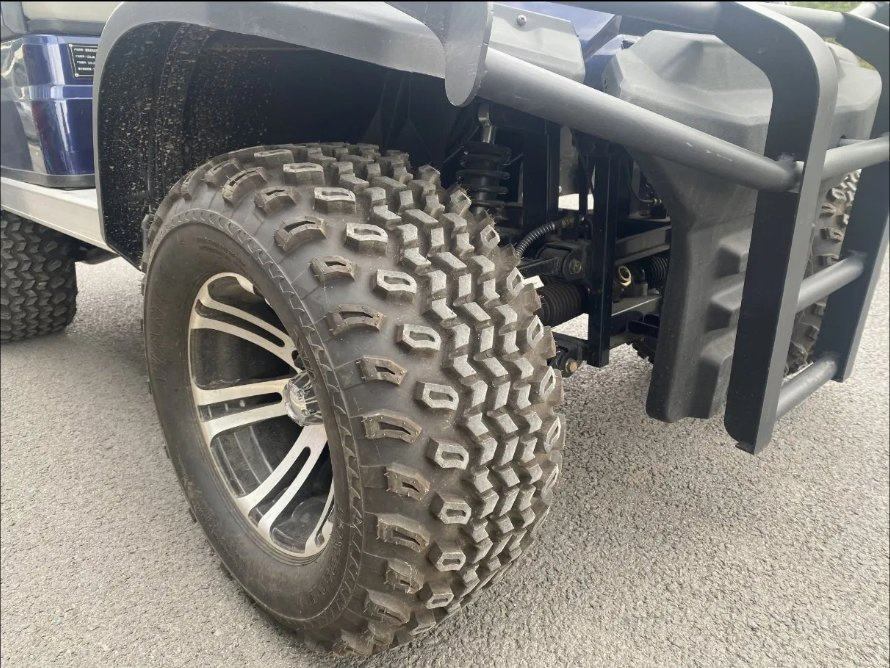

| Tire | Special golf cart tire 205/50-10, wheel diameter 452mm | ||
| Technical parameters | |||
| Length*Width*Height | 2425×1130×1835mm | Vehicle height (with battery) | 500kg |
| Rate personal (people) | 2 people | Cargo size | N/A |
| Maximum traveling speed | ≤ 28km/h | Cargo load | N/A |
| Driving range (km) | 80-100km (flat road) | Sharking stability | 1600mm |
| Energy consumption | 8kwh | Minimum ground clearance | 110mm |
| Maximum grade | 30% | Axle distance | 1680mm |
| Slope stand | 30% | Wheel base | Front 920mm / Rear 966mm |
| Minimum radius | 3.3m | Sharking distance | < 6m |
