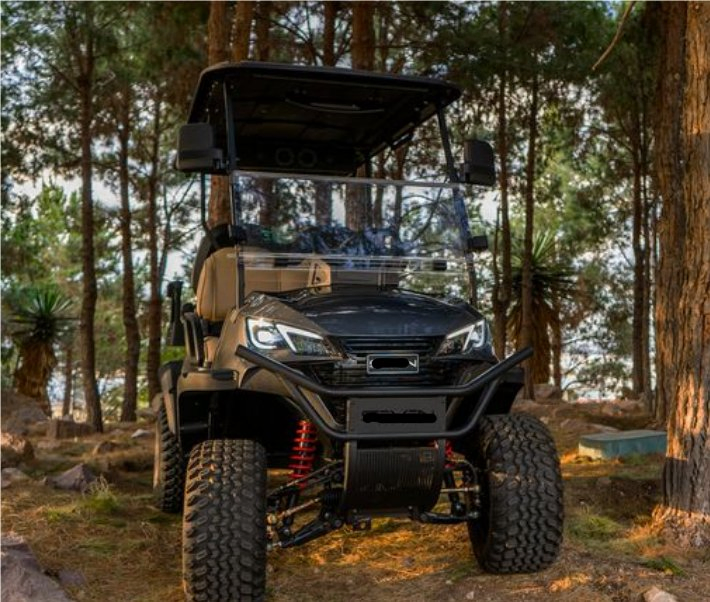

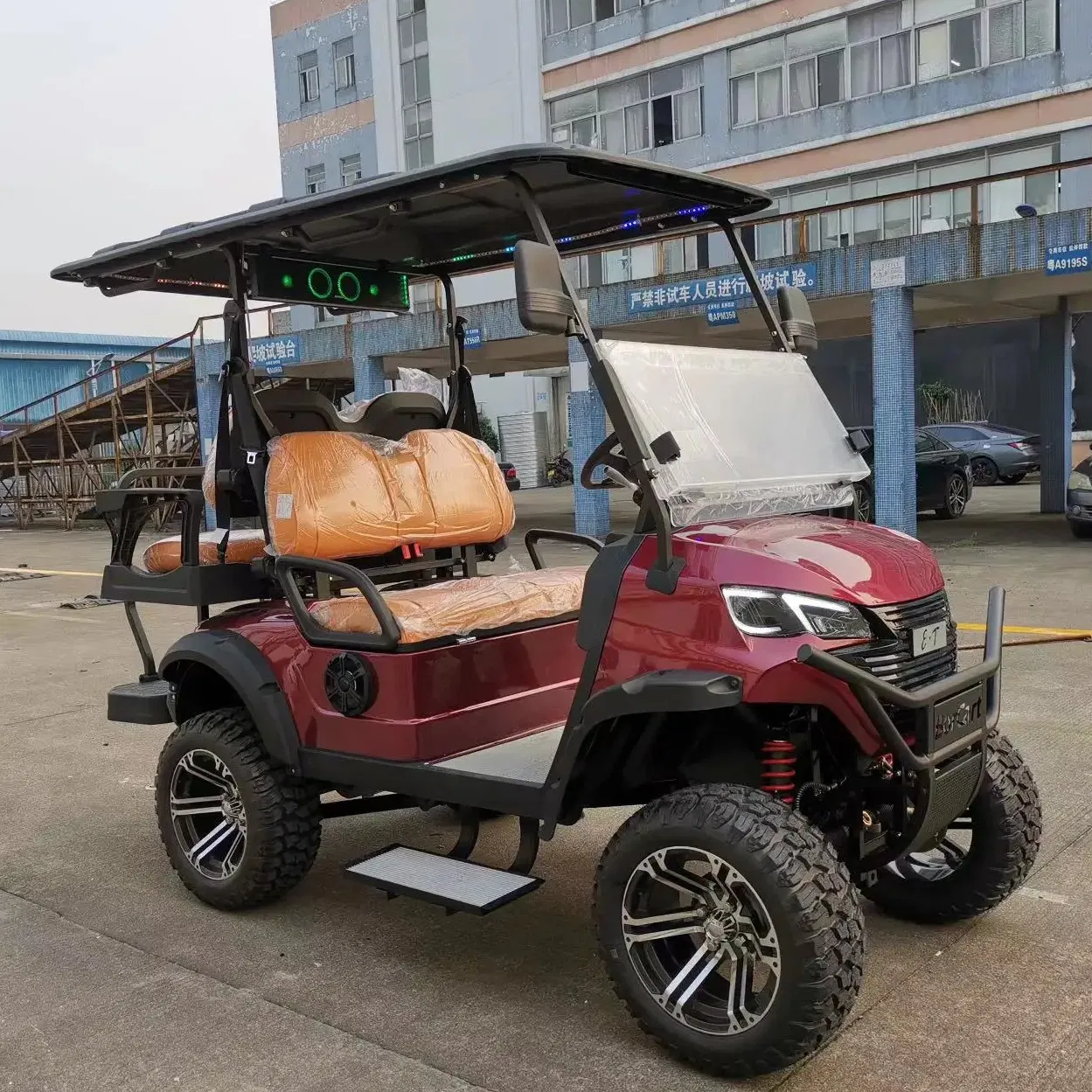

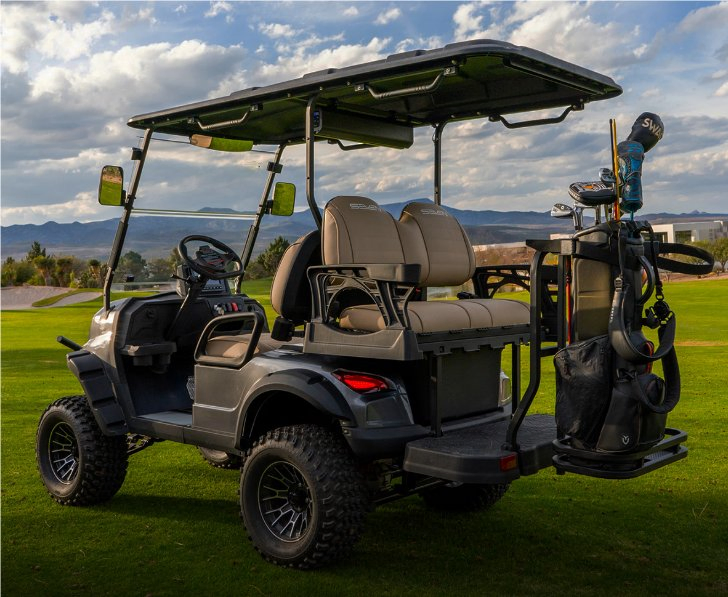

Golf Cart Go Karts Club Car Electric 4 Wheel Lifted Electric Golf Cart Scooter Lithium Golf Cart off Road

Customization: Available
Type: Buggy/Golf Carts
Seats: 3-4

Product Description

Overview & Specifications

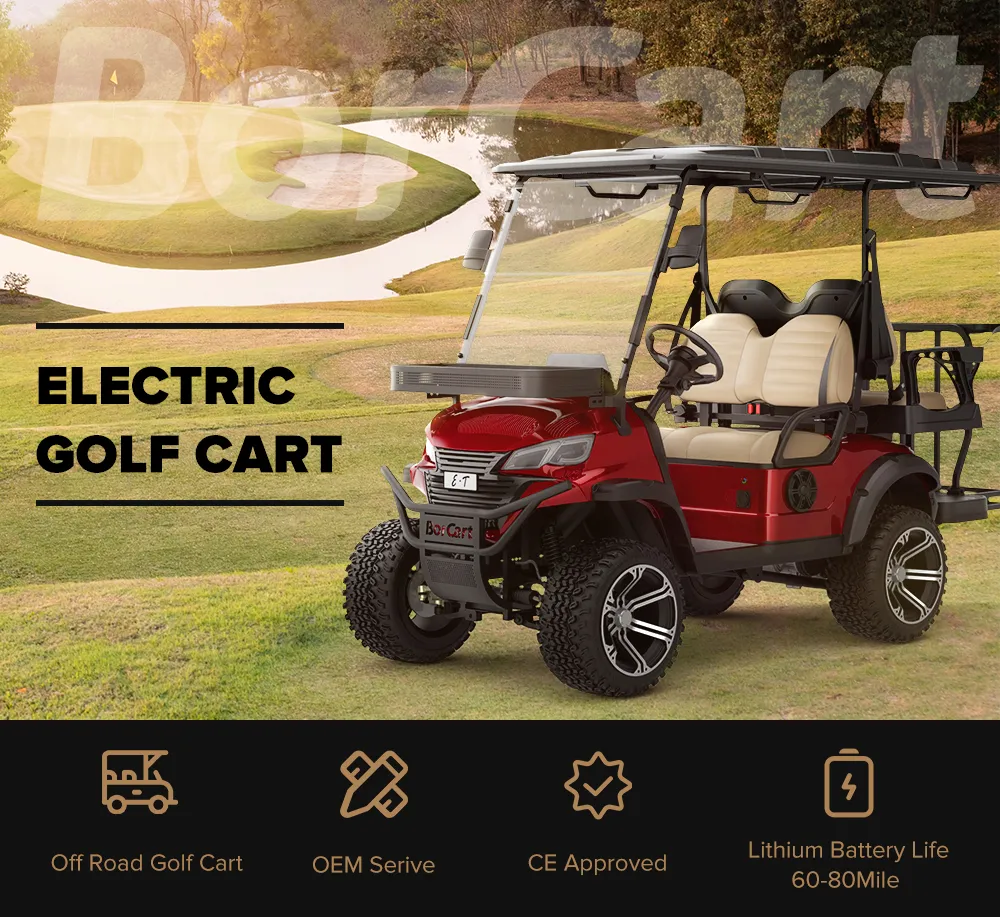

Electric 4 Wheel Lifted Electric Golf Cart
Basic Information
Model NO. ET-L2+2 Power 5kw
Power Fuel Electric Maximum Speed 30-40km/H
Gradeability >30% Suitable for Holiday Village
Certification CE, ISO, DOT Voltage of Battery 48V
Color Grey, White, Black, Blue, Red, Green Tire Size 23 * 10.5-12 (4 Ply Rated)
Curb Weight 510kg Motor 48V 5kw or 72V 5kw
Product Name 48V Lithium Ion Battery Golf Cart
Dashboard 7-Inch Advanced Multimedia Combination LCD Screen
Minimum Ground Clearance 150-200mm Braking System 4-Wheel Disc Brake + Electronic Brake Parking
Driving Mileage 70-90km Charge Time(H) 4-6h
Transport Package 20'GP (Disassembled) for 8, 40'HQ for 20PCS Specification 2950*1340*2130mm
HS Code 8703101900 Production Capacity 500 Piece/Pieces Per Month
Packaging & Delivery
Package Size 260.00cm * 160.00cm * 160.00cm
Package Gross Weight 850.000kg
Product Description
Product Description Divider
Comparison Specification (ET-L2+2)
Acid Battery Option (48V 5KW)
  • Motor:KDS 48V AC motor
  • Power:5KW
  • Electrical System:48V
  • Battery:6 pcs 8V Lead Acid
  • Charger:Intelligent 48V25A (<6 hours)
  • Controller:48V350A DC:DC-DC 48V/12V-300W
Lithium Option (48V 5KW)
ET-L2+2 Small Details
  • Motor:KDS 48V AC motor
  • Power:5KW
  • Electrical System:48V
  • Battery:48V105A Lithium
  • Charger:Intelligent 48V25A (<6 hours)
  • Controller:48V350A DC:DC-DC 48V/12V-300W
Overall Dimensions & Performance
  • Size Overall:2950*1340*2130 mm
  • Cart Weight (no battery):<=610kg
  • No. of Passengers:4 Passengers
  • Wheel Distance (F/R):Front 1005mm/Rear 1075mm
  • Wheel Axle Distance:1680mm
  • Ground Clearance:170mm
  • Min Turning Radius:3.20m
  • Max Speed:25MPH
  • Climb / Slope Performance:25%
  • Battery Life (Normal road):50-70 miles
  • Brake Distance:<3.5m
Comfort Performance Features
  • Waterproof advanced multimedia combination LCD screen with vehicle status information.
  • Full range hifi speaker system.
  • Comfortable seats: integral foam cushion + solid high-grade leather.
  • High-strength aluminum alloy anti-skid floor, corrosion resistance and aging resistance.
Suspension and Braking System
  • Front suspension: Double arm independent front suspension + spiral spring + cylindrical hydraulic shock absorption.
  • Rear suspension: Integral rear axle, speed ratio 16:1, coil spring damping + cylindrical hydraulic damping + rear stabilizer bar.
  • Brake system: Zero crossing rear axle: four-wheel hydraulic brake, four-wheel disc brake + electronic brake parking.
  • Steering system: Two-way rack and pinion steering system, automatic clearance compensation function.
  • Frame: High-strength sheet metal trapezoidal frame (electrophoresis + highlight).

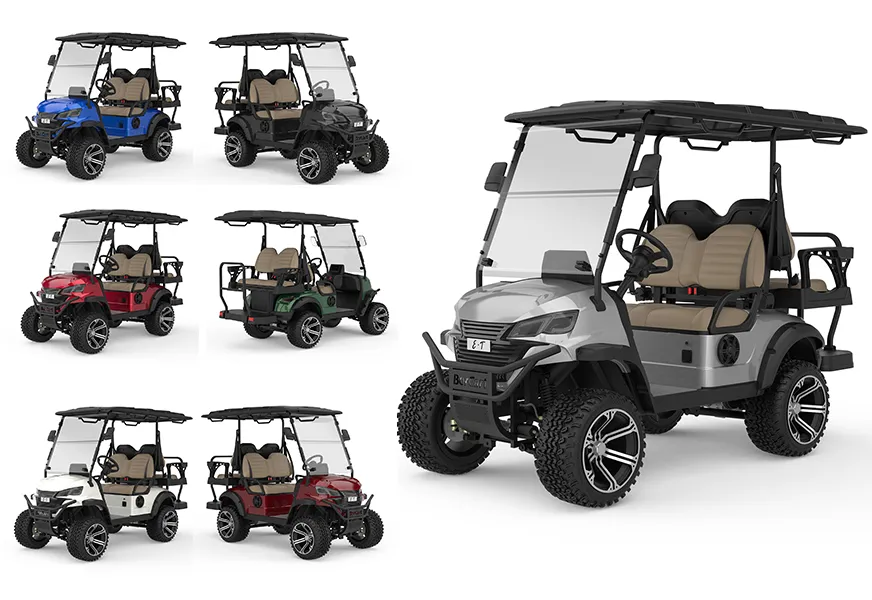

Off-Road Performance Golf Cart

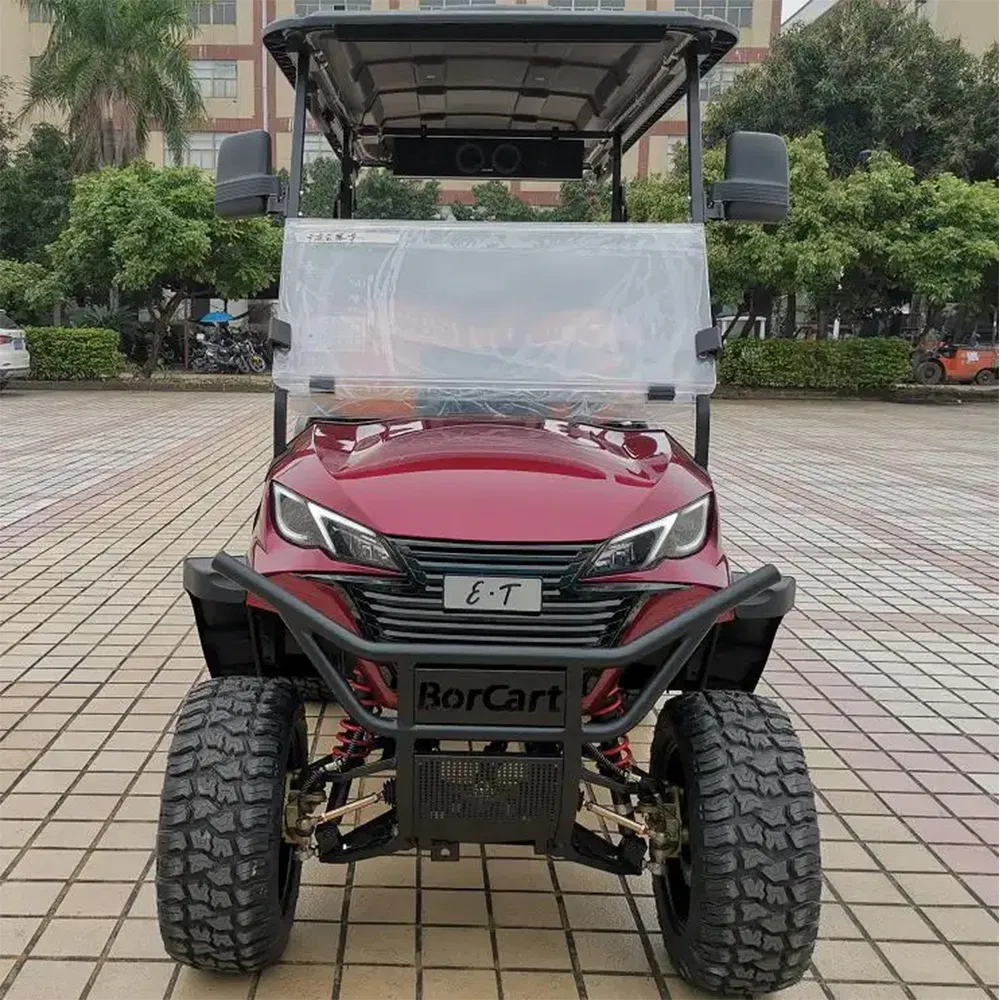

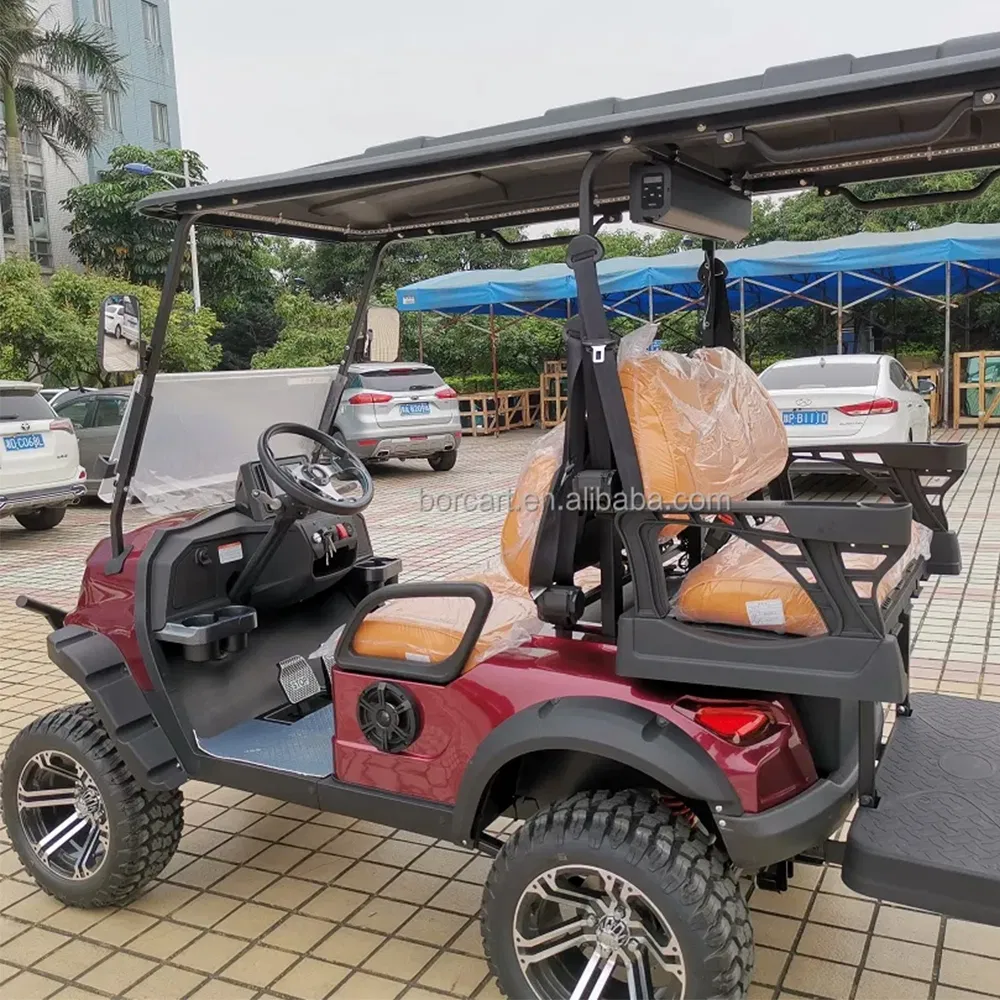

Details 1 Details 2

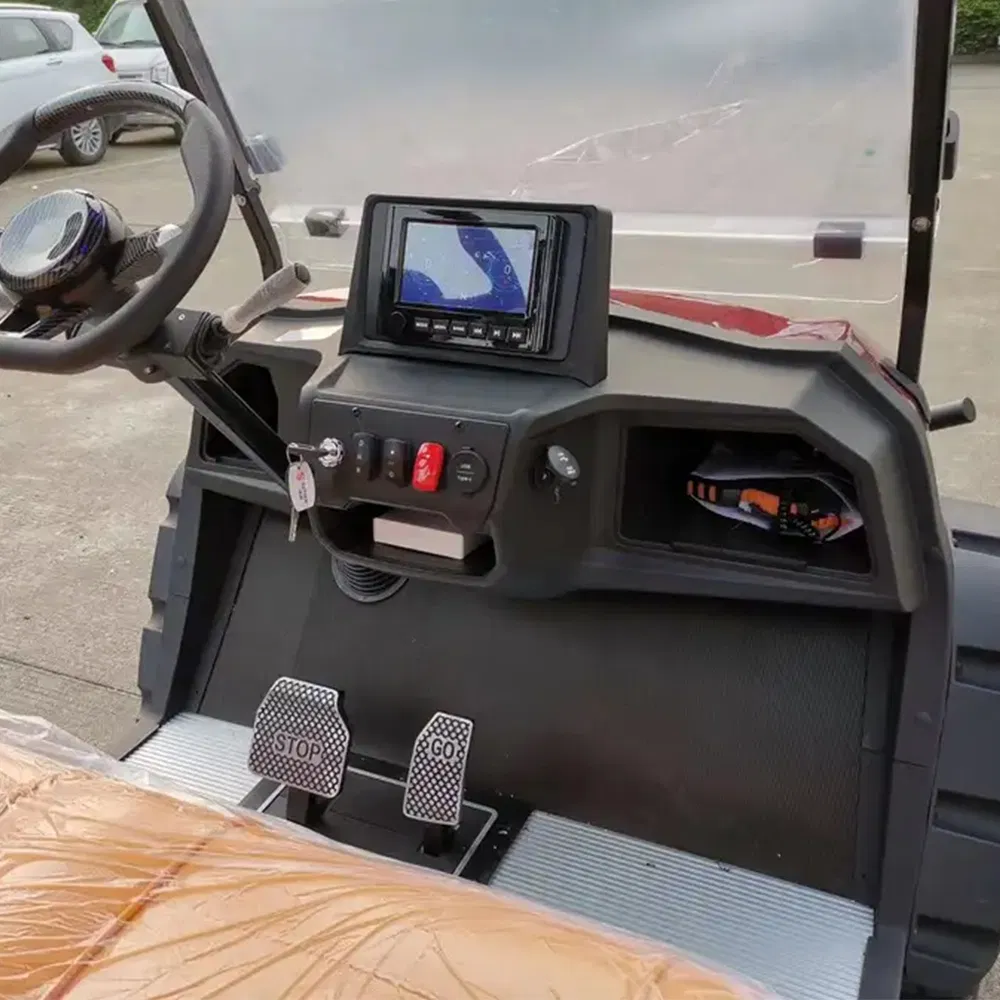

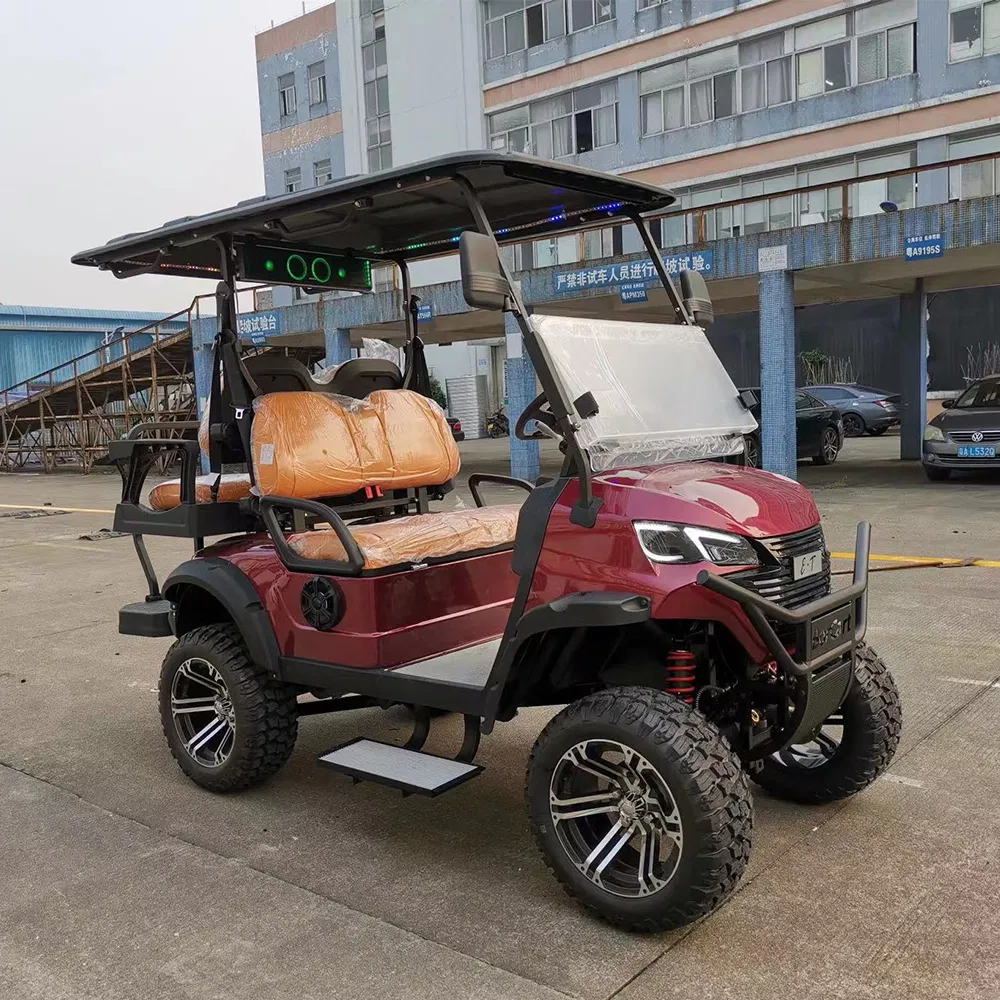

Details 3 Details 4
Details Images

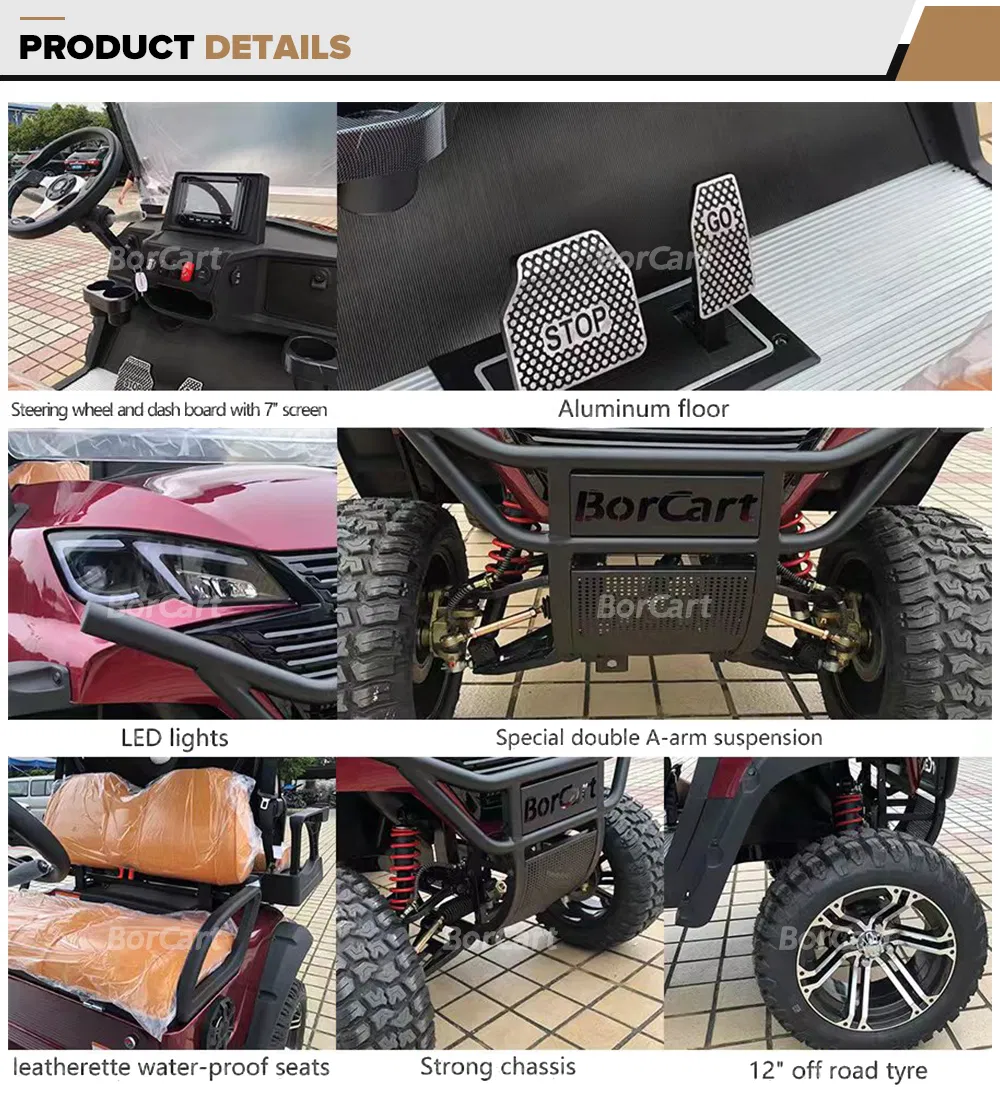

Detailed Component Images
Product Category
Product Categories Overview
Company Profile & Manufacturing
Operational Facilities Quality Operations and Logistics

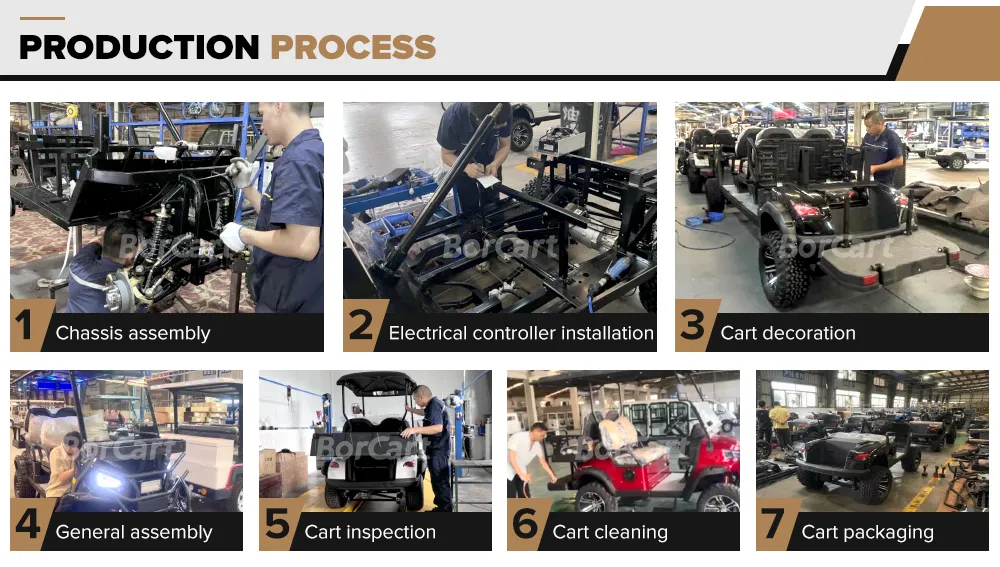

Production Process
Production Process Part 1 Production Process Part 2
Partner Brands
Partner Brands Logos
Exhibitions & Events
Exhibition View 1 Exhibition View 2 Exhibition View 3
Section Footer Divider
Frequently Asked Questions
Q1 Why choose our electric golf carts?
We bring over 22 years of specialized experience to the golf cart industry. With an advanced engineering team and skilled workforce, we develop and manufacture modern, fashionable, smart, practical, and highly cost-effective golf carts supported by reliable after-sales services.
Q2 What are your terms of delivery and typical lead times?
We support EXW, FOB, CFR, CIF, and DDP delivery terms. Typically, dispatch occurs between 15 to 30 days after receiving your advance payment. The exact timeline depends on your order's specific configurations and volume.
Q3 Do you accept custom OEM and ODM orders?
Yes, absolutely. We can construct components and vehicles based directly on your provided technical drawings or physical samples. We provide robust options for custom OEM/ODM builds.
Q4 What is the minimum order quantity (MOQ)?
Our Minimum Order Quantity starts at just 1 piece. We can also provide individual replacement parts and upgrade components directly to support your operational needs.
Q5 Do you test the golf carts before shipment?
Yes, every single golf cart undergoes 100% inspection and performance testing against rigorous criteria before it leaves the factory floor.
Q6 Can the golf cart color be customized?
Yes, the body shell can be customized in any specific paint finish or dual-tone schemes as requested by the client.
