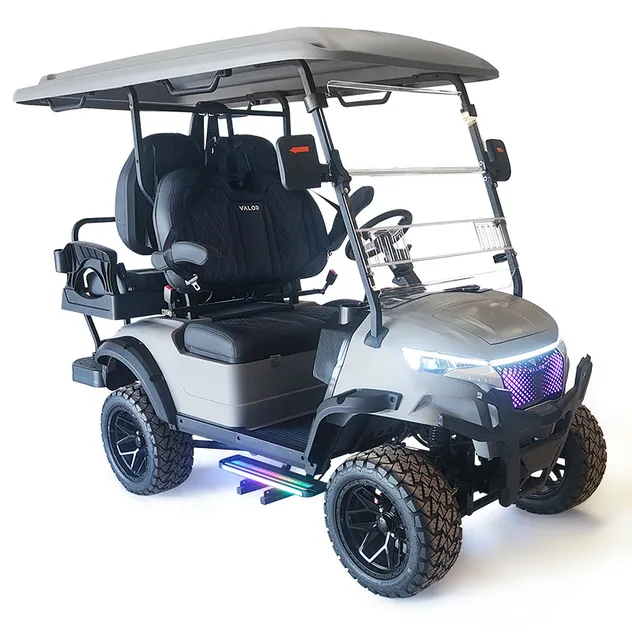

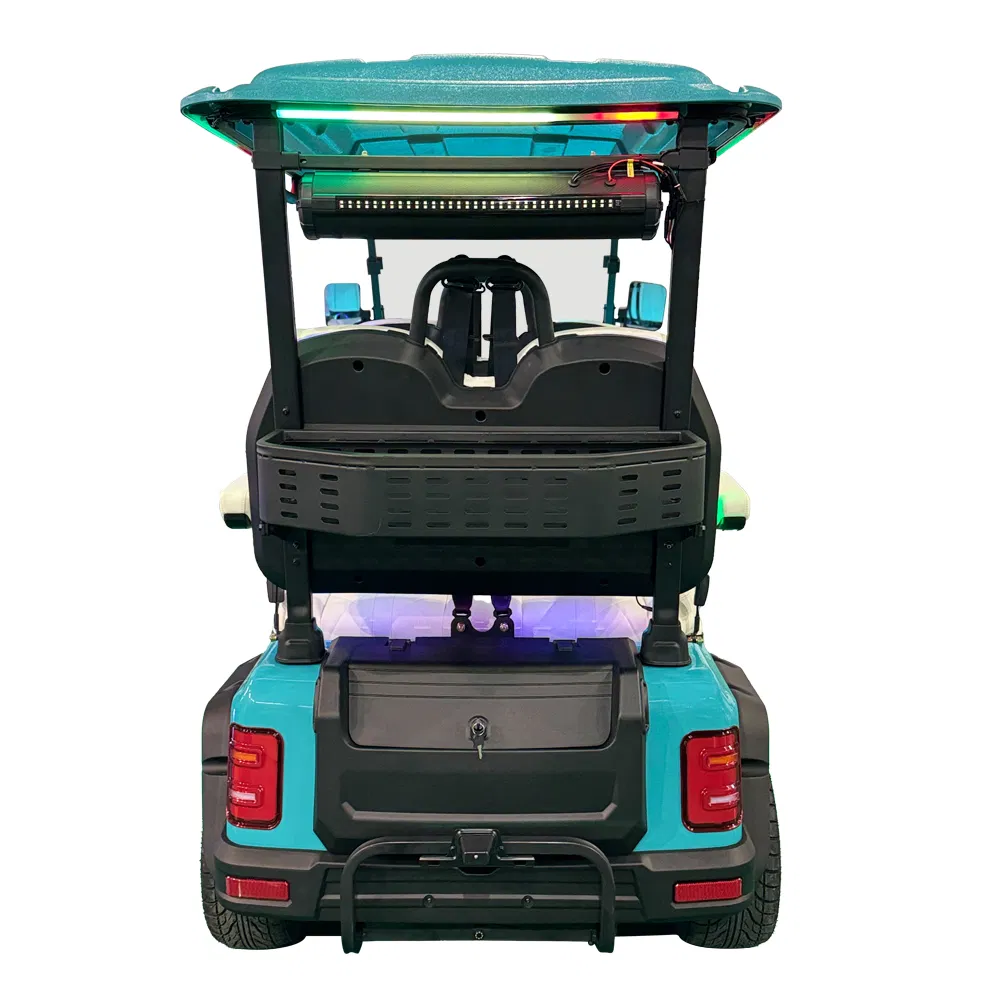

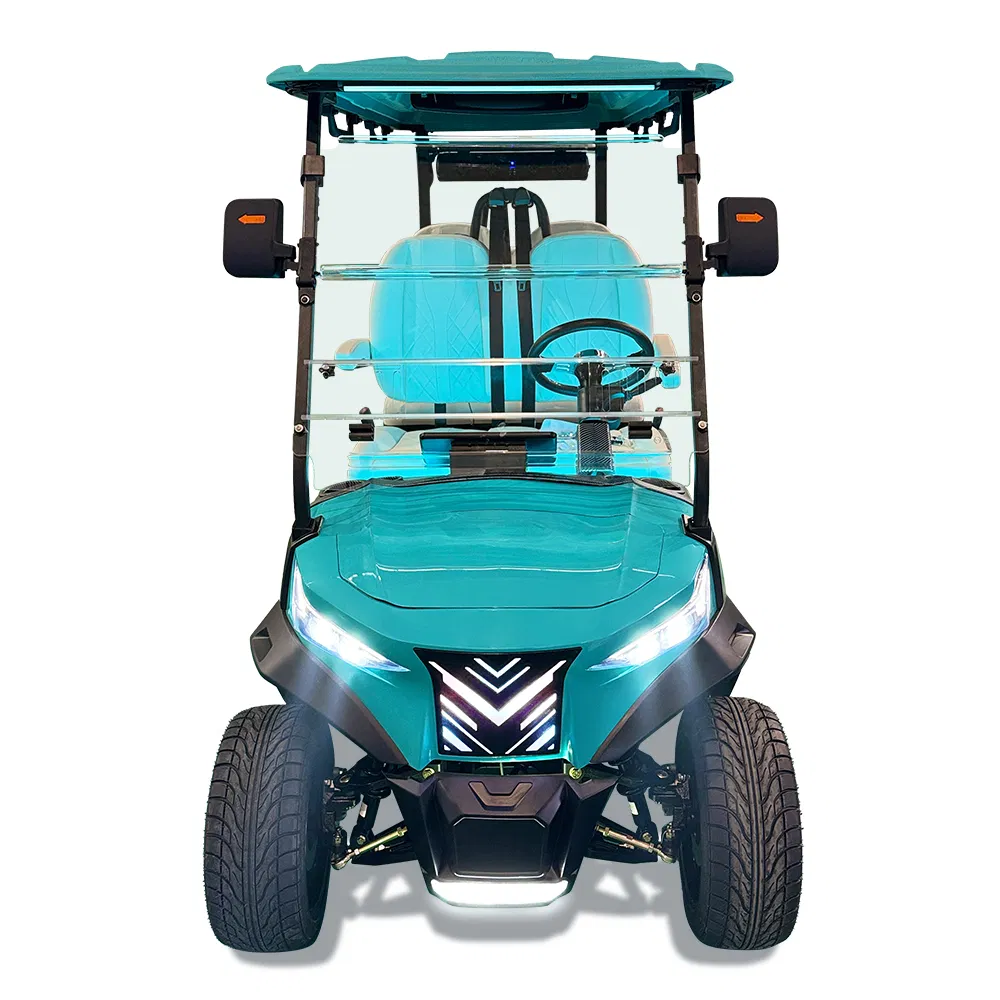

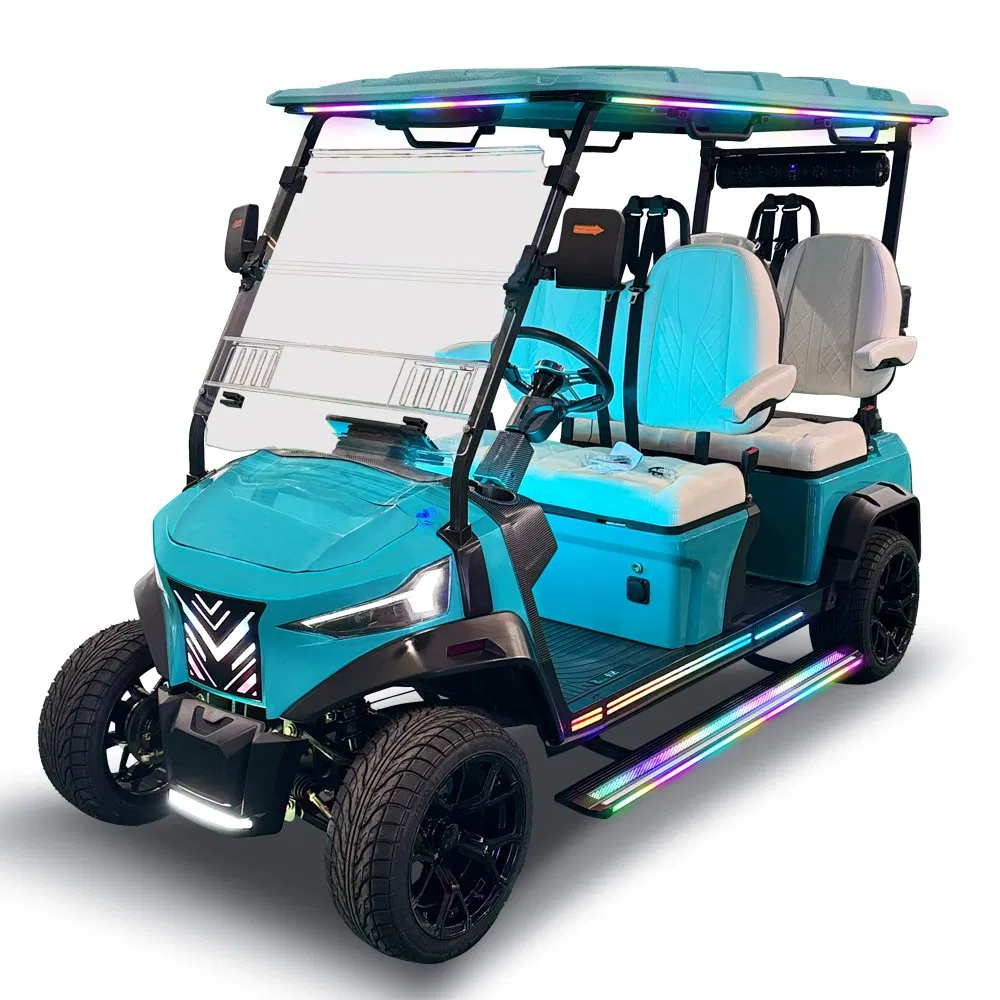

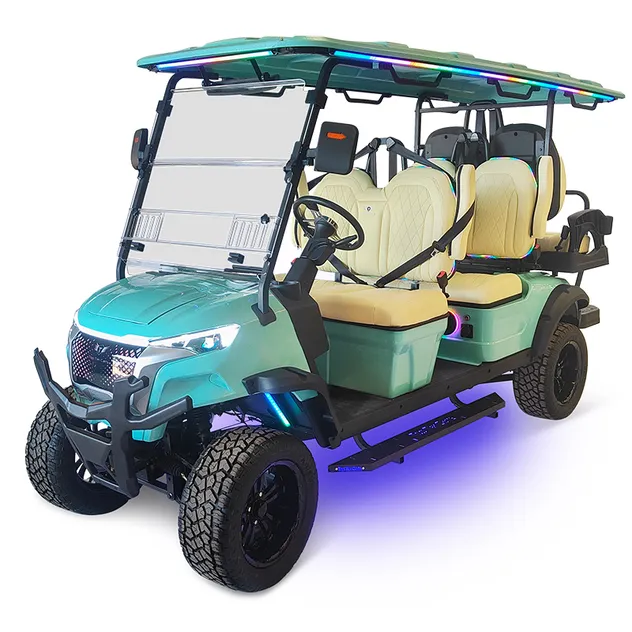

When power and agility unite - the Wolverine Electric Golf Cart makes its debut with a tough and fearless attitude. Its name is inspired by the spirit of fearless exploration, equipped with a stable aluminum alloy chassis and a sensitive electronic power steering system. Whether traversing the golf course or the community, it moves as swiftly and steadily as a wolf. With a four-seat layout, it offers both comfort and practicality, and its pure electric drive is quiet and efficient. We also offer in-depth brand customization services, from color schemes to logos, making each "Wolverine" a mobile business card for your brand. It comes for individuality and is born for the journey.
(Custom configurations available upon request.)
| Technical Parameters | |||||
|---|---|---|---|---|---|
| Vehicle weight (kg) | 540 | Carrying capacity (kg) | 550 | ||
| Contour dimension (inch) | 114.6X55.8X76.7 | Wheel base (inch) | 80.7 | ||
| Front gauge (inch) | 354.33 | Track rear (inch) | 393.7 | ||
| Minimum ground clearance (inch) | 47.24 | Minimum turning radius (inch) | ≤122 | ||
| Maximum speed (km/h) | 40 | Maximum gradeability (%) | ≤25% | ||
| Endurance mileage (km) | 40—70km | Braking length (inch) | ≤236 | ||
| System Configuration | |||||
| Dynamical System | Motor | AC 48V 5KW | Controller | AC 48V 400A | |
| Battery | 48v/72V 105AH lithium battery | Charger | 48V 20A car charger AC100-240V | ||
| Accelerator | Integrated input DC48V Output 0-4.65V | DC transverter | DC48V to 12V 300W isolation model | ||
| Braking System | Kind of drive | / | Speed changer | / | |
| Front axle | / | Rear axle | 12.31:1 | ||
| Service brake | Four wheel hydraulic disc brake | Parking braking | Electromagnetic brake | ||
| Steering System | Front Suspension | McPherson independent suspension | Rear Suspension | Towing arm integral bridge non-independent suspension | |
| Tyre | 205/50-10, 215/35-12, 225/50-14 | Wheel hub | 10”, 12”, or 14” aluminum rim | ||
| Steering gear | / | Steering Wheel | Foaming process | ||

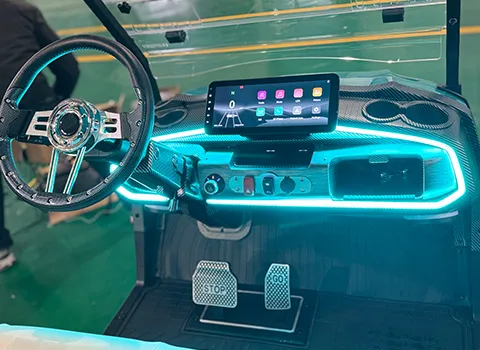

| Electric System | Automotive lighting | LED | Meter | 10.1 inches touch screen | |
| Car Body | Body | Injection Molding of PP for Automobile | Windshield | Transparent plexiglass | |
| Container | / | Armrest | / | ||
| Car door | / | ||||
| Body Accessories | Side rearview mirror | Standard configuration | Interior mirror | Standard configuration | |
| Carpet | Standard configuration | Seat | Standard configuration | ||
| Safety belt | Selective assembly | Emergency stop button | Selective assembly | ||
| Else | Abat vent | Selective assembly | Rain shelter curtain | Selective assembly | |
| Sound | Standard configuration includes two | ||||
