| Specification | |
|---|---|
| Bodywork | |
| Frame | Aluminium alloy chassis super antirust (Guarantee normal use for 10 years) |
| Body | High-strength and impact resistant composite material injected |
| Body Color | white, green, red |
| Bodywork parameters | |
| Overall length: | 3150mm |
| Overall width | 1300mm |
| Overall height (with suntop) | 2150mm |
| Wheel base | 1700mm |
| Front wheel tread | 985mm |
| Rear wheel tread | 985mm |
| Width of seat | 50cm |
| Seating capacity | 4 |
| Dry Weight (with batteries) | 480kgs |
| Carrying Capacity | 380kgs |
| Turning radius (m) | 3.5m |
| Maximum speed | 40km/h |
| Power system | |
| Driving system | Gear-driven, Stepless speed change, Electric rear drive |
| Motor | 4 KW AC Motor |
| Battery | Maintenance free battery 8V × 6pcs OR 48V Lithium battery |
| Charger | 48V 25A computer controlled charger |
| Speed controller | AC controller system |
| Gear ratio | 12.49 |
| Maximum climbing ability | 30% |
| Steering and Suspension | |
| Steering system | Rack and pinion steering system, automatic rocker compensating function |
| Front suspension | Macpherson independent suspension |
| Rear suspension | Multileaf spring suspension + cylinder hydraulic shock absorber |
| Brake system | Rear drum brake + Electric parking system |
| Automatic speed control system | Controller + Induction motors |
| Autobrake System | Controller + Induction motors |
| Braking distance | ≤ 4m |
| Wheel & Tyre | |

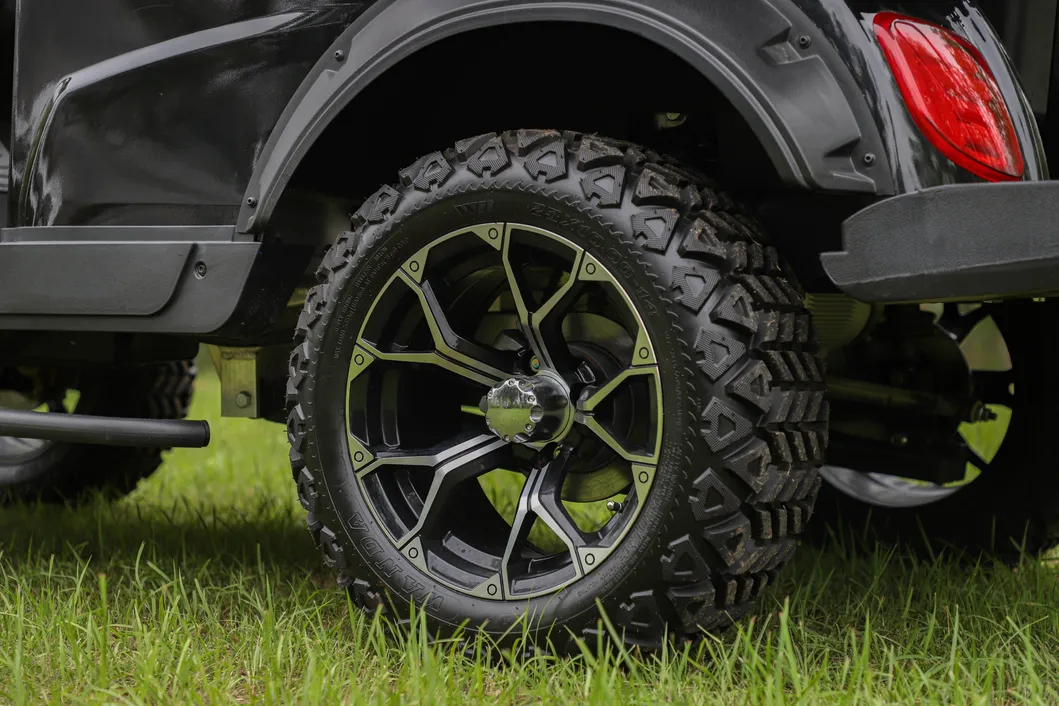

| Wheel & Tyre | 23×10-12, 4layer superior tread tire with Aluminum alloy wheel hub |
This model offers two battery configuration options: a maintenance-free 8V × 6pcs battery setup or a high-performance 48V Lithium battery package.
The cart features a high-grade, one-time bending forming integral aluminium alloy chassis. It is highly resistant to rust and guarantees normal use for over 10 years.
The vehicle can reach a maximum speed of 40 km/h and handles gradeability/climbing up to 20-30% effortlessly, powered by its 4 KW AC motor.
The cart is equipped with a rear drum brake along with a high-performance electric braking and magnetic parking system for reliable safety and stopping power.
Yes, the body is made from high-strength, impact-resistant composite eco-friendly PP injected material, and the colors can be customized (standard options include white, green, and red).
