Kabar Golf
1 / 5
| Parameter & Details | |
|---|---|
| Battery | EVERGREEN BATTERY 8V145AH*6 |
| Motor | separately excited 48V3KW |
| Controller | Curtis 1266-5201, 48V 250A |
| Charger | Fully automatic high efficiency pulse, 25 Amp DC output at 48 volts; input AC 220 volts, 50HZ |
| Suspension | Independent front wheel suspension, with two coil spring/shock absorber |
| Steering | Single reduction rack and pinion |
| Brakes | Dual rear wheel mechanical self-adjusting drum brakes. Automatic park brake release with self-compensating system |
| Passenger capacity | 2 |
| Range (loaded) (km) | 80-100 |
| Max. speed (km/h) | 24 |
| Minimum turning radius (m) | 4 |
| Max. climbing ability (loaded) | 20% |
| Overall dimensions | 3050*1220*1170mm |
| Max. loading weight | 540kgs |
| Net weight | 570kgs |
| Chassis | carbon steel |
| Wheel base(mm) | 2070 |
| Front wheel Tread(mm) | 870 |
| Rear wheel Tread (mm) | 980 |
| Tires | 18×8.50-8 6PR |

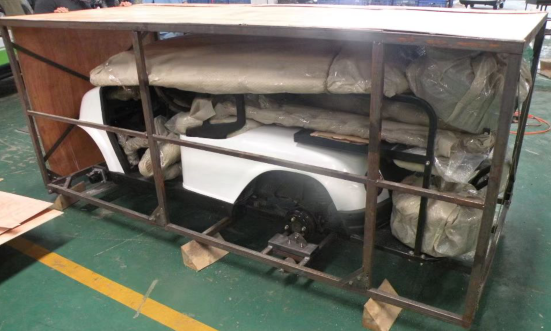

| Quantity per Container | 20/40GP/40HQ: 4PCS / 8PCS /12PCS |
