| Seats | 2 seats | 4 seats | 6 seats | 8 seats |
|---|---|---|---|---|
| Size | 2350*1250*1900mm | 2980*1250*1900mm | 3680*1250*1900mm | 4250*1250*1900mm |
| Weight | 450KG | 510KG | 590KG | 670KG |

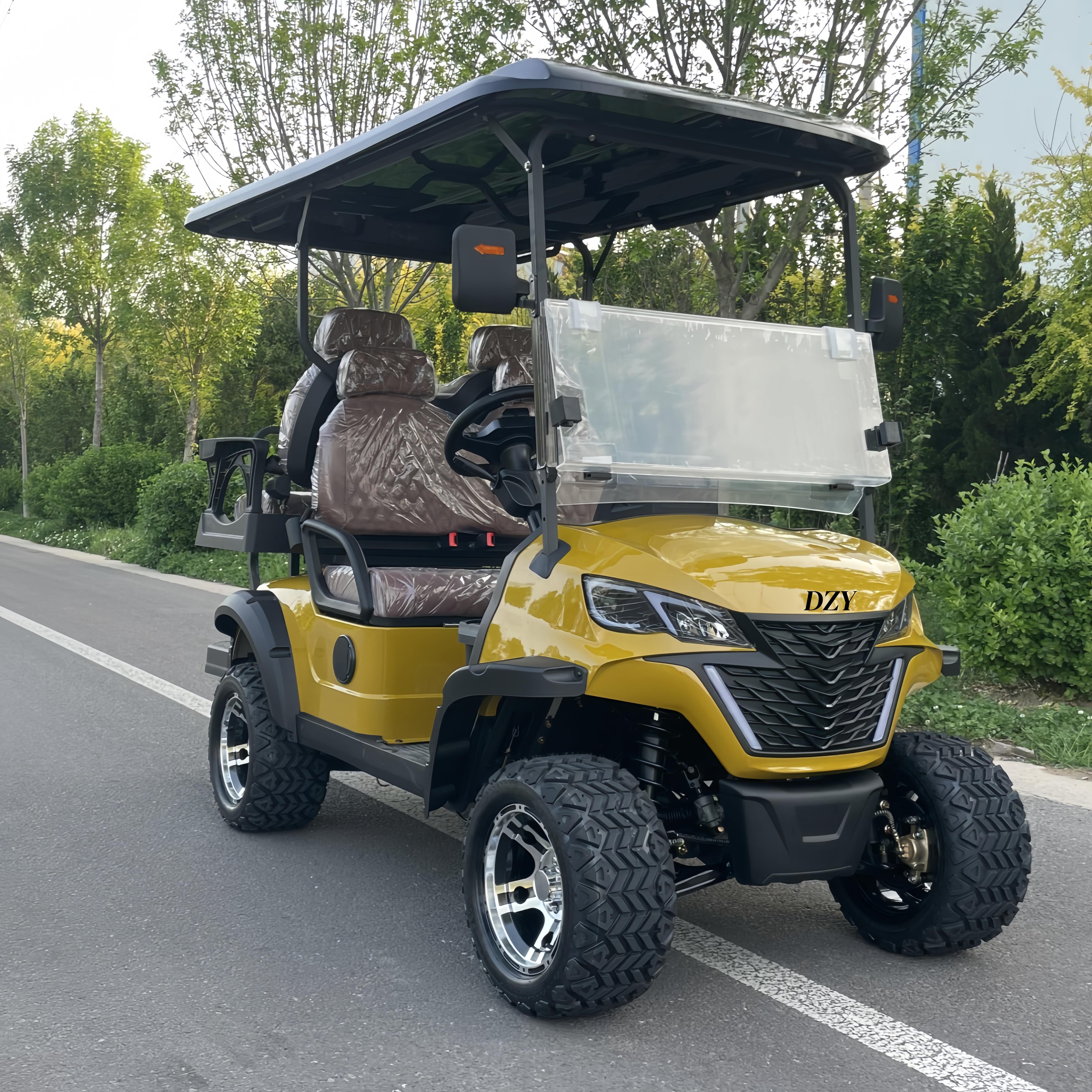

| 4 Seater Multi-Purpose Electric Golf Cart Parameters | |
|---|---|
| Key Components | |
| Controller | Inbor, SME or China Local Brand |
| Motor | 4KW/5KW/ AC motor |
| Battery | 48V/60V/72V 120AH Battery |
| Performance and Dimensions | |
| Passenger Capacity | 4 |
| Range (Loaded) * | 90-100kms |
| Max. Speed | 36-45km/h |
| Min. Turning Radius | 3.7m |
| Max. Gradeability | 20%-30% |
| Max. Loading Weight | 280kgs |
| Net Weight | 450kgs |
| Overall Dimensions | 2980*1250*1900mm |

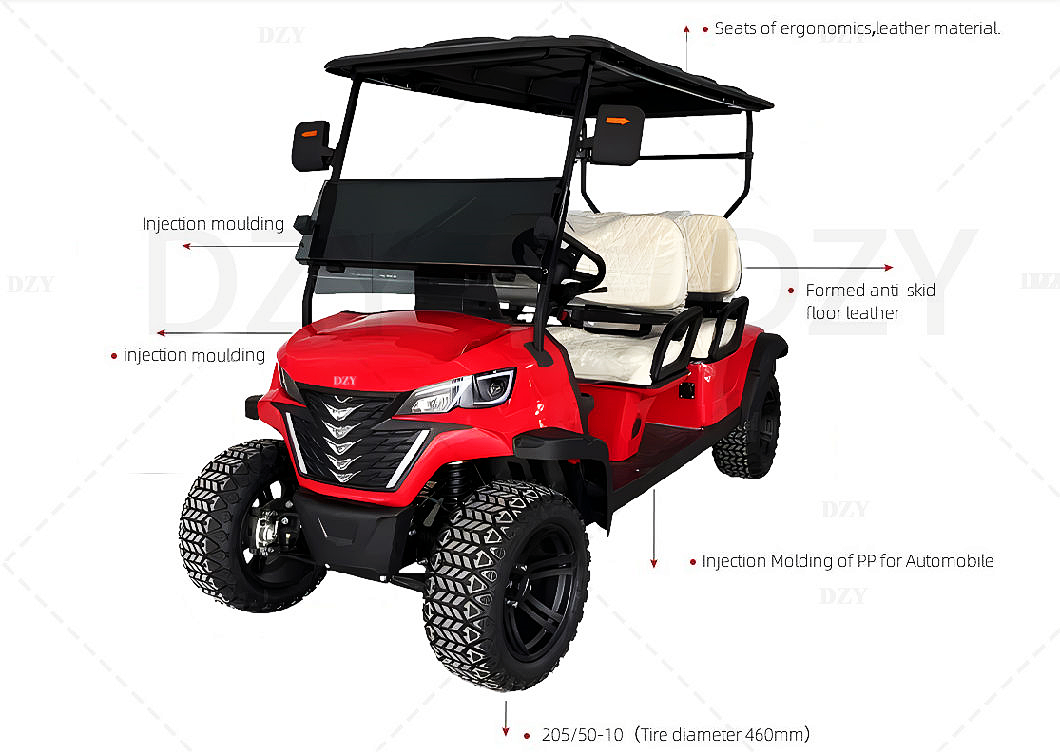

| Body and Frame | |
| Frame (Chassis) | Welded steel framework, with anti-rust treatment of acid washing, phosphating and electro-coating |
| Body and Roof | PP plastic front body and rear body; PP vacuum form roof |
| Windshield | Organic plastic windshield, split tinted |
| Roof Supports | Carbon Steel, powder coated |
| Backrest and Seat | Reborn Sponge, artificial leather + plastic armrest |
| Floor | Galvanized Steel plate and anti-slip rubber floor mat |
| Dashboard | Plastic in black, with 4 cup holders, 2 glove storage boxes, forward/reverse switch, battery capacity indicator, ignition key |
| Side Trim | Plastic |
| Side Mirror | 2pcs, foldable |
| Electric System | |
| Lighting and Horn | All LED lights, 2 headlights, 2 front turn signals, 2 taillights, electric horn. |
| Backup Buzzer | 12V |
| Digital Meter | LCD screen, with speedometer, odometer, battery power meter and various indicators |
| Charger | Smart charger |
| Steering, Brake, Transmission and Suspension | |
| Steering System | Single-stage rack and pinion steering system, automatic rocker compensating function |
| Brake System | Four-wheel hydraulic brake + pedal parking brake |
| Accelerator | Stepless speed change |
| Suspension System | Cylinder hydraulic shock absorption + integral rear axle + leaf spring |
| Driving Mode | Rear axle secondary reduction, AC motor |
| Rear Axle | Integrated, variable speed gear |
| Wheel & Tyre | 205-50-12, Aluminium wheel hub, vacuum tire |
