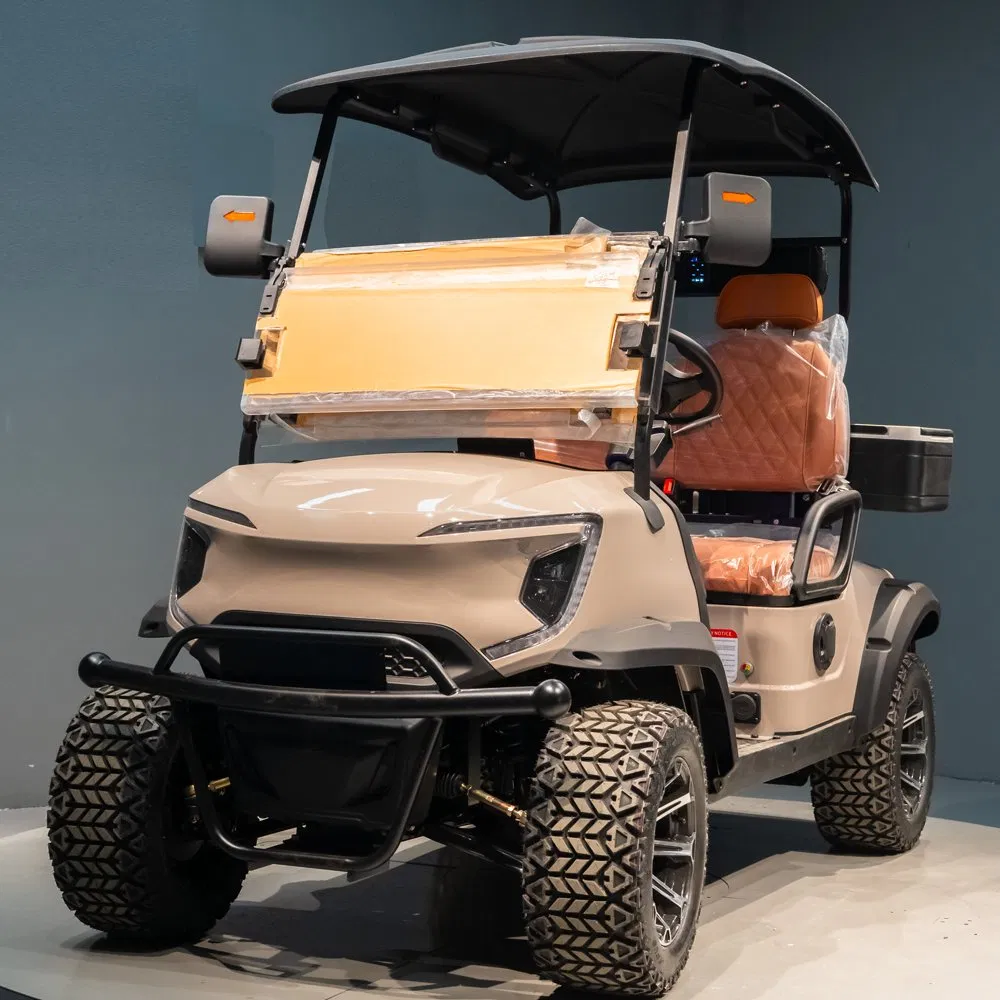

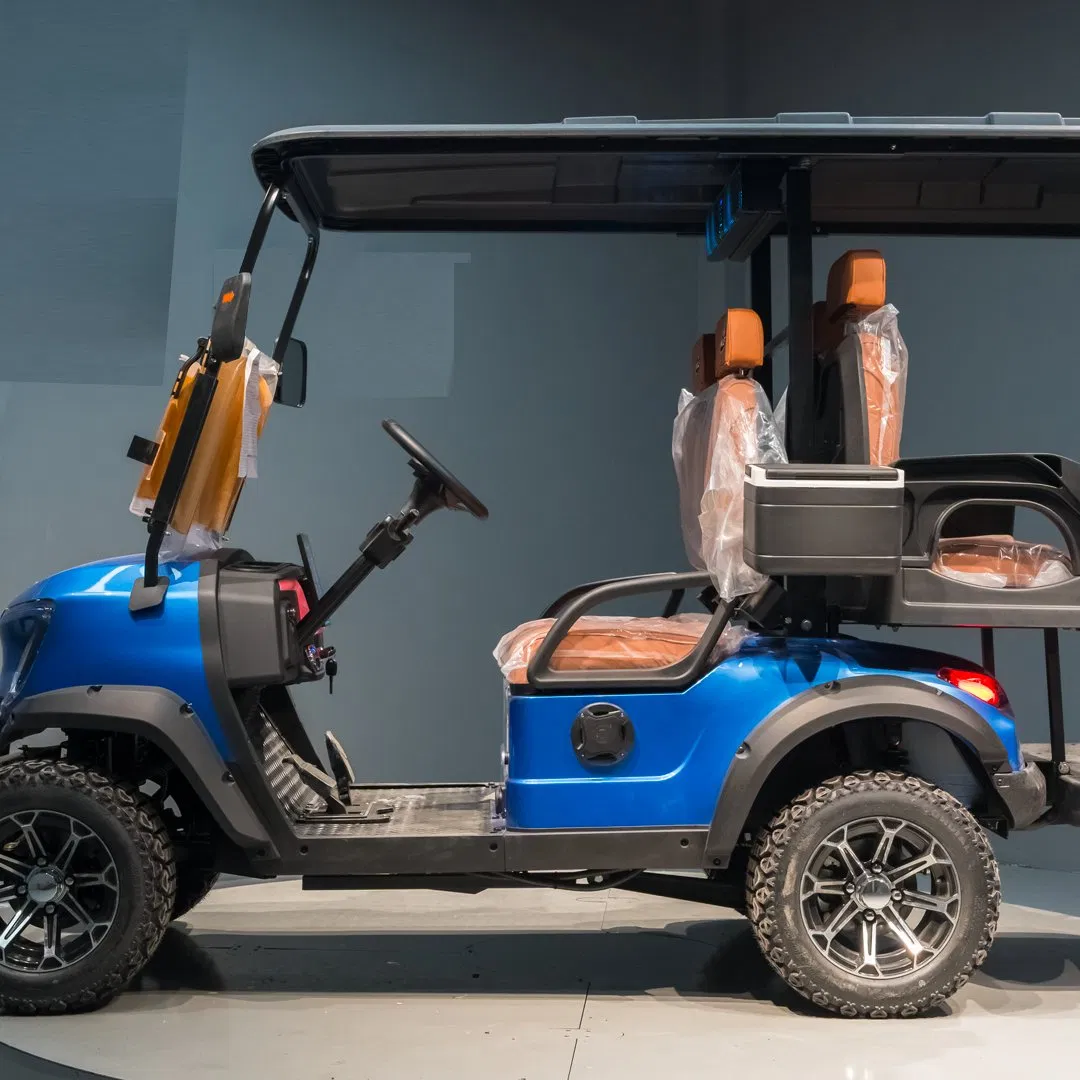

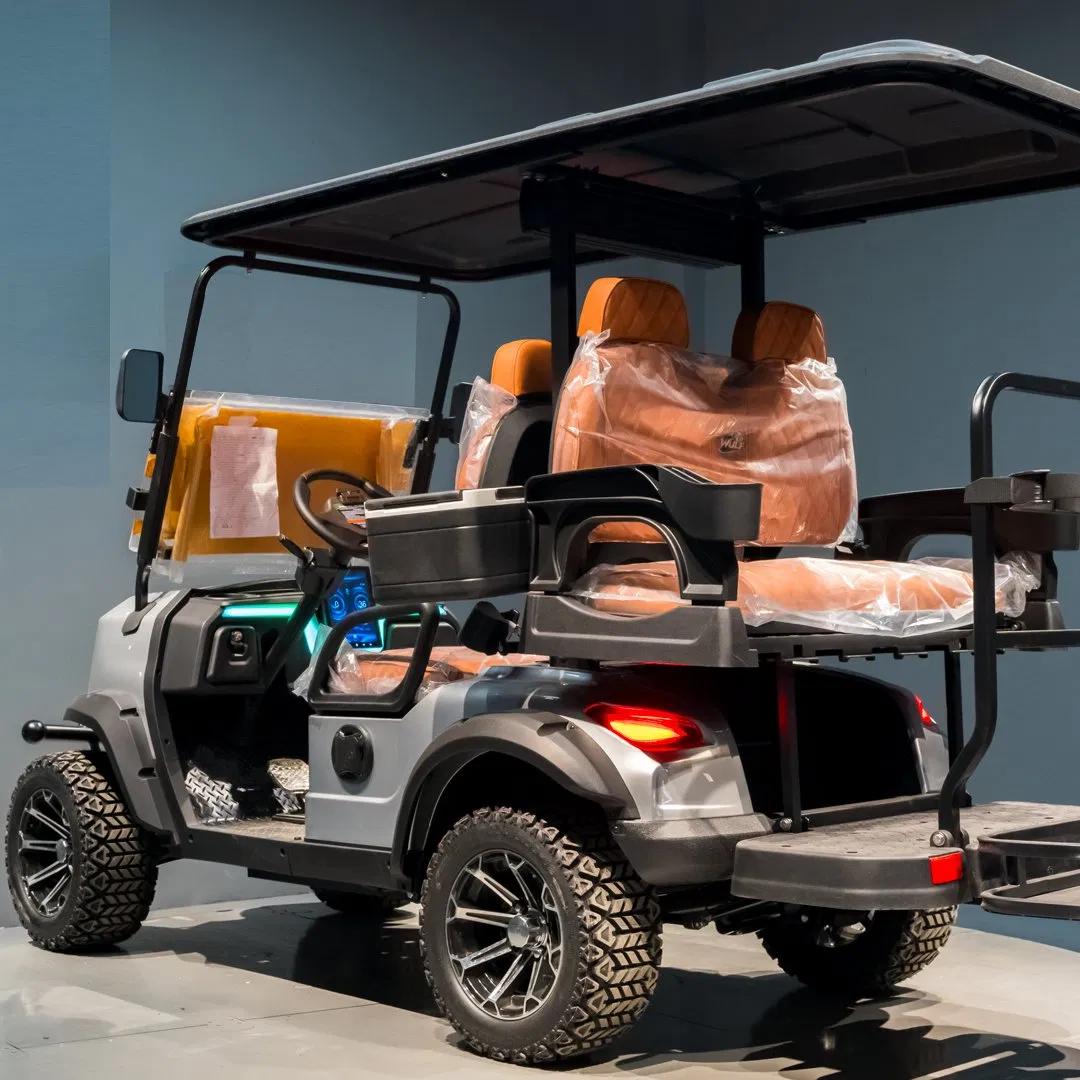

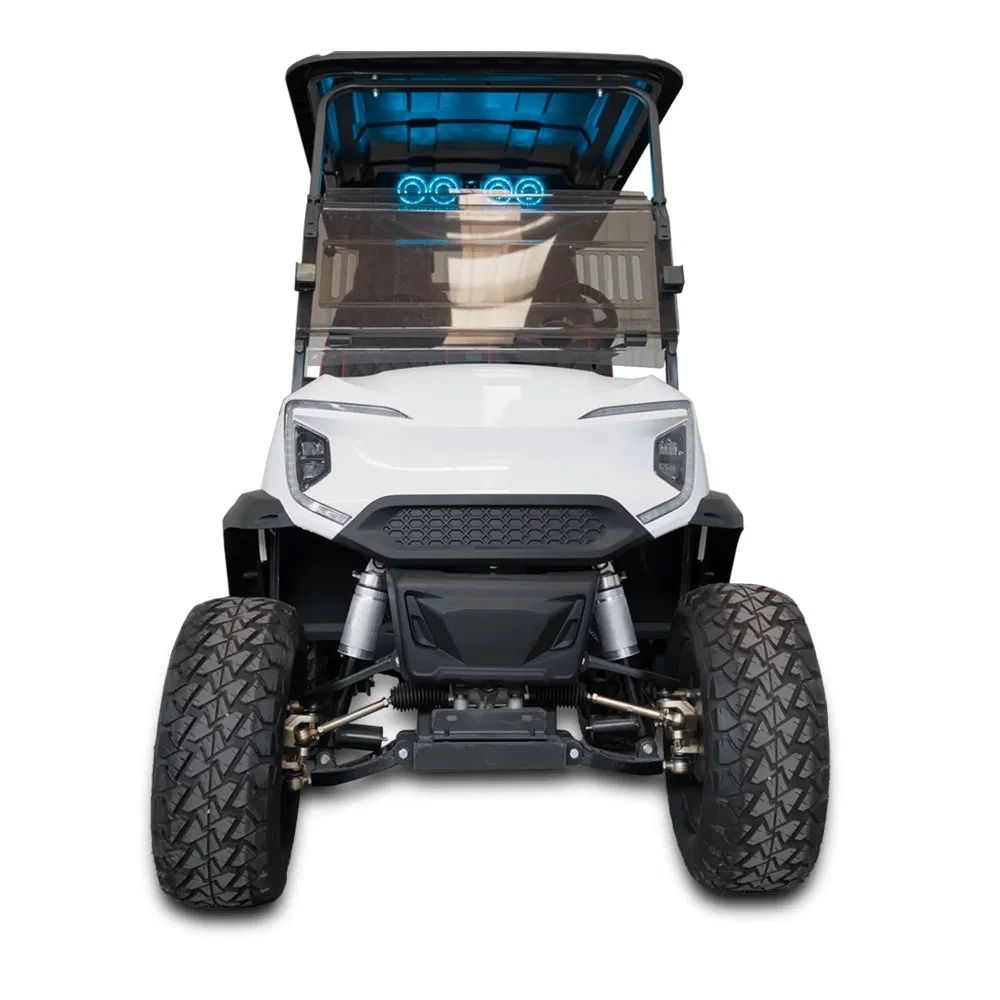

Tongcai&Kepler Solar Powered Electric Golf Cart for Eco Park

Customization: Available
Type: Buggy/Golf Carts
Seats: 3-4

Product Description

Basic Info
Model NO.
TCJ
Power
5000W
Power Fuel
Electric
Maximum Speed
>30 km/h
Gradeability
>30%
Suitable for
Golf Course
Certification
CE, EEC, ISO, EPA, DOT
Voltage of Battery
72V
Color
White
Ground Clearance
150 mm
Wheelbase
1680 mm
Controller Brand
400A AC Controller
Charger Type
on-Board 110V/220V Smart Charger
Turning Radius
2.8 M / 9.2 FT
Braking System
4-Wheel Hydraulic Disc Brakes + Electronic Parking
Steering System
Self-Adjusting Rack and Pinion Steering
Tire Specifications
205/50-10 DOT-Approved Turf Tires
Wheel Hub Material
14-Inch Machined Aluminum Alloy
Seat Material
Marine-Grade UV-Resistant Vegan Leather
Windshield Type
DOT-Certified Foldable Acrylic
Floor Mat
Anti-Slip Washable Rubber Mat
Warranty Period
6 Years for Battery, 3 Years for Frame & Motor
Roof/Canopy Material
PP Plastic Injection Molding
Hardware Material
304 Stainless Steel Screws & Fasteners
Transport Package
Wooden Planks and Iron Frame
Specification
3280*1330*1930mm
Origin
China
HS Code
8703101900
Packaging & Delivery
Package Size
330.00cm * 130.00cm * 140.00cm
Package Gross Weight
780.000kg
Lead Time
20 days (1 - 1 Pieces)
35 days (2 - 5 Pieces)
55 days (6 - 10 Pieces)
To be negotiated ( > 10 Pieces)
Product Description
Specification Details
Model specifications Model TCJ2 TCJ22 TCJ4 TCJ42 TCJ6 TCJ62 TCJ8 TCJ82
Technical parameters Overall Dimension(L*W*H) 2500*1300*2000 2900*1300*2000 3200*1300*2000 3600*1300*2000 4000*1300*2000 4400*1300*2000 4800*1300*2000 5200*1300*2000
Passengers Capacity 2 4 4 6 6 8 8 10
Max.Speed(km/h) 30 or Negotiable
Max.Travelling Range(km) 80~100
Slope Climbing Capacity 30%
Turning Radius(m) 3.5 3.5 4.6 4.6 5.7 5.7 6.7 6.7
Minimum Ground Clearance (mm) 150
Brake Distance (m) ≤5m
Wheelbase(mm) 1700 1700 2400 2400 3100 3100 3850 3850
Front/Rear Tread(mm) Front 900mm / Rear 1000mm
Weight(kg) 530 560 600 620 680 710 800 830
Electric system Motor power (kw) 3.5/4/5kw or customized
Electric Controller Enpower Fully Intelligent Controller
Battery type 6V 200AH /8V 150AH / 12V 100AH can choose
Charger Intelligent high-frequency car charger
Charging time(h) 8~10
Charging input voltage 220V/110V
Chassis system Suspension Front Torsion Beam Suspension+Integral rear axle high strength steel plate spring cartridge or customized
Brake system Drum hydraulic brake, double-circuit hydraulic brake and parking brake device or customized
Steering "Rack&Pinion" Steering
Motion transfer system Continuously variable transmission
Drive mode Rear drive

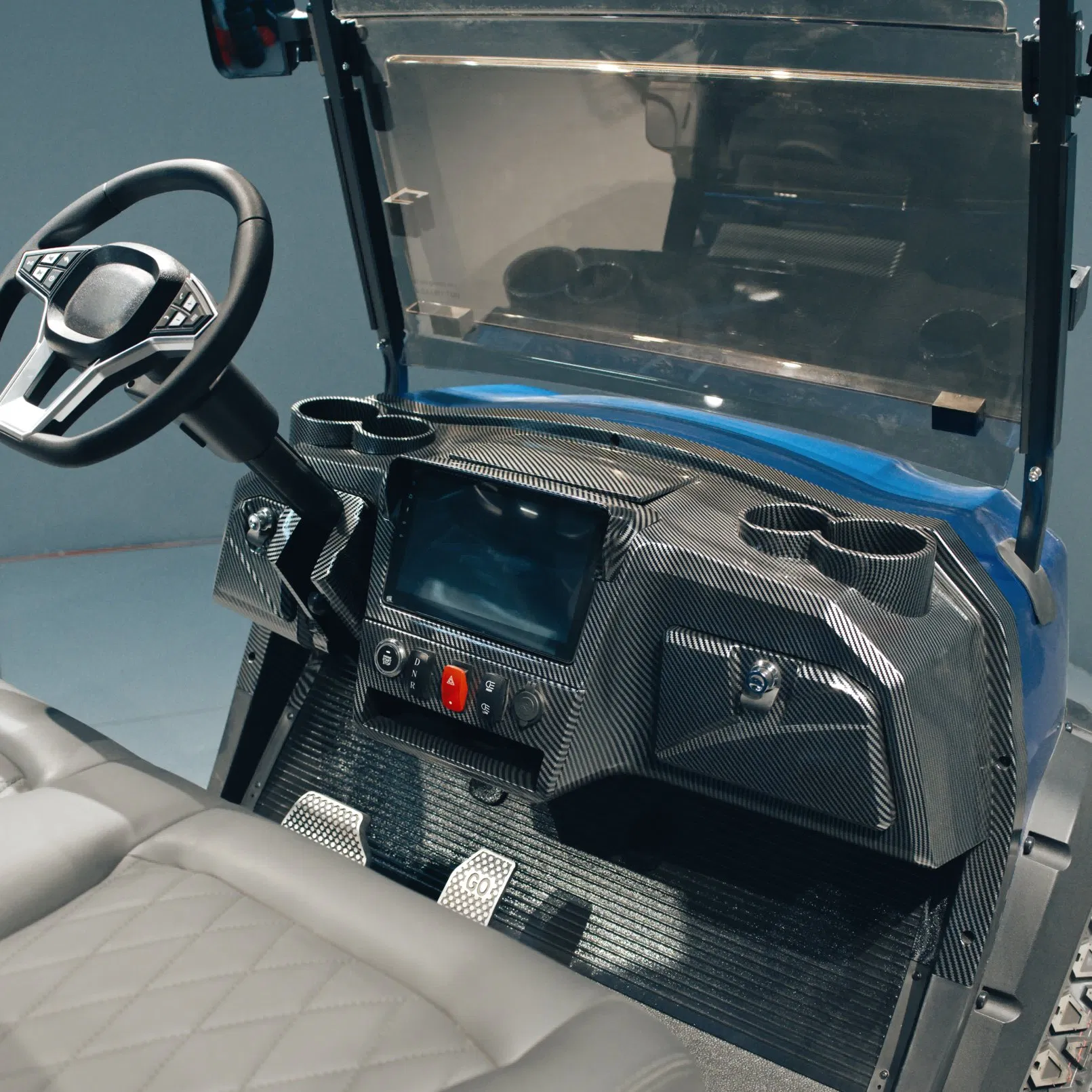

Exterior Dashboard Multi-function smart display (Bluetooth, radio, movie, etc.)
Light LED combined headlights, turn signals, combined rear taillights, brake lights
Seat Joint row seats (leather fabric + high resilience PU seats)
Body material Steel frame + injection shell / ABS engineering plastic molded parts
Wheel 10/12/14inch iron/aluminum wheels options
Tire Road and off-road tire options

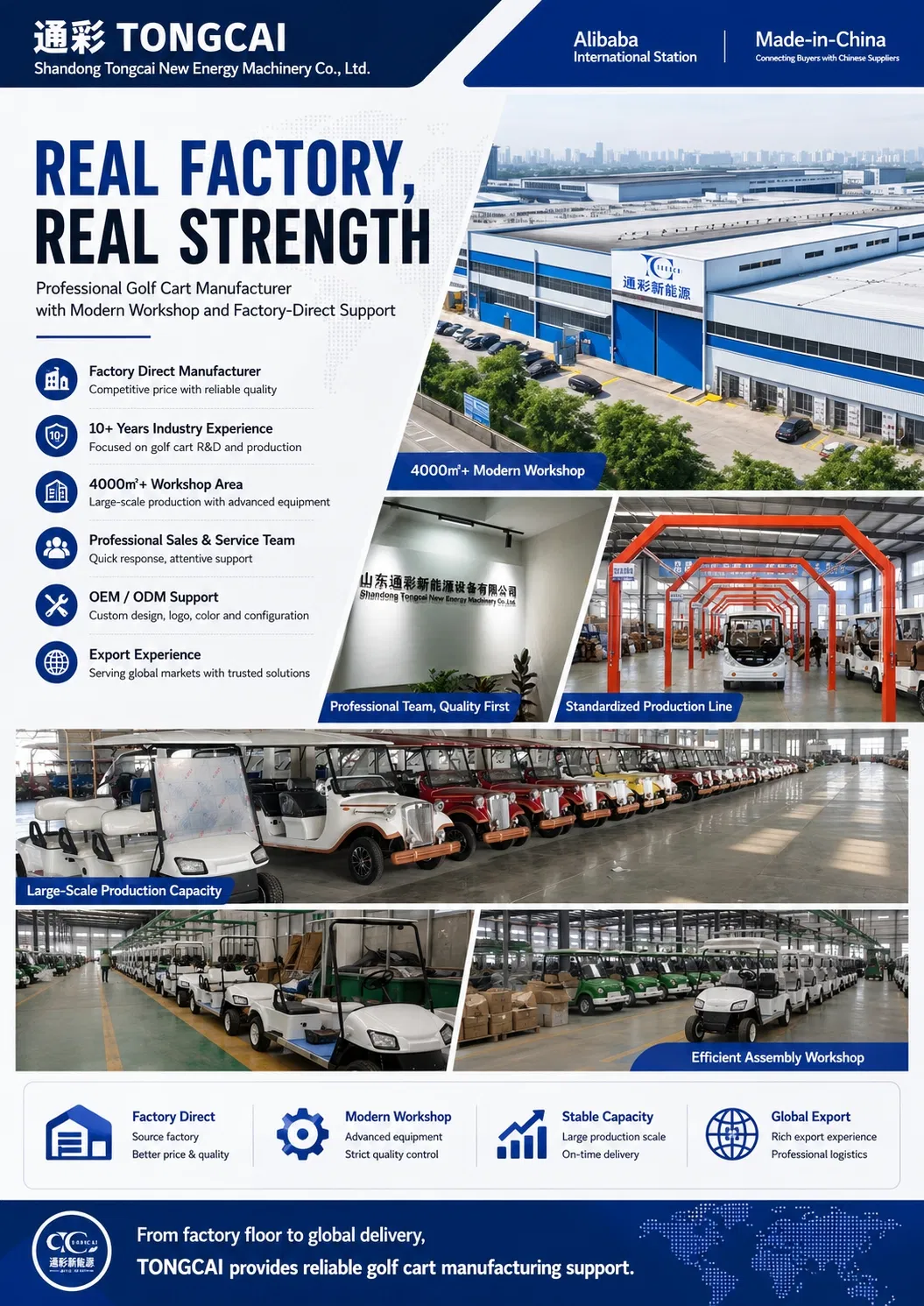

Factory Showcase
Frequently Asked Questions
What is the warranty period for this electric golf cart?
We offer a comprehensive warranty period of 6 years for the battery and 3 years for both the frame and the motor.
Can the motor power and battery capacity be customized?
Yes, we support customization options. You can choose motor configurations of 3.5kW, 4kW, or 5kW, and select from multiple battery types including 6V 200AH, 8V 150AH, or 12V 100AH.
What is the maximum speed and climbing capability of the cart?
The cart features a maximum speed exceeding 30 km/h (negotiable/adjustable upon request) and boasts a gradeability / slope climbing capacity of over 30%.
How long does it take to fully charge the vehicle?
Using the high-frequency on-board smart charger (which supports 110V/220V input voltages), it takes approximately 8 to 10 hours to reach a full charge.
What kind of braking and steering systems are built-in?
The golf cart is equipped with self-adjusting rack and pinion steering, alongside a 4-wheel hydraulic disc brake system paired with an electronic parking brake for enhanced safety.
What certifications do these golf carts hold?
Our electric golf carts are manufactured to meet high international standards and carry CE, EEC, ISO, EPA, and DOT certifications.
