| Specification | 2 Seats | 4 Seats (1F+1R) | 4 Seats | 6 Seats (2F+1R) | 6 Seats | 8 Seats (3F+1R) |
|---|---|---|---|---|---|---|
| Length * Width * Height (mm) | 2400-1200-1850 | 2800-1200-1850 | 3100-1200-1850 | 3500-1200-1850 | 3900-1200-1850 | 4300-1200-1850 |
| Wheelbase (mm) | 1700 | 1700 | 2400 | 2400 | 3100 | 3100 |
| Track (mm) | Front 900, Rear 1000 | 1700 | 2400 | 2400 | 3100 | 3100 |
| Minimum Ground Clearance (mm) | 150 | |||||
| Turning Radius (m) | 3.4 | 3.4 | 4.5 | 4.5 | 5.6 | - |
| Body Material | Automotive engineering material injection molding | |||||

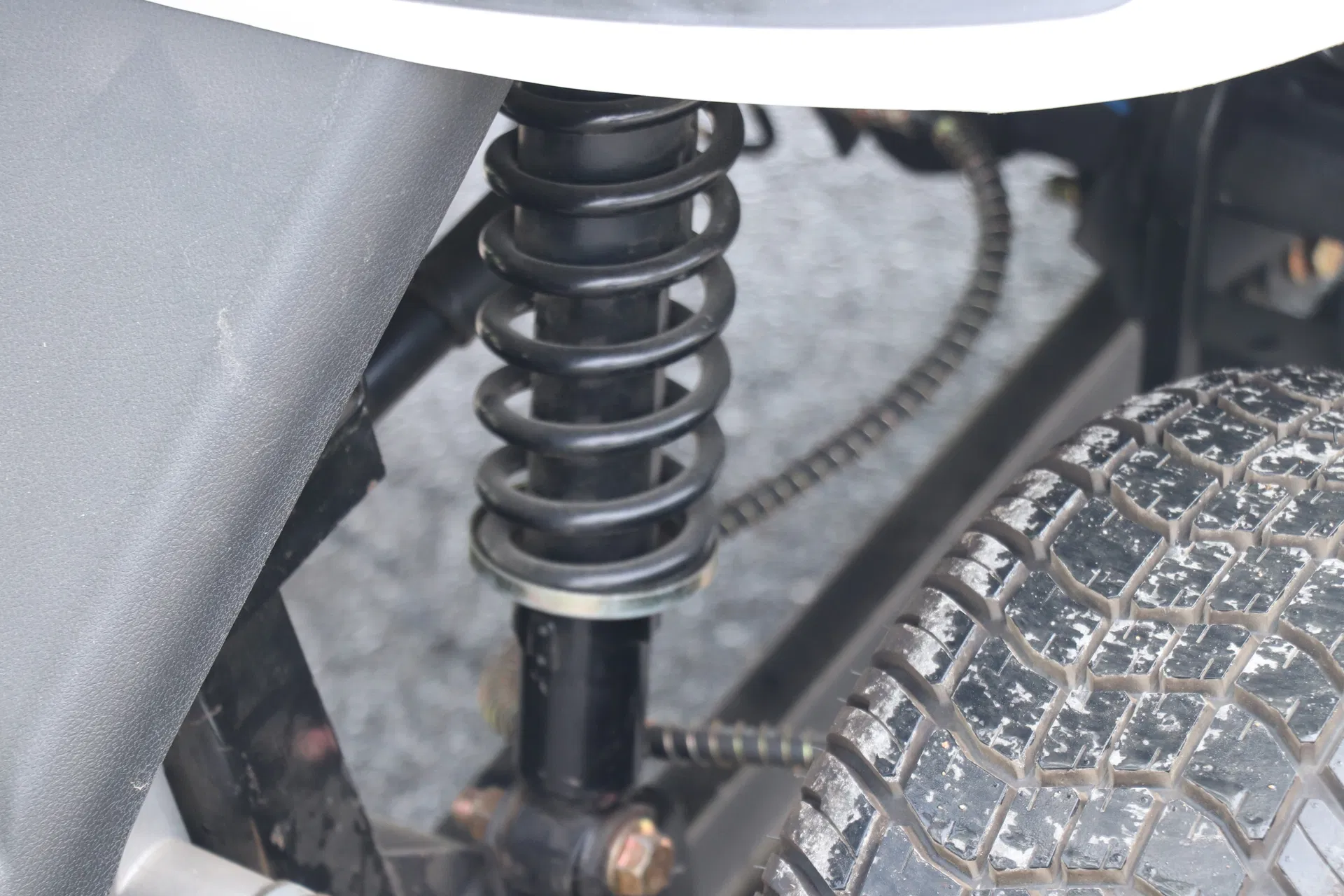

| Chassis | Front axle semi-floating suspension system, rear axle high-strength leaf spring, floating and telescopic hydraulic dampers | |||||
| Motor Power | 3 (kw) | 3 (kw) | 3.5 (kw) | 3.5 (kw) | 3.5 (kw) | 3.5 (kw) |
| Electronic Control | Yingboer | |||||
| Battery Pack/Capacity | Colloidal maintenance-free 12V*5/100AH | |||||
| Rated Voltage (v) | 60 | |||||
| Drive Mode | Rear drive | |||||

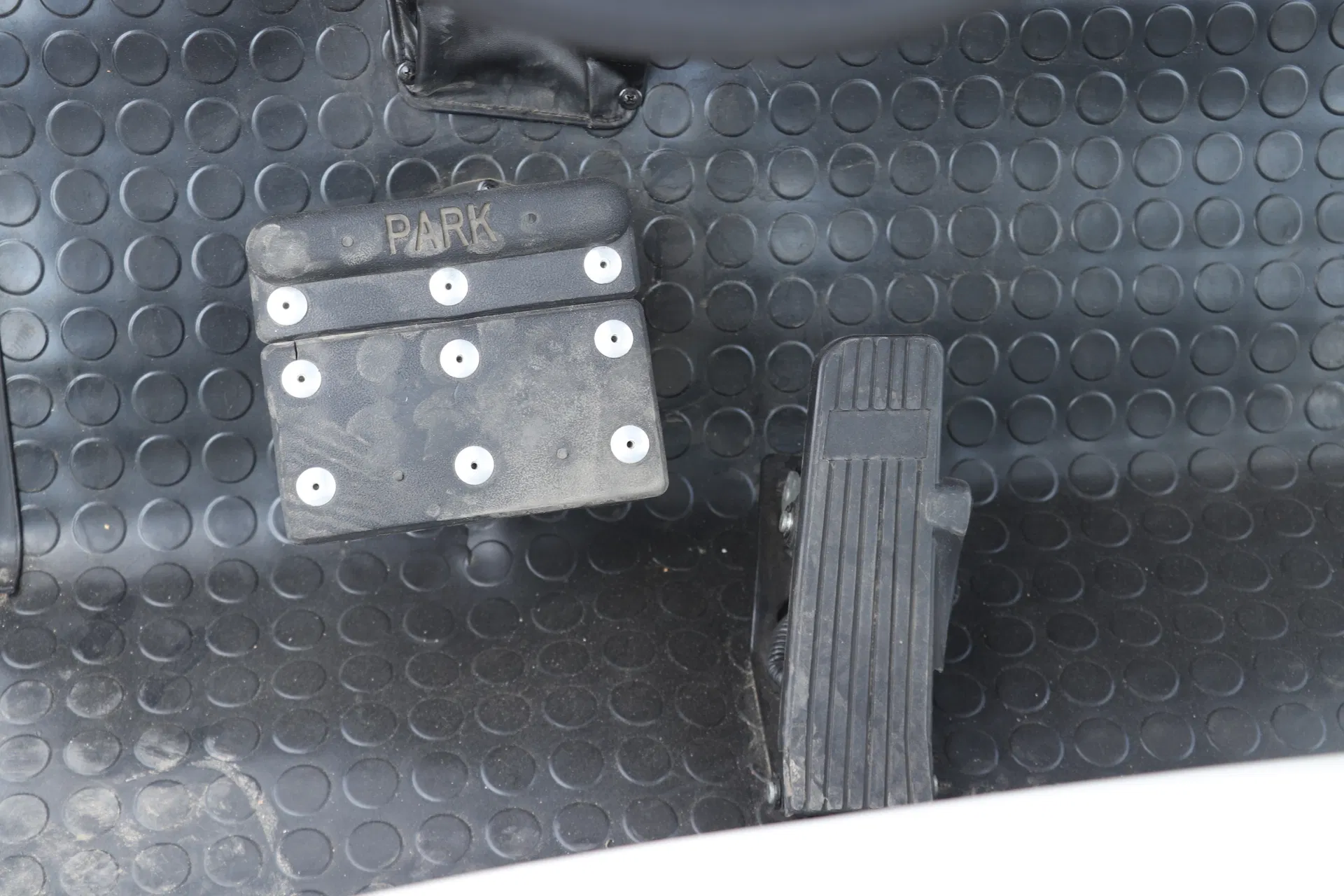

| Braking Mode | Four-wheel drum brake | |||||
| Maximum Climbing Gradient | 20% | |||||
| Maximum Speed | 30 (km/h) | |||||
| Charging Time (h) | 8 - 9 | |||||
| Range | 80 - 100KM | |||||
| Curb Weight (kg) | 450 | 470 | 510 | 530 | 590 | 610 |
| Rated Passenger Capacity | 2 People | 4 People | 4 People | 6 People | 6 People | 8 People |
