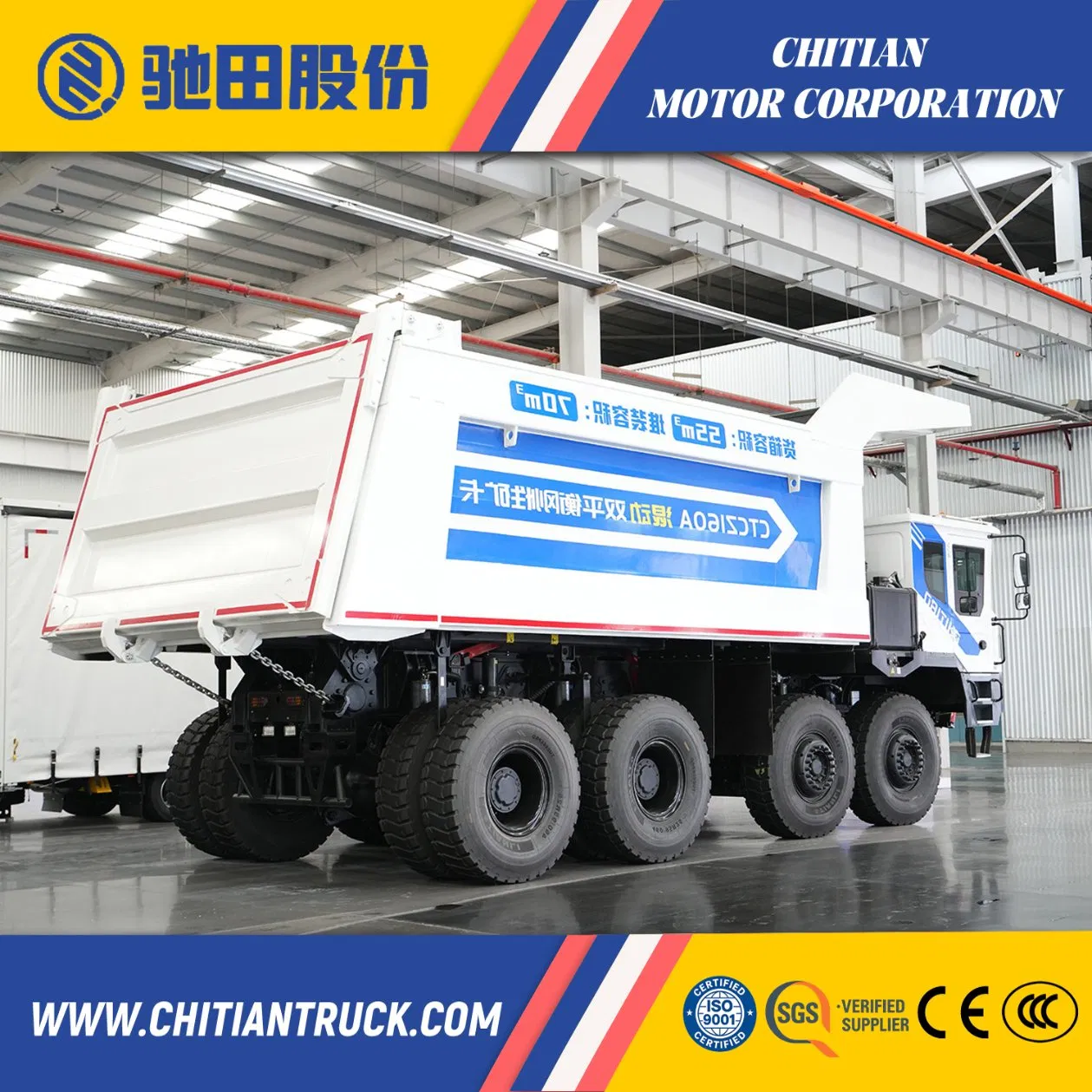

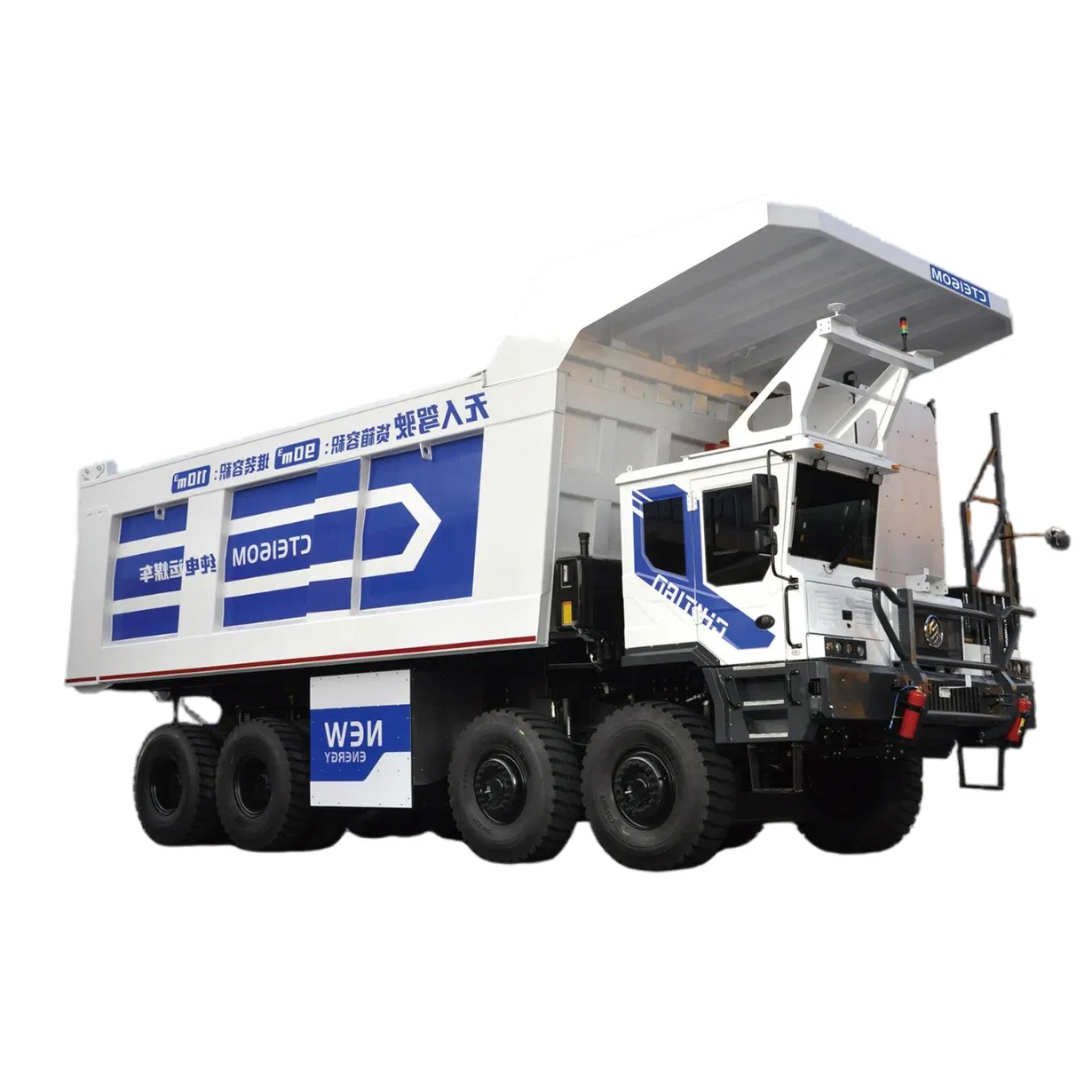

Introducing the All-Electric Mining Truck, the future of heavy-duty hauling. Engineered for the world's most demanding environments, this off-highway electric dump truck combines a powerful electric drive system, high-capacity batteries, and our patented Dual-Balance Chassis to deliver unparalleled stability and efficiency. With zero emissions and intelligent, autonomous-ready features, it's the ultimate solution for increasing productivity and safety in open-pit mines, hydropower projects, and large-scale earthmoving operations.
All-electric mining trucks are engineered to deliver zero-emission performance and maximum efficiency in the most demanding industrial environments.

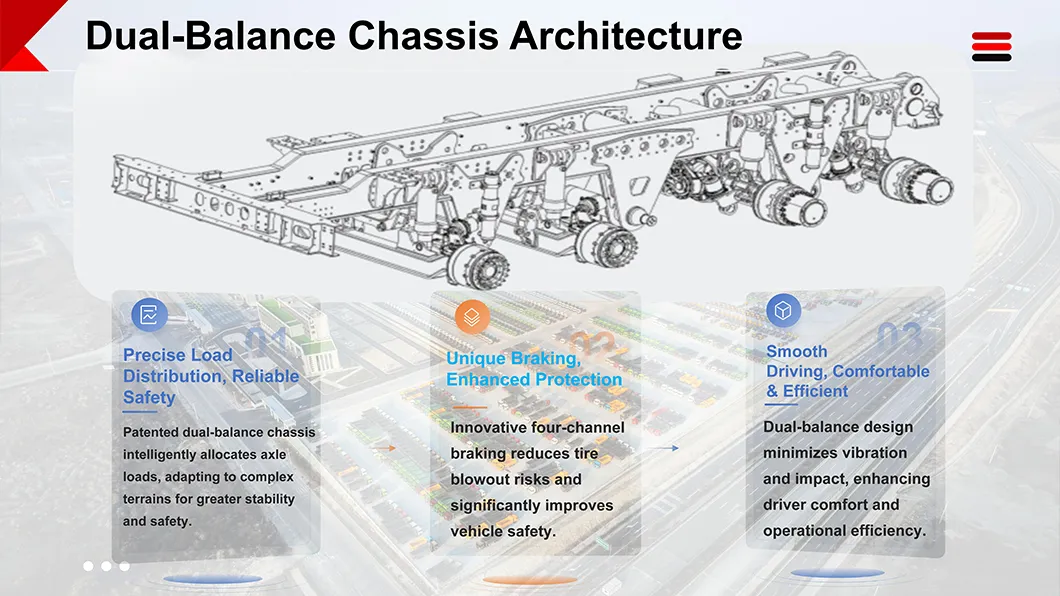

Patented Dual-Balance Architecture:
Our innovative chassis intelligently distributes impact loads across the axles, dramatically enhancing stability on complex terrains, improving driver comfort, and extending tire life by approximately 18%.
Rigid Welded Frame & Hydro-Pneumatic Suspension:
The high-strength, box-section steel frame offers superior fatigue resistance. Paired with hydro-pneumatic suspension, it absorbs shocks effectively, ensuring a smoother ride and balanced performance under the heaviest loads.
Optimized Axle Load & Ground Clearance:
With an optimized axle load design and up to 430 mm of ground clearance, this truck easily navigates rough and uneven mine roads, reducing component wear and boosting off-road capability.

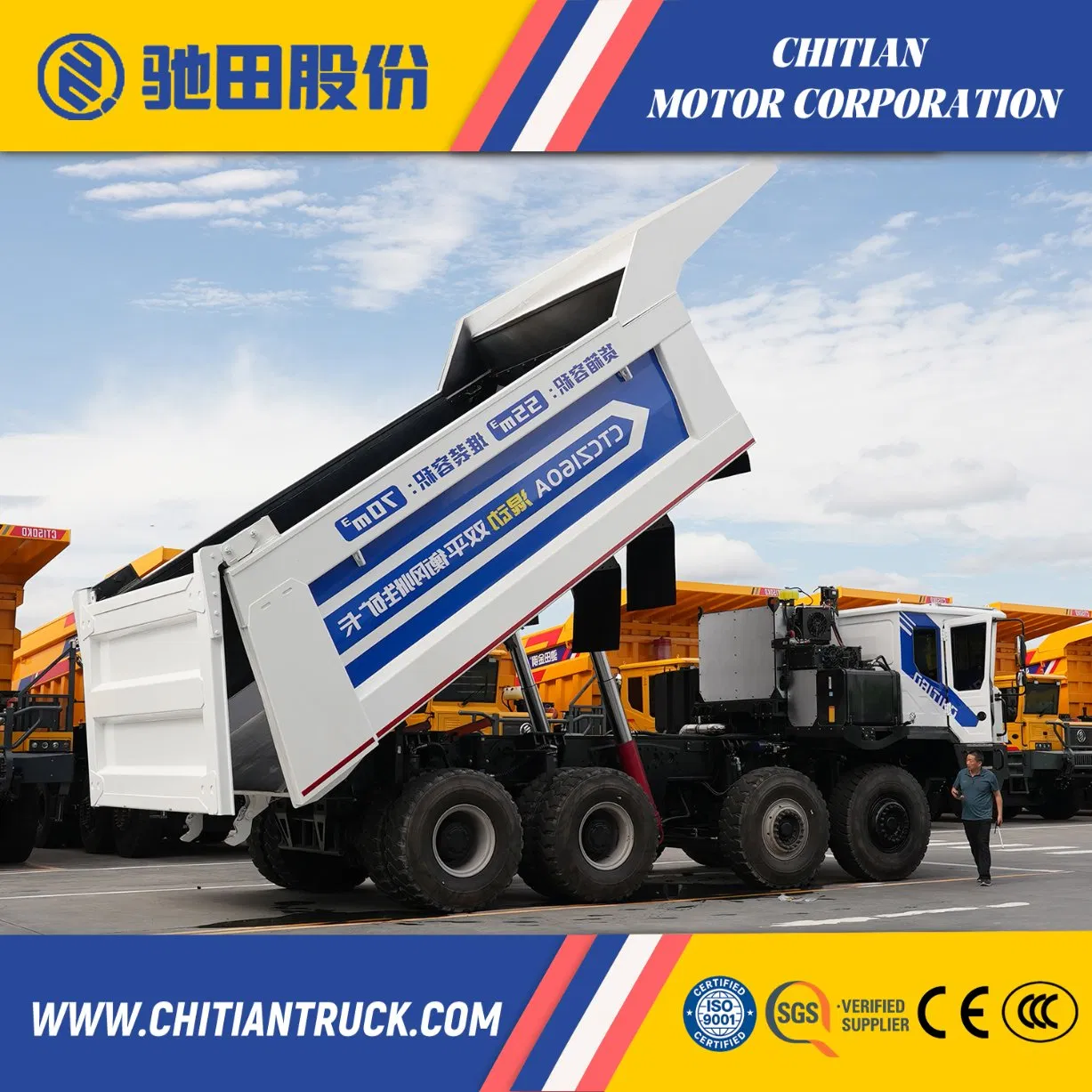

Patented High-Performance Hydraulic System:
Our self-developed hydraulic lift system features premium German seals and a patented multi-layer chrome-plated cylinder, guaranteeing fast, clean dumping and exceptional reliability proven in over 300,000 vehicles.
High-Performance Electric Drive:
Powered by a high-output motor assembly, our trucks deliver robust and instant torque for powerful hauling and climbing capabilities, all with the smooth, quiet operation of an electric powertrain.
Megawatt Fast-Charging Technology:
Minimize downtime and maximize productivity. Our system supports megawatt-level fast charging, capable of replenishing a 1000 kWh battery in as little as 30 minutes, ensuring near-continuous operation.
High-Energy-Density LFP Batteries:
Equipped with large-capacity LFP battery packs (up to 1268 kWh), these trucks offer extended range. Intelligent thermal management ensures safe, reliable performance in extreme temperatures.
High-Strength Cargo Box:
Constructed from NM450 wear-resistant steel, the cargo box is built to withstand severe impact and abrasion, ensuring a longer service life in the toughest mining conditions. Capacity options range from 40 m³ to 90 m³.
Autonomous-Ready with Drive-by-Wire Chassis:
Jointly developed with leading technology partners, our drive-by-wire chassis enables precise electronic control over braking, steering, and power, making it fully prepared for autonomous operation and remote dispatch.
360° Smart Sensing & Perception:
A comprehensive suite of cameras provides a complete, real-time view around the vehicle, eliminating blind spots and ensuring maximum safety for personnel and equipment.
Advanced Safety & Driver-Assist Systems:
Features like an Emergency Steering System, Automatic Parking, and a four-wheel braking system work alongside driver-assist functions (e.g., downhill assist) to reduce operator fatigue and prevent accidents.
| Item | Specification | Item | Specification |
|---|---|---|---|
| Model | CTH190A | Minimum Ground Clearance | 430 mm |
| Vehicle Type | Off-Highway Mining Dump Truck | Wheelbase | Multi-Axle Mining Layout |
| Driving Type | Manual Driving | Suspension System | Heavy-Duty Through-Type Oil-Gas Balanced Suspension |
| Power Type | Hybrid (Diesel + Electric) | Tire | 505/95R29 Mining Tires |
| Drive Configuration | 8×6 | Battery Capacity | 183 kWh |
| Rated Payload Capacity | 119,000 kg | Drive System | Hybrid Drive System (Diesel Engine + Electric Motor) |
| Cargo Box Volume | 65 / 80 m³ | Charging Power | 840 / 1680 kW (Liquid-Cooled Ultra-Fast Charging) |
| Gross Vehicle Weight (GVW) | 190,000 kg | Tipping Method | Dual Underslung Hydraulic Cylinders |
| Curb Weight | 71,000 kg | Overall Dimensions (L×W×H) | 11,490 × 4,500 × 5,200 mm |
| Maximum Speed | 40 km/h | Cabin Type | Left-Offset Reinforced Mining Cab |
| Maximum Gradeability | 32% | Application | Open-Pit Mining, Hard Rock & Ore Hauling, Overburden Transport |

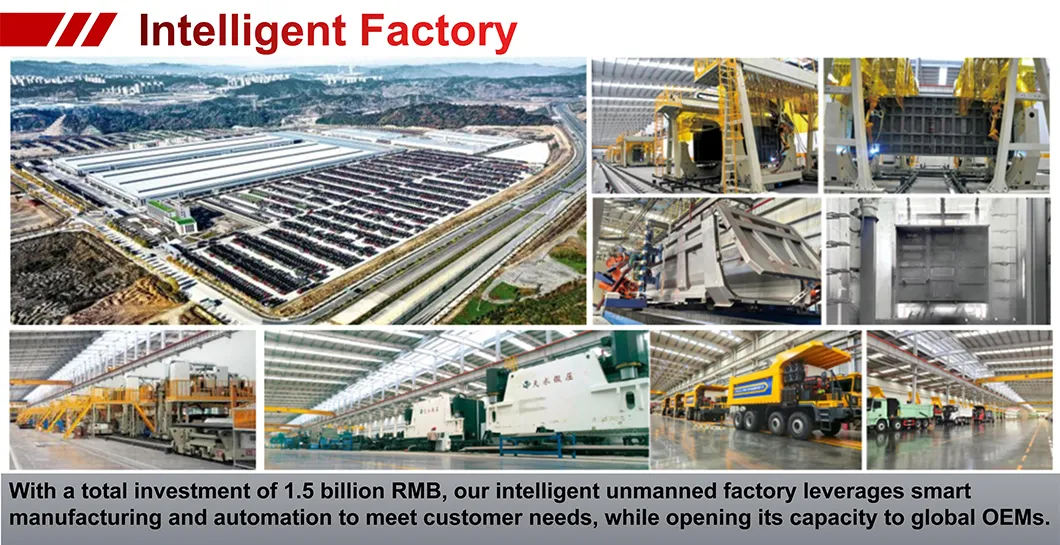

Founded in 1995, our company is a leading manufacturer of specialized engineering vehicles, focusing on engineering dump trucks and off-road mining trucks. Our 660,000-square-meter production base has an annual capacity of over 50,000 units and has delivered more than 350,000 vehicles, making us a benchmark in the heavy-duty vehicle industry.
A pioneer in lightweight technology, we introduced the industry-leading "High-Strength Lightweight" dump truck in 2008. Our excellence was recognized in 2012 when we were named a "Famous Trademark" and listed among Top 500 Machinery Enterprises. In addition to complete vehicles, we are also a top producer of specialized superstructures, with a diverse product line that includes road dump trucks, trailers, and municipal vehicles.
Globally, our products are exported to markets across Central Asia, Southeast Asia, Africa, and Australia, certified by the Madrid International Trademark system and compliant with international technical standards.
Guided by our philosophy, "Innovation Drives the World, Quality Creates the Future," we are committed to building a world-class heavy-duty truck brand and driving sustainable development in the global construction and mining sectors.
