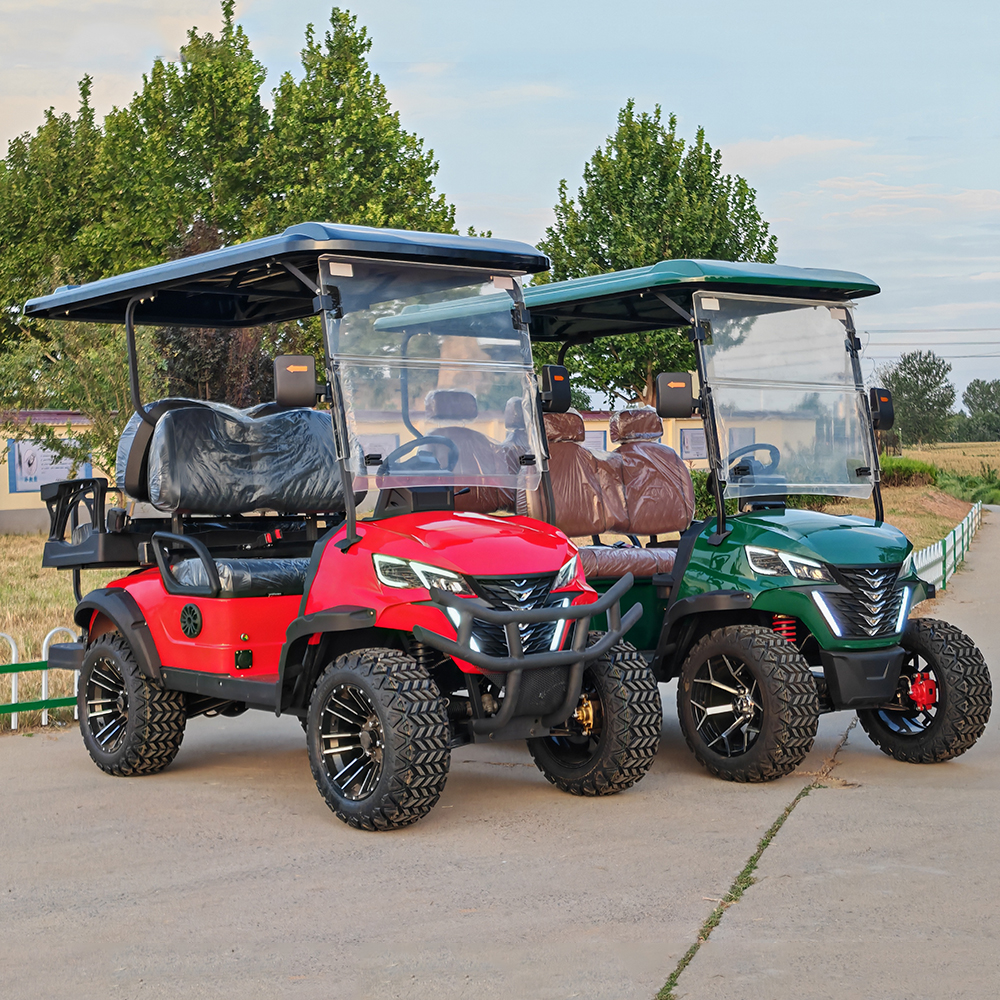

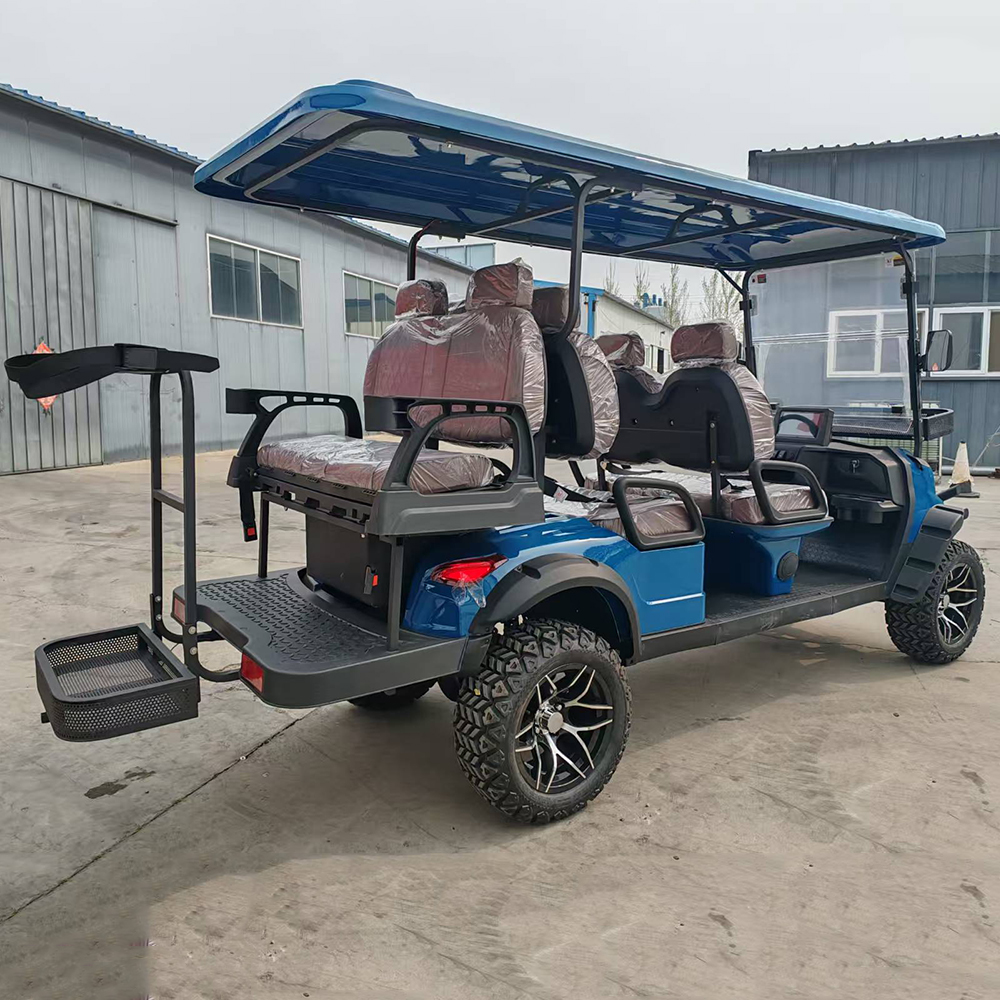

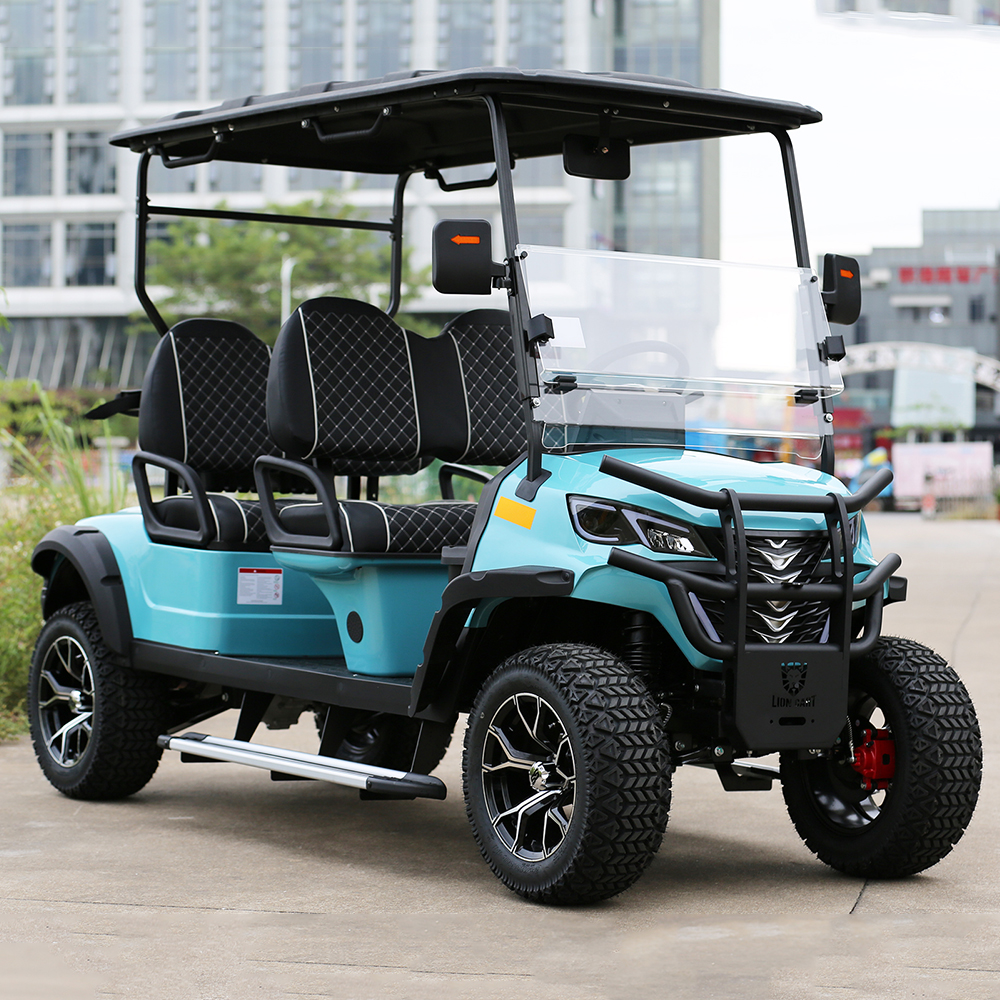

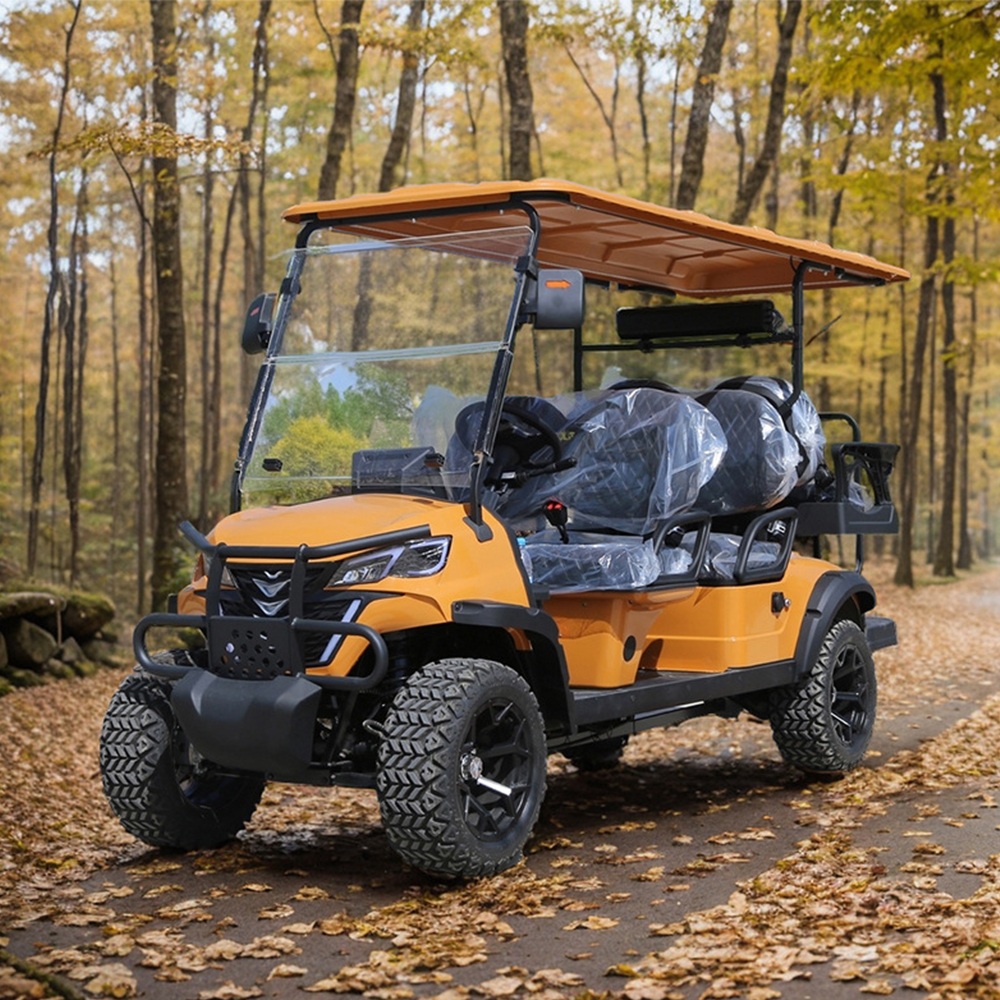

A golf cart (alternatively known as a golf buggy or golf car) is a small motorized vehicle designed originally to carry two golfers and their golf clubs around a golf course with less effort than walking. Over time, variants were introduced that were capable of carrying more passengers, had additional utility features, or were certified as a street legal low-speed vehicle.
Electric golf carts are environmentally friendly short-distance passenger vehicles designed and developed specifically for golf courses. They are mainly suitable for golf courses, resorts, hotels, clubs, villas, scenic spots, industrial parks, airports and other application scenarios.
| Technical Specifications | ||||||
|---|---|---|---|---|---|---|
| Model | VR-C2 | VR-C2+2 | VR-C4 | VR-C4+2 | VR-C6 | VR-C6+2 |
| Dimensions (L * W * H) |
2650*1350*1980 mm | 2950*1350*1980 mm | 3350*1350*1980 mm | 3650*1350*1980 mm | 3900*1350*1980 mm | 4300*1350*1980 mm |

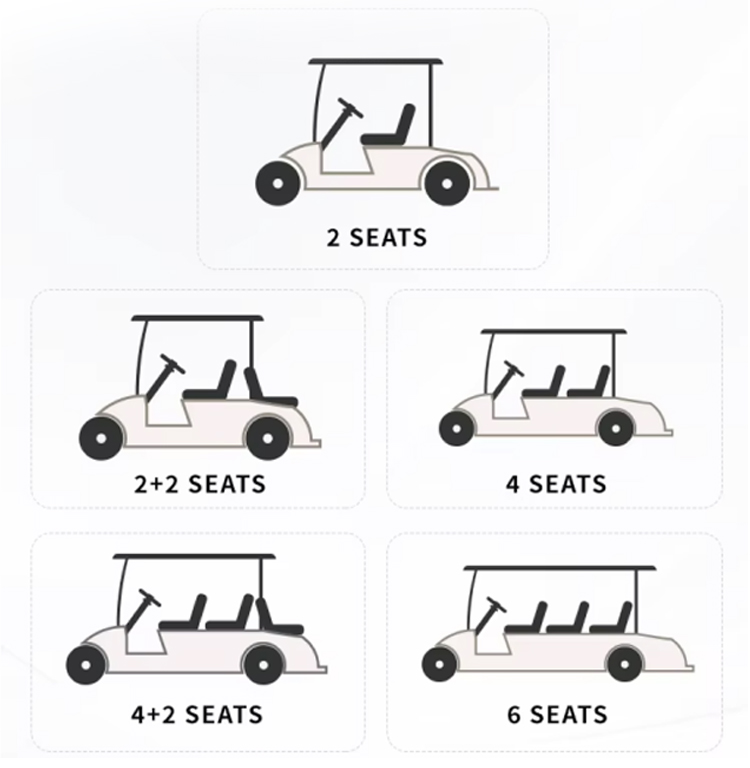

| Passengers | 2 people | 4 people | 4 people | 6 people | 6 people | 8 people |
| Maximum speed | 30 km/h | 30 km/h | 30 km/h | 30 km/h | 30 km/h | 30 km/h |
| Braking distance | ≤4 m | ≤4 m | ≤4 m | ≤4 m | ≤4 m | ≤4 m |
| Driving range | 80-100 km | 80-100 km | 80-100 km | 80-100 km | 80-100 km | 80-100 km |
| Gradability | 25% | 25% | 25% | 25% | 25% | 25% |
| Curb weight | 600 kg | 600 kg | 650 kg | 700 kg | 700 kg | 700 kg |
| Track width | 900 mm | 900 mm | 900 mm | 900 mm | 900 mm | 900 mm |
| Controls | 60V Low Voltage AC Controller | 60V Low Voltage AC Controller | 60V Low Voltage AC Controller | 60V Low Voltage AC Controller | 60V Low Voltage AC Controller | 60V Low Voltage AC Controller |
| Drive system | Rear Wheel Drive (RWD) | Rear Wheel Drive (RWD) | Rear Wheel Drive (RWD) | Rear Wheel Drive (RWD) | Rear Wheel Drive (RWD) | Rear Wheel Drive (RWD) |
| Front suspension | Plate spring front suspension | Plate spring front suspension | Plate spring front suspension | Plate spring front suspension | Plate spring front suspension | Plate spring front suspension |
| Rear suspension | Integral bridge rear suspension | Integral bridge rear suspension | Integral bridge rear suspension | Integral bridge rear suspension | Integral bridge rear suspension | Integral bridge rear suspension |
| Brake system | Rear wheel mechanical braking/parking brake | |||||

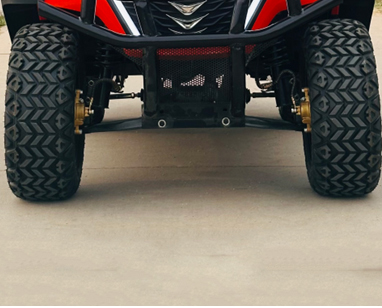

| Tires | 14-inch golf aluminum alloy vacuum off-road tires / grass tires | |||||
| Steering system | Rack and pinion steering | |||||
| Lights and signals | Combined headlights, turn signals, combined rear lights, electric horn | |||||

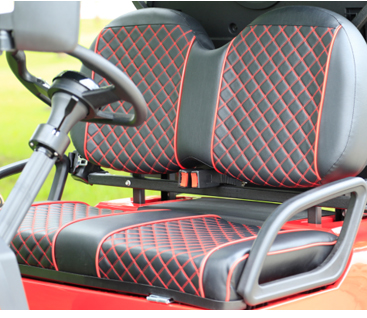

| Seats | Foamed sponge + high-rebound PU leather fabric | |||||
| Instrument panel | Electric meter, forward and reverse switch | |||||
| Exterior material | Steel frame + ABS engineering plastic molding parts | |||||
| Exterior color | Customized colors | |||||
