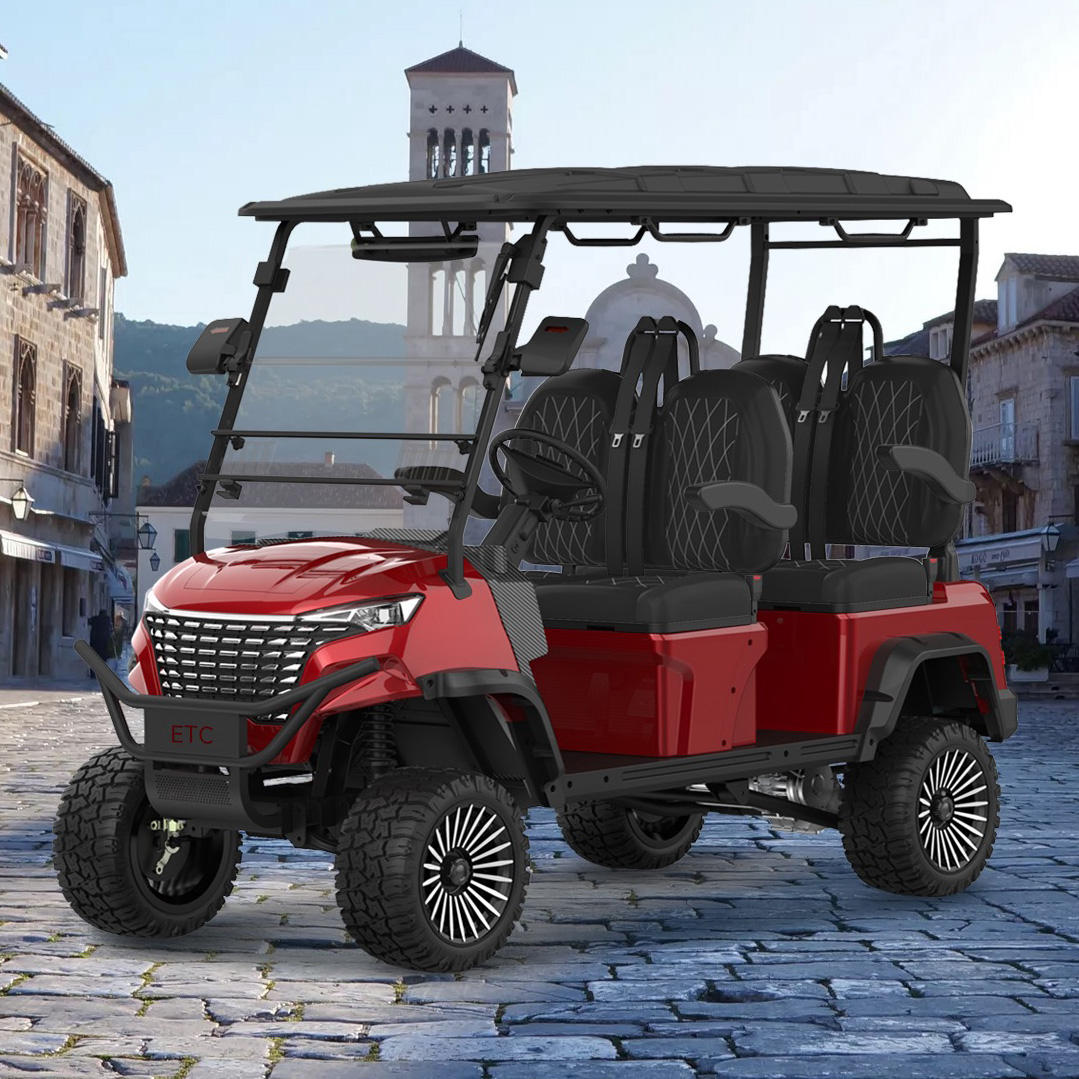

High Ground Clearance 4 Passenger Golf Cart Resort Campus Electric Utility Vehicle Gated Community Shuttle Golf Cart

Product Description

Product Description
Specification
KR-P Series Vehicle Parameter Table
Vehicle Model P4 P4H P6 P6H
Powertrain
Motor 48V5KW IP67 AC Motor (PMSM) (Upgradable to 72V5KW)
Controller 48V/350A IP67 AC Controller, with CAN bus & Built-in Bluetooth

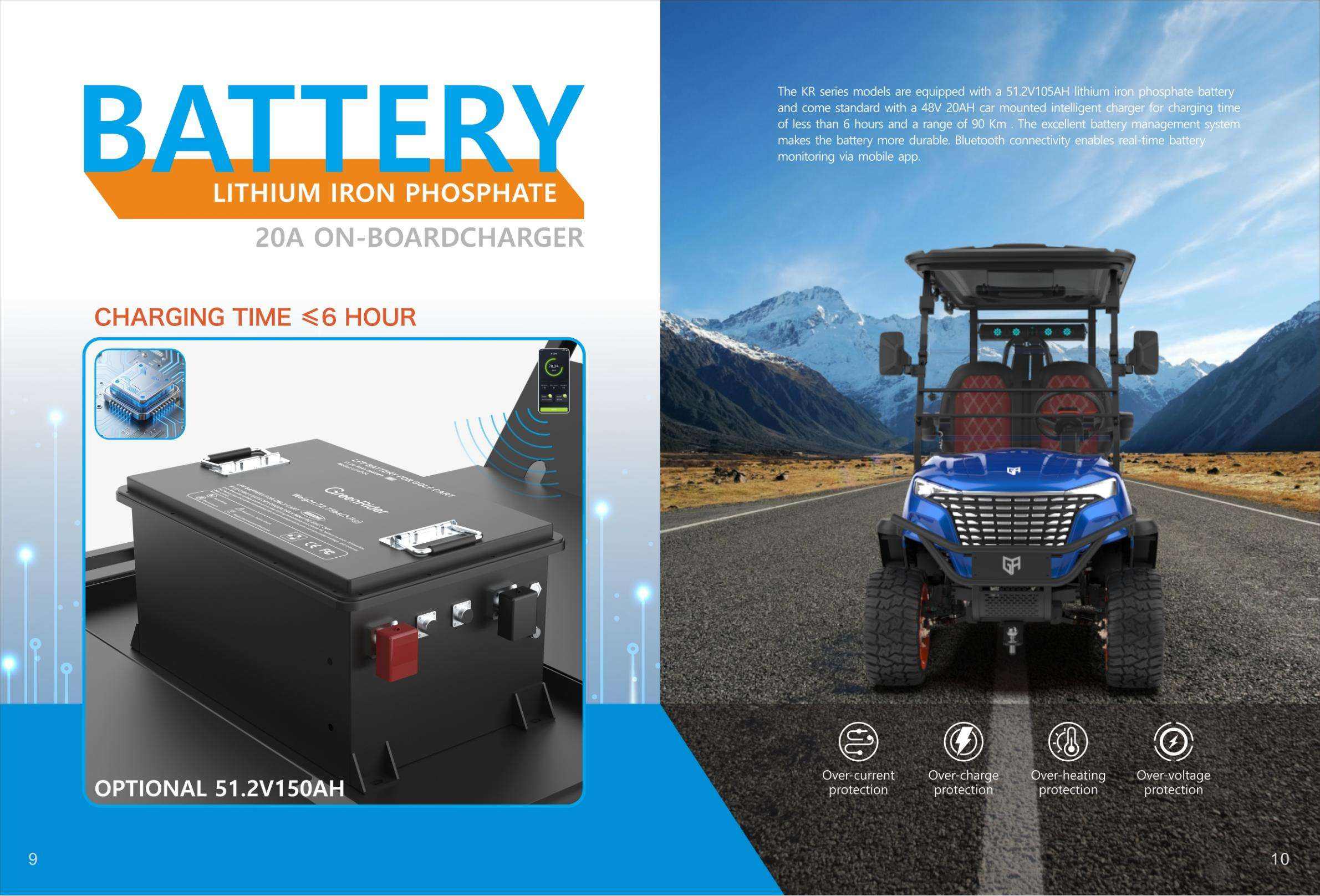

Battery 51.2V105AH LiFePO4 Battery (incl. UL38.8, MSDS certifications, etc.)
Charger Intelligent On-board Charger 48V/20A, Charging Time ≤ 5 hours
DC High-power Isolated DC-DC Converter 48V/12V-500W
Body/Chassis
Chassis High-strength sheet metal beam w/ composite frame; Painting: Pickling + E-coating + Spray painting, Pillar fine sand texture
Body Injection molded exterior (Metallic paint finish), Injection molded matte black roof
Flooring Integrated molded PVC anti-aging floor vinyl

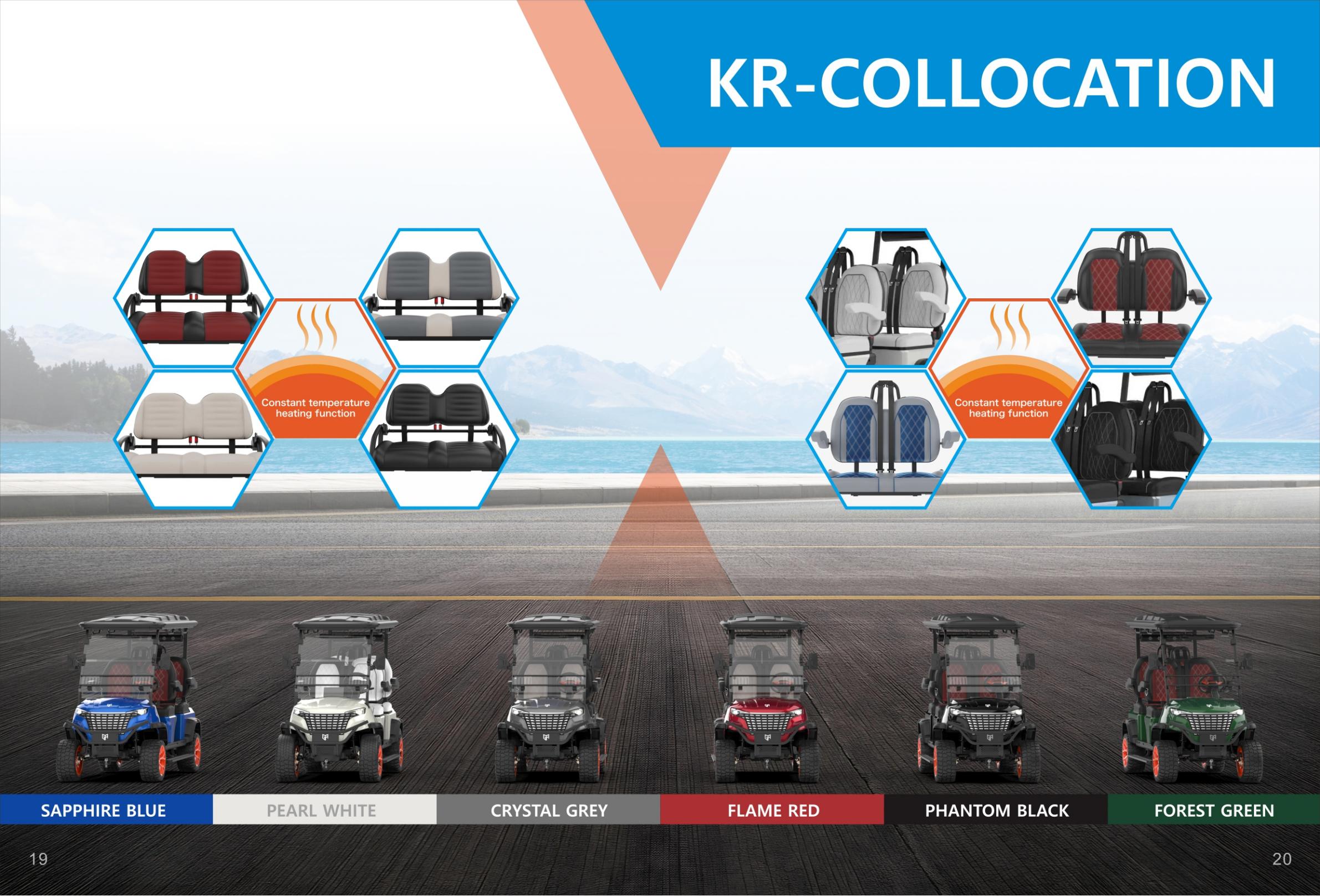

Seats Integrated foam molded seat cushion + Premium microfiber leather; Leather embossed (striped)

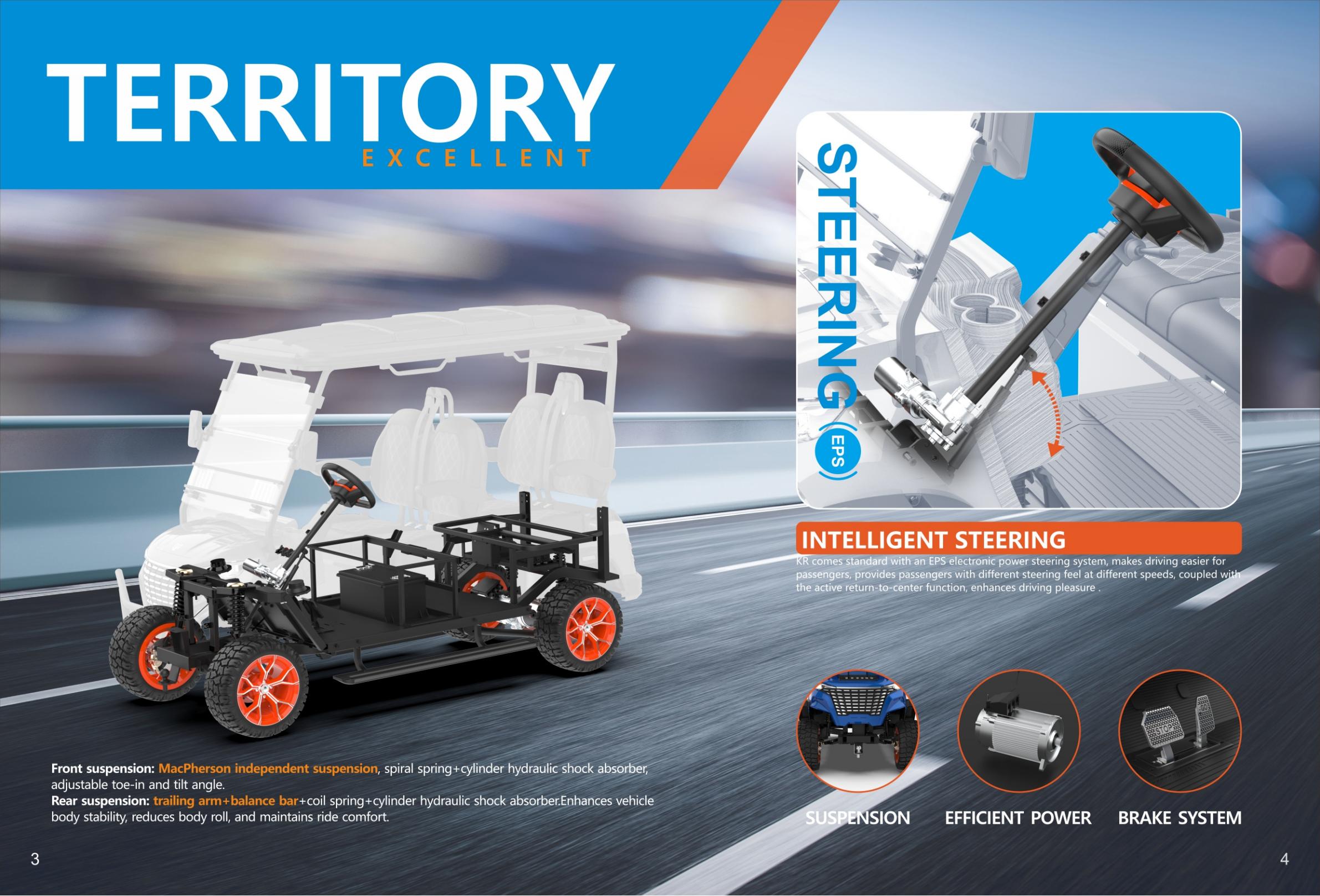

Front Suspension MacPherson independent front suspension + Coil spring + Tubular hydraulic shock absorber
Rear Suspension Integral rear axle, Ratio 12.3:1 Coil spring + Tubular hydraulic shock absorber + Single swing arm + Stabilizer bar suspension
Braking System Four-wheel hydraulic brake, Four-wheel disc brake + Electromagnetic parking brake (with vehicle towing function)
Steering System Rack and pinion steering system, Automatic backlash compensation + EPS

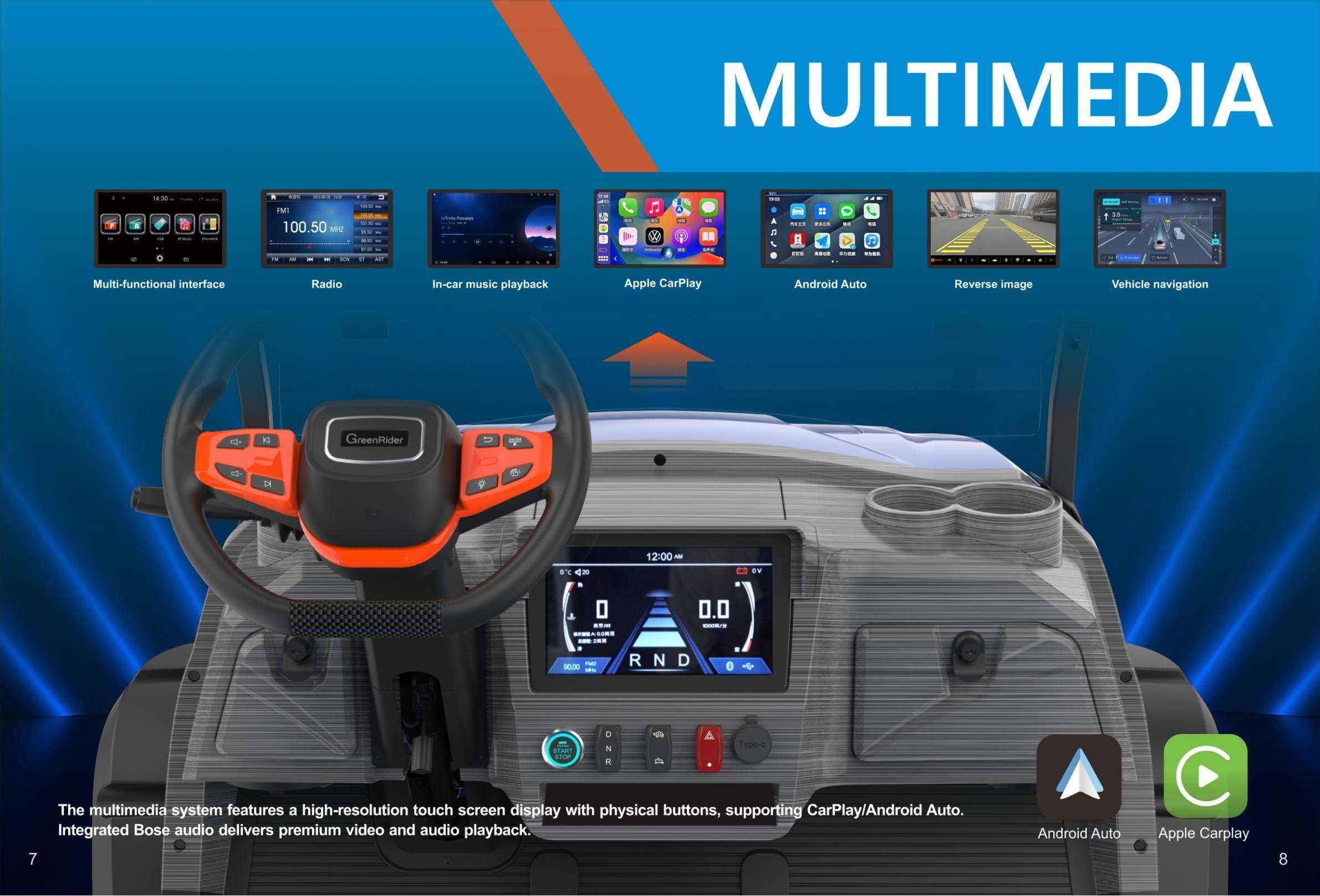

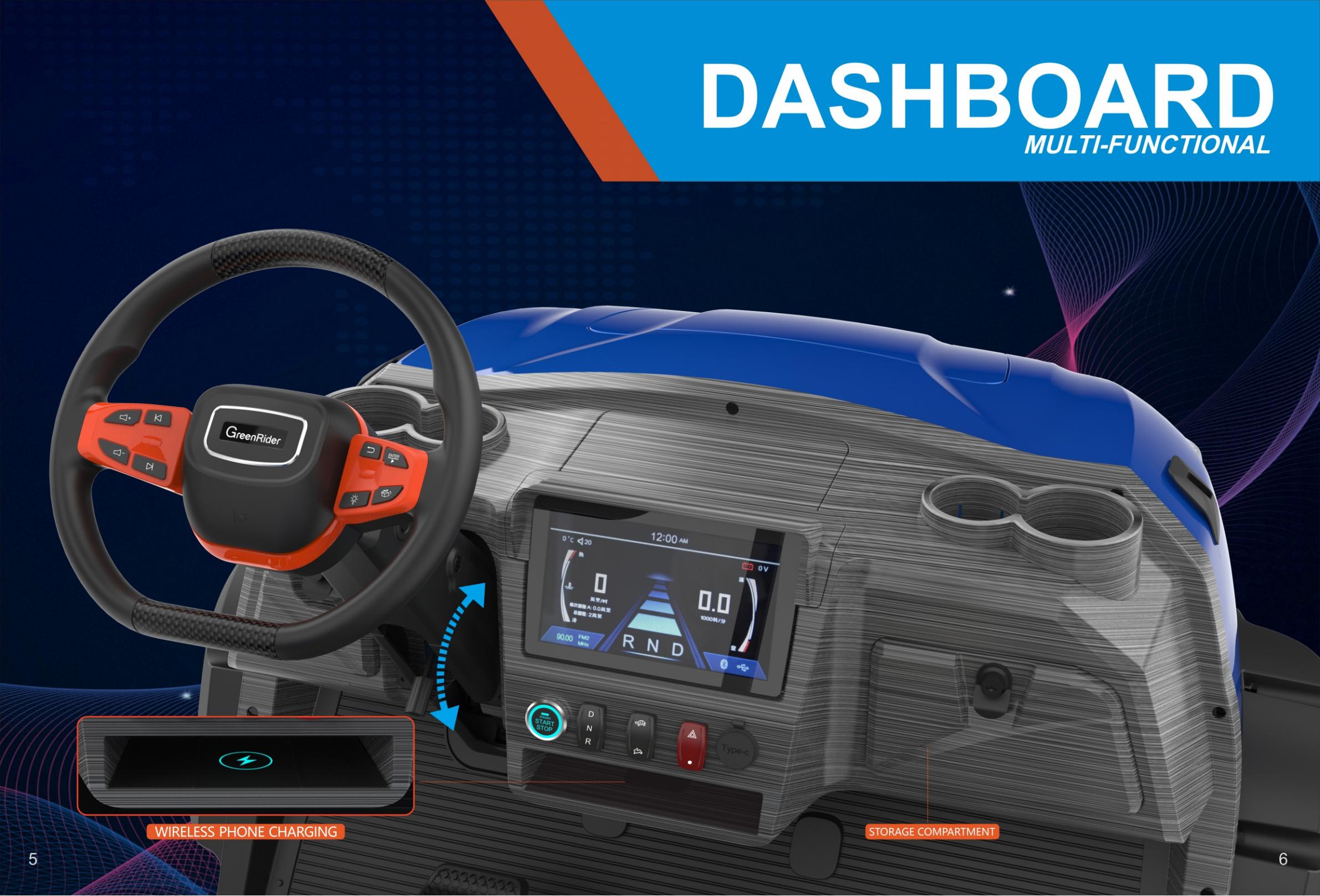

Instrument Panel Carbon fiber style (Hydro transfer printing) dashboard; IP66 premium 10-inch multimedia combo meter (Vehicle info + Multimedia)

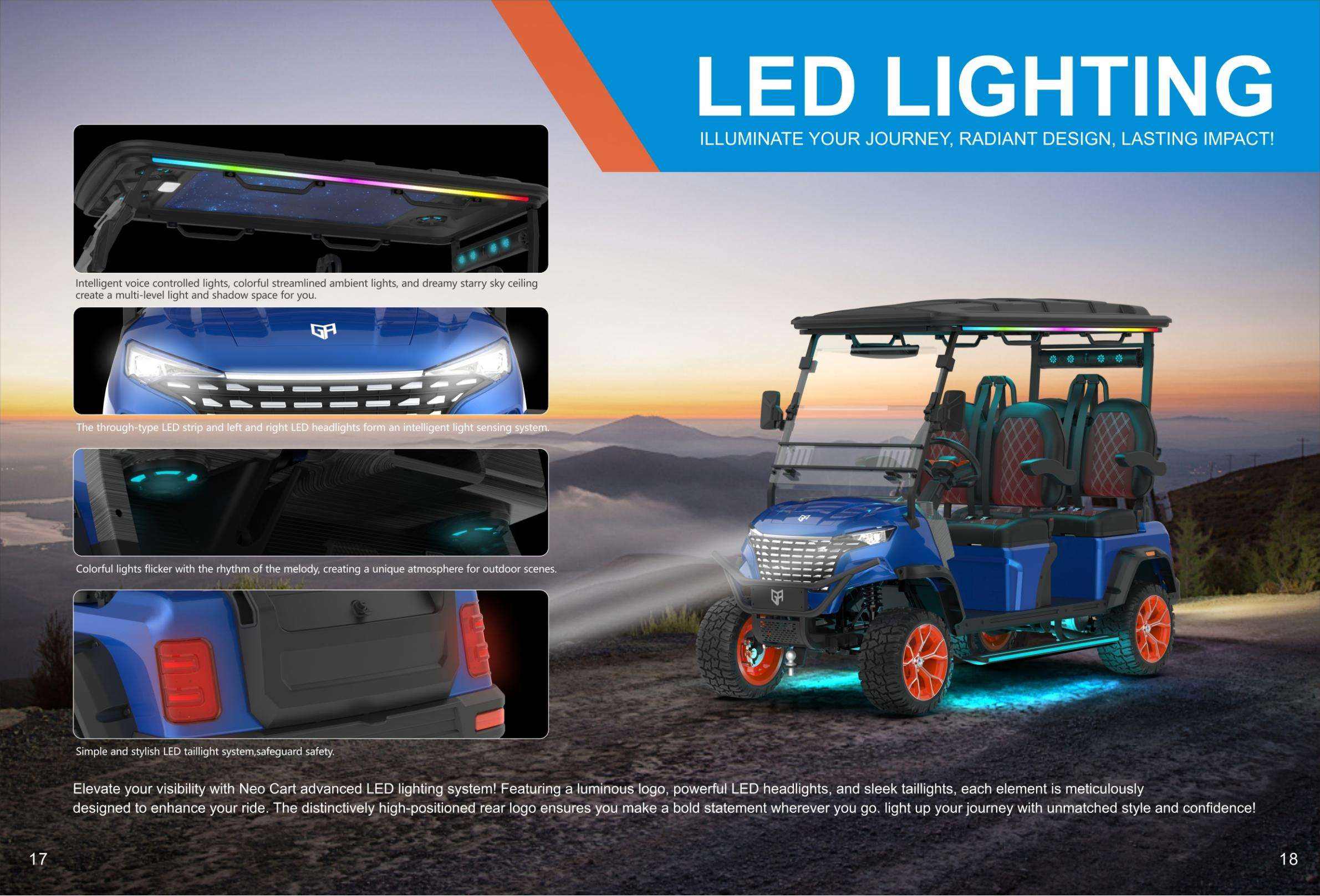

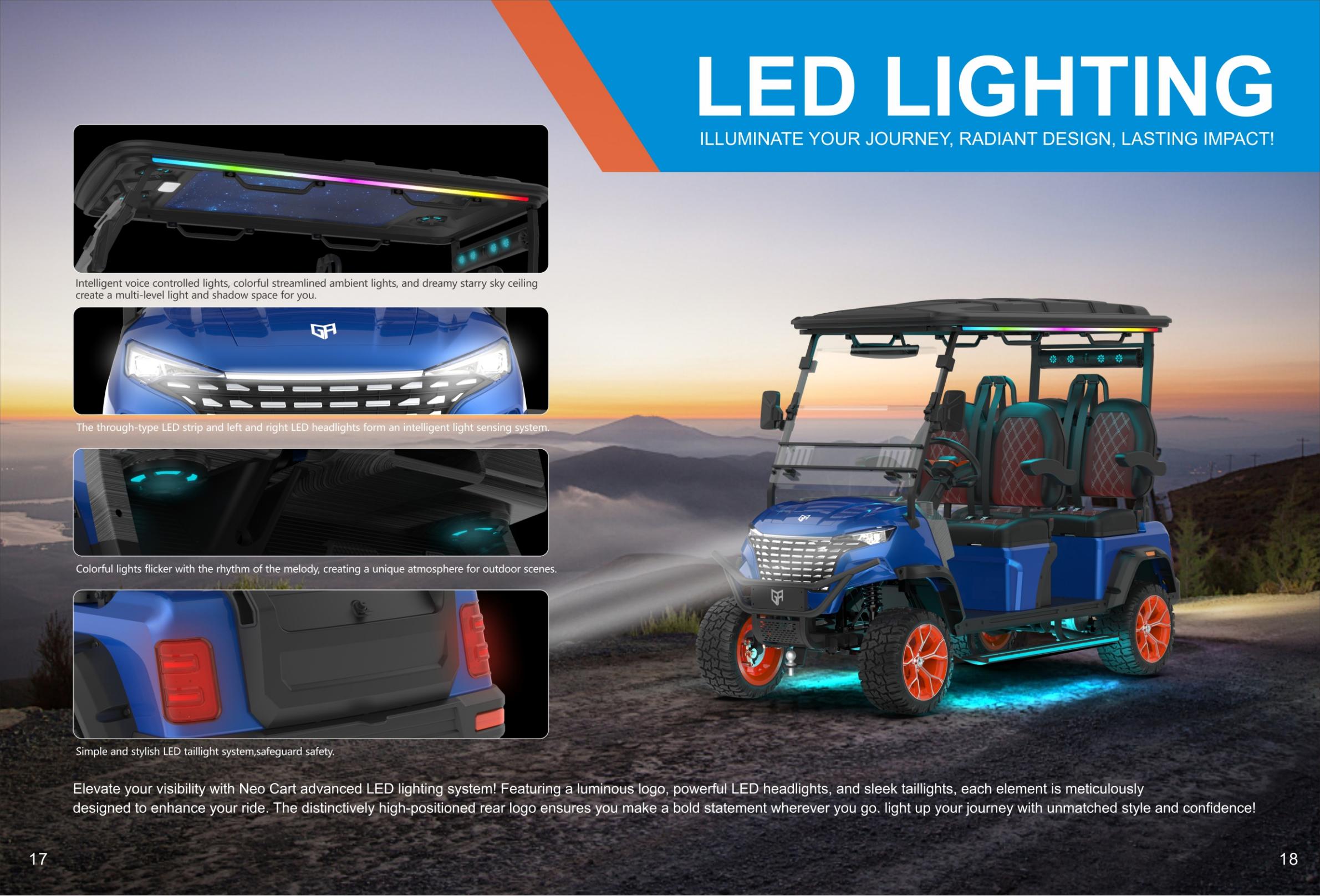

Headlights LED front combination lights (Low beam, High beam, Turn signal, DRL, Position light, Light bar)
Taillights LED rear combination lights (Brake light, Position light, Turn signal)
Load / Dimensions
Curb Weight (excl. battery) ≤ 480kg ≤ 510kg ≤ 530kg ≤ 550kg
Seating Capacity 4 4 6 6
Body Dimensions (LWH) 2935*1270*2000mm 2995*1270*2080mm 3720*1270*2000mm 3780*1270*2080mm
Front/Rear Track Front 970mm / Rear 1030mm
Wheelbase 2075mm 2860mm
Vehicle Performance
Max Speed ≤ 20MPH/Hours ≤ 25MPH/Hours ≤ 20MPH/Hours ≤ 25MPH/Hours
Min Turning Radius 4m 4.5m
Braking Distance < 3m 3.5m
Gradeability / Parking Gradeability 20% — 30%
Range 60-80mile (Flat road)
Min Ground Clearance 140mm 190mm 140mm 190mm
Packing & Delivery
Single Packing Display
Shipping by Sea
  • Estimated Transit Time: Approximately 8 weeks to arrive at your destination. We prioritize efficient logistics to ensure your order reaches you in a timely manner.
  • Delivery Time: Production Lead Time: Around 45 working days after receipt of the deposit. Our team works diligently to complete your order as quickly as possible without compromising on quality.
  • MOQ: Just 1 set. We understand that you may want to start with a smaller order, and we're happy to accommodate that.
  • Deposit: 30% T/T (Telegraphic Transfer) as a deposit to secure your order.
  • Balance: The remaining 70% T/T is due before delivery. This ensures that both parties are satisfied with the arrangement and you can rest assured that your order is in safe hands.
After Sales Service
  • Standard Warranty: 24 months
  • Extended Warranty: Optional coverage up to 36 months.
  • Global Support: Technical assistance and spare parts supply.
  • Training: On-site or remote operation/maintenance training.
Company Profile
Company Showcase Office
We are a high-tech enterprise integrating R&D, manufacturing, sales, and service, specializing in the global operation of high-end intelligent electric vehicles. Leveraging a robust supply chain and strong R&D capabilities, the company is dedicated to providing global customers with green, smart, and efficient new energy vehicle solutions. Our core brand encompasses multiple intelligent electric vehicle models across the DS Series and KR Series. These products are widely used in various scenarios such as golf courses, tourist attractions, industrial parks, residential communities, and campus transportation. They are exported to markets including Europe, America, Southeast Asia, and the Middle East, earning customer trust through superior quality and innovative technology.
Frequently Asked Questions
1. Can I get some samples?
Absolutely! Sample orders are readily available for quality checks and market testing. We understand the importance of verifying product quality before making larger commitments, and we're here to support you every step of the way.
2. What's the delivery time?
Our standard production timeline is approximately 45 working days, based on the specifications and quantity of your order. We're committed to delivering your products on time without compromising on quality.
3. What are your payment terms?
We primarily accept T/T (Telegraphic Transfer) or L/C at sight as our standard payment methods. However, we're open to discussing other payment options to ensure a mutually beneficial arrangement.
4. What are your warranty terms?
We offer varying warranty periods for different components to ensure your peace of mind. For detailed information, please feel free to contact us. We're always here to provide the support you need.
5. Do you keep products in stock?
No, we don't keep stock on hand. Each product, including samples, is custom-produced according to your specific order. This ensures that you receive products tailored precisely to your requirements.
6. Can I mix different products in one container?
Yes, of course! You can mix different models in a single container to optimize your shipping and logistics. We're flexible and ready to accommodate your needs.
