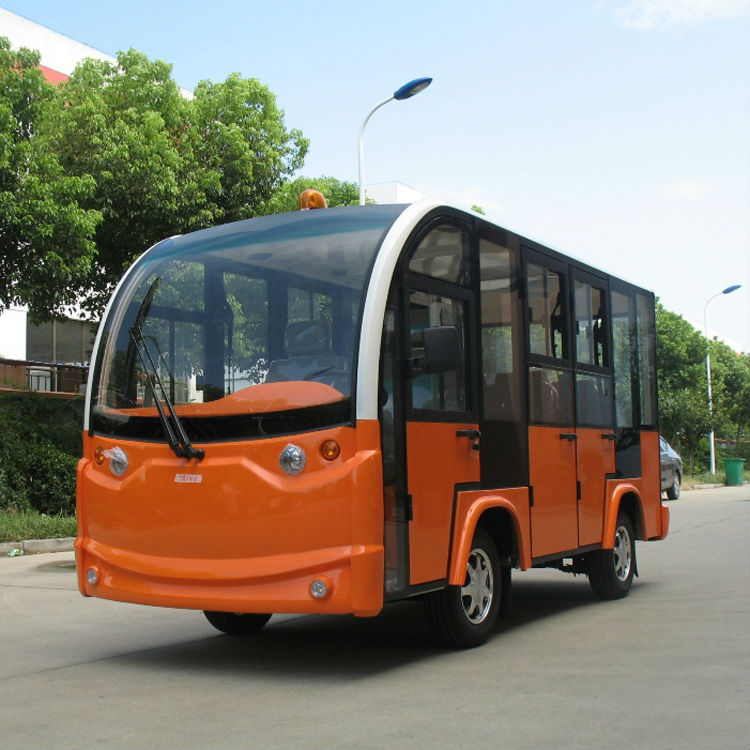

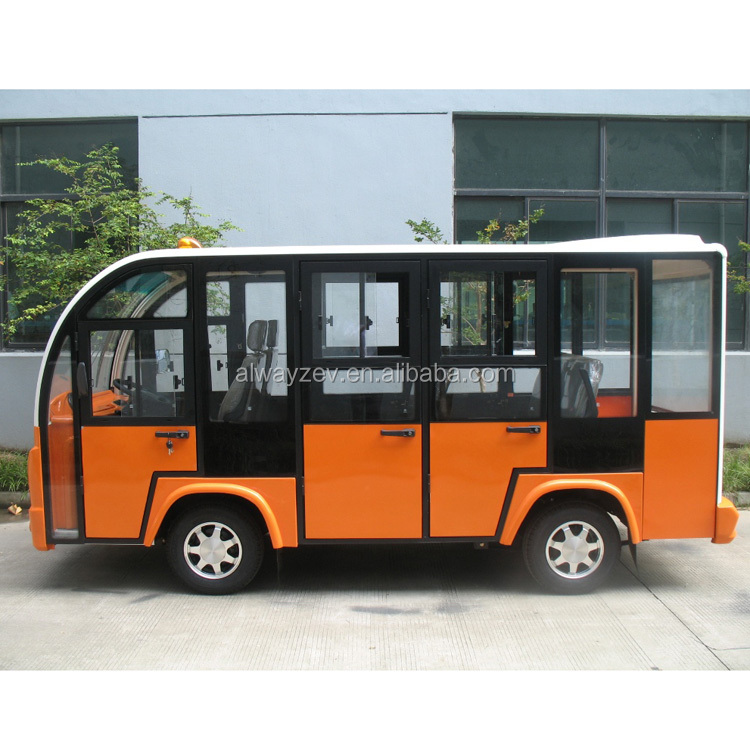

Enclosed Electric Shuttle Bus AW6082KF

Product Description

Model: AW6082KF
Enclosed Electric Shuttle Bus
With aluminum door, each door is detachable in seconds.
Electric System
System voltage 48V, DC or AC
Motor 5KW
Battery 8pcs T105
Controller Curtis
Technical Information
Passenger Number 8 persons
Max. Speed 30km/h
Range per charging >70km (fully-loaded vehicle moving on a flat-level road at a fixed speed of 20km/h)
Minimum Turning Radius (m) 4.5
Max. braking distance ≤4m (at a speed of 20km/h)
Max. Climbing Capacity (loaded) 20%
Max. Loading Capacity 640kgs
Net Weight 1010kgs
Overall Dimensions 4100 x 1525 x 2050mm
Other Specifications
Door Aluminum door, each door is detachable
Instruments on dashboard Combination instrument including power consumption, voltage, current, speed, mileage, time, light, F/R switch, and signal.
Rear view mirror 1pc on each side
Lighting system Headlight, turn lights, taillight, horn and reverse buzzer
Seats High quality of artificial leather
Audio CD and Radio, speakers
Switch assembly Combination switch including Power key, Light and wiper combination switch, F/R switch and reverse buzzer switch
Drive Mode 2 rear wheel drive, motor on rear axle (stepless)
Braking System Front drum/rear drum, hydraulic brake, parking brake
Front axle and suspension Independent suspension
Rear axle and suspension Integral rear axle, coil spring non-independent suspension, hydraulic shock absorber tube
Steering System Rack and pinion drive
Tire Aluminum wheel, 155R12, 8PR
Body Steel frame + fiberglass
Floor Non-slip floormat
Charger Onboard charger or non-onboard charger
Product Showcase
Certifications & Advantages

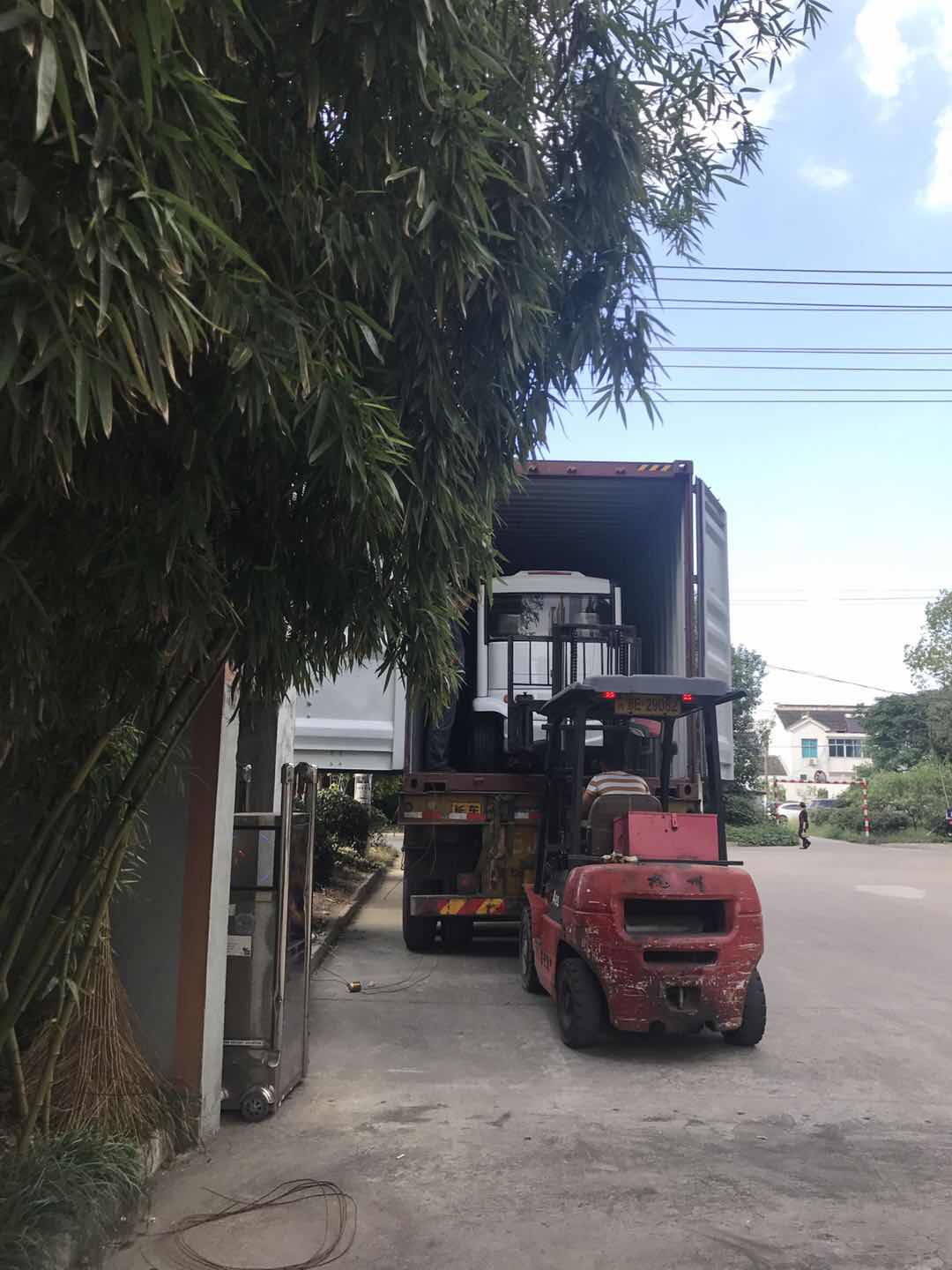

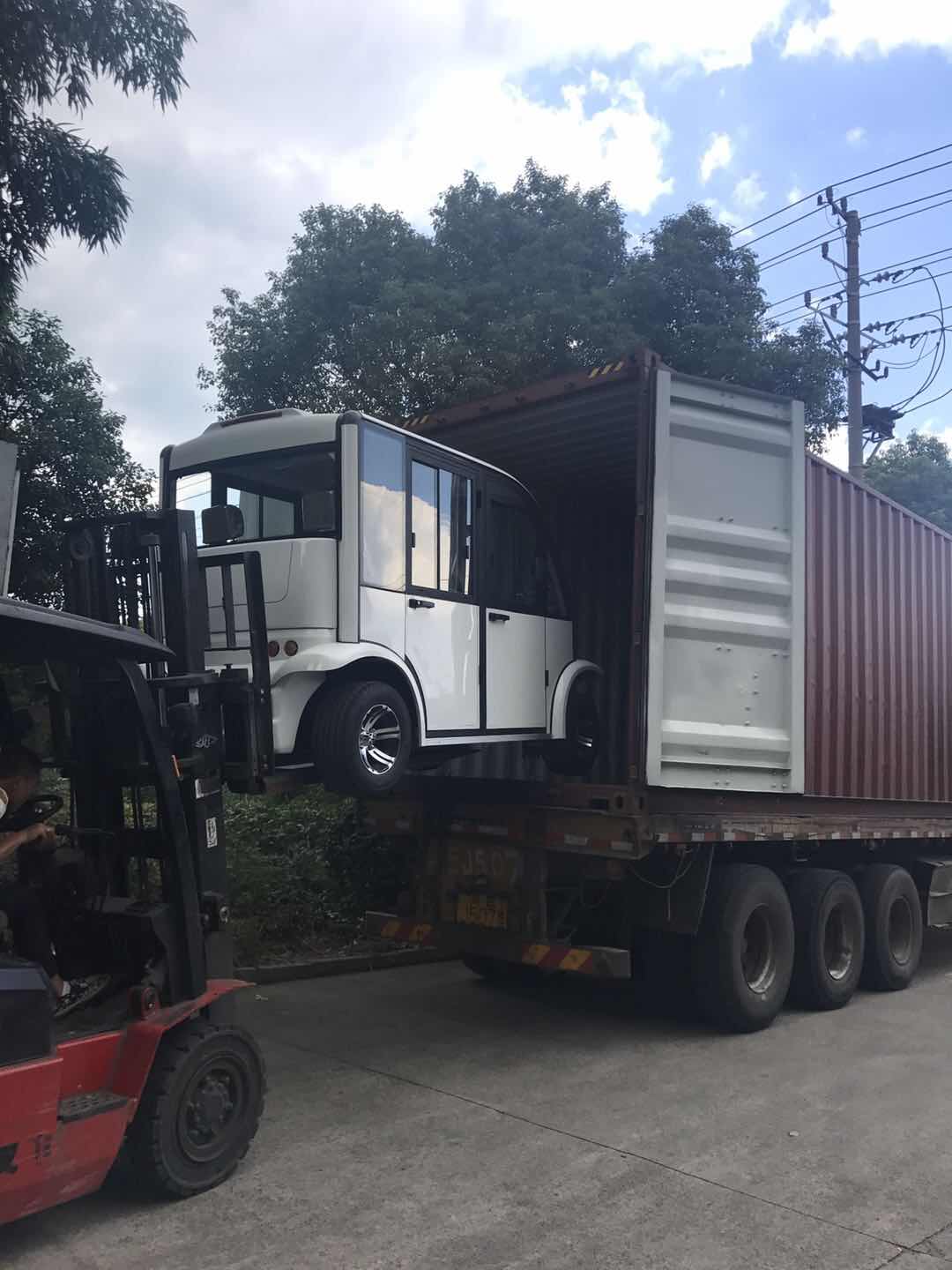

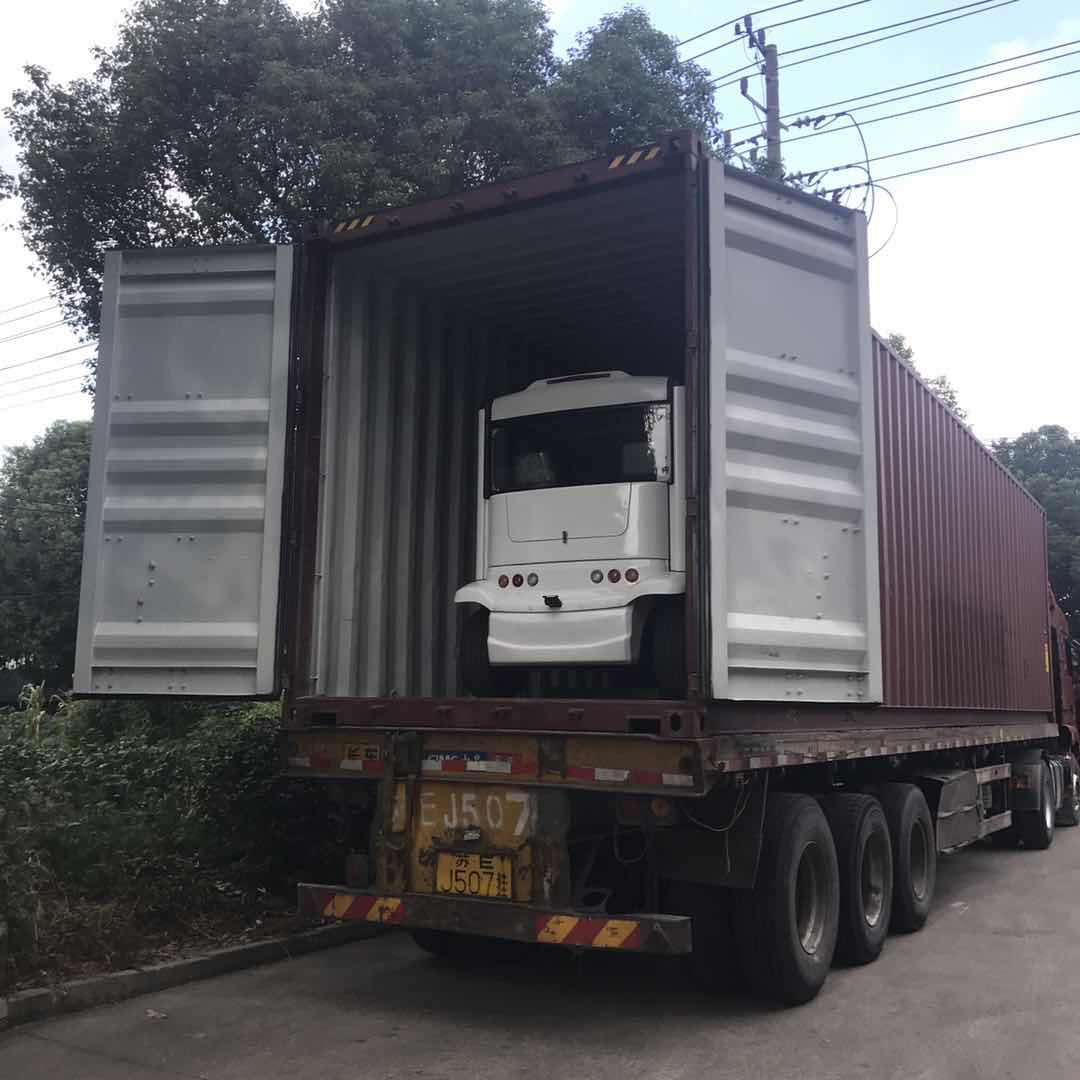

Packing & Loading
Frequently Asked Questions
Q1 What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. Or Irrevocable L/C at sight.
Q2 What is your terms of delivery?
A: FOB.
Q3 How about your delivery time?
A: Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4 Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5 What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6 Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
