Kabar Golf
1 / 5
| Dimension | 3500*1340*2000mm |
| Packaging Dimension | 3700*1350*1250mm |
| Max. Speed | 45km/h |
| Max. Gradeability | 30% |
| Endurance Mileage | 80-100Km |
| Seating | 6 |
| Wheelbase | 2400mm |
| Total Weight | 620kg |
| Motor | 4KW AC Motor |
| Vehicle Voltage | 60V/72V |
| Battery Type | Lithium Battery / Lead-acid maintenance-free battery (Optional) |
| Battery Quantity | 5 (Optional) |
| Charger | Vehicle-mounted smart charger, charging time < 8 hours (discharge rate 80%) |
| Controller | Enpower controller |
| DC Converter | High power non-isolated DC-DC 12V |
| Steering | Double acting rack and pinion steering system with automatic gap compensation function |
| Brake | Four wheel hydraulic brake, four wheel disc brake + electric brake power |
| Front Suspension | Double swing arms and independent front suspension + coil spring + cylinder type hydraulic shock absorber |
| Rear Suspension | Integral rear axle, speed ratio 16:1, coil spring damping + barrel hydraulic damping |
| Tire Size | All-terrain 23*10.5-12 12-inch aluminum wheels, vacuum tires. |
| Suntop | Frosted black square tube frame + polypropylene injection molded large top |
| Floor | Non-slip floor, high strength structure, corrosion resistance, aging resistance. |
| Body | The front cover, seat barrel, body and rear cover are automobile injection molding: frosted black square tube top column; |
| Seat | Integral foam molding cushion: high grade imported leather (optional) Color separation: inverted seats are reversible, including storage boxes |

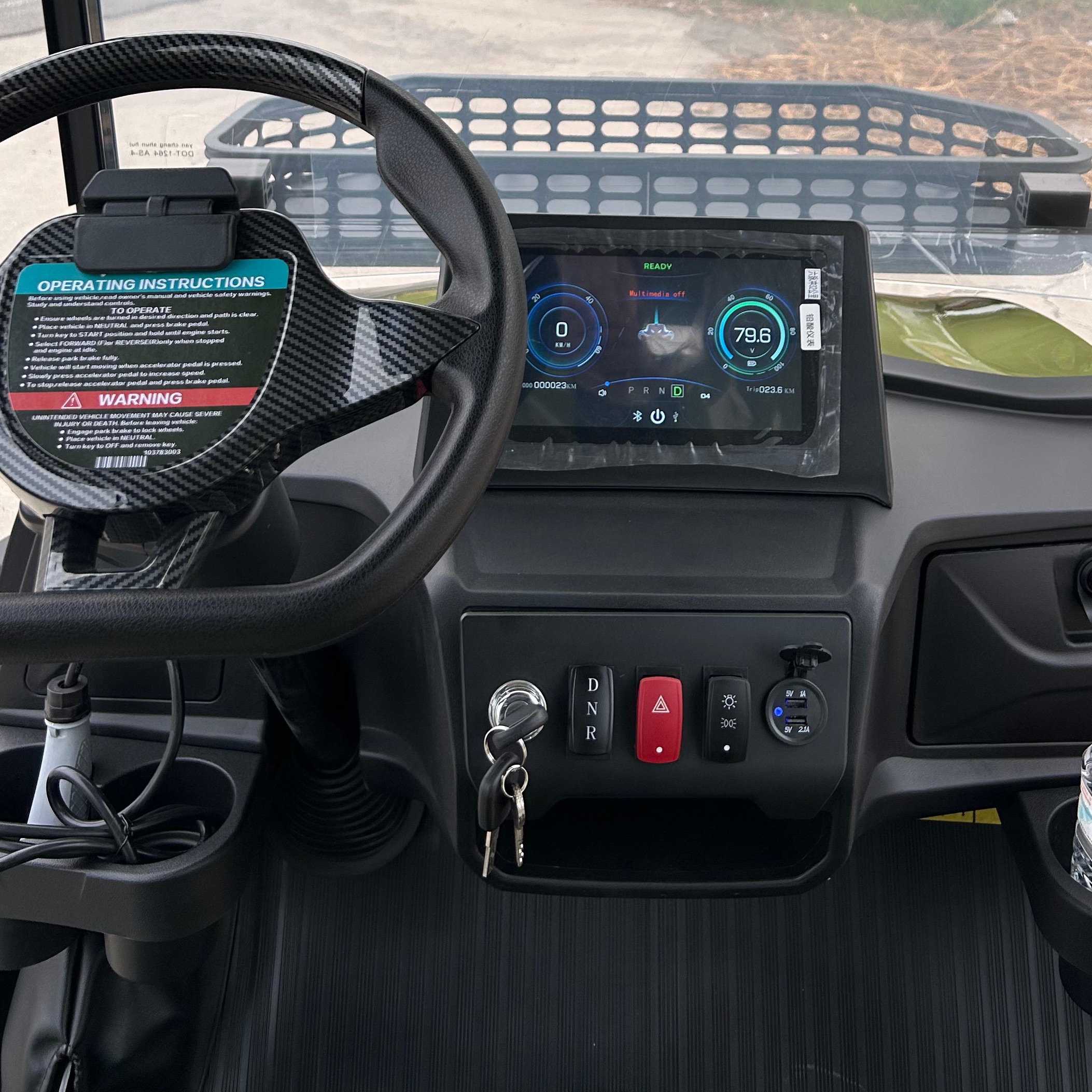

| Dash Instrumentation | Injection molding instrument panel, electric lock switch, double arm combination switch, gear switch, water cup holder: USB data interface. 10.1 inch LCD embedded multimedia touch LCD screen. |
| Rear View Mirror | One hand-adjustable, foldable rear view mirror on each side |
| Lights and Signals | LED front combination lights (low light, high beam, turn lights, daytime running lights, position lights), LED rear tail lights (brake lights, position lights, turn lights): snail horn, reverse buzzer |
| Front Windshield Cover | Acrylic plexiglass (foldable) |
Q1. Do you accept customization as per our special request?
Yes, we accept customization as per customer's special request with reasonable cost and lead time.
Q2. Do you have a minimum order?
We accept small orders, with no MOQ request. However, the price will vary based on the order quantity.
Q3. What is the delivery time?
Sample orders are delivered within 7 days, and bulk orders take 15-30 days.
Q4. How do you transport?
We transport via both ocean shipment and air freight.
Q5. What is your warranty term?
We provide a 1-year warranty. For any failed part under warranty, we send replacements and provide technical support.
Q6. Do you provide technical support?
Yes, we provide comprehensive technical support. If necessary, our engineers can assist on-site.
