Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
Product Parameters
Utility Golf Buggy with 2 seats
Large cargo area, 160 cm length
Load capacity 200 kg
Electric version

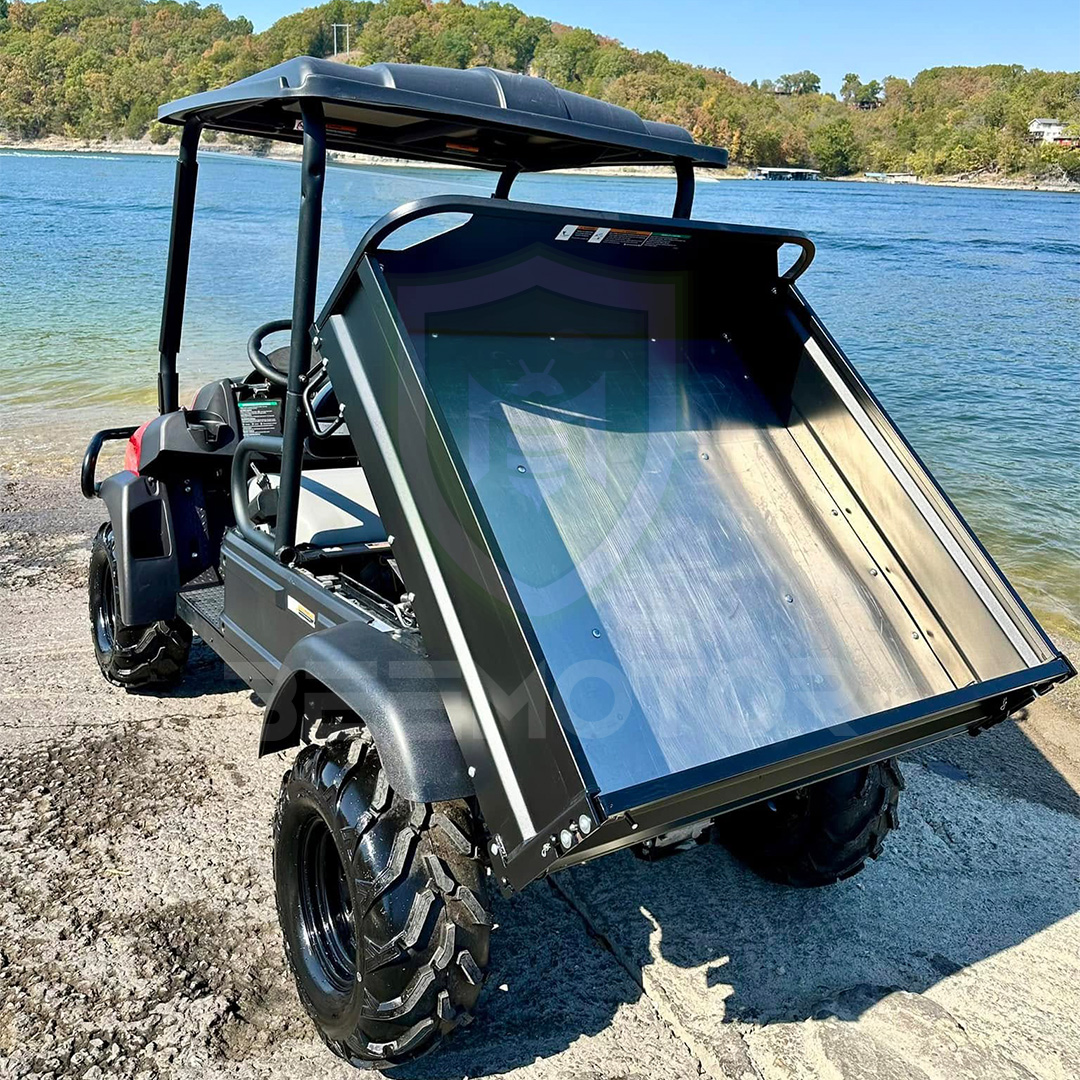

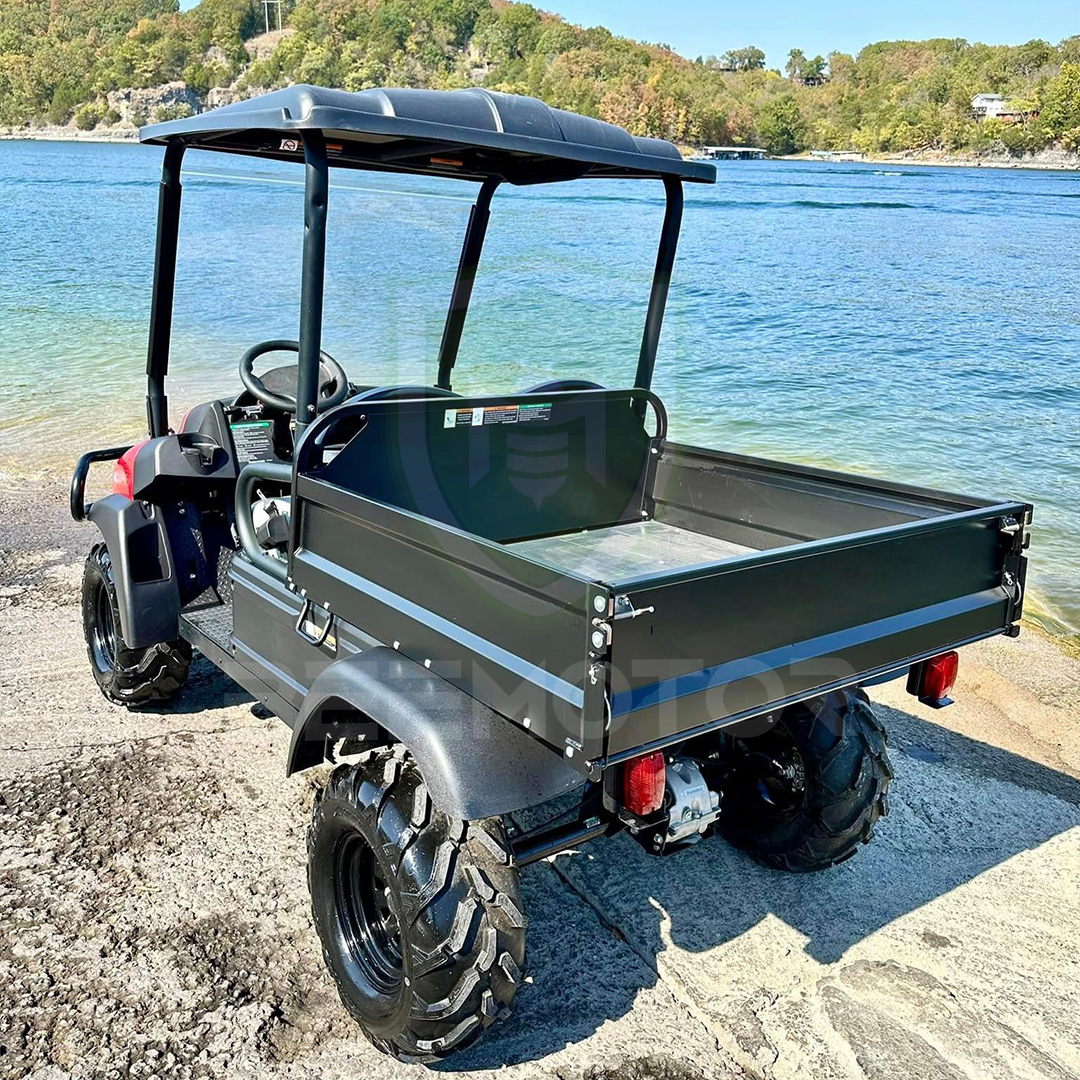

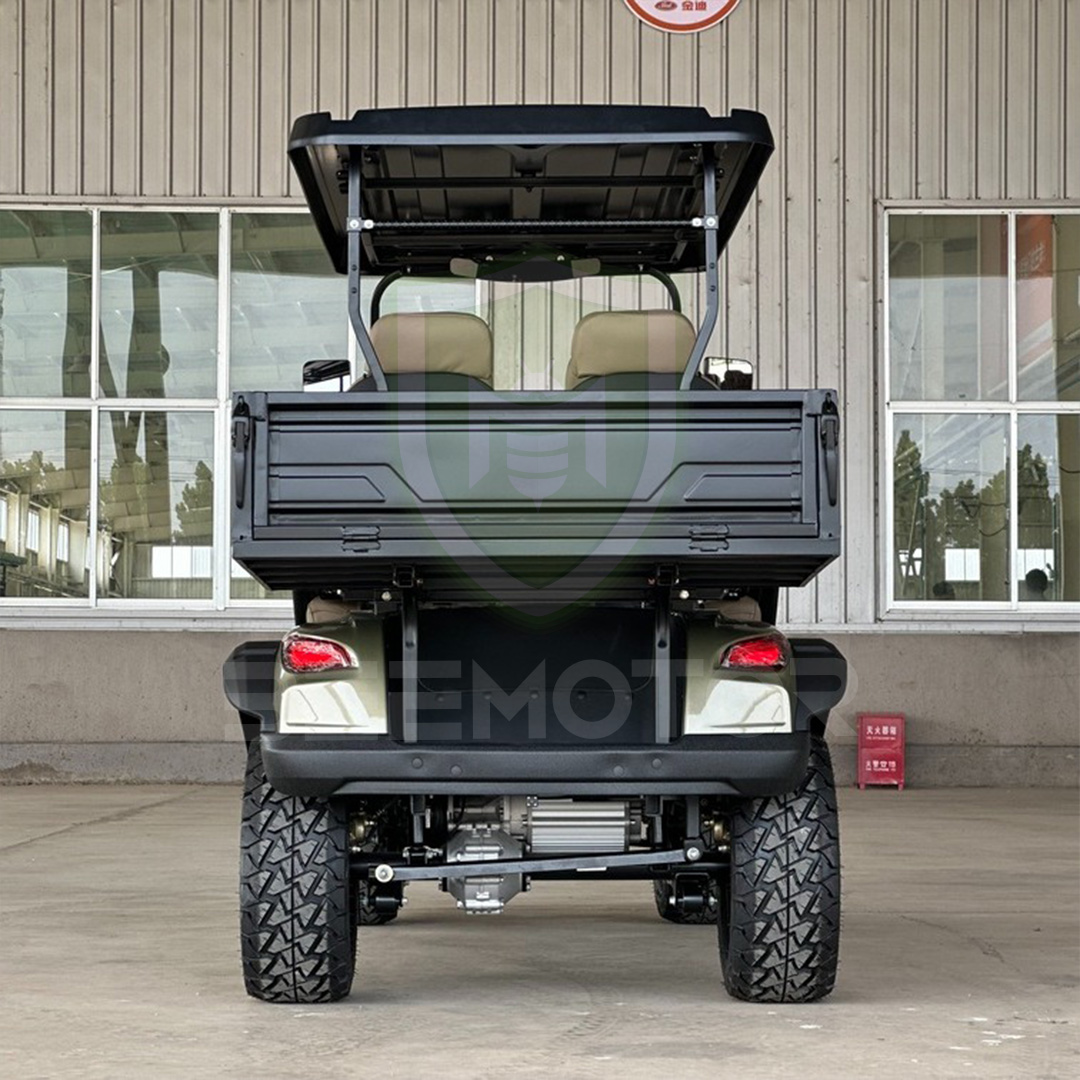

This electric UTV transporter is ideal for professional use, featuring a 160 cm aluminum cargo bed with a load capacity of nearly 200 kg. Equipped with a powerful 4 kW motor and a high-quality lithium battery, it is agile, stable, and easy to operate. The electric drive ensures quiet, eco-friendly operation with low maintenance costs. It includes a roof and windshield for added weather protection. Its robust construction and ergonomic design provide a safe, comfortable ride. Perfect for events, industry, site management, logistics, and maintenance work. Ideal for transporting tools and materials both indoors and outdoors. The quiet electric drive minimizes noise pollution, an advantage at event venues. With its reliability and versatility, this electric golf cart is the ideal transport solution for businesses seeking efficiency and sustainability.
Seats
2 seats
4 seats
6 seats
8 seats
Size
2350*1250*1900
2980*1250*1900
3680*1250*1900
4250*1250*1900
Weight
450KG
510KG
590KG
670KG
Key Components
Controller
Inbor, SME or China Local Brand
Motor
4KW/5KW/7KW AC motor
Battery
48V/60V/72V120AH Battery
Performance and Dimensions
Passenger Capacity
2, 4, 6, 8
Range (Loaded) *
90-100kms
Max.speed
32-40km/h
Min. Turning Radius
3.7m
Max. Gradeability
20%-30%
Max. Loading Weight
450kgs
Net Weight
650kgs
Body and Frame
Frame (Chassis)
Welded steel framework, with anti-rust treatment of acid washing, phosphating and electro-coating
Body and Roof
PP plastic front body and rear body; PP vacuum form roof
Galvanized Steel plate and anti-slip rubber floor mat
Dashboard
Plastic in black, with 4 cup holders, 2 glove storage box, forward/reverse switch, battery capacity indicator, ignition key
Side trim
Plastic
Side mirror
2pcs, foldable
Electric System
Lighting system & horn
All LED lights, 2 headlights, 2 front turn signals, 2 taillights, electric horn.
Backup Buzzer
12V
Digital Meter
LCD screen, with speedometer, odometer, battery power meter and various indicators
Charger
Smart charger
Steering, Brake, Transmission and Suspension
Steering system
Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system
Four-wheel hydraulic brake + pedal parking brake
Accelerator
Stepless speed change
Suspension system
Cylinder hydraulic shock absorption+integral rear axle+leaf spring
Driving mode
Rear axle secondary reduction, AC motor
Rear axle
Integrated, variable speed gear
Wheel & Tyre
205-50-10, Aluminium wheel hub, vacuum tire
Recommend Products
Why Choose Us
FAQ
What is your terms of packing?
Generally, we pack out goods in containers by iron frame. If you have special requirement we can follow.
What is your terms of payment?
T/T 30% deposit,70% balance before dispatch from factory.
How about the logo?
We can customize the logo for free as per your requests.
How about your delivery time?
Generally, it will take 7 to 15days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
