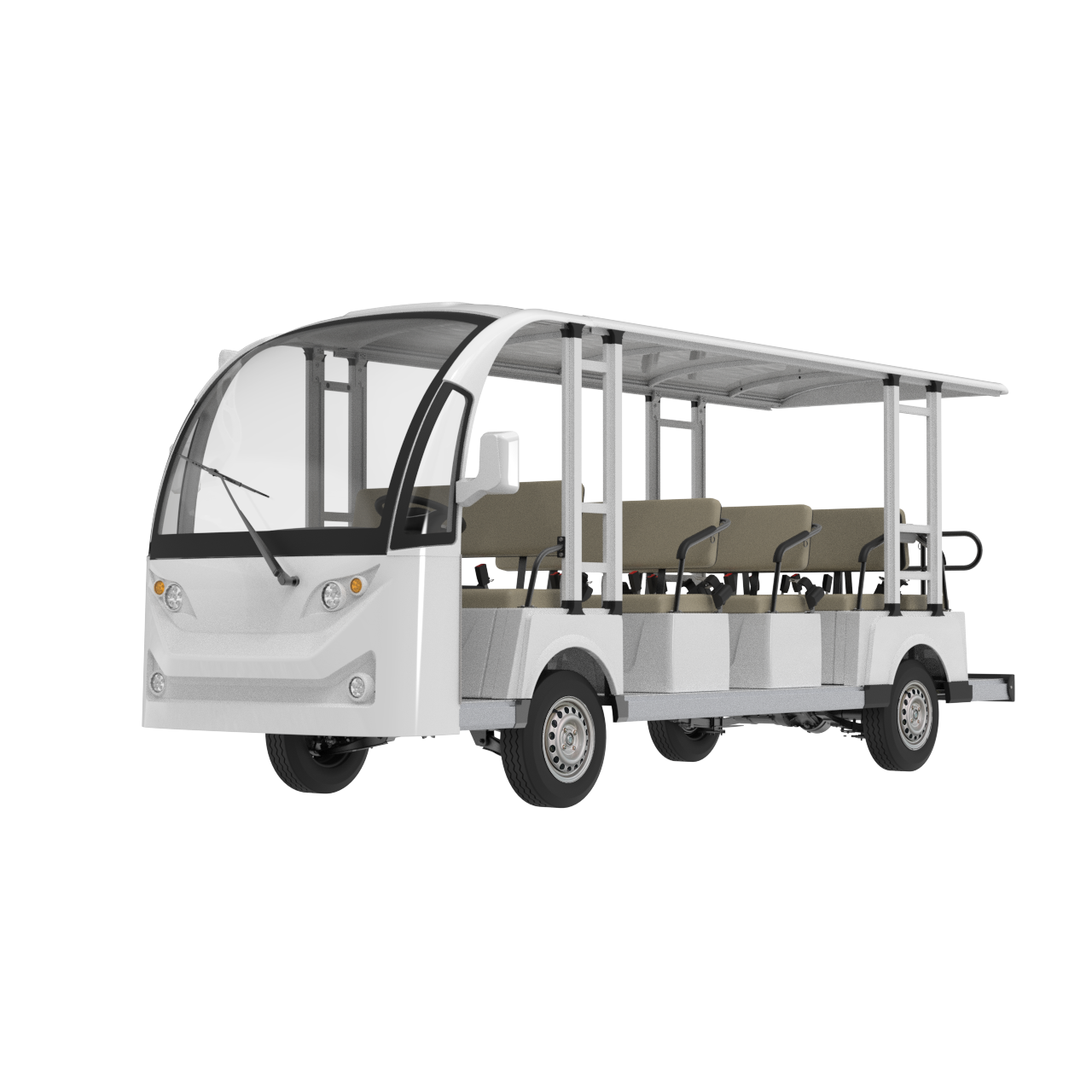

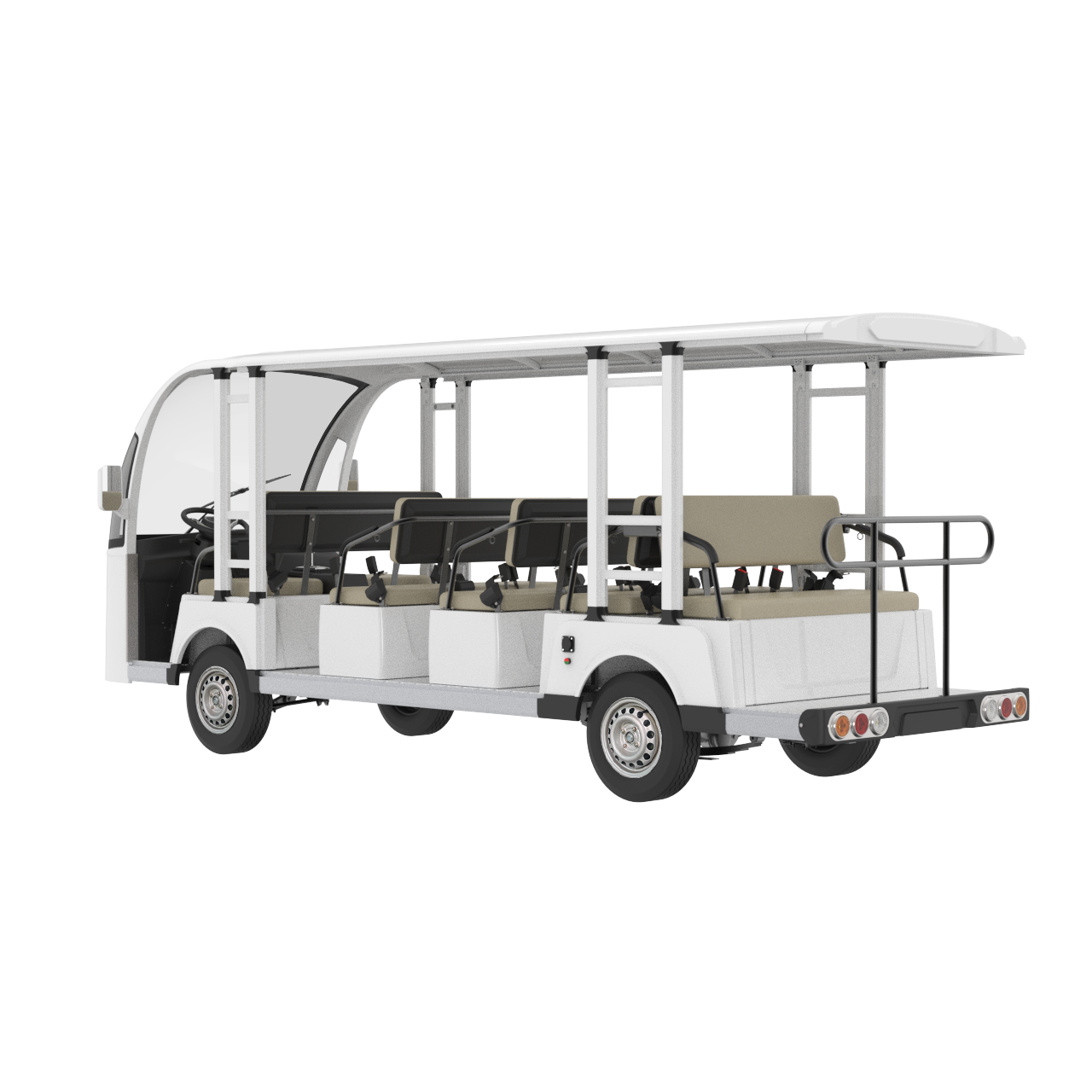

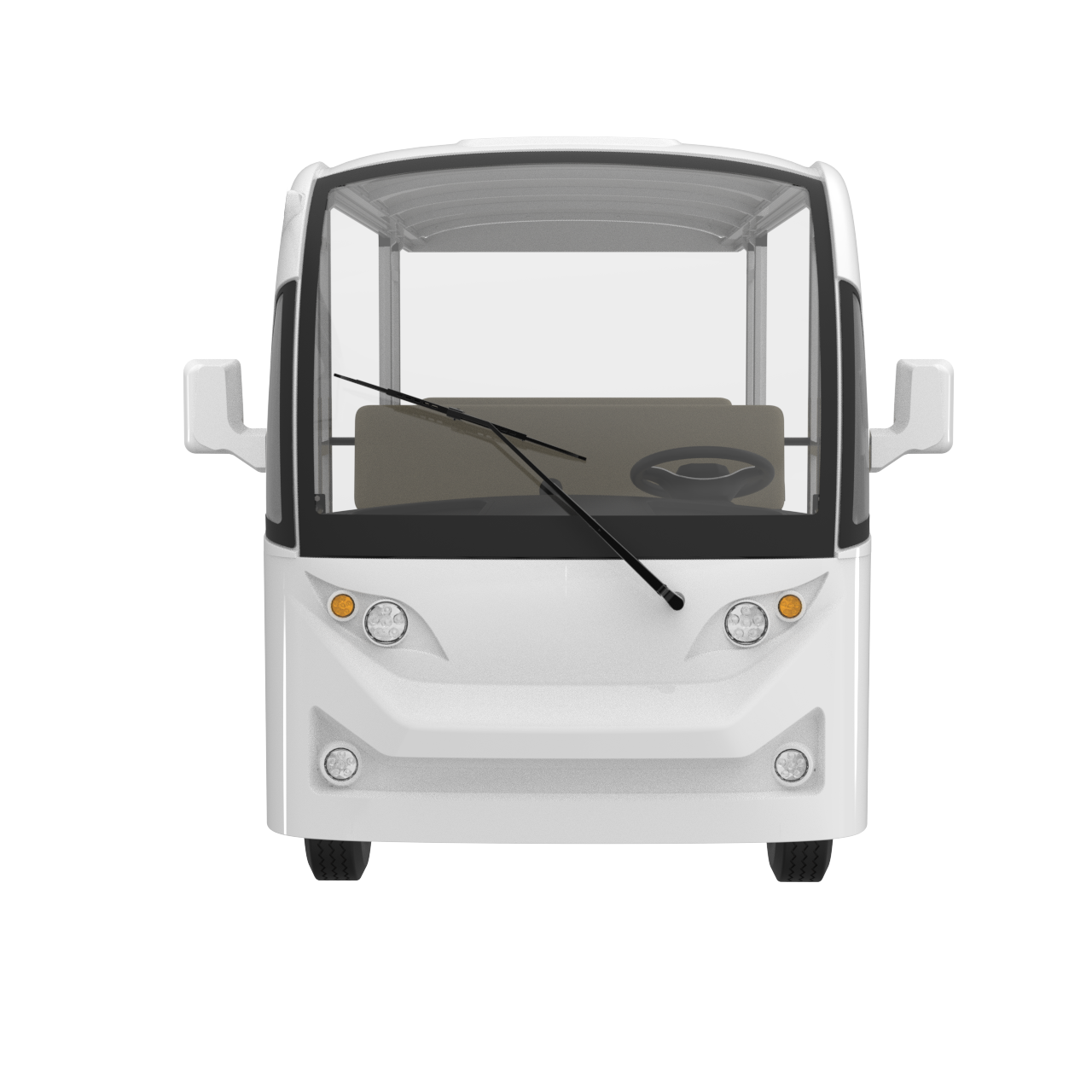

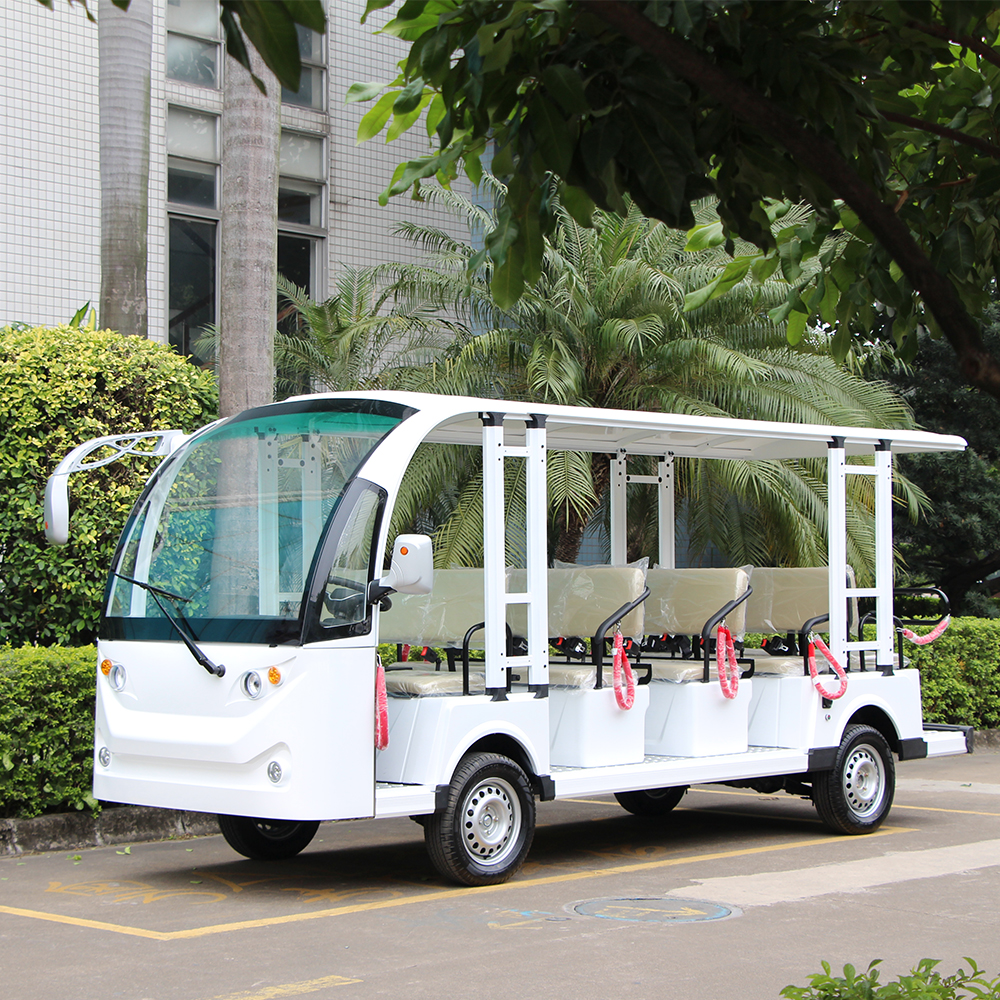

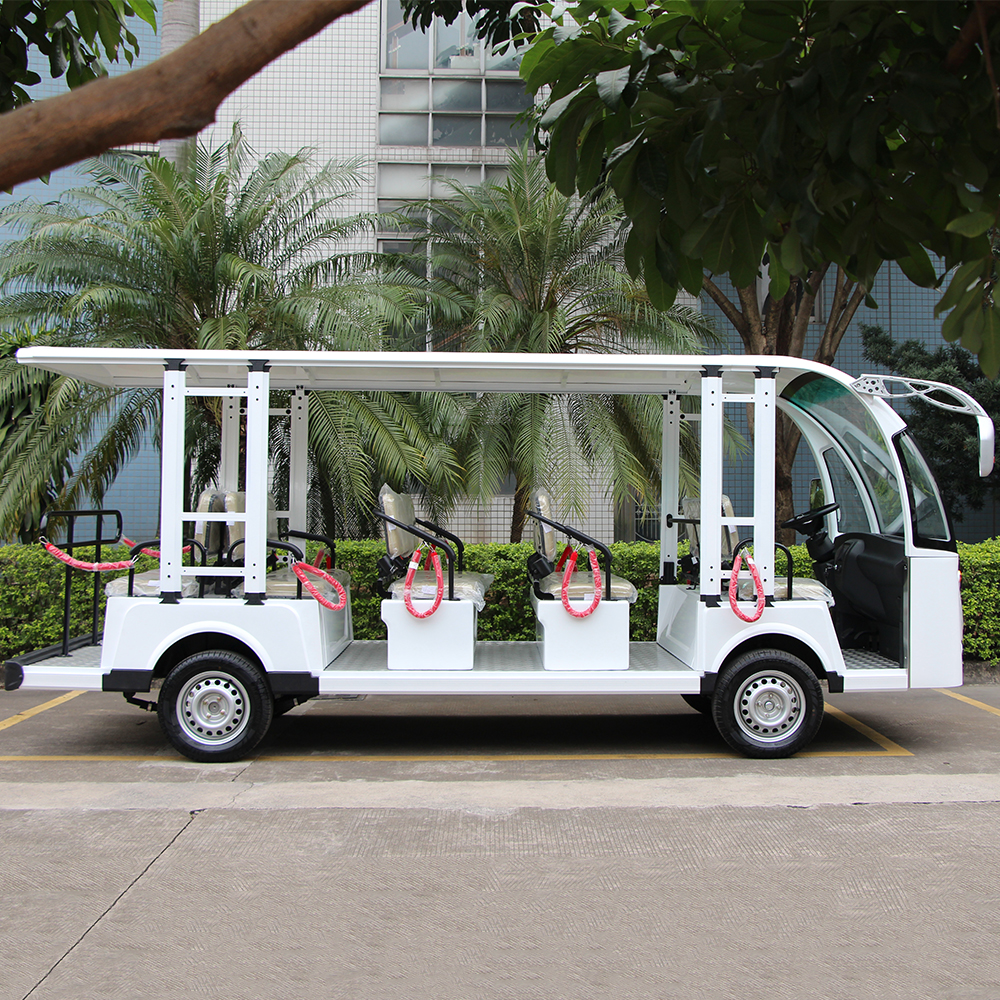

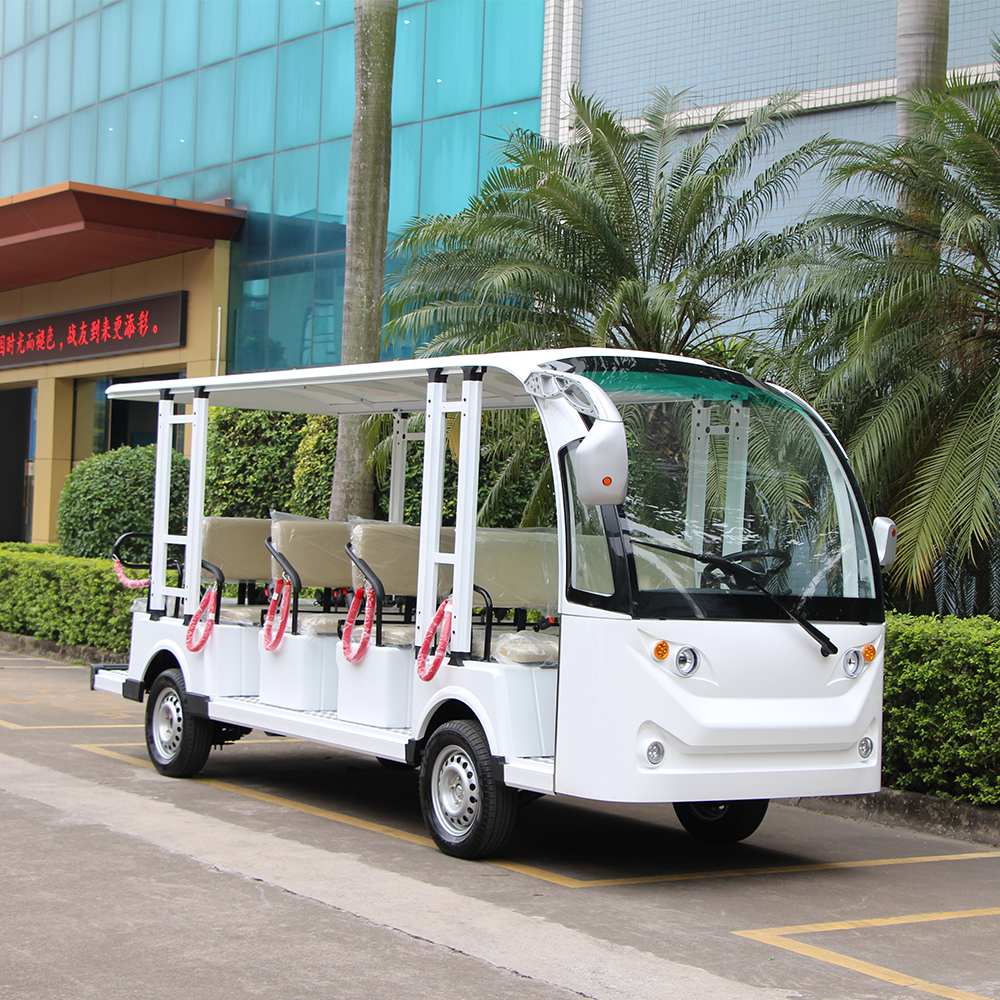

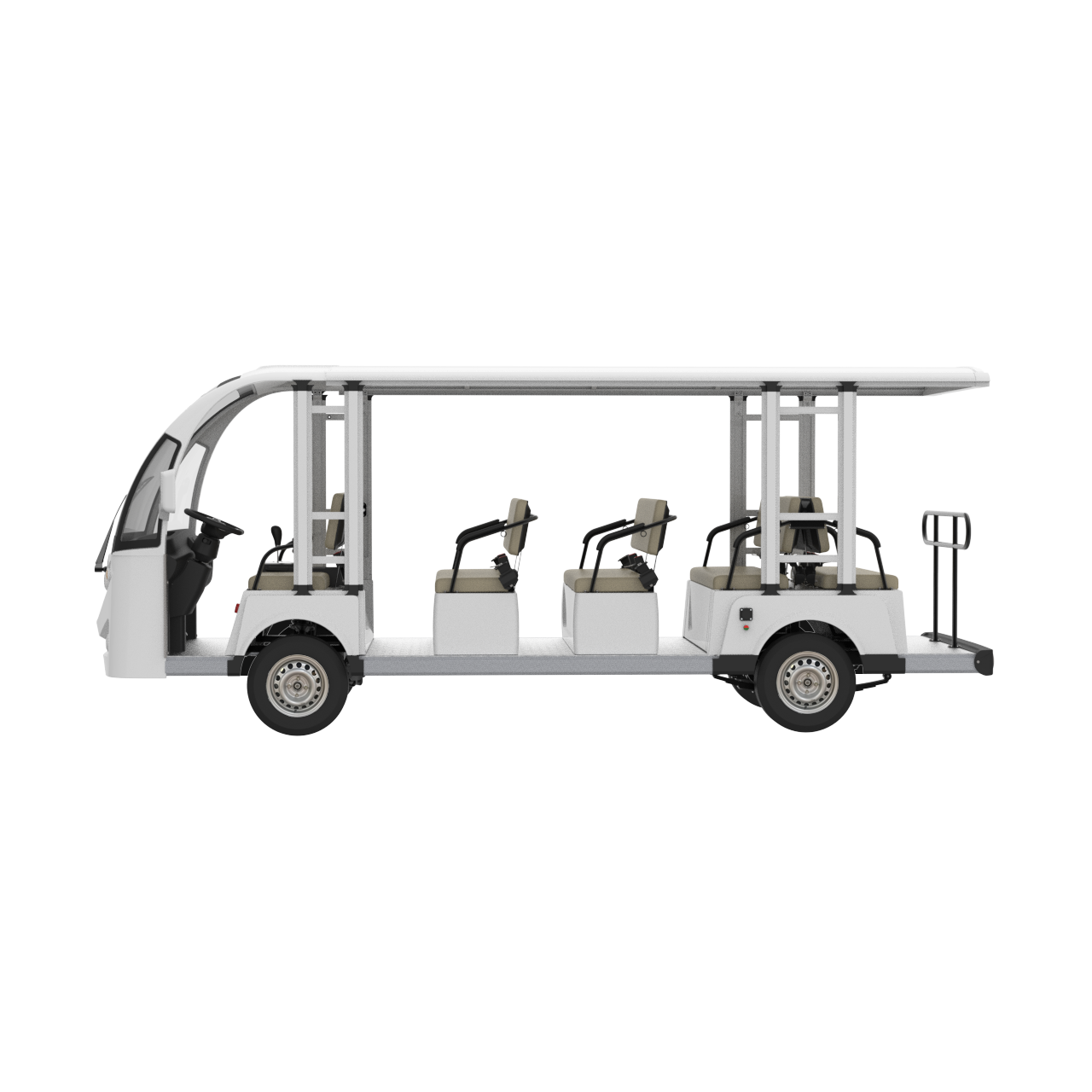

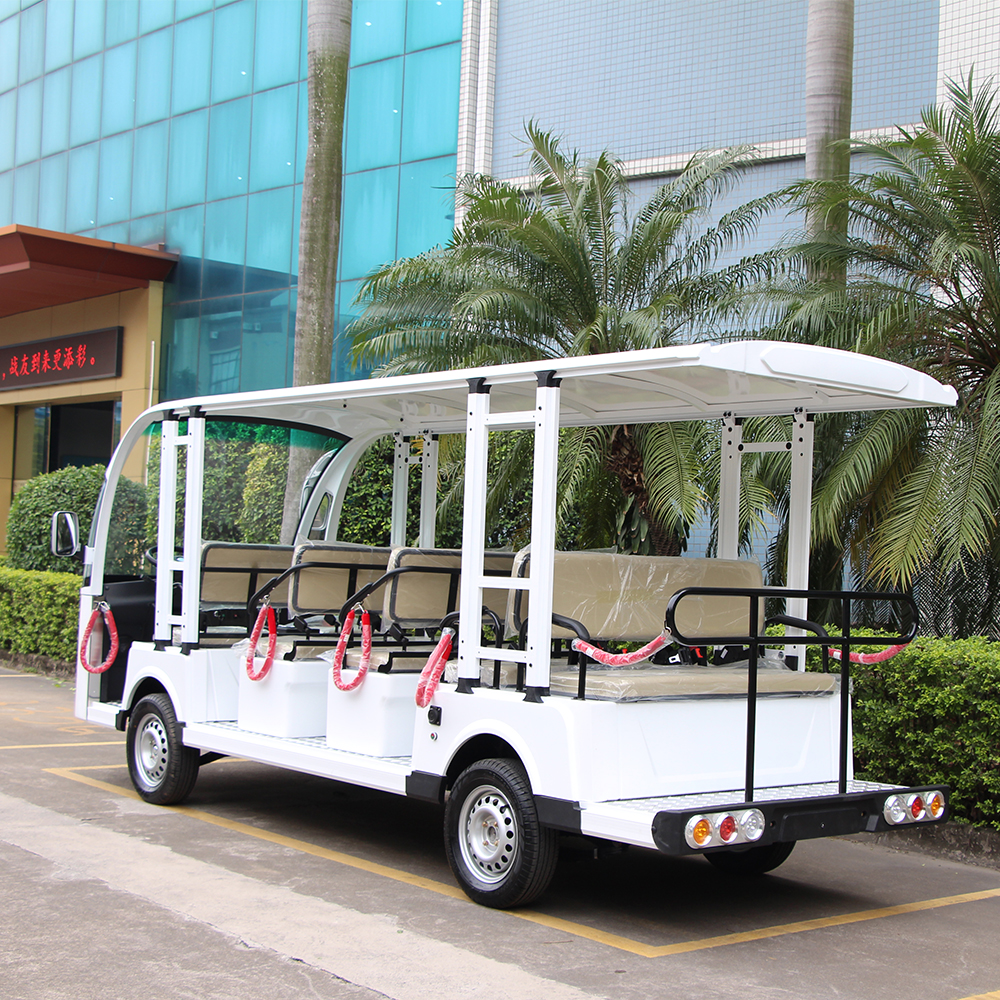

| MODEL | LQY148A D11A+3 |
| Qty/40'HQ (Nude Packing) | 1unit |
| Qty/40'HQ (Disassembled) | 4units |
| Performance | |
| Passenger capacity | 14 seats |
| Max.Speed | ≤30km/h(Adjustable) |
| Range | 100km |
| Climbing Ability | ≤20% |
| Braking Distance | ≤6m |
| Min.Turning Radius | ≤6.5m |
| Min.Clearance | 140mm |
| Recharge time | 8h |
| Dimensions | |
| L × W × H | 5010*1510*2070mm |
| F/R Tread | Front1240mm/Rear1240mm |
| Axle Distance | 2770mm |
| Curb Weight | 1360kg |
| Max. loading | 2550kg |
| Standard Configurations | |
| Motor | 72V/7.5KW AC motor |
| Controller | 72V/450A With AN communication controller |
| Battery | 6V/pc,*12pcs 170AH Maintenance-free Lead Acid batteries |
| Charger | Intelligent high-frequency vehicle charger, input voltage AC220V output DC72V/25A |
| Roof | Enhanced fiberglass + aluminum alloy frame; with light weight, anti-aging, not easy to fade. |
| Body | High-strength composite front enclosure (PT+PBT alloy injection-molded front cover) with superb impact resistance. |
| Chassis | High-strength steel frame-type longitudinal beam chassis with electrophoresis+powder -coated anti-rust treatment. |
| Pillar | Custom aluminum front and rear columns with high strength and never rust. |
| Seats | PU car special seat, ergonomic. |
| Dashboard | Injection-molded dashboard with combination switch, electric lock switch, emergency power-off switch, multi-function LCD display (containing meter indications such as voltage, power, speed mileage, etc. and entertainment playback system), equipped with USB/Type-C ports, storage box, and cup holders. |
| Lighting & Signaling | LED high/low beams, turn signals, rear combination taillights, horn, reverse buzzer. |
| Steering | Dual push rack and pinion steering + electric power steering system. |
| Brake System | Front ventilated discs and rear drum hydraulic dual circuit brakes + handbrake parking with vacuum-assisted braking system. |
| Front Suspension | Front axle MacPherson independent suspension with coil springs + cartridge hydraulic damping. |
| Rear Suspension | Integral rear axle, steel plate springs + cartridge hydraulic shock absorbers. |
| Windshield | Automotive-grade laminated glass. |
| Car Door | High-strength steel skeleton + aluminum alloy skin + sliding window. |
| Floor | Aluminum alloy patterned flooring, no rust, strong, durable and beautiful. |
| Tire | Vacuum radial tires 165/70R13 with steel rims. |
| Standard Parts | 1, reverse camera; 2, multimedia screen; 3, two-point retractable seat belts; 4, protective chains; 5, stereo; 6, fire extinguisher; 7, brake booster; 8, directional booster; 9, USB port. 10, central rearview mirror. |
