| System Classification | Item | Specific Parameters |
|---|---|---|
| Electrical System | Electric Control | National Standard New Energy AC Electric Control |
| Battery | Maintenance-free Battery 200AH, 8/48V | |
| Motor | National Standard New Energy AC Motor 7.5KW | |
| Charger | Portable Intelligent Charger: 48V/30A | |
| Charging Time | 8-10 Hours (at 80% Discharge Rate) | |

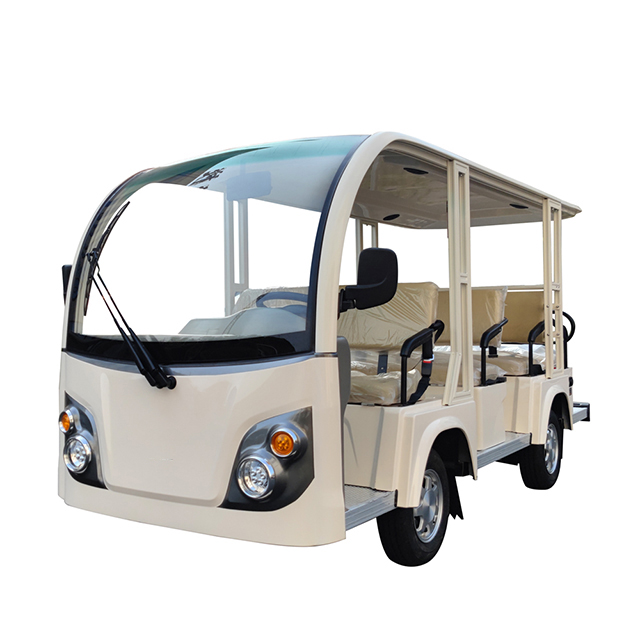

| Technical Parameters | Model Specification | AW6113K |
| Rated Passenger Capacity | 11 (Rear Rows Back-to-Back) | |
| Length × Width × Height | 4400x1525x2050 | |
| Driving Range | ≥70KM | |
| Maximum Speed | 30KM/H | |
| Minimum Turning Radius | 4.5m | |
| Maximum Climbing Gradient | ≥20% | |
| Braking Distance | ≤6m | |
| System Voltage | 48V | |
| Motor Power | 7.5KW | |
| Charging Time | (8-10)h | |
| Body System | Seats | Bus-grade Cold-foamed Sponge + High-resilience PU Leather Fabric |
| Car Body | Aluminum Alloy (Frame, Crossbeam, Side Guard Plate) + Steel Frame + FRP (Fiberglass Reinforced Plastic) Shell/ABS Engineering Plastic Molded Parts | |
| Body Color | Beige | |
| Roof | Double-sided Glossy FRP Roof | |
| Door | None | |

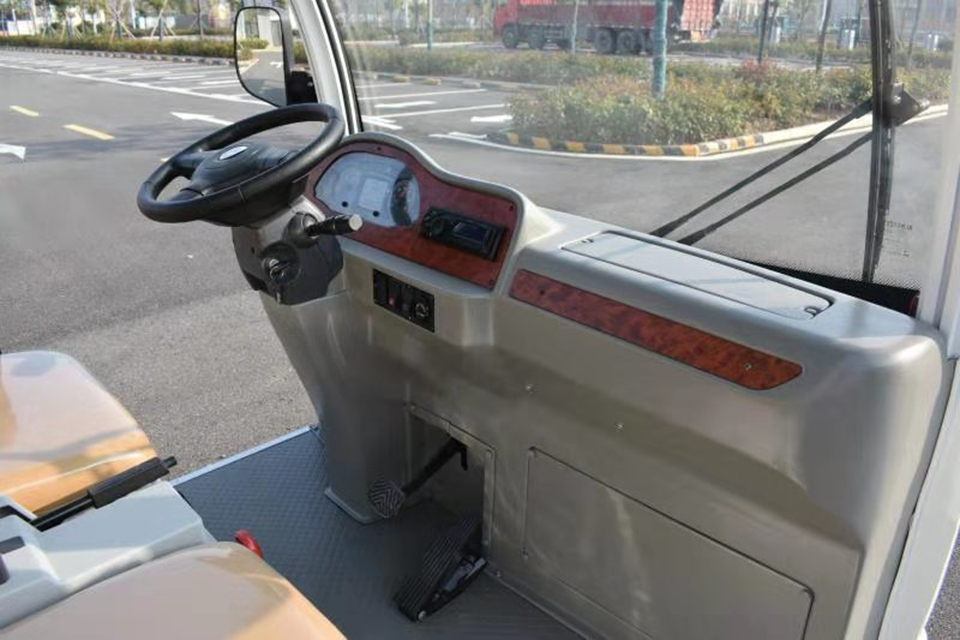

| Instrument Panel | ABS-molded Walnut-patterned Instrument Panel with Digital LCD Integrated Instrument | |
| Rearview Mirror | Manual External Rearview Mirror | |
| Lights and Signals | Combined Front Lights, Combined Rear Tail Lights, Electric Horn & Reverse Buzzer, USB + Cigarette Lighter Charging Ports | |
| Audio | On-board MP3 Player, Professional Loudspeaker | |
| Steering Wheel | Automobile Steering Wheel | |
| Wiring Harness | European Standard ROHS Waterproof and Flame-retardant Harness + YH Rubber Main Power Cord + Automobile Fuse Box System | |
| Chassis System | Power Transmission System | Continuously Variable Transmission System |
| Steering System | Rack-and-pinion Steering Gear, Bus Steering Column + EPS Power Steering | |
| Front and Rear Axles and Suspension | McPherson Independent Suspension + Integral Rear Axle | |
| Braking System | Front and Rear Drum Hydraulic Brakes, Dual-circuit Hydraulic Brakes, Parking Brake Device | |
| Tires | Radial Tubeless Tires 155R12C 8PR (8-ply Rating) | |
| Wheels | Car Wide-body Steel Wheels | |
| Note | All-aluminum Frame Body: Wider, Longer, Taller | |
