| Chassis & Performance | Specifications | ||
|---|---|---|---|
| Wheel Dis F/R | 1020/1070mm | Max Speed | ≤25km/h |
| F/R wheelbase | 1670mm | Climbing Ability | ≤20% |
| Ground clearance | 180mm | Range | 80km |
| Turning Radius | ≤4m | Brake distance | ≤3.5m |
| Configuration | 48V System Option | 72V System Option |
|---|---|---|
| Electrical system | 48V | 72V |
| Motor | KDS 48V AC motor (5KW) | KDS 72V AC motor (5KW) |
| Battery | 6 * 8V150AH Maintenance-free lead-acid batteries | 72V150AH Lithium iron |
| Controller | 48V/350A With CAN communication | 72V/350A With CAN communication |
| Charger / DC | Intelligent Cart Charger 48V/20A | High Power Non-Isolated DC-DC 72V/12V-300W |

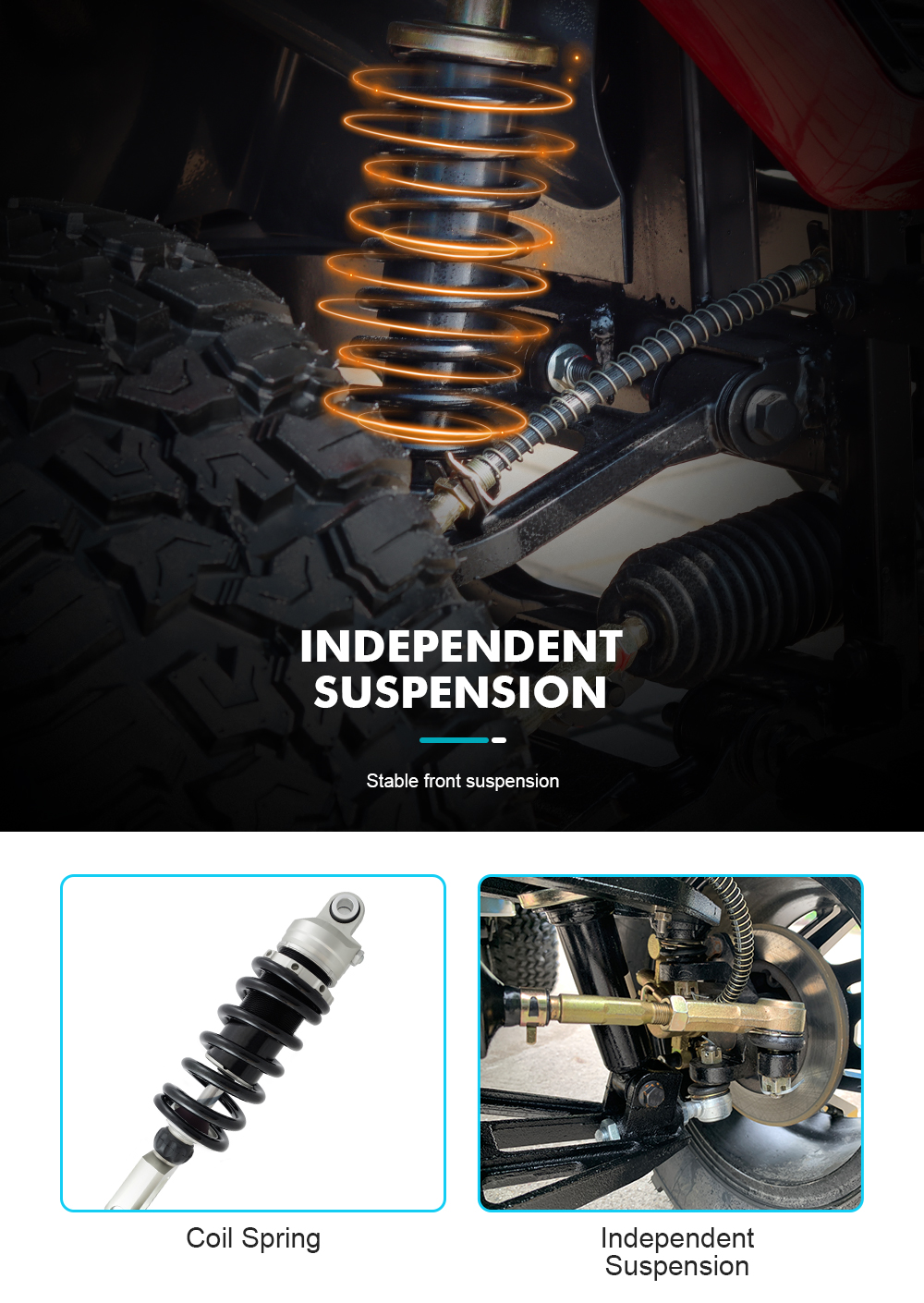

| Front suspension | Double swing arm independent front suspension + coil springs + cartridge hydraulic dampers. |
| Rear suspension | Integral rear axle, 16:1 ratio Coil spring dampers + hydraulic cartridge dampers + shock absorption + rear stabilizer bar |
| Braking system | 4-wheel hydraulic brakes, 4-wheel disc brakes + electromagnetic brakes for parking (with vehicle towing function) |
| Steering system | Bidirectional rack and pinion steering system, automatic backlash compensation function |
| Frame | High-strength sheet metal frame; painting process: pickling + electrophoresis + spraying |
High quality: We are the leading manufacturer of electric vehicle, over 22 years experience. Quality is the first we focus on. Good quality have the bright future.
Design: Comparing with other factories, our appearance with a new streamlined design, high-grade paint, bright colors, beautiful and stylish.
Competitive and reasonable price: We will offer a good price as quantity and give our best discount.
Quick Response: Our team will give you the answer in 24 hours, once we receive your inquiry and questions.
We normally work on EXW, FOB, CFR, CIF. We accept T/T term and L/C term:
For other terms, please contact us to discuss.
Standard configuration: 20 working days.
Customized configuration: 30~40 working days.
The car can be painted any color as client request, the color no. need customer to provide. Maximum color mix: 2 colors.
1 year warranty, except the easy-broken parts.
Mostly, the cars will transport by sea. For some neighboring landlocked countries, it will transport by railway.
For the spare parts, it will send by air, or DHL, UPS, Fedex etc.
