Equipped with a 10.1 inch LCD screen, speedometer, odometer, and optional reverse image.
Driven by a powerful 48V 4000W motor, handling up to 30% climbing capacity.
Features a 12V*4PCS 100AH storage battery supporting a traveling range of 90-120km.
| Specifications & Features | |
|---|---|
| Overall Size: | 2300*1200*1800mm (L*W*H) |
| Seating Capacity: | 2/4/6/8 Seats |
| Speed Range: | 20-30 km/h |
| Climbing Capacity: | 30% |
| Storage Battery: | 12V*4PCS, 100AH |
| Motor Power: | 48V 4000W |
| Traveling Range: | 90-120km |
| Charging Time: | 8-10 Hours |
| Audio System: | Two 4-inch loudspeakers |
| Frame (Chassis): | Welded steel framework, with anti-rust treatment of acid washing, phosphating and electro-coating (electrophoresis + highlight) |
| Body and Roof: | PP plastic front body and rear body; PP vacuum form roof |
| Windshield: | Acrylic plexiglass, tempered glass + wiper |
| Body of Car: | The front cover, seat barrel, body and rear tail cover are injection molded for automobiles; Frosted black square pipe ceiling column |

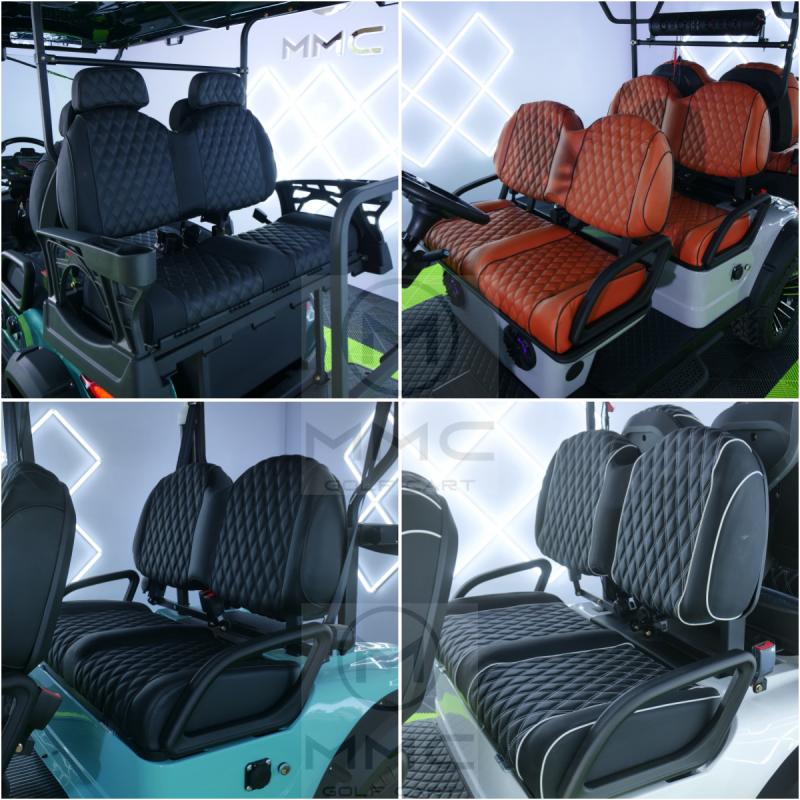

| Backrest and Seat: | Integral foam forming cushion; High grade imported leather; Reverse row seat can be turned over, including storage box |
| Floor: | Galvanized Steel plate and anti-slip rubber floor mat, high strength structure, corrosion resistance and aging resistance |

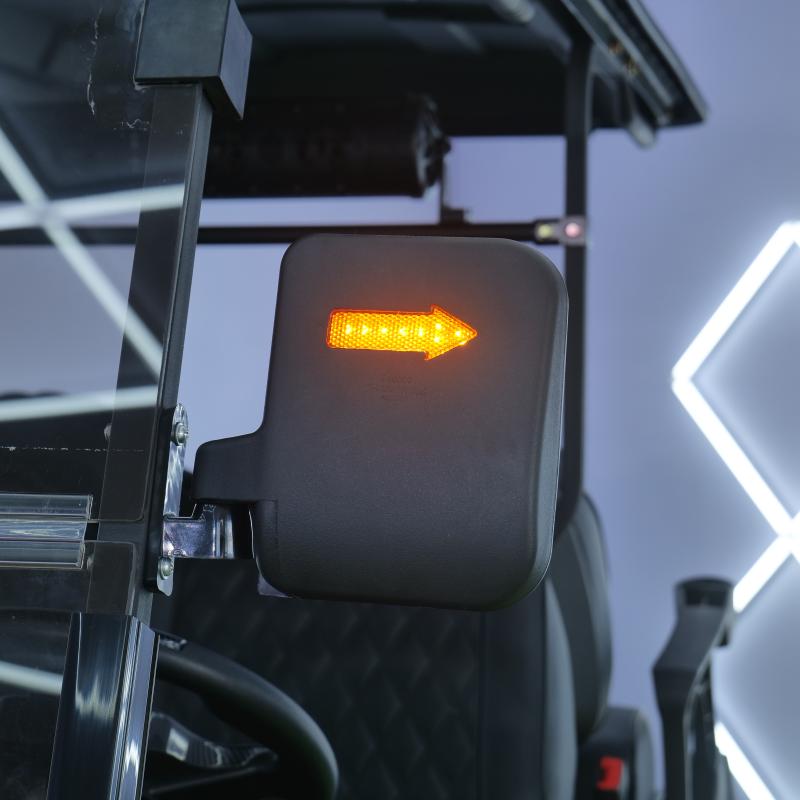

| Rearview Mirror: | One manually adjustable and foldable exterior rearview mirror on the left and right with turn signal display |

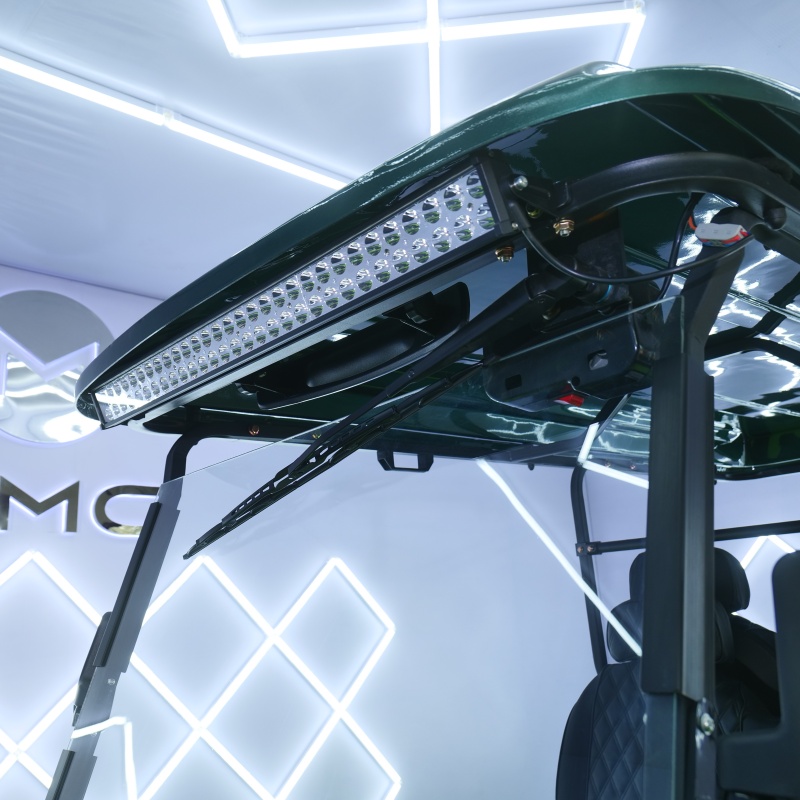

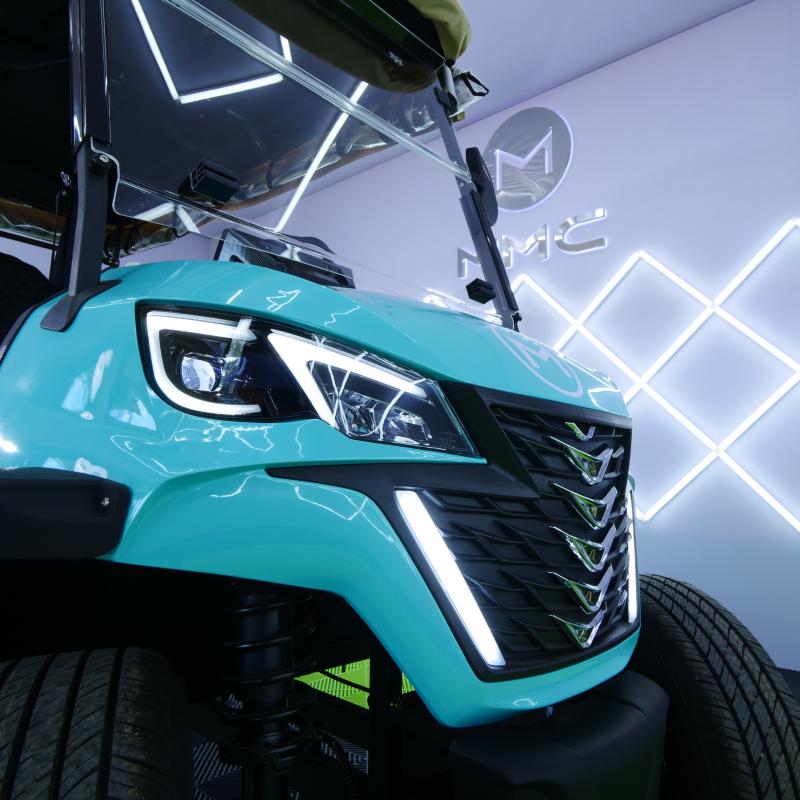

| Lighting & Audio: | LED front combination lamp (low beam lamp, high beam lamp, turn signal lamp, daytime running lamp, position lamp); LED rear tail lamp (brake lamp, position lamp, turn signal lamp); Snail horn, Two 4/ 6.5 inch loudspeakers, Bluetooth soundbar. |
| Instrument Panel: | Injection molding instrument panel, 2 glove storage box, electric lock switch, gear switch, High and low light switch, Daytime running lamp, hazard warning light switch, water cup holder, USB + type-C fast charging. 10.1 inch LCD screen, with speedometer, odometer, battery power meter and various indicators, Optional reverse image. |
| Charger: | Smart charger, input 110V-240V~50Hz-60Hz, output 48/60/72V, 20A |
| DC Converter: | High power non isolated DC-DC 12V-300W |
| Steering System: | Bidirectional rack and pinion steering system with automatic clearance compensation function |
| Brake System: | 4 Wheels hydraulic front disc rear drum brake, regen brake. Rear Disc Brake/ Electromagnetic parking |
| Accelerator: | Stepless speed change |
| Driving Mode: | Rear axle two stage deceleration, motor direct driving |
| Suspension System: | Front MacPherson Independent and rear trailing arm suspension + cylinder hydraulic shock absorber. Integral rear axle, speed ratio 16:1, coil spring damping + barrel hydraulic pressure damping + rear stabilizer bar. Double swing arm and independent front suspension. |

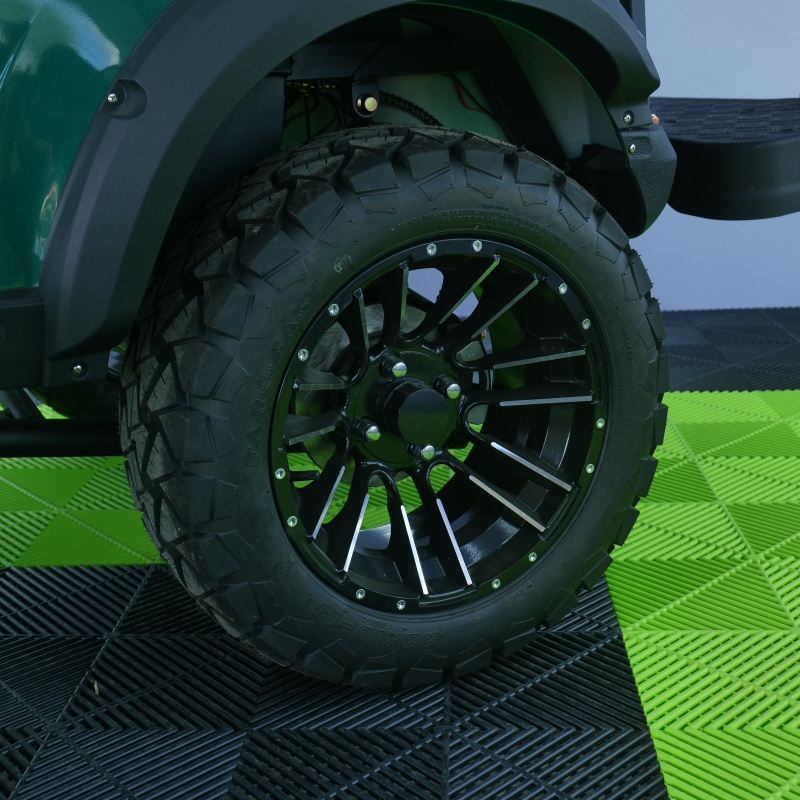

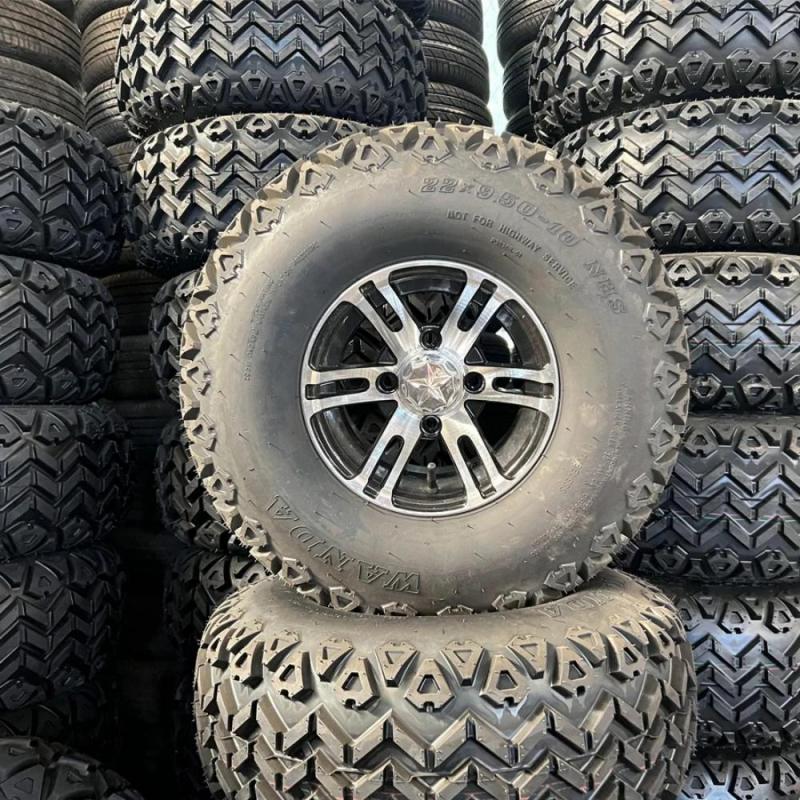

| Wheel & Tyre: | DOT certification; Road tire 205/50-10 (tire diameter 520mm) 10 inch aluminum wheel hub. 12/ 14 inch tire |
The electric golf cart features a speed range of 20-30 km/h and can travel between 90-120 km on a single charge.
It is equipped with a 12V*4PCS, 100AH storage battery. Using the smart charger, the charging time is approximately 8 to 10 hours.
This model is built with a high-performance 48V 4000W motor, which delivers a strong climbing capacity of up to 30%.
The vehicle utilizes a 4-wheel hydraulic front disc and rear drum braking system, alongside regenerative braking and electromagnetic parking. For suspension, it features a Front MacPherson Independent setup and a rear trailing arm suspension with cylinder hydraulic shock absorbers.

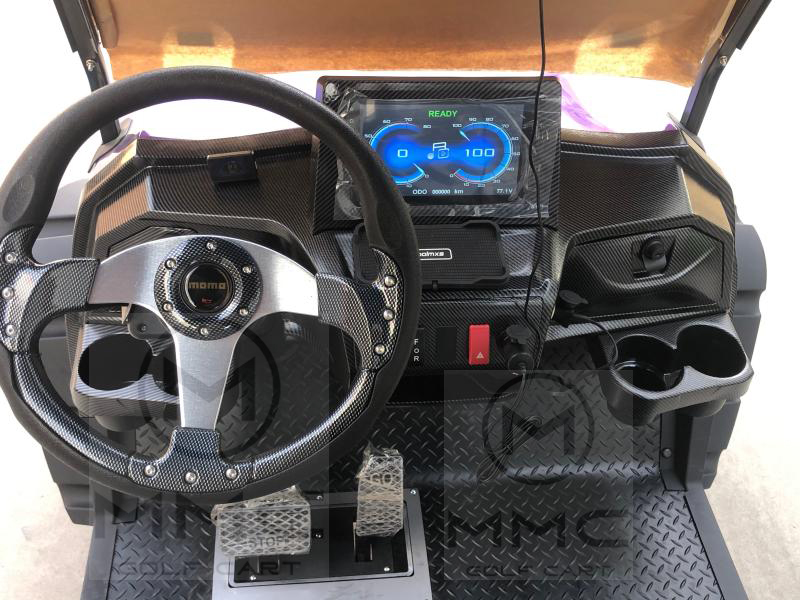

It features a 10.1-inch smart LCD screen that provides real-time information such as speedometer readings, odometer, battery power metrics, and various system indicators, along with support for an optional reverse image.

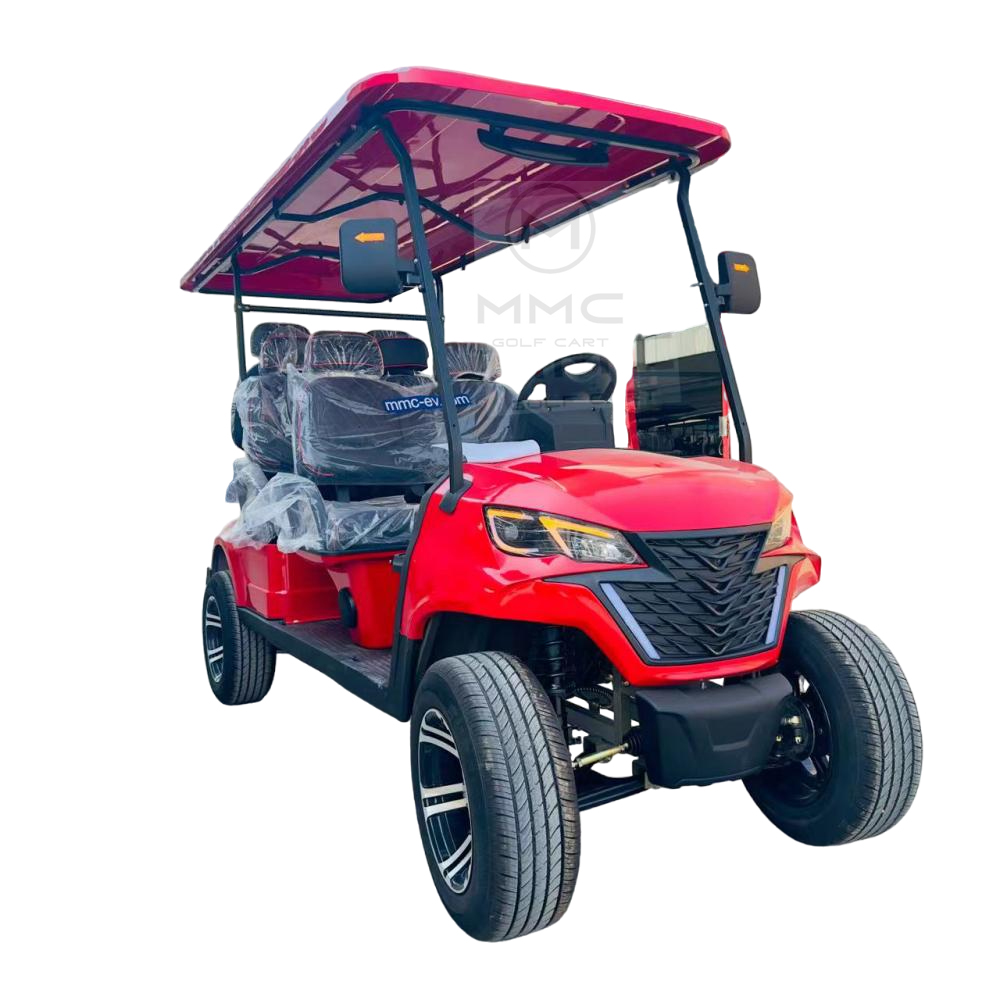

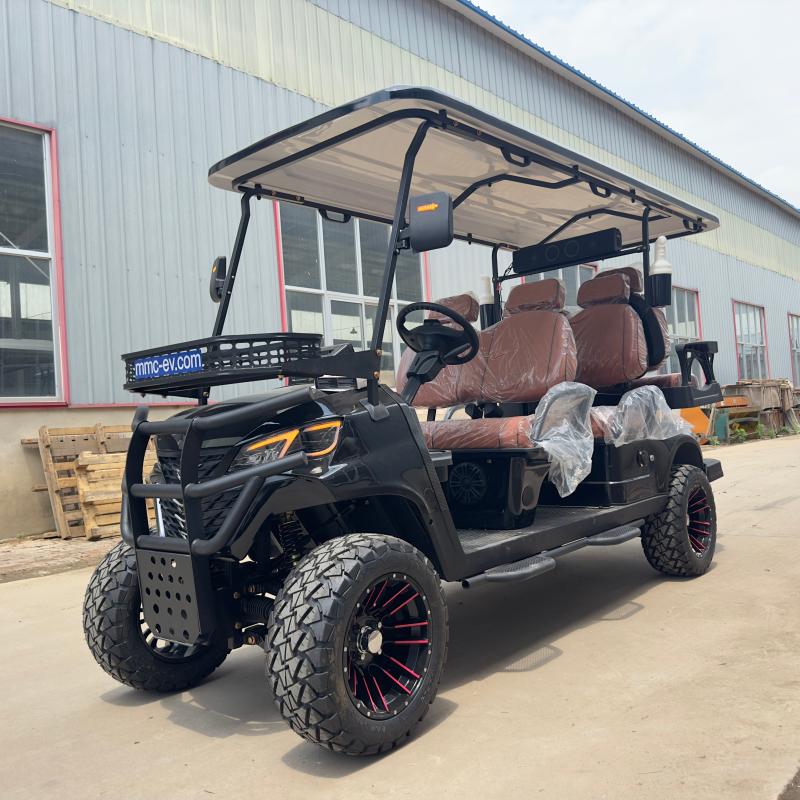

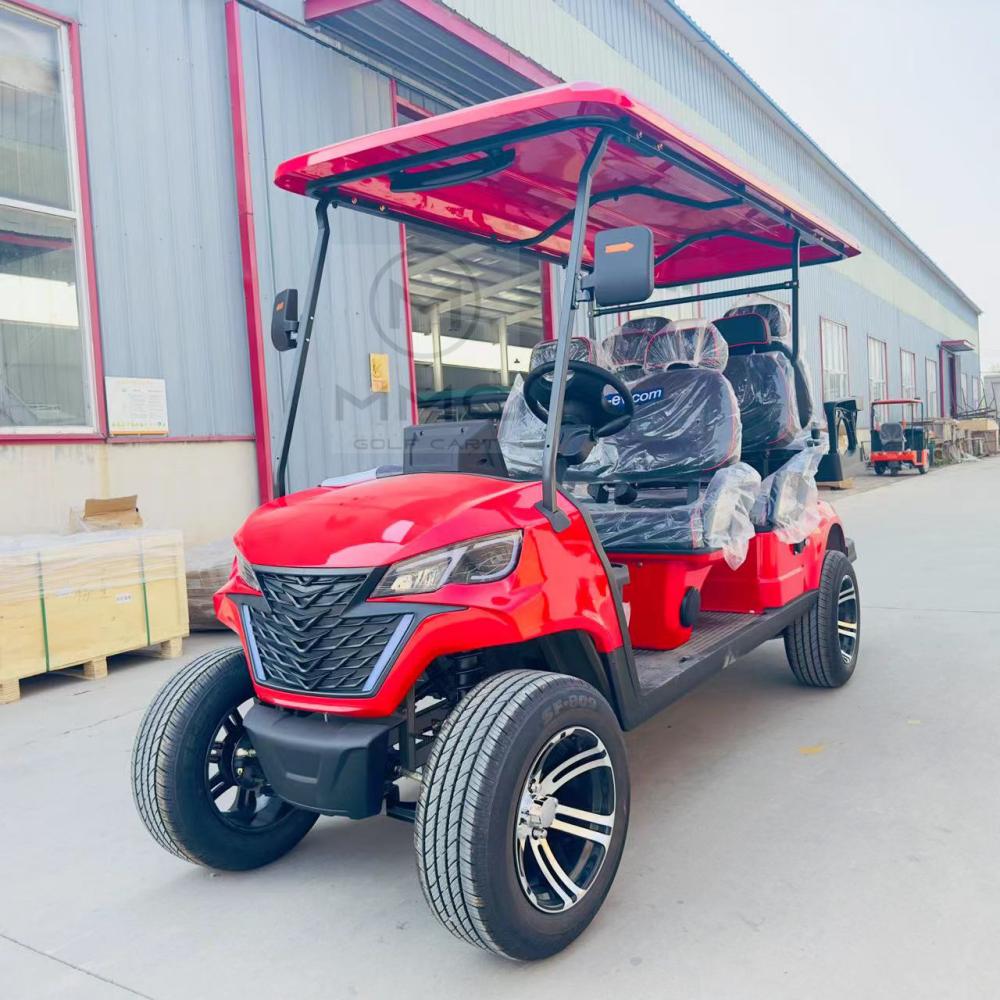

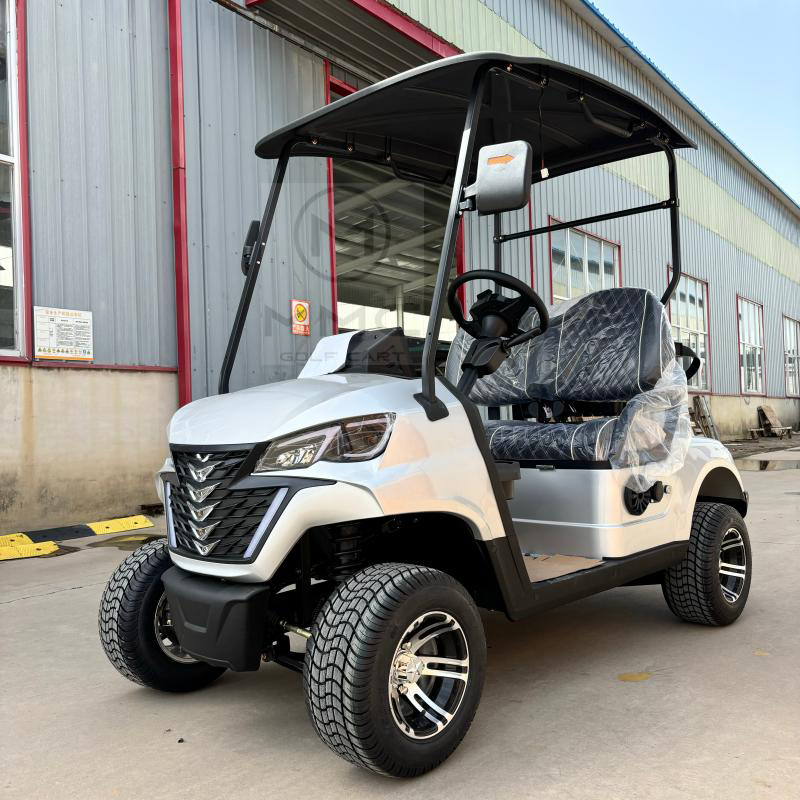

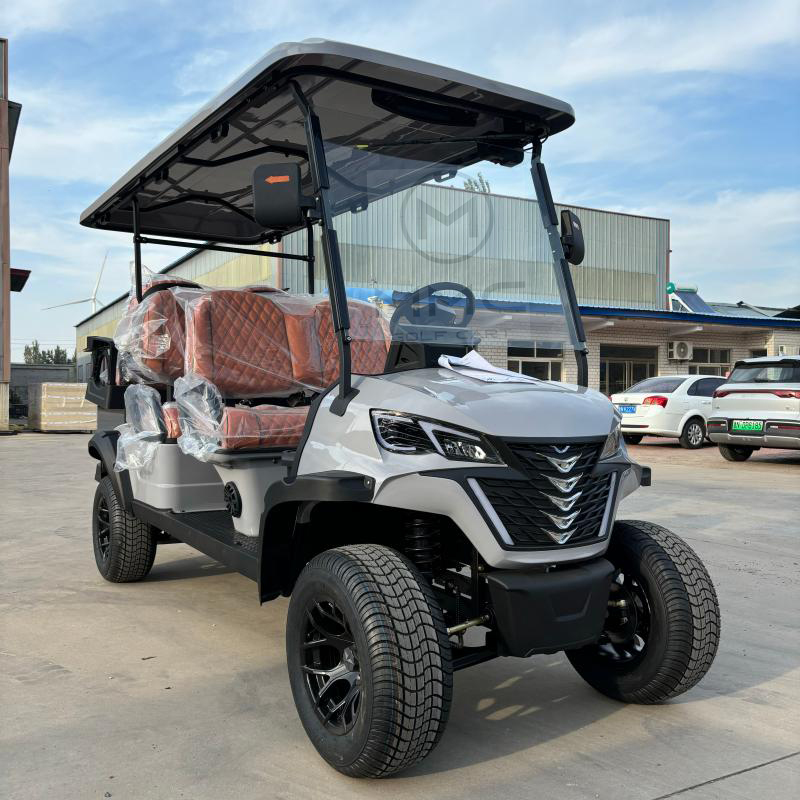

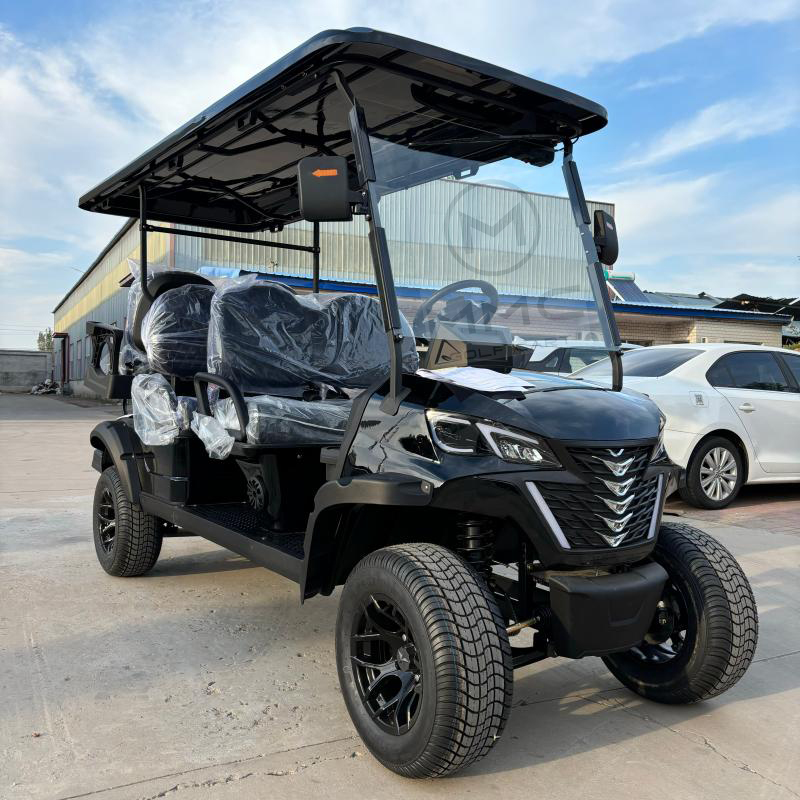

The overall size of the vehicle is 2300*1200*1800mm (L*W*H), and it supports seating capacities of 2, 4, 6, or 8 seats to accommodate different passenger demands.
