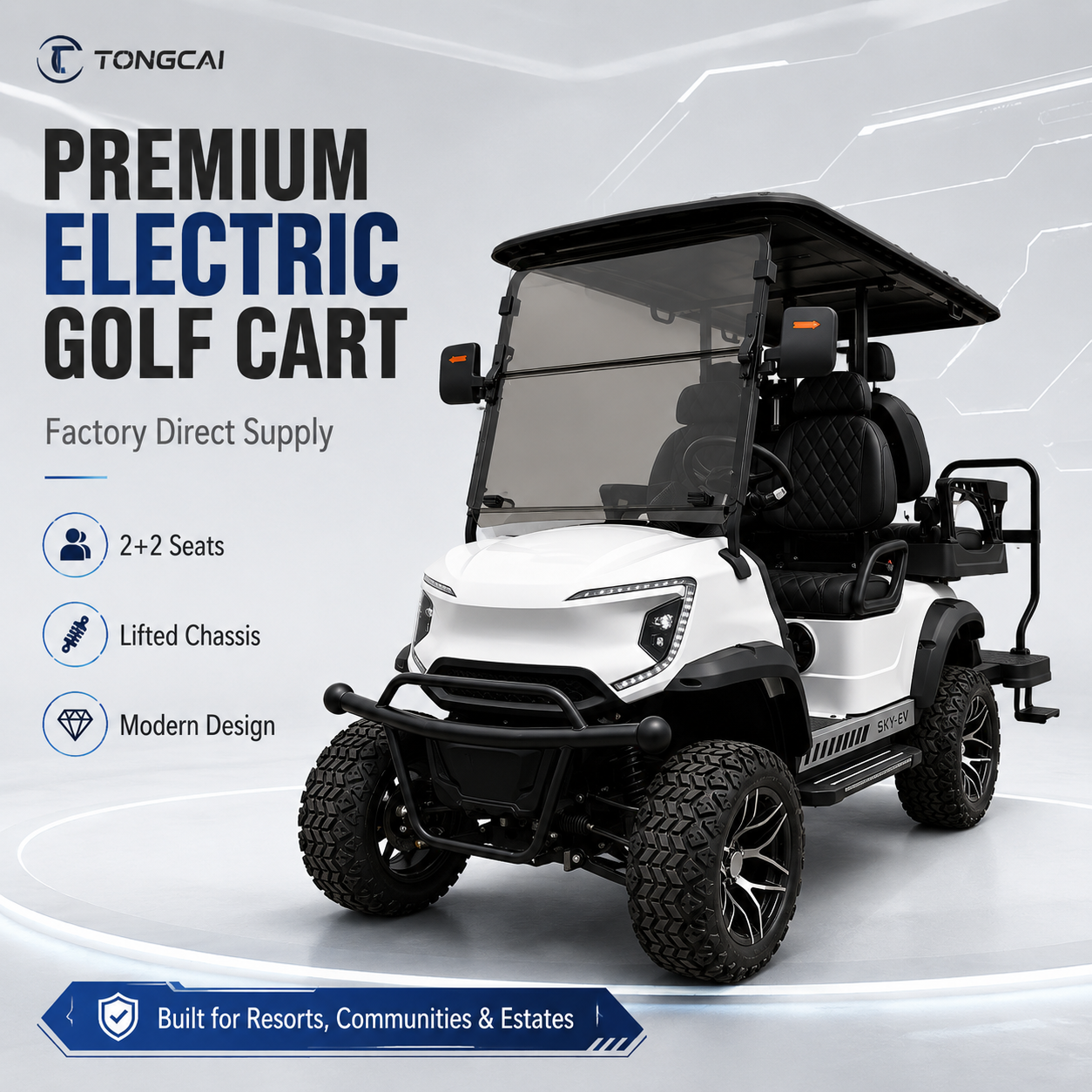

| System Type | Features / Specs | Parameters Details |
|---|---|---|
| Technical parameters | Overall Dimension (L*W*H) | 2400*1300*2000 mm |
| Passengers Capacity | 4 | |
| Max.Speed(km/h) | 30 or Negotiable | |
| Max.Travelling Range(km) | 80~100 | |
| Slope Climbing Capacity | 30% | |
| Turning Radius(m) | 4.6 | |
| Minimum Ground Clearance(mm) | 150 | |
| Brake Distance(m) | ≤5m | |
| Wheelbase(mm) | 2400 | |
| Front/Rear Tread(mm) | Front 900mm / Rear 1000mm | |
| Weight(kg) | 620 | |
| Electric system | Motor power (kw) | 3.5/4/5kw or customized |
| Electric Controller | Fully Intelligent Controller | |
| Battery type | Lead acid and lithium batteries can choose | |
| Charger | Intelligent high-frequency car charger | |
| Charging time(h) | 8~10 | |
| Charging input voltage | 220V/110V | |
| Chassis system | Suspension | Front Torsion Beam Suspension+Integral rear axle high strength steel plate spring cartridge or customized |
| Brake system | Drum hydraulic brake, double-circuit hydraulic brake and parking brake device or customized | |
| Steering | "Rack & Pinoin" Steering | |
| Motion transfer system | Continuously variable transmission | |
| Drive mode | Rear drive | |

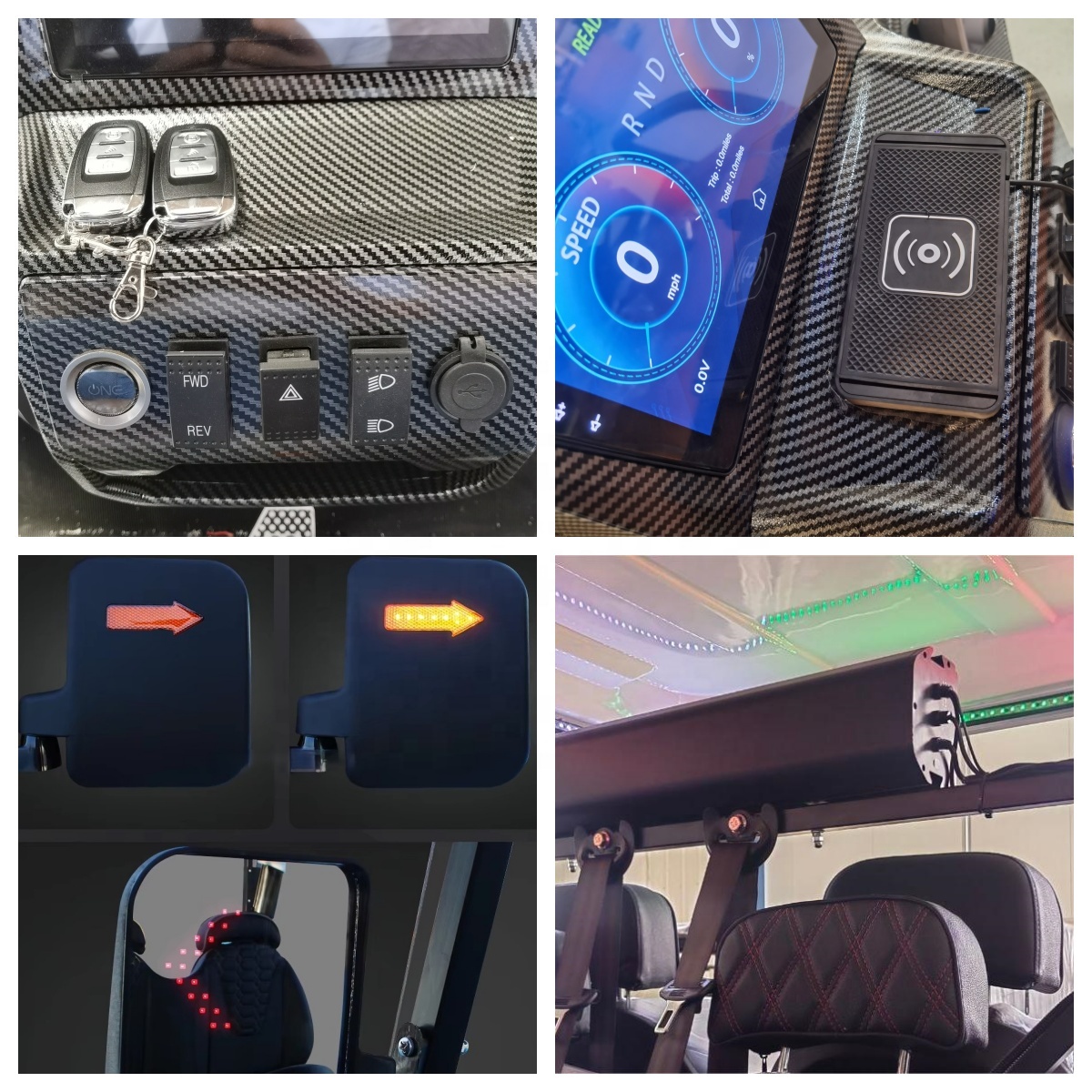

| Exterior | Dashboard | Multi-function smart display(Bluetooth-radio-movie etc.) |

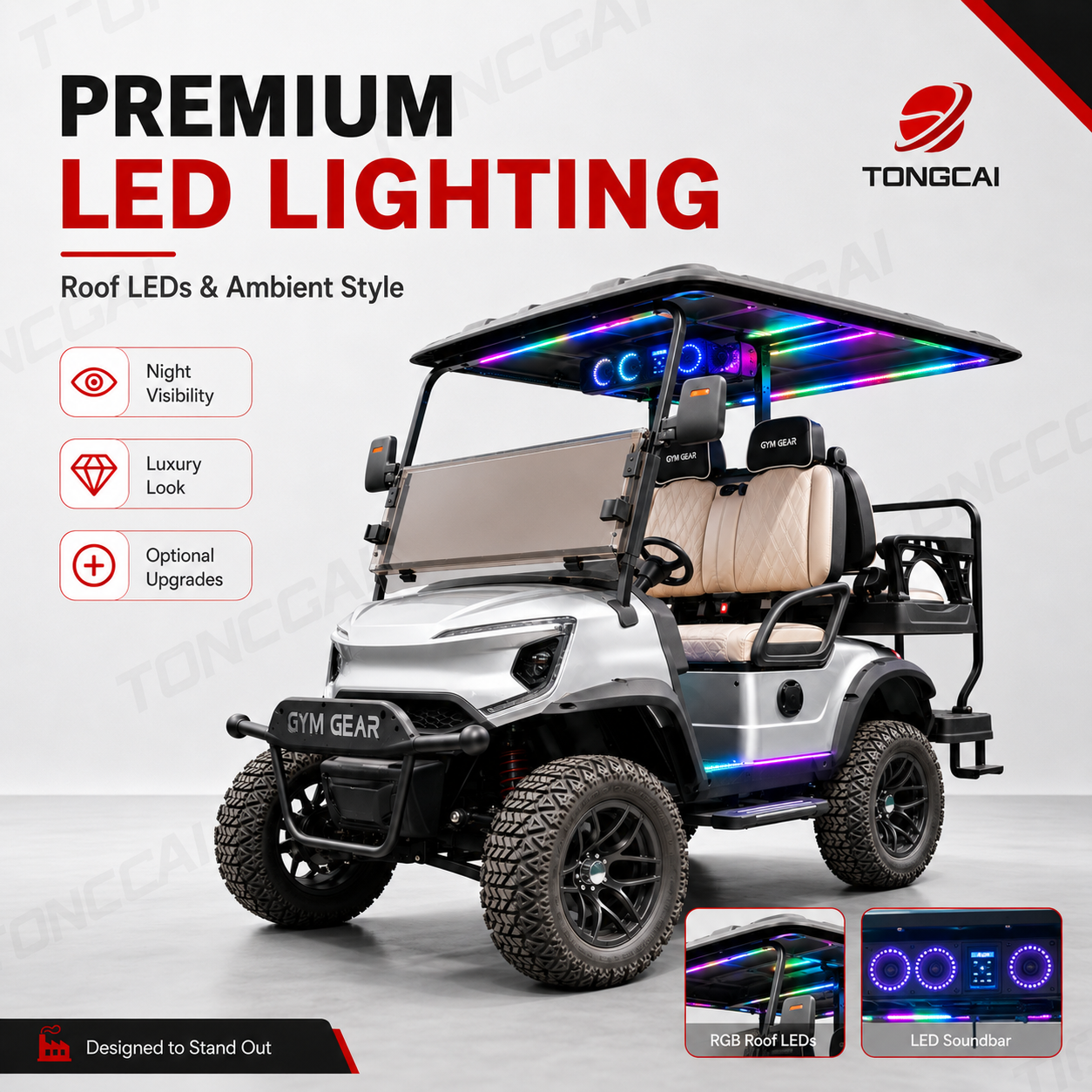

| Light | LED combined headlights,turn signals,combined rear taillights,brake lights and electric | |
| Seat | Joint row seats (leather fabric+high resilience PU seats) | |
| Body material | Steel frame+injection shell /ABS engineering plastic molded parts | |
| Wheel | 10/12/14inch iron/aluminum wheels options | |
| Tire | Road and off-road tire options |
