Customizable Battery
Optional Suspension
Customizable Wheels
Customizable Motor
Customizable Dashboard
| Model specifications | TCKC2 | TCKC22 | TCKC4 | TCKC42 | TCKC6 | TCKC62 | TCKC8 | TCKC82 | |
|---|---|---|---|---|---|---|---|---|---|
| Technical parameters | Overall Dimension (L*W*H) | 2500*1300*2000 | 2900*1300*2000 | 3200*1300*2000 | 3600*1300*2000 | 4000*1300*2000 | 4400*1300*2000 | 4800*1300*2000 | 5200*1300*2000 |

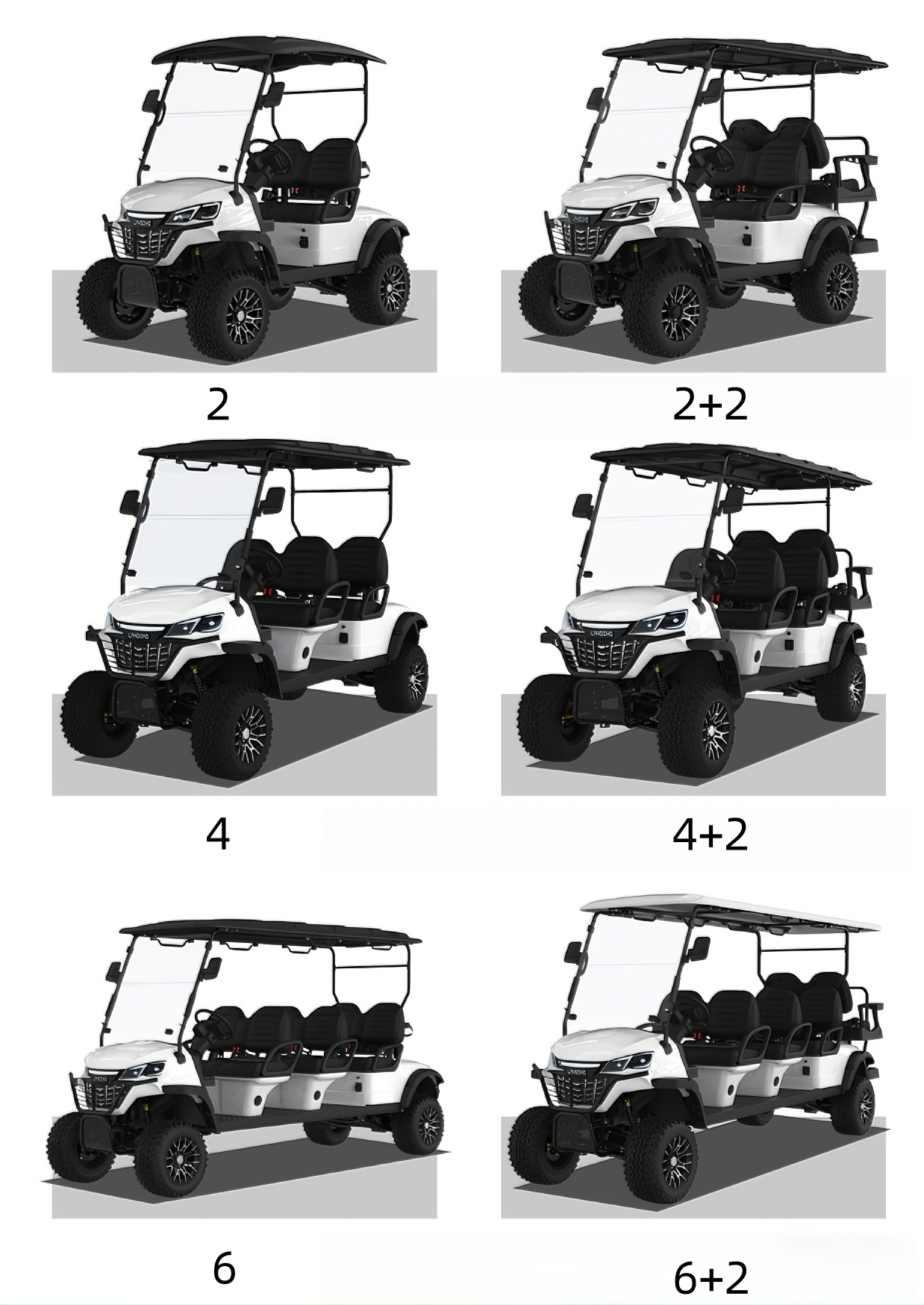

| Passengers Capacity | 2 | 4 | 4 | 6 | 6 | 8 | 8 | 10 | |
| Max.Speed (km/h) | 30 or Negotiable | ||||||||
| Max.Travelling Range (km) | 80~100 | ||||||||
| Slope Climbing Capacity | 30% | ||||||||
| Turning Radius (m) | 3.5 | 3.5 | 4.6 | 4.6 | 5.7 | 5.7 | 6.7 | 6.7 | |
| Minimum Ground Clearance (mm) | 150 | ||||||||
| Brake Distance (m) | ≤5m | ||||||||
| Wheelbase (mm) | 1700 | 1700 | 2400 | 2400 | 3100 | 3100 | 3850 | 3850 | |
| Front/Rear Tread (mm) | Front 900mm / Rear 1000mm | ||||||||
| Weight (kg) | 530 | 560 | 600 | 620 | 680 | 710 | 800 | 830 | |
| Electric system | Motor power (kw) | 3.5/4/5kw or customized | |||||||
| Electric Controller | Enpower Fully Intelligent Controller | ||||||||
| Battery type | 6V 200AH /8V 150AH / 12V 100AH can choose | ||||||||
| Charger | Intelligent high-frequency car charger | ||||||||
| Charging time (h) | 8~10 | ||||||||
| Charging input voltage | 220V/110V | ||||||||
| Chassis system | Suspension | Front Torsion Beam Suspension + Integral rear axle high strength steel plate spring cartridge or customized | |||||||
| Brake system | Drum hydraulic brake, double-circuit hydraulic brake and parking brake device or customized | ||||||||
| Steering | "Rack&Pinion" Steering | ||||||||
| Motion transfer system | Continuously variable transmission | ||||||||
| Drive mode | Rear drive | ||||||||
| Exterior | Dashboard | Multi-function smart display (Bluetooth, radio, movie, etc.) | |||||||
| Light | LED combined headlights, turn signals, combined rear taillights, brake lights and electric horn | ||||||||
| Seat | Joint row seats (leather fabric + high resilience PU seats) | ||||||||
| Body material | Steel frame + injection shell / ABS engineering plastic molded parts | ||||||||
| Wheel | 10/12/14inch iron/aluminum wheels options | ||||||||
| Tire | Road and off-road tire options | ||||||||
