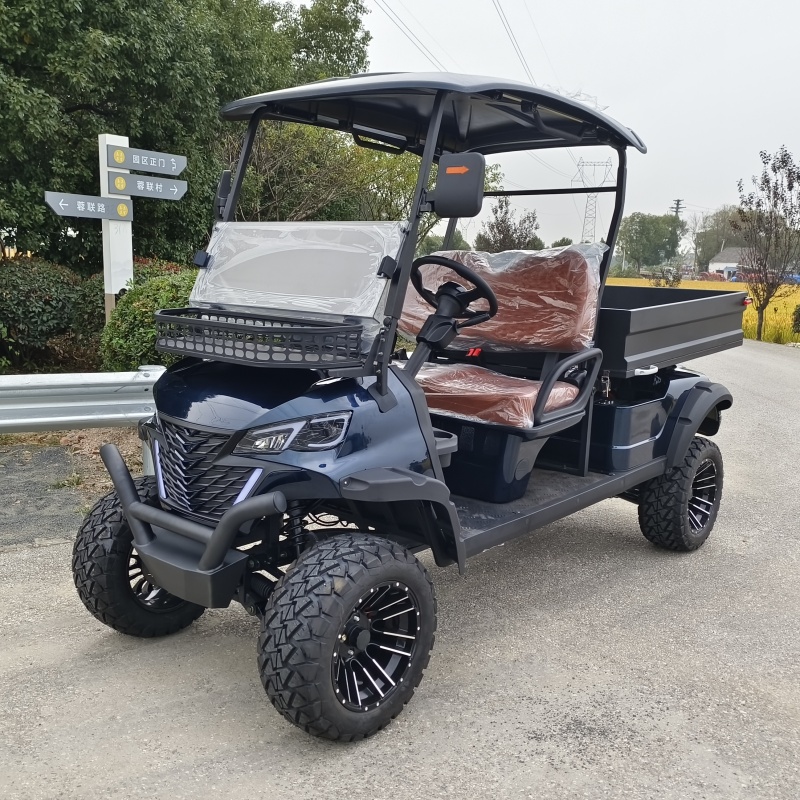

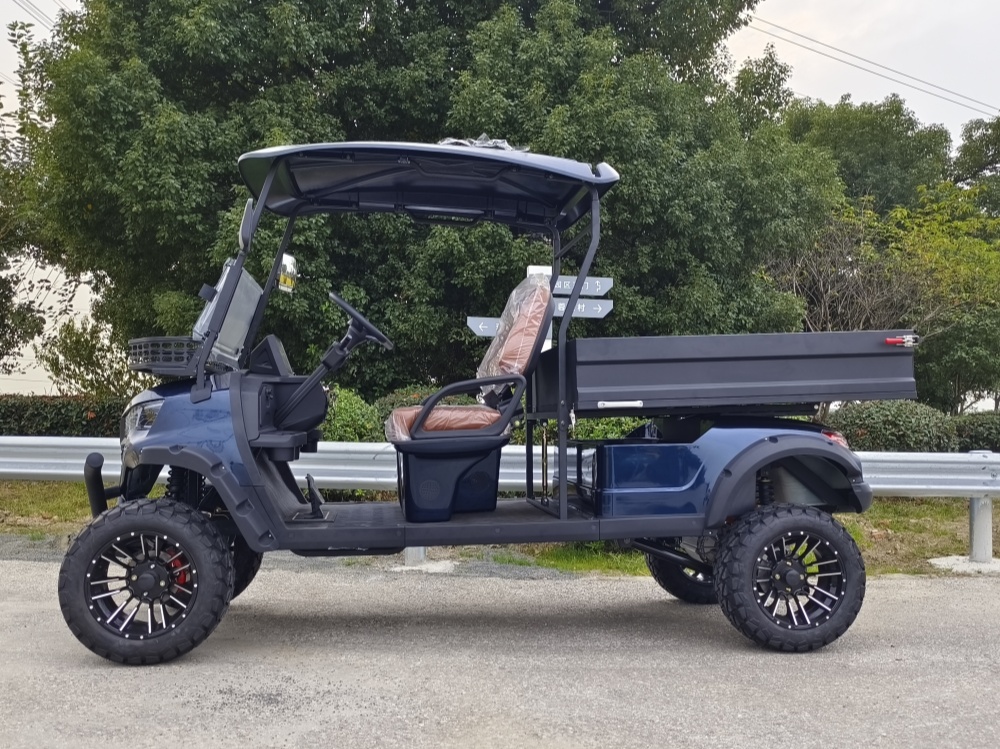

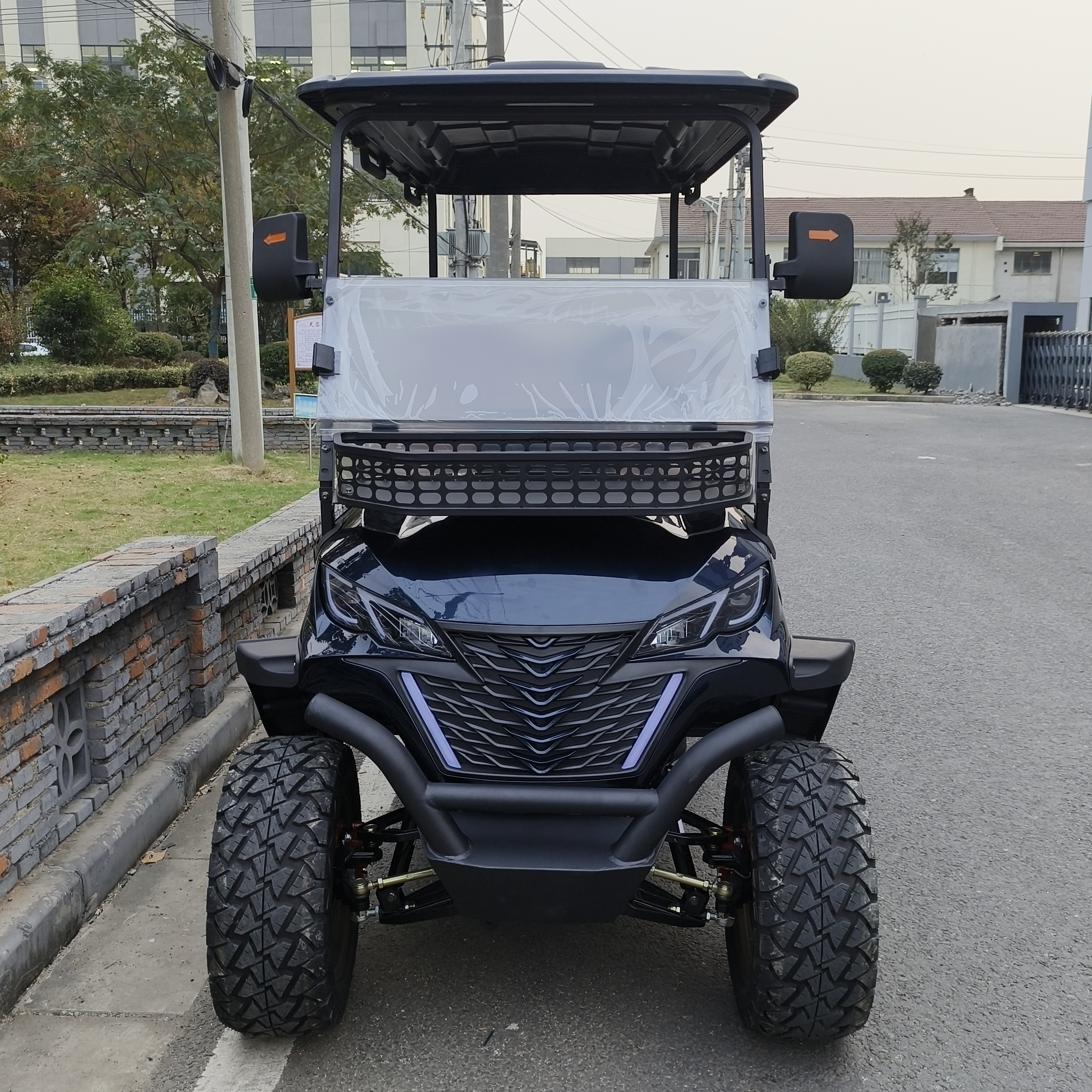

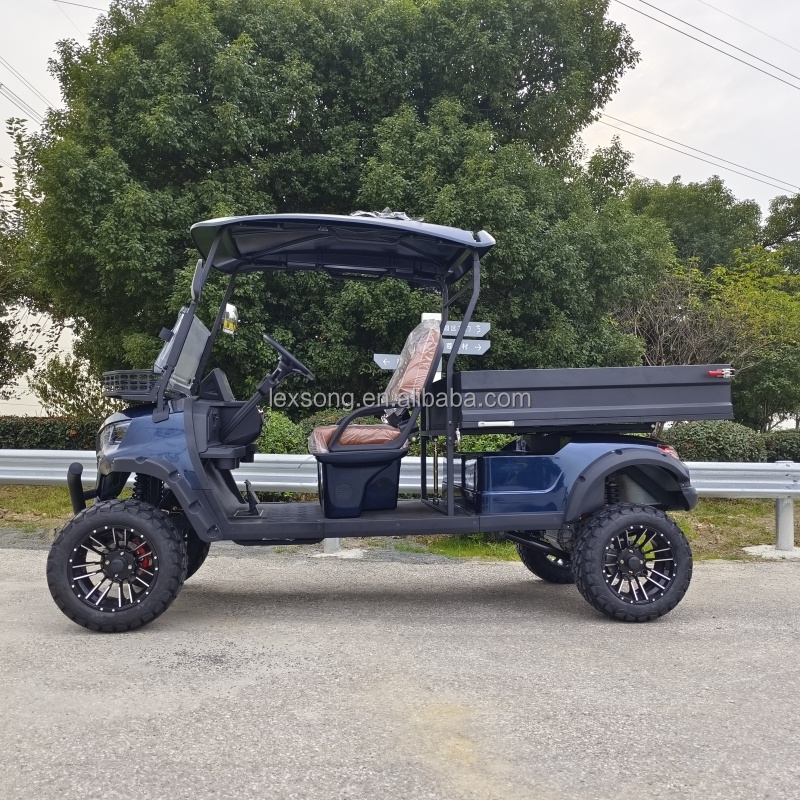

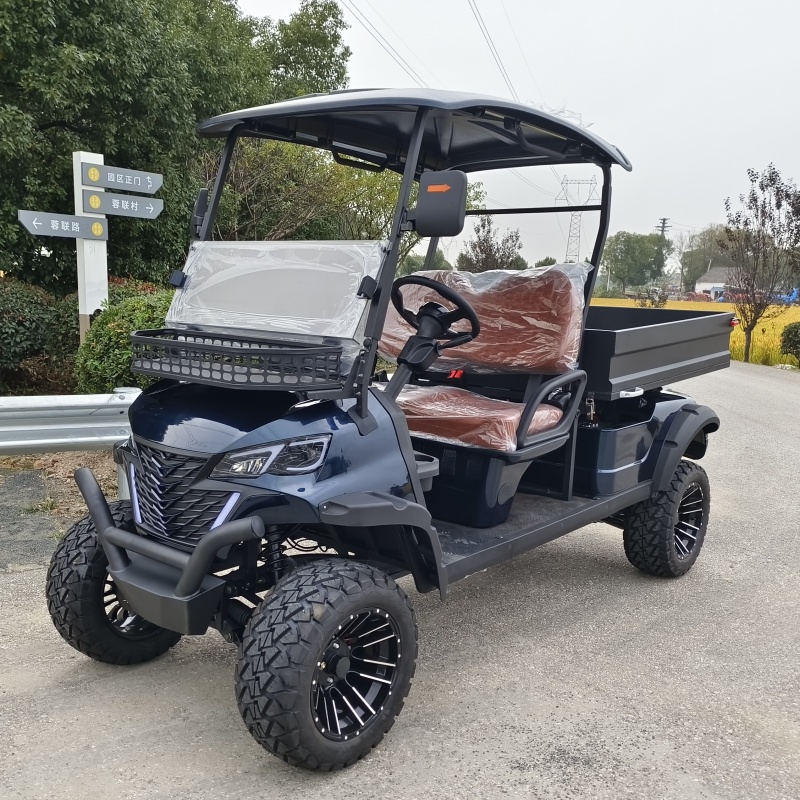

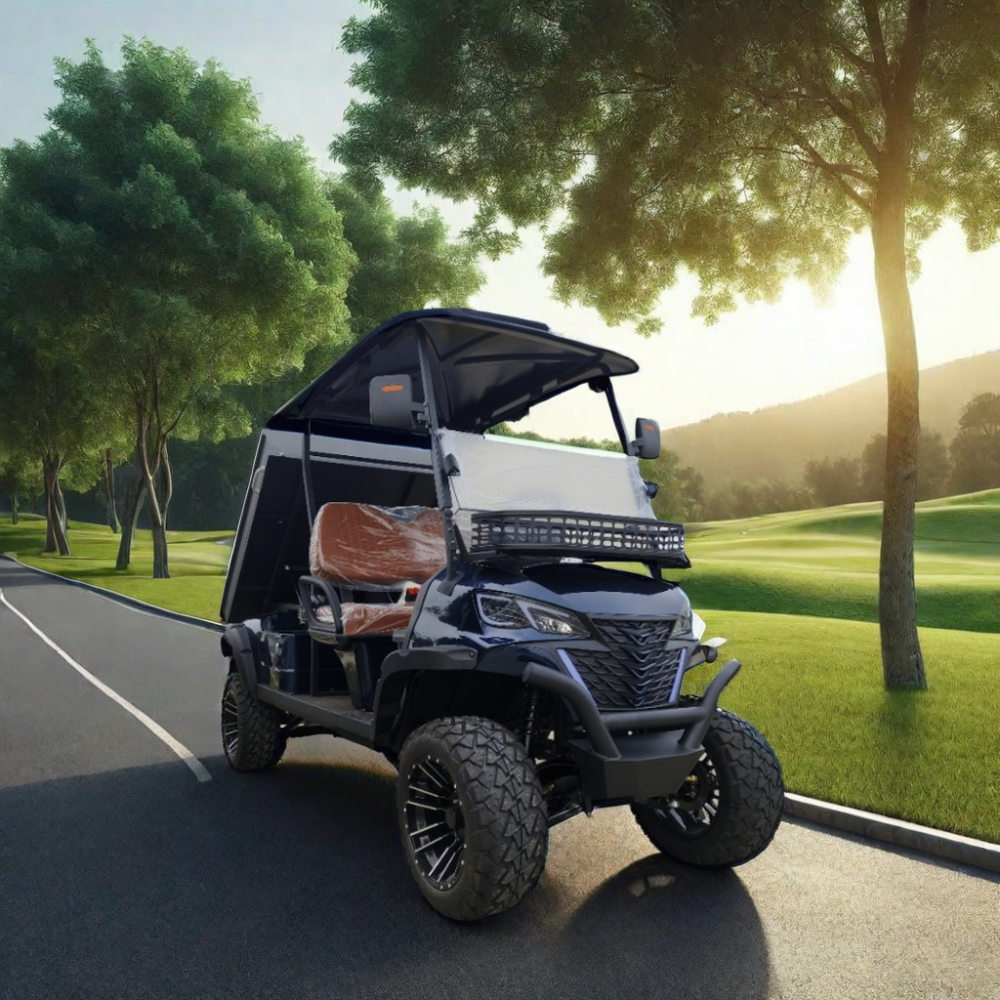

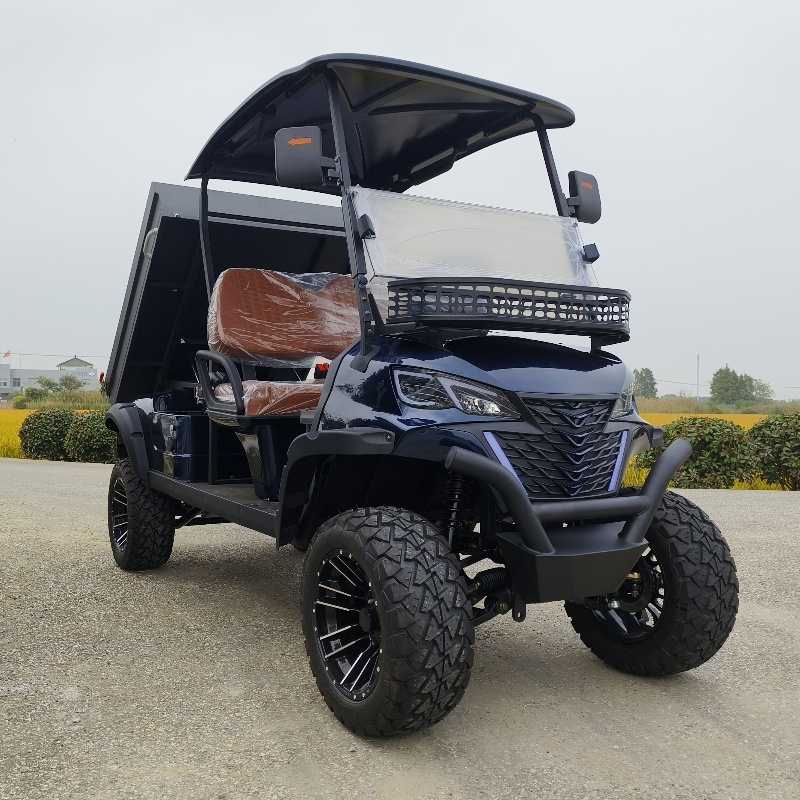

LS2041HCX is a CE 2 passenger Hunting buggy which powered by lithium battery and AC motor.

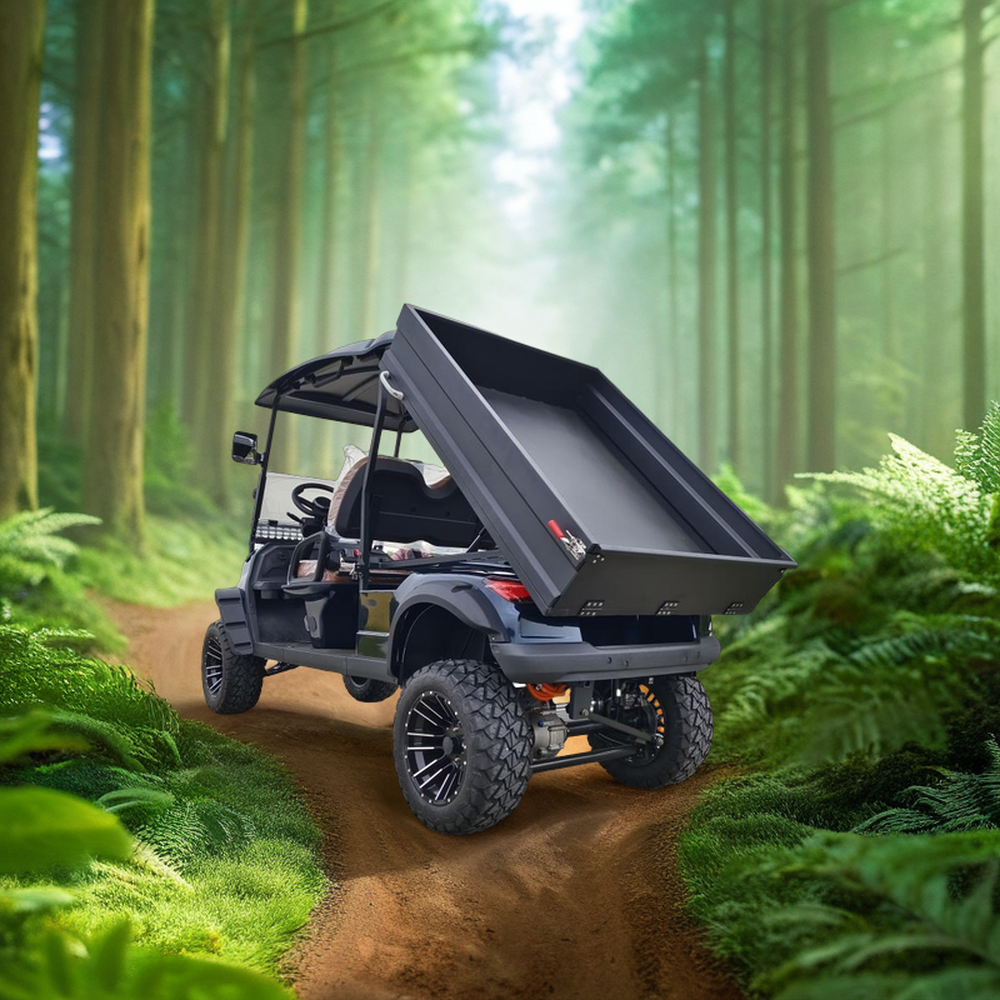

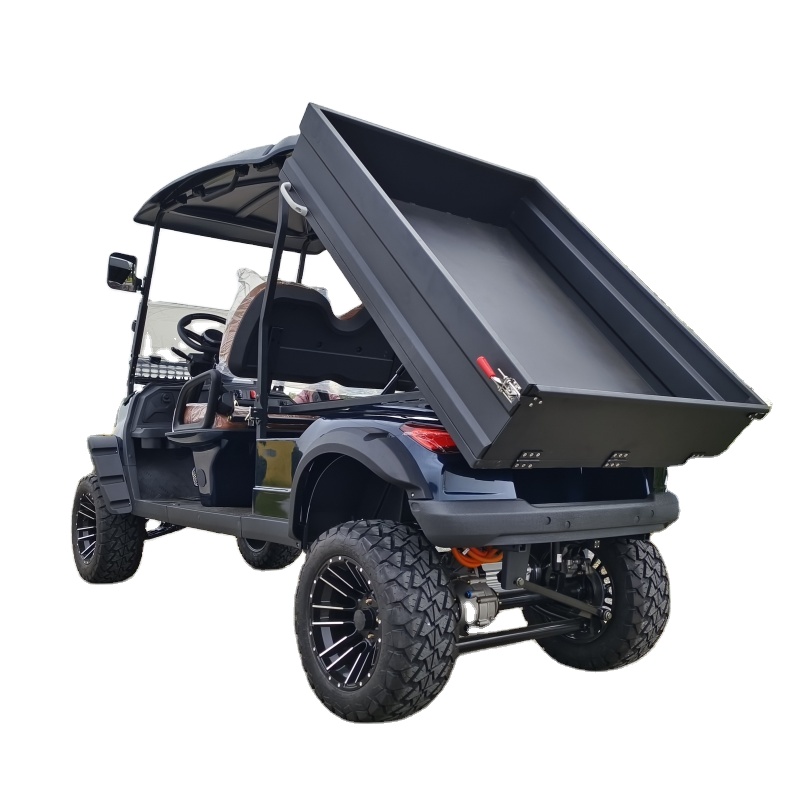

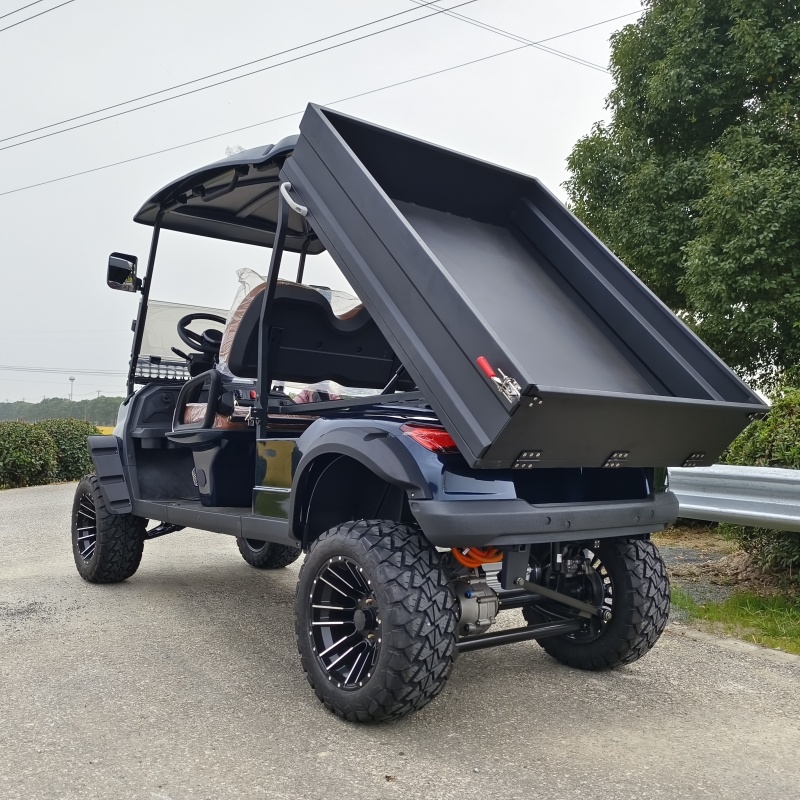

The rear flip flop seat can be either used for people moving or cargo delivery.
The big teeth off road tire makes it to be suitable for using many places for different applications, such as in hotel, resort, residential community, airport, port, stations, museum, theme park, factory, campus, garden and any places where need a quite and clean vehicles, etc.
| SPECIFICATIONS OF CE 4 passenger hunting buggy lithium electric club car for golf course LS2020ASZ | ||
|---|---|---|
| Key Components | ||
| Components | System | 72V/5KW AC System |
| Battery | 72V105AH Lithium Battery | |
| Motor | 5KW AC Motor (7.5kw is an option) | |
| Controller | AC controller | |
| Performance | ||
| Metrics | Passenger capacity | 2 |
| Range (loaded) based on flat road at a speed of 20km/h | >90km | |
| Max. speed | 32km/h (adjustable) | |
| Minimum turning radius | 3.5m | |
| Max. climbing ability (loaded) | 25% | |
| Max. movement after brake at speed of 20km/h | ≤4m | |
| Max. loading weight | 320kgs | |
| Net weight | 510kgs | |
| Dimensions | ||
| Measurements | Overall dimensions | 3180x1210x1890mm |
| Min. ground clearance | 170mm | |
| Wheelbase | 1680mm | |
| Front wheel tread | 850mm | |
| Rear wheel tread | 975mm | |
| Body and Frame | ||
| Frame | Welded steel framework to be treated in galvanization and powder | |
| Body | PP plastic front body + PP plastic rear body | |
| Roof | PP injection (Black) or vacuum plastic | |
| Windshield | Organic glass Windshield, hinged | |
| Roof supports | Carbon Steel, powder coated | |
| Backrest and Seat | Reborn Sponge, artificial leather + plastic armrest | |
| Floor | Galvanized Steel plate and anti-slip rubber floor mat | |
| Dashboard | Plastic in black, with 4 cup holders, 2 glove storage box, forward/reverse switch, battery capacity indicator, ignition key | |
| Side trim | Plastic | |
| Side mirror | 2pcs, foldable | |
| Electric system | ||

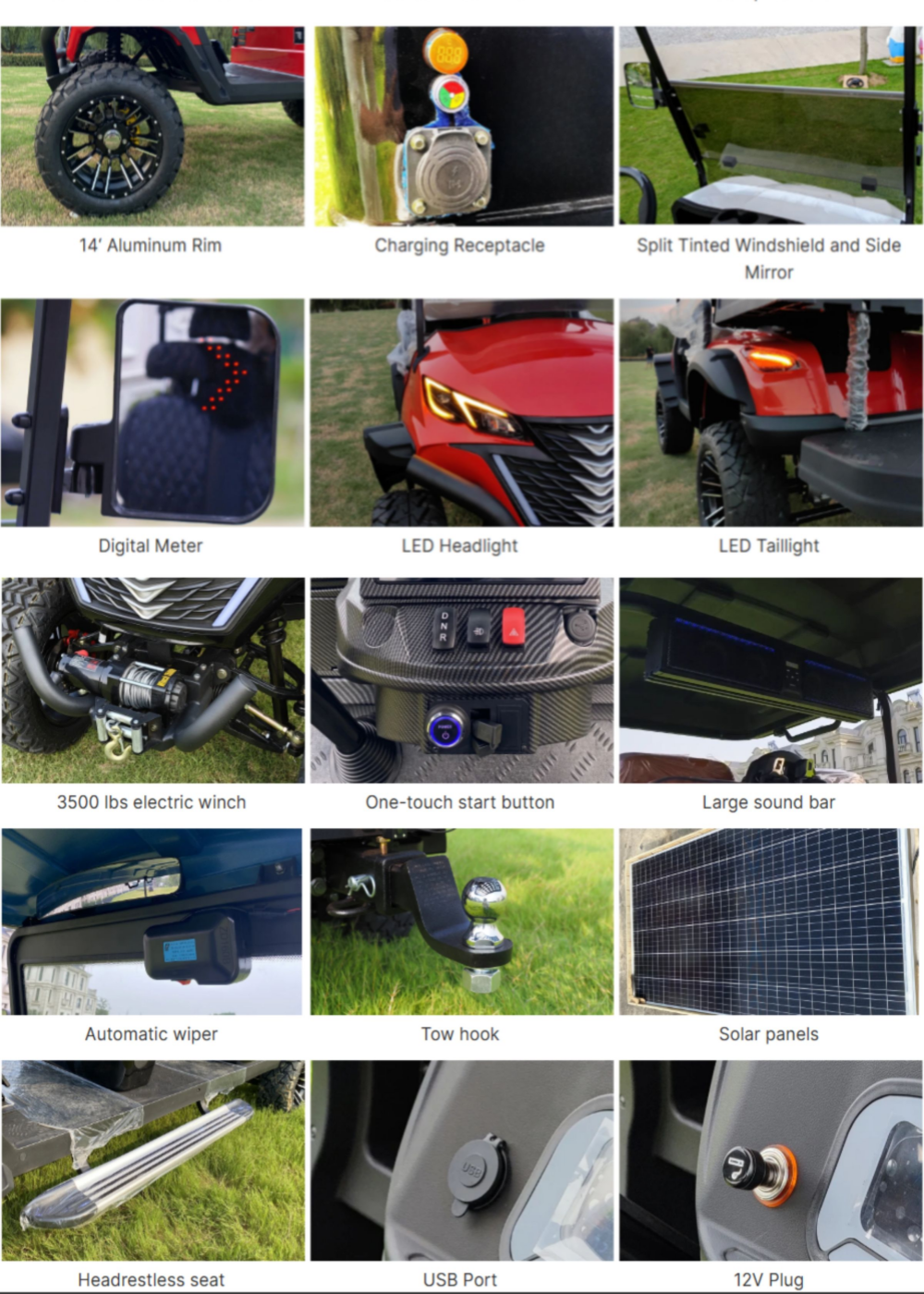

| Lighting system and horn | All LED lights, 2 headlights, 2 front turn signals, 2 taillights (each combined 1 brake light with 1 turn signal), with 20A voltage reducer (converting from 72V to 12V), electric horn. | |
| Backup Buzzer | 12V | |
| Digital meter | LCD Screen, with speedometer, odometer, battery power meter, and various indicators | |
| Charger | Smart charger, input 110V-240V~50Hz-60Hz, output 72V, 18A | |
| Steering and Suspension | ||
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function | |

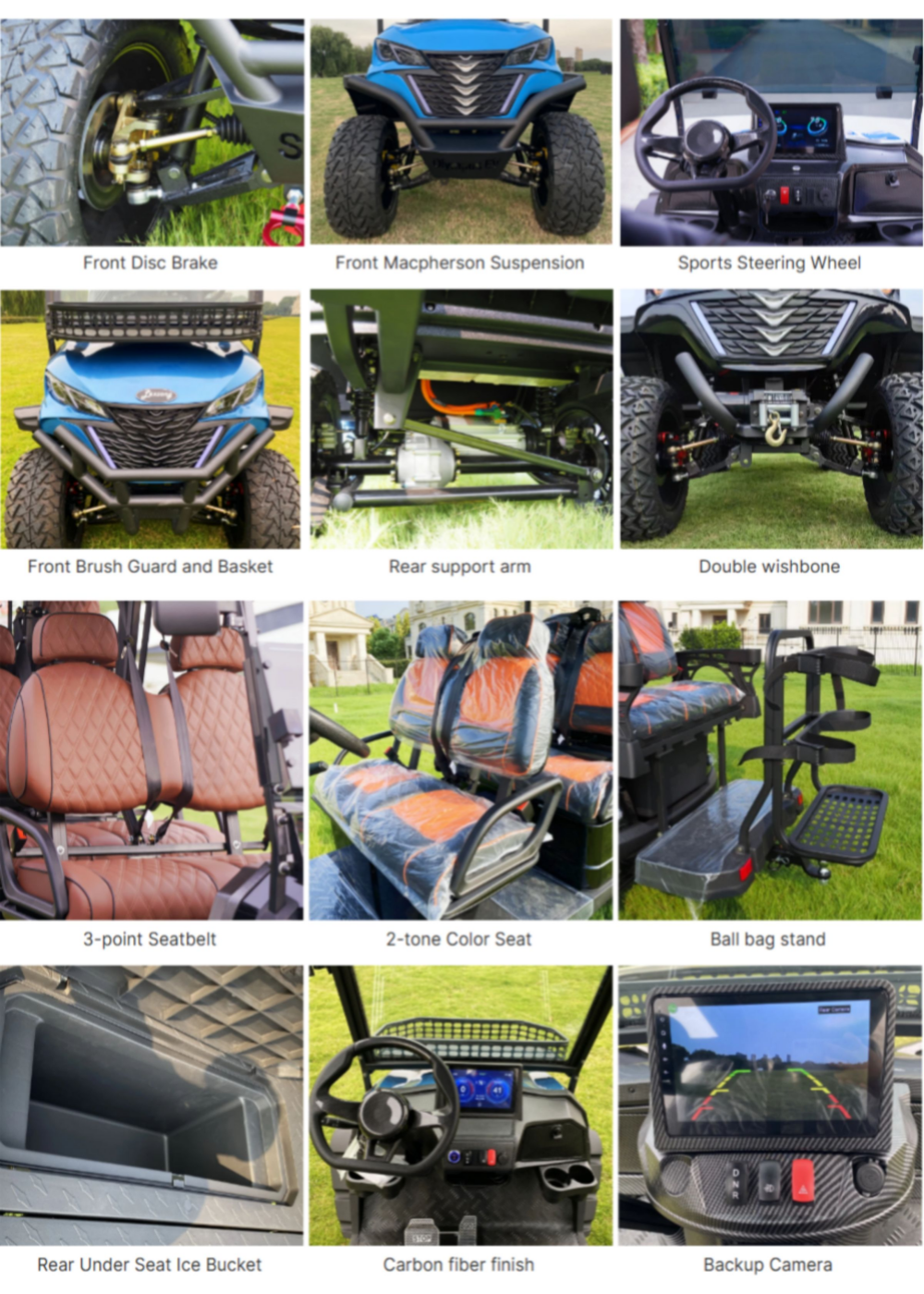

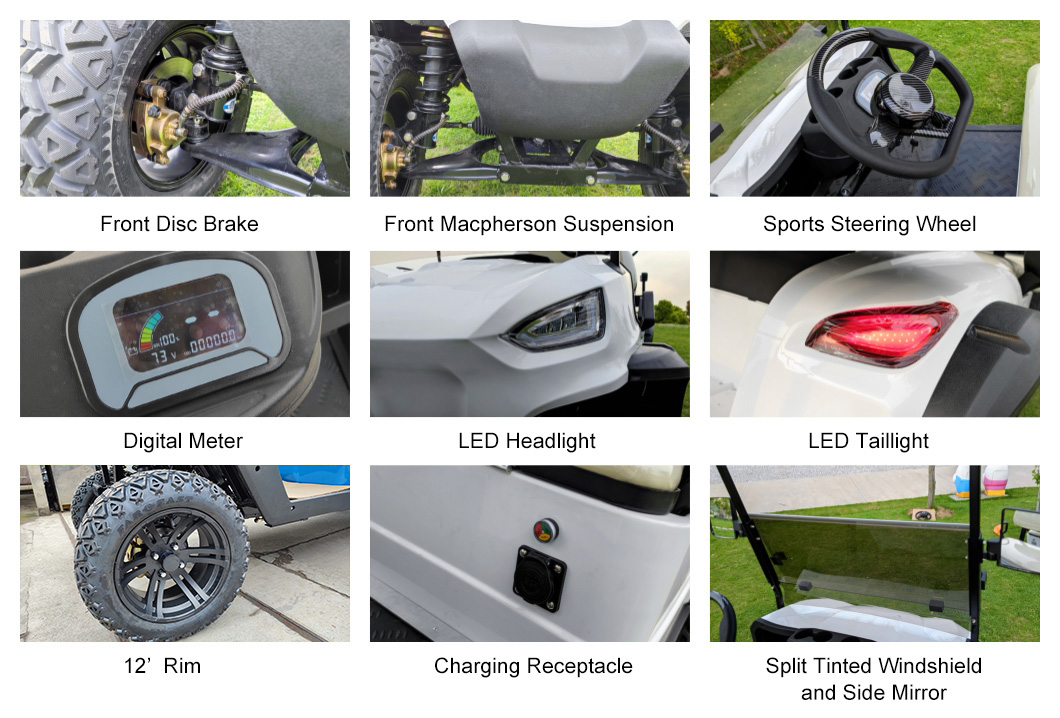

| Brake system | 4-wheel hydraulic brake front disc rear drum + foot park brake | |
| Accelerator | Stepless speed change | |

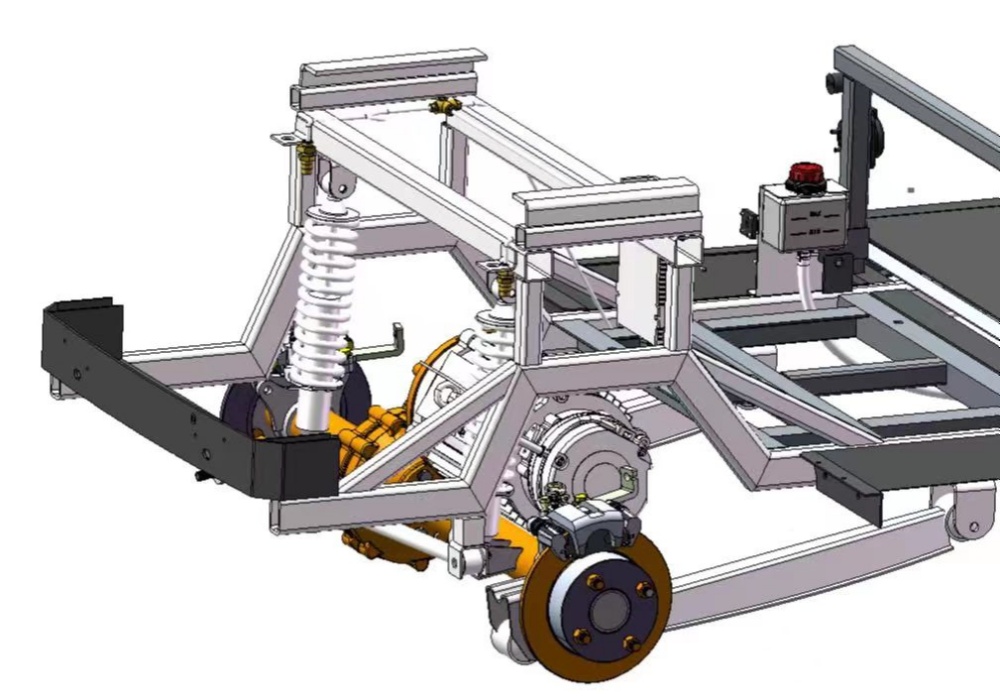

| Suspension system | Front MacPherson independent and rear plate spring + vibration absorber | |
| Driving mode | Rear axle two stage deceleration, motor direct driving | |
| Rear axle | Integrated, Gear ratio 12.49:1 | |
| Wheel & Tyre | 12x7 aluminum wheel + 23" tire (23*10.5-12) | |
Golf carts, also known as electric golf car and electric golf buggy, are environmentally friendly passenger vehicles specially designed and developed for golf courses. Golf buggy can also be used in resorts, villas, garden hotels, tourist attractions, etc. From golf courses, villas, hotels, schools to private users, it will be a short-distance transportation.

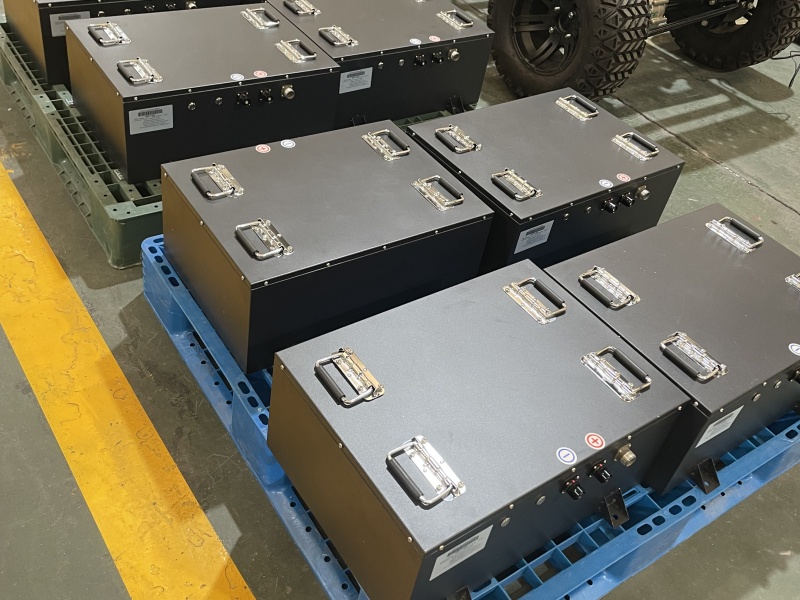

LG pouch cells made lithium ion battery pack. 72V lithium battery, 100Ah/125ah capacity (can be improved as per customer's request), with intelligent BMS to control the charging and discharging of each cell, then to protect the battery properly, BMS can be connected to App on the mobile phone for easy operation. 4000 times life cycles based on 99% DOD. 3 Years warranty to be provided! Lower life cost, you are deserved to have!

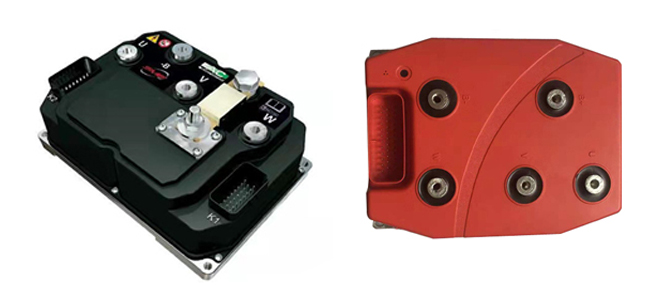

Programmable US brand Curtis Controller (72V 400A AC Controller) or Italy made SME brand Controller (72V 450A AC Controller), with regenerative brake and walk-away function. High and Stable Quality, Powerful, Global 2 Years Warranty.
Rated power: 5KW or 7.5KW. Very Powerful and Maintenance Free AC motor. Motor power varies from 5KW and 7.5KW. With 7.5KW motor, the climbing ability can be 35%.
High quality rear end with aluminum cage, silent, durable and no oil leaking

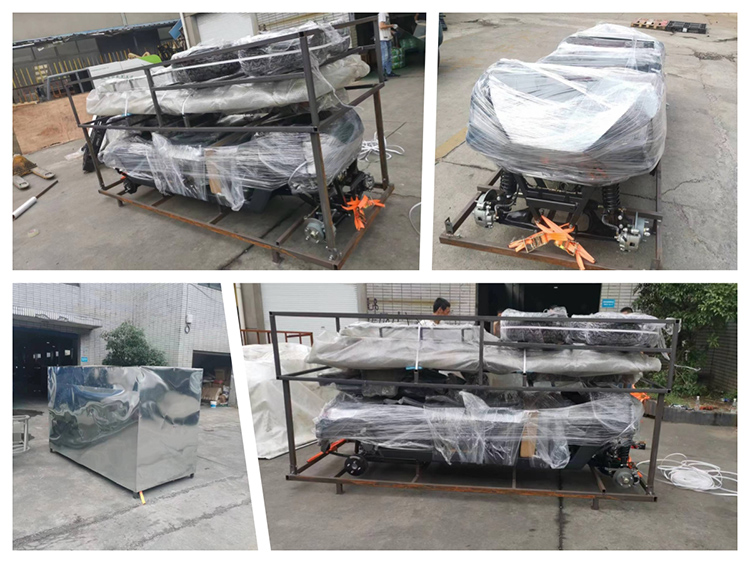

| Container loading qty | Disassembled (with top basket, front basket, front bumper) | Disassembled (without top basket, front basket, front bumper) |
|---|---|---|
| Qty/20' | 6 units | 6 units |
| Qty/40' | 12 units | 14 units |
| Qty/40'HQ | 18 units | 20 units |

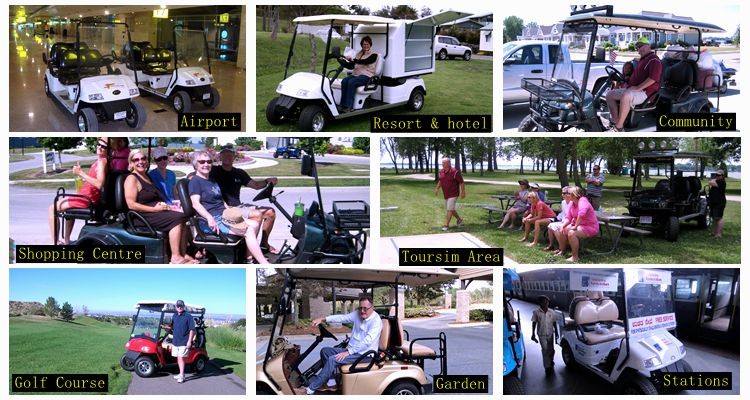

Due to our reliable quality and competitive prices, our electric vehicles have been exported to more than 40 countries around the world, and are widely used in golf courses, hotels, resorts, parks & gardens, campus, stations, airports, residential communities, shopping centres, etc.
We specialize in supplying various electric vehicles including 2-wheel electric vehicles, 3-wheel electric vehicles, and 4-wheel electric vehicles. The 2-wheel electric vehicle includes electric bike, electric scooter, electric skateboard and electric motorcycle. The 3-wheel electric vehicle includes passenger mover and cargo delivery tricycle. The 4-wheel electric vehicle includes golf cart, lifted car, utility car, sightseeing car, industrial vehicle, etc. Beside the electric vehicle, we also provide parts and accessories for these electric vehicles. Electric vehicles have become more and more popular and important, and we believe it will change people's lives significantly.
We have been in the electric vehicle business for more than 12 years and can provide valuable suggestions and support for your purchasing and business operations.

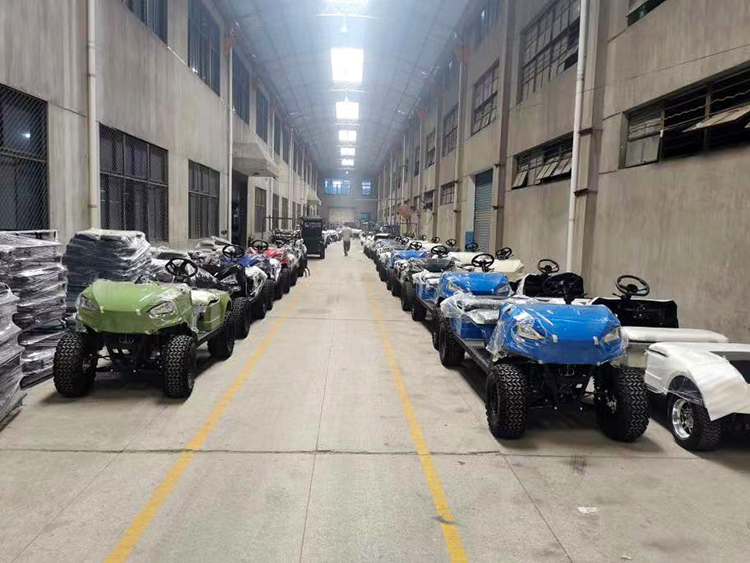

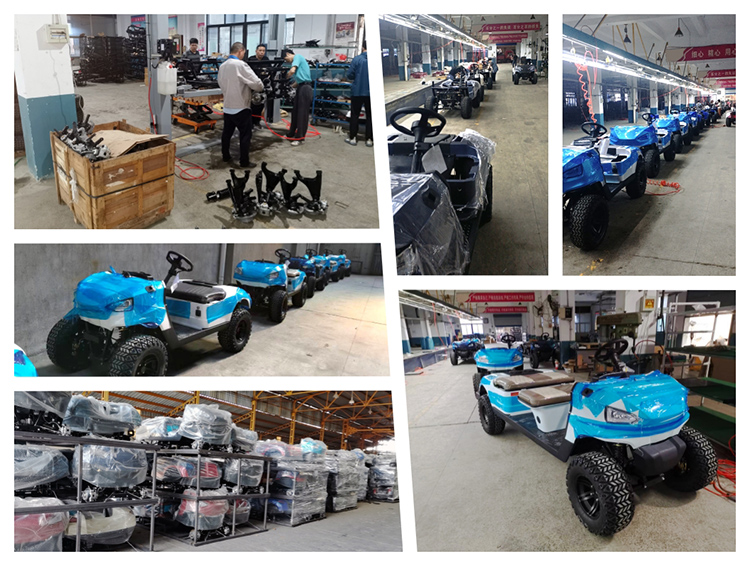

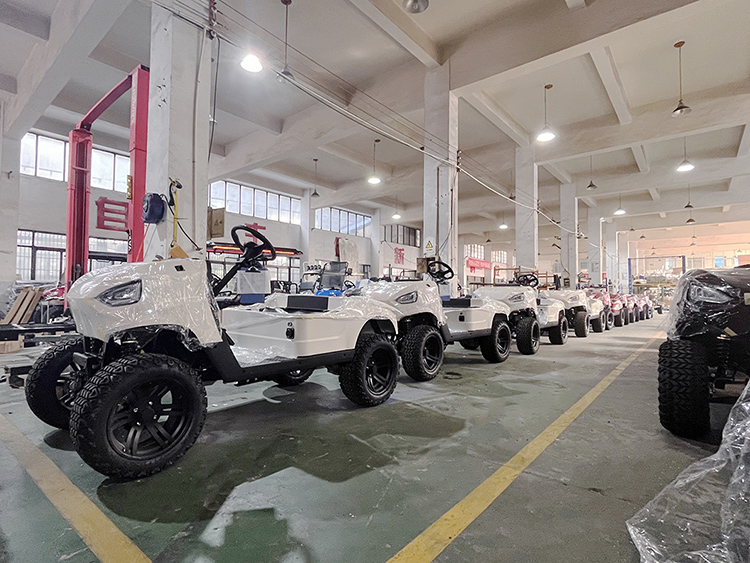

Our factory has 3 production lines: one line for golf carts and its variants; one line for personal carrier, sightseeing bus and their variants; and one line for various customized vehicles.

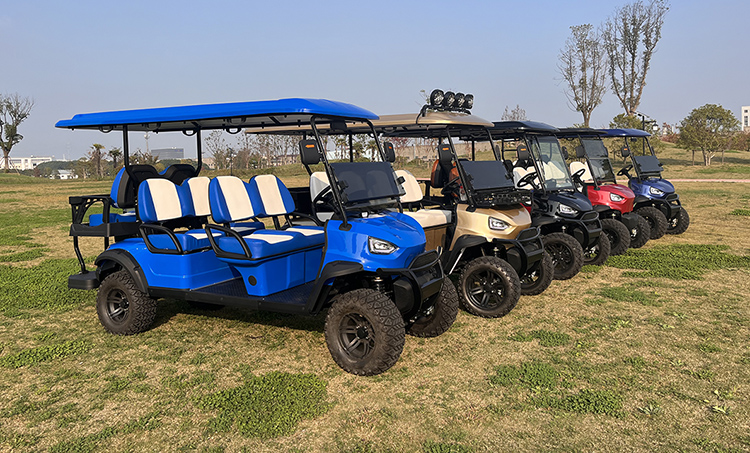

We provide 13 months warranty to the electric vehicles from the shipping date. We will cover the labor cost for any warranty issue. 18x7x360 Technical Support: We provide technical support by phone or email, 360 days a year, 7 days a week, and 18 hours a day.
In the lifetime of the vehicles, or for a maximum of 5 years after we stop production of any model, we still supply the spare parts for after-sales service. Flexible Payment Terms: We offer different payment terms to different customers according to special requests to support your business.
The high-performance 72V lithium battery pack comes with a 3-year warranty. It features intelligent BMS controls and supports up to 4,000 lifecycles at 99% depth of discharge (DOD), ensuring long-term durability and lower life cost.
The electric golf cart boasts a loading capacity of up to 500kg. Under loaded conditions, it offers an driving range of over 90km on a flat road running at a constant speed of 20km/h.
The vehicles are equipped with either a programmable US-brand Curtis Controller (72V 400A AC) or an Italian-made SME Controller (72V 450A AC). They are paired with a maintenance-free 5KW or 7.5KW AC motor, offering up to 35% climbing ability.
Depending on assembly configurations (with or without top baskets, front baskets, and bumpers), a 20' container fits 6 units, a 40' container fits 12-14 units, and a 40'HQ container fits up to 18-20 units.
Equipped with off-road tires, they are perfect for resorts, hotels, golf courses, garden villas, tourist attractions, residential communities, campuses, museums, airports, and industrial complexes seeking clean and quiet transportation.
We provide a 13-month comprehensive vehicle warranty and continuous 18x7x360 technical support via phone/email. Additionally, spare parts supply is guaranteed during the lifetime of the vehicle (or up to 5 years post-production).
