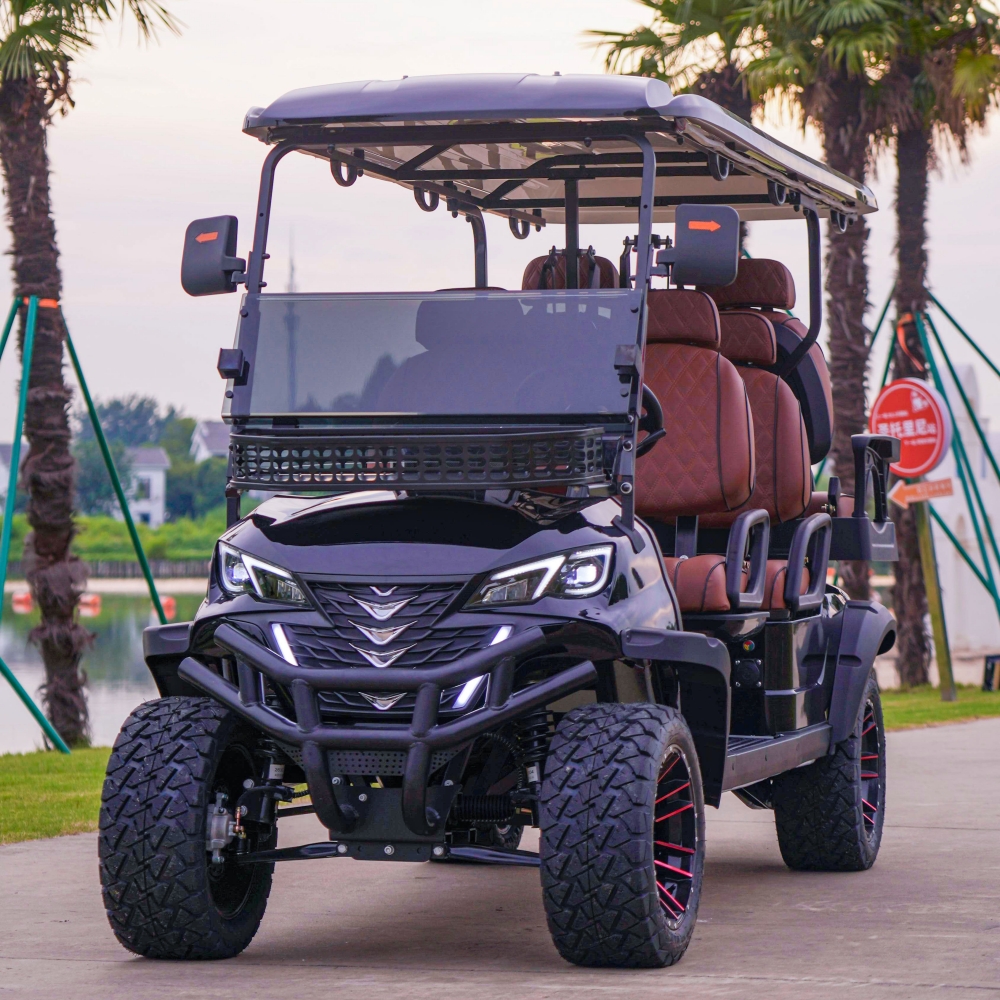

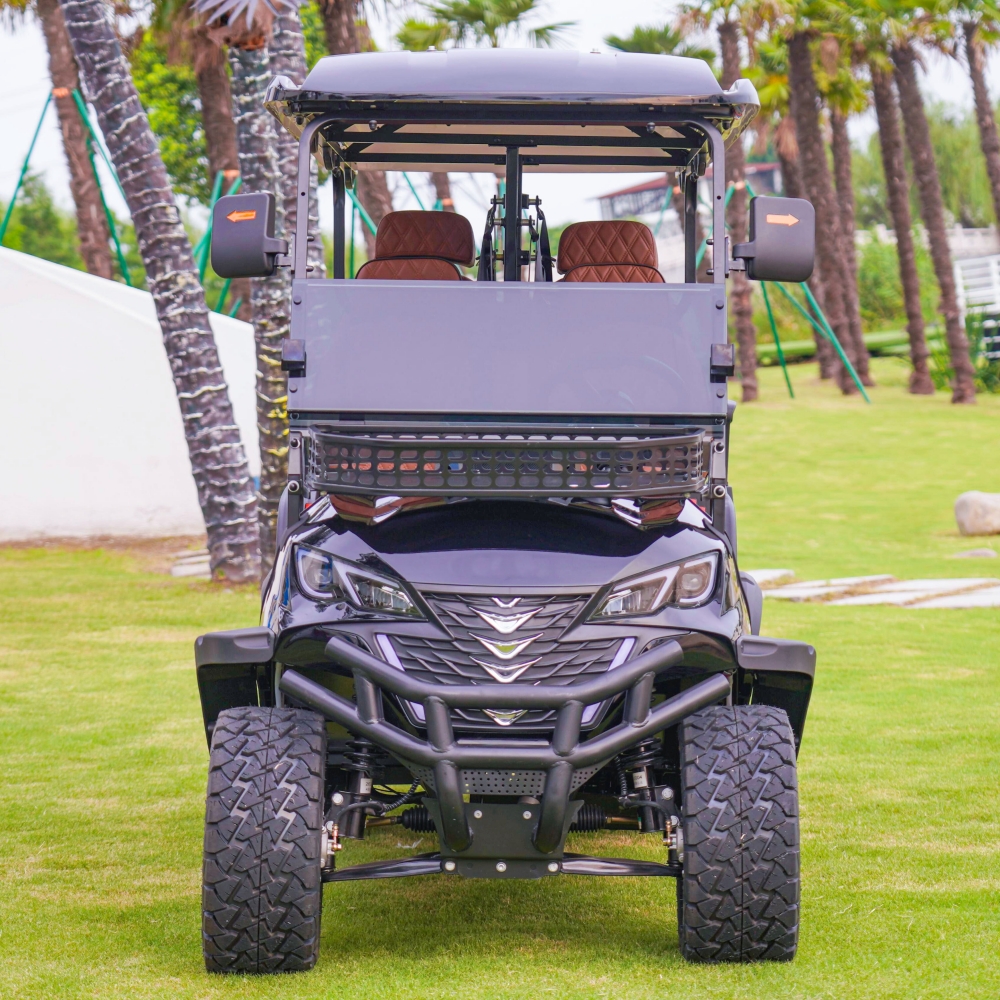

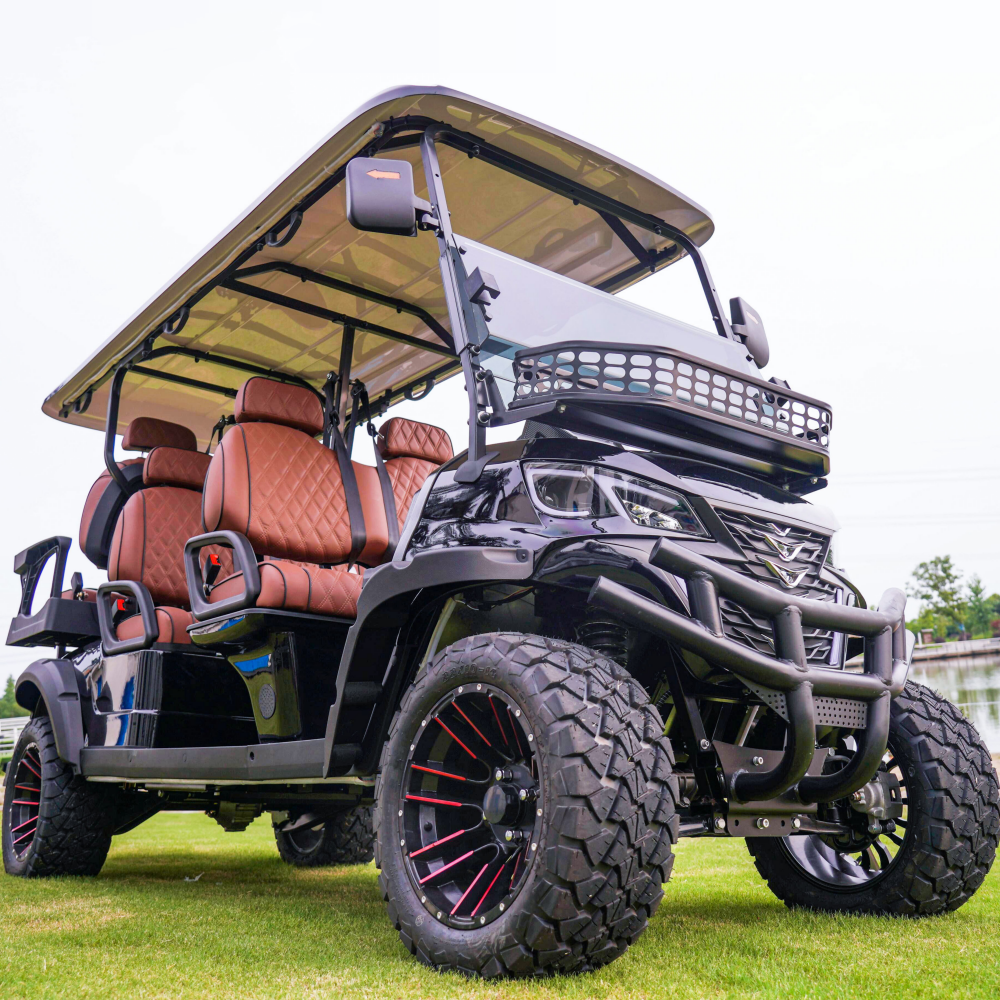

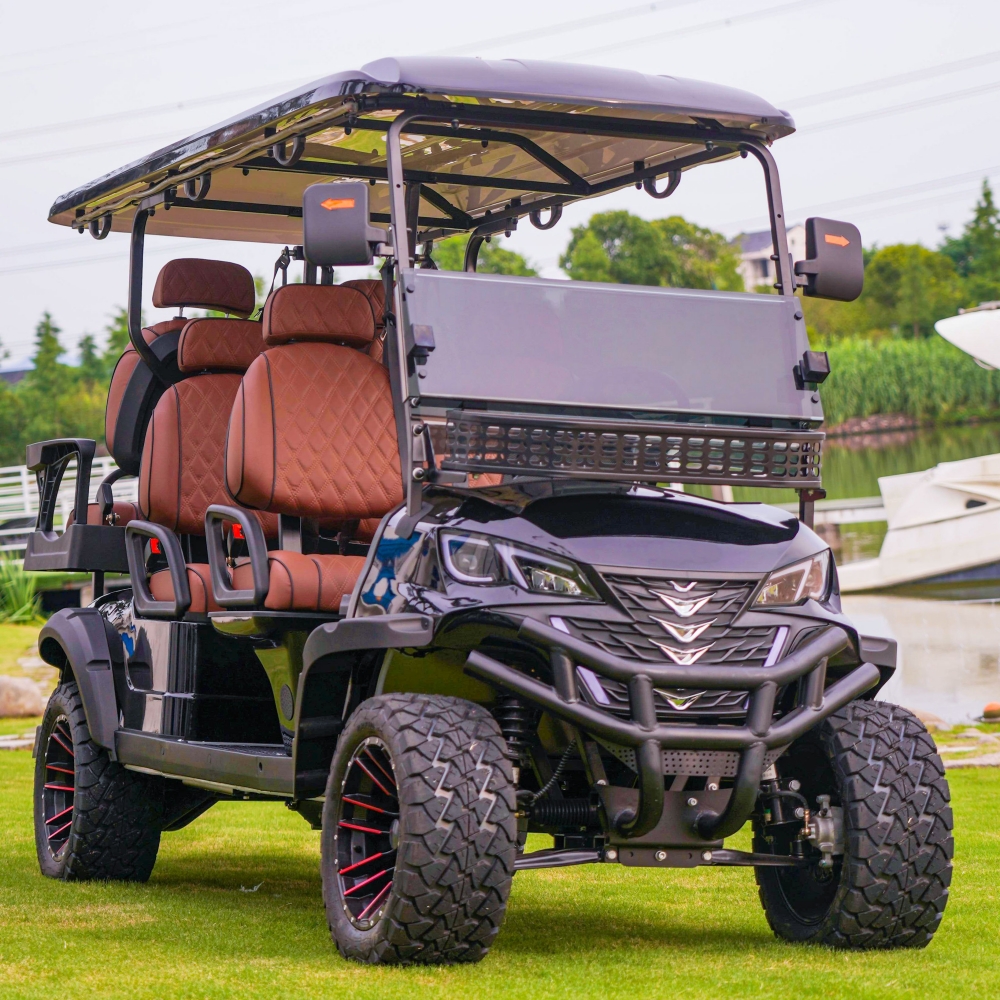

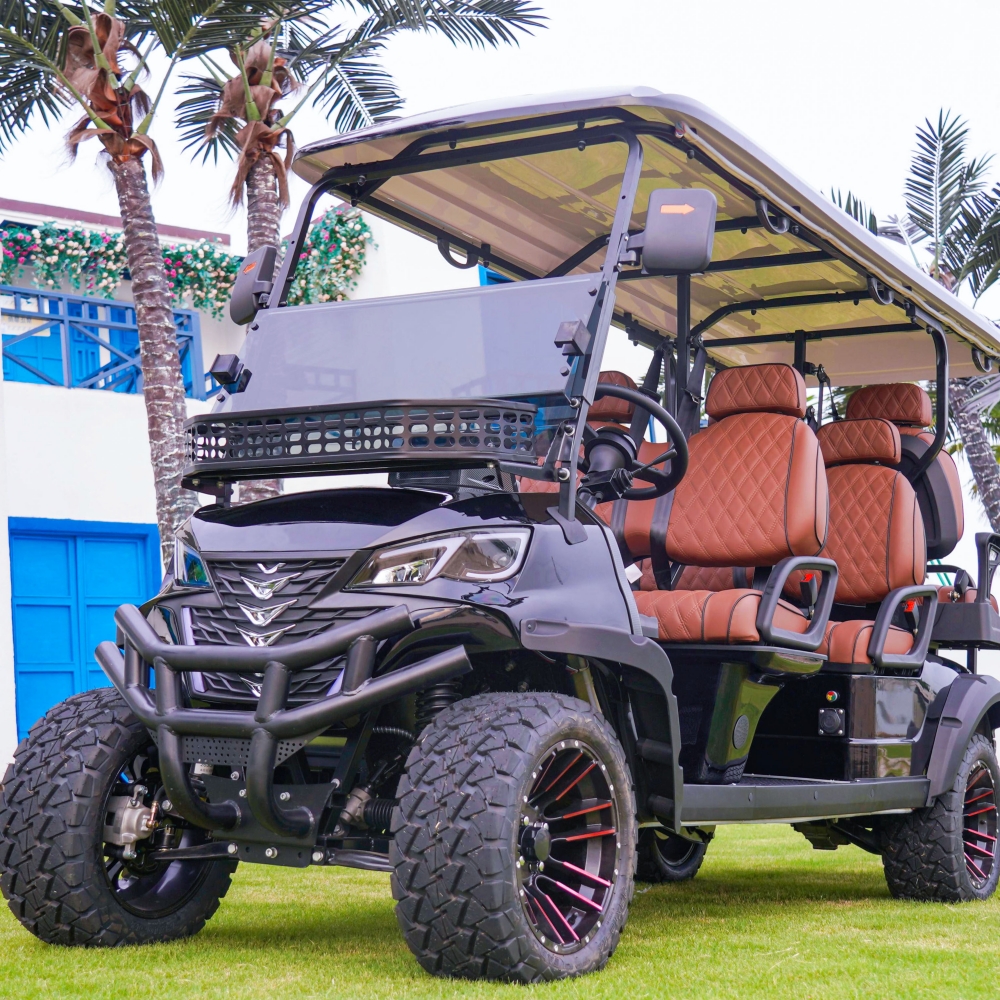

2026 New Energy 6 Seater Customized 7.5KW AC Motor Lithium Ion Battery 30mph Lifted Off Road Electric Golf Carts

Focus on Supplying Electric Golf Carts with 72V AC System and Lithium Battery

The pioneer in China focusing on high-performance 72V AC systems and advanced Lithium Battery integrations for electric golf carts.

⚡ Higher Speed

Golf Cart with 72V AC is more powerful than 48V/36V systems. Max. 7.5KW AC motor offers even more power, providing quicker acceleration, higher speed, and stronger climbing ability.

🔋 Longer Range

With the same power output, golf carts with 72V system need smaller current than 36V/48V systems. Smaller current means less heat emission from electric parts, leading to less energy consumption and longer range.

📉 Lower Life Cost

Equipped with lithium batteries. Lithium batteries have about 5 times the lifecycle of lead-acid batteries, while the cost of our lithium battery pack is close to lead-acid, lowering the overall lifetime cost.

We can be your reliable partner of electric golf carts in China

We help our Agents/Dealers/Customers to Grow their business

Product Description

Details Make Difference

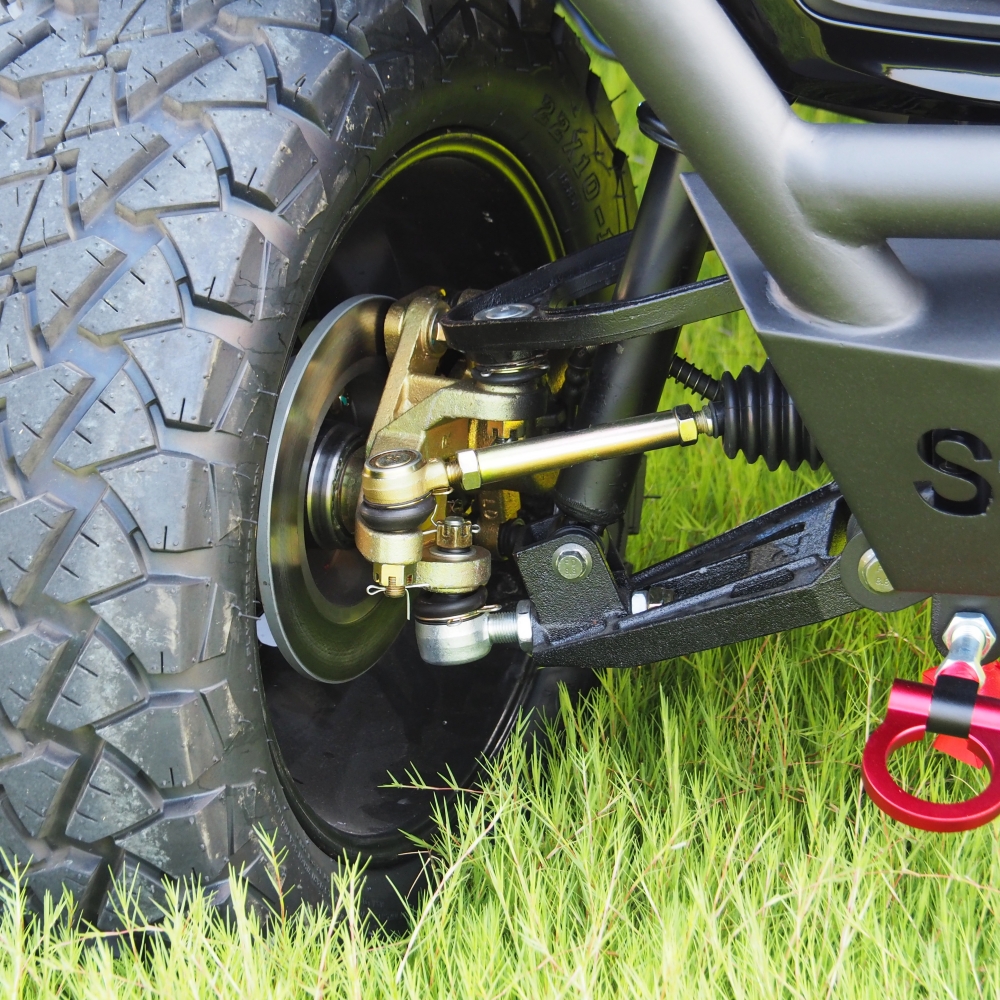

Front Disc Brake

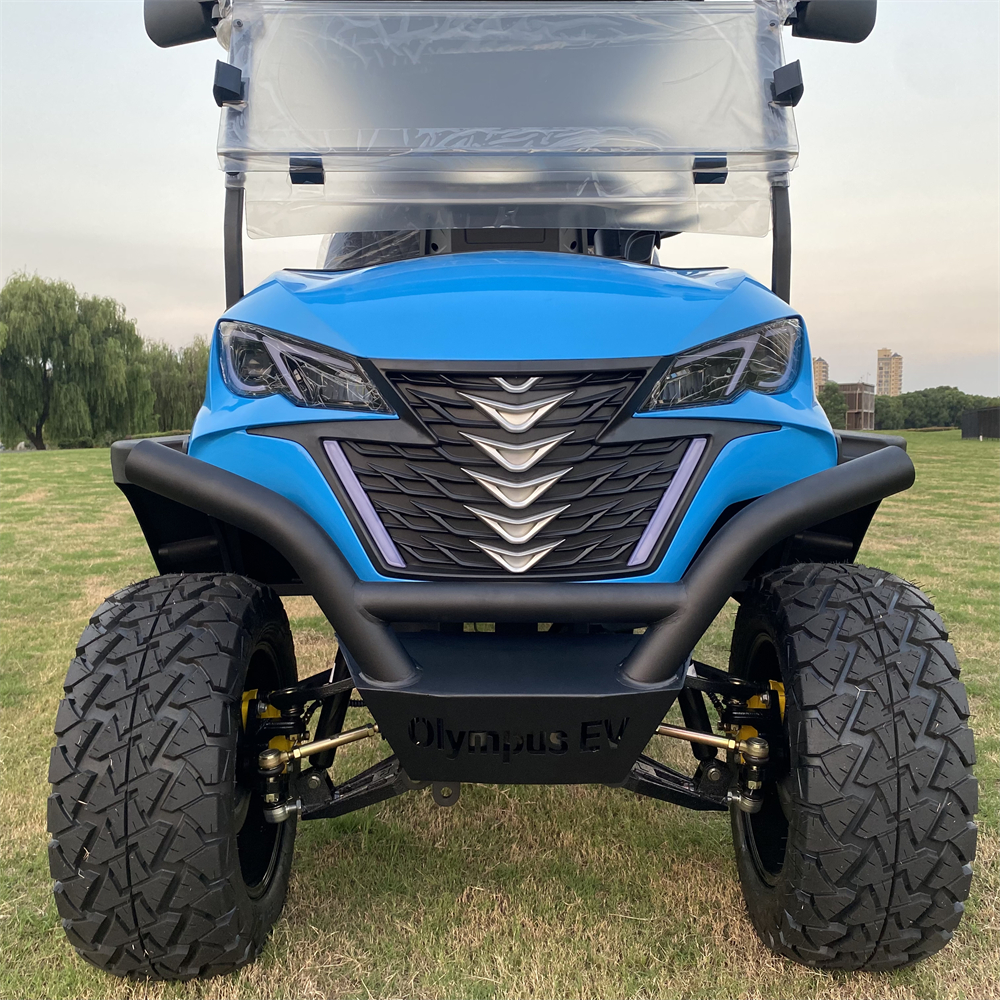

Front Macpherson Suspension

Sports Steering Wheel

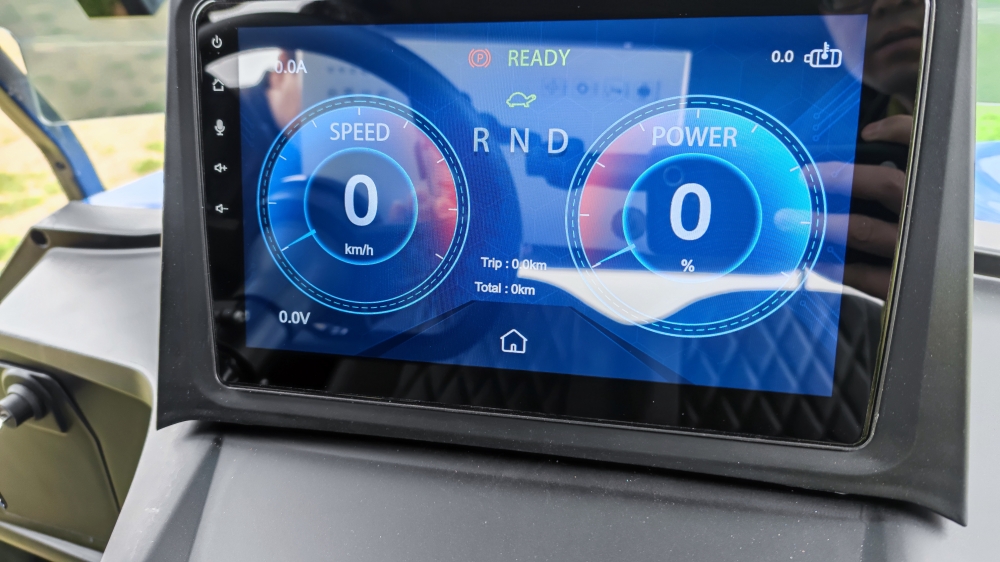

Digital Meter

LED Headlight

LED Taillight

14' Aluminum Rim

Charging Receptacle

Split Tinted Windshield & Side Mirror

Specifications

SPECIFICATIONS OF Solar 6 Seaters Off Road Electric Street Legal Golf Cart Buggy LS2041ASZ

Key Components
Controller	China local brand AC controller or Curtis Controller
Motor	4KW/5KW/7.5KW AC motor
Battery	72V115AH Lithium Battery
Performance and Dimensions
Passenger Capacity	6 (4+2)
Range (Loaded) *	100kms
Max. Speed	32-40km/h
Min. Turning Radius	4.7m
Max. Gradeability	25%
Max. Loading Weight	480kgs
Net Weight	550kgs

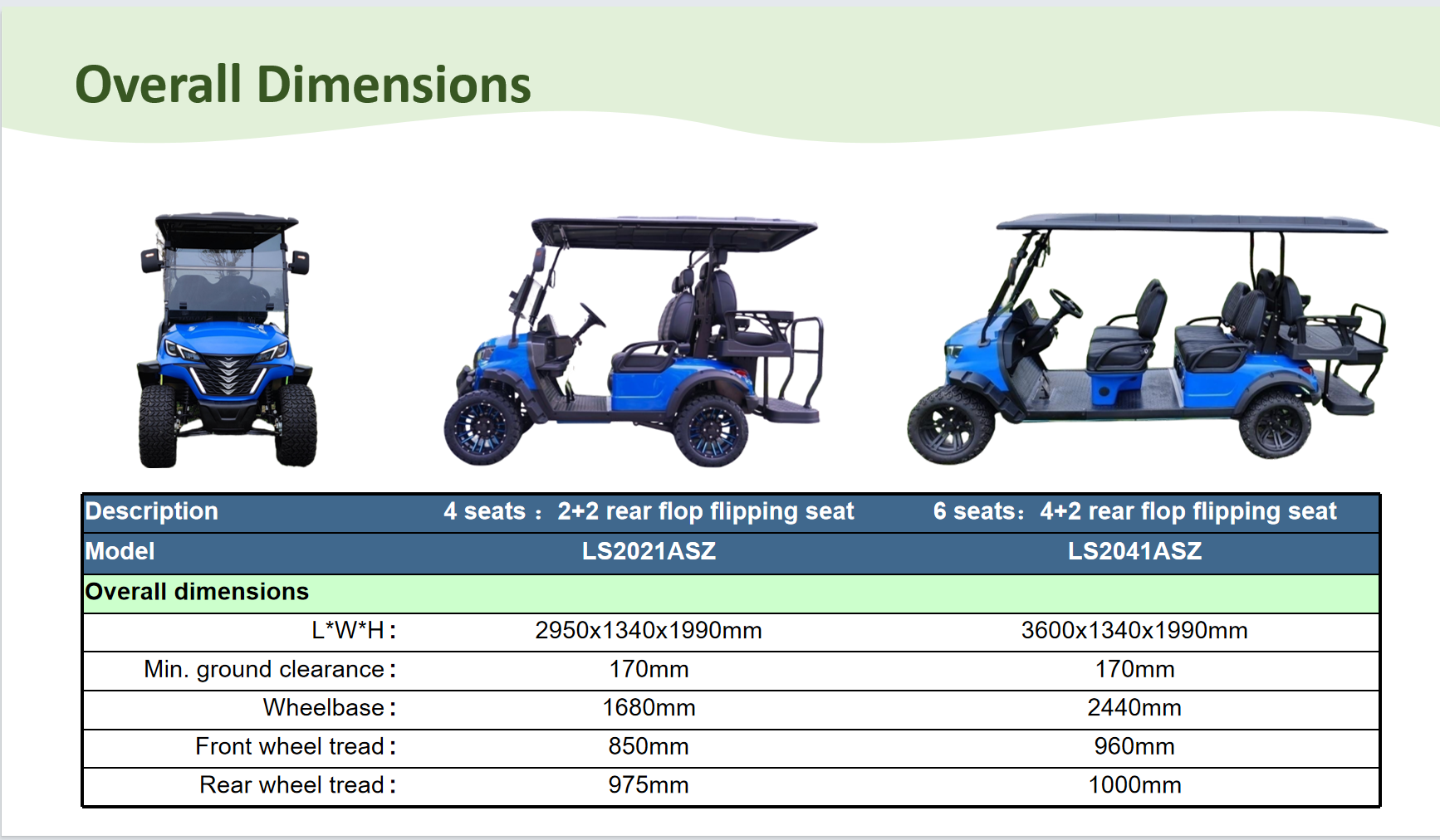

Overall Dimensions	3650X1350X2100mm
Body and Frame
Frame (Chassis)	Welded steel framework, with anti-rust treatment of acid washing, phosphating and electro-coating
Body and Roof	PP plastic front body and rear body; FRP roof
Windshield	Organic plastic windshield, one-piece
Roof supports	Carbon Steel, powder coated
Backrest and Seat	Reborn Sponge, artificial leather + plastic armrest
Floor	Galvanized Steel plate and anti-slip rubber floor mat
Dashboard	Plastic in black, with 4 cup holders, 2 glove storage box, forward/reverse switch, battery capacity indicator, ignition key
Side trim	Aluminum alloy
Side mirror	2pcs, foldable
Electric System
Lighting system and horn	All LED lights, 2 headlights, 2 front turn signals, 2 taillights (each combined 1 brake light with 1 turn signal), with 20A voltage reducer (converting from 72V to 12V), electric horn.
Backup Buzzer	12V
Digital Meter	Battery power meter, speedometer, odometer and various indicators
Charger	Smart onboard charger, input 110V-240V~50Hz-60Hz, output 72V, 18A
Steering, Brake, Transmission and Suspension
Steering System	Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system	4-wheel hydraulic front disc rear drum brake, with park brake
Accelerator	Stepless speed change
Driving mode	Rear axle two stage deceleration, motor direct driving
Rear axle	Integrated, Gear ratio 12.49:1
Suspension system	Front Macpherson Independent suspension and rear plate leaf spring + cylinder hydraulic shock absorber
Wheel & Tyre	12x7 black aluminum rim & 23*10.5-12 Tire

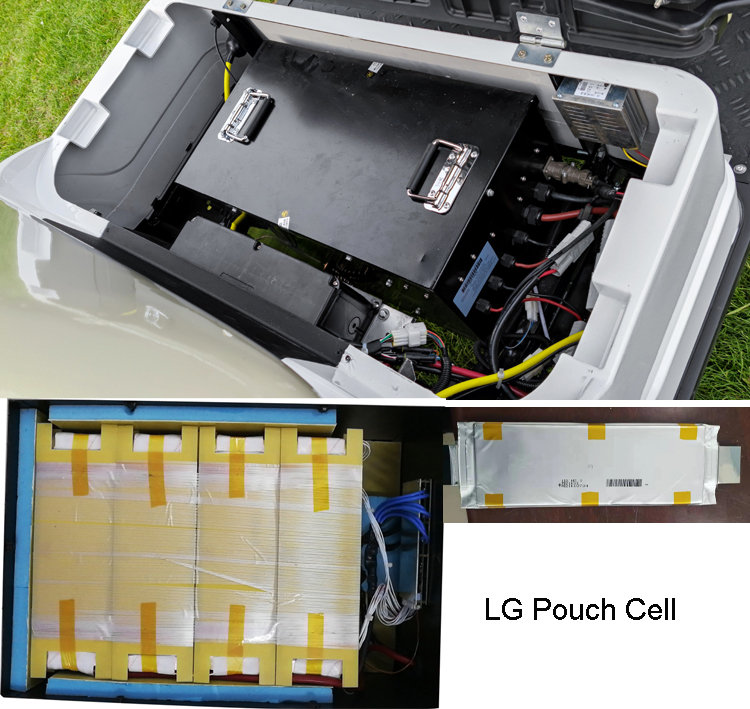

🛡️ 3 Years Warranty Lithium Battery

LG pouch cells made lithium ion battery pack. 72V/120Ah capacity (can be improved as per customer's request), with intelligent BMS to control the charging and discharging of each cell, then to protect the battery properly, BMS can be connected to App on the mobile phone for easy operation. 4000 times life cycles based on 99% DOD. 3 Years warranty to be provided!

Lower life cost, you deserve to have!

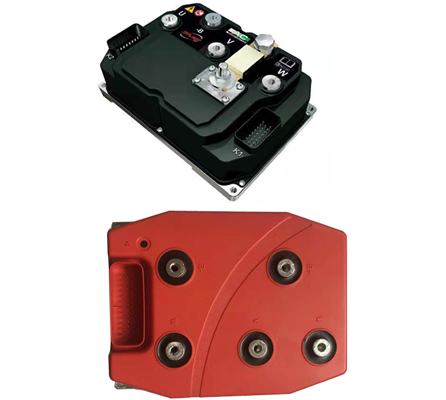

⚙️ 72V AC Curtis or SME Controller

Programmable US brand Curtis Controller (72V 400A AC Controller) or Italy made SME brand Controller (72V 450A AC Controller), with regenerative brake and walk-away function. High and Stable Quality, Powerful, Global 2 Years Warranty.

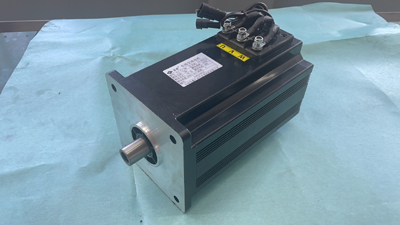

⚡ 72V 4KW, 5KW or 7KW AC Motor

Very Powerful and Maintenance Free AC motor. Motor power varies from 4KW, 5KW and 7KW. With 7KW motor, the climbing ability can be 35%.

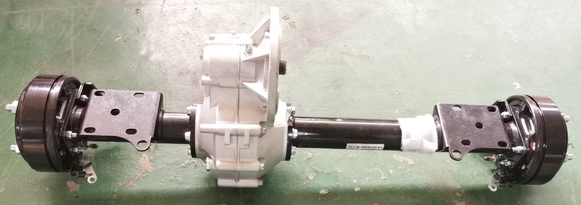

🔧 High Quality Rear End

High quality rear end with aluminum cage, silent, durable and no oil leaking.

Optional Accessories

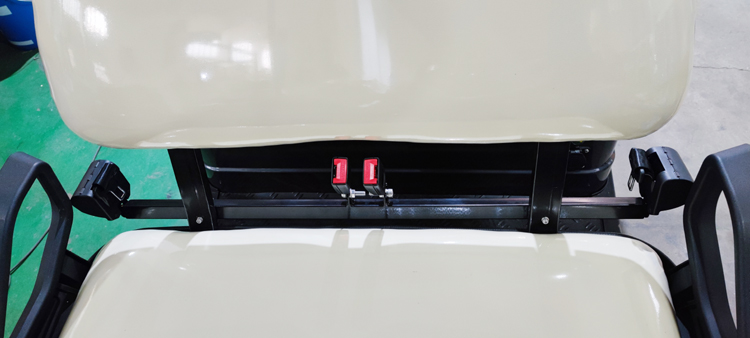

2-point Seatbelt

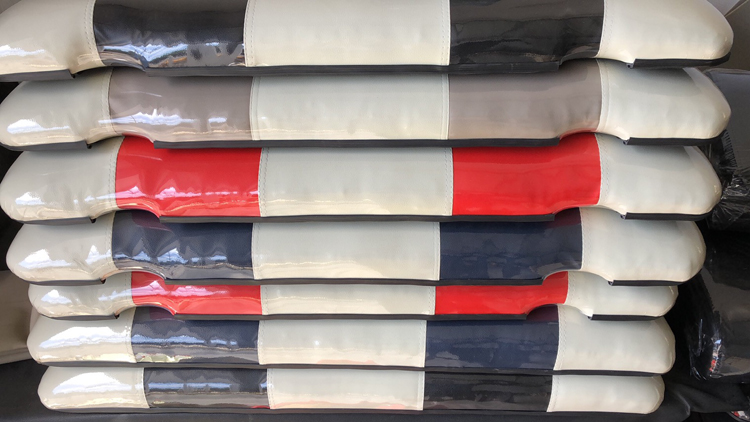

2-tone Color Seat

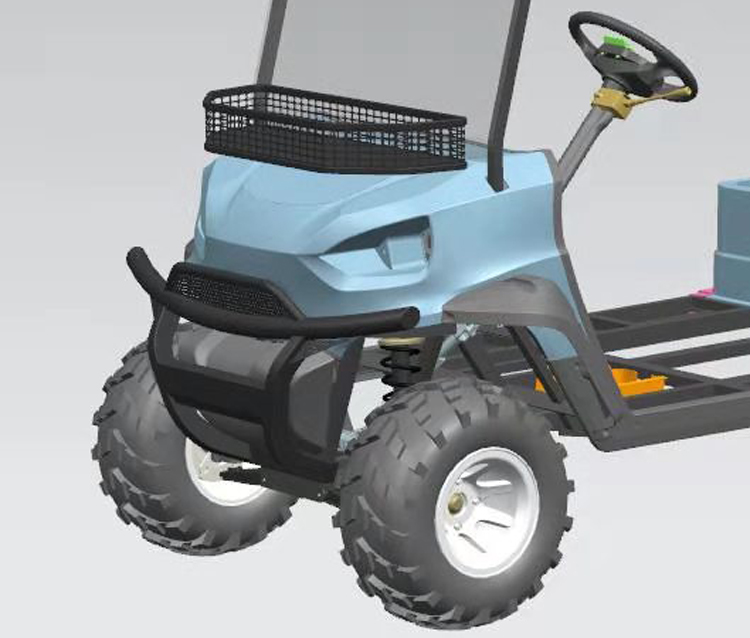

Front Brush Guard & Basket

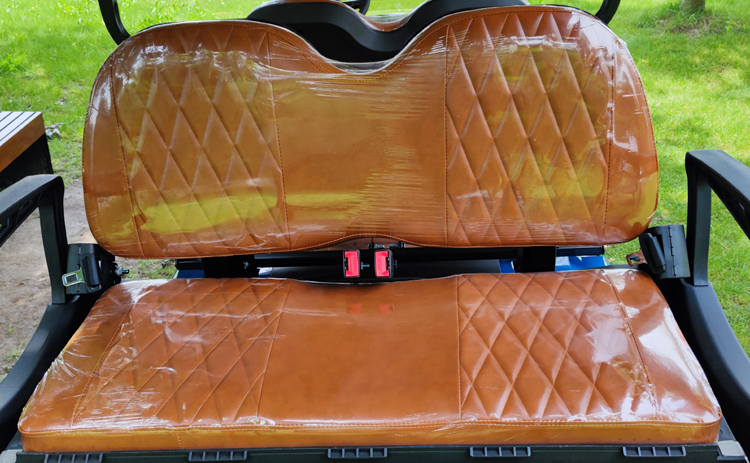

Pattern Seat

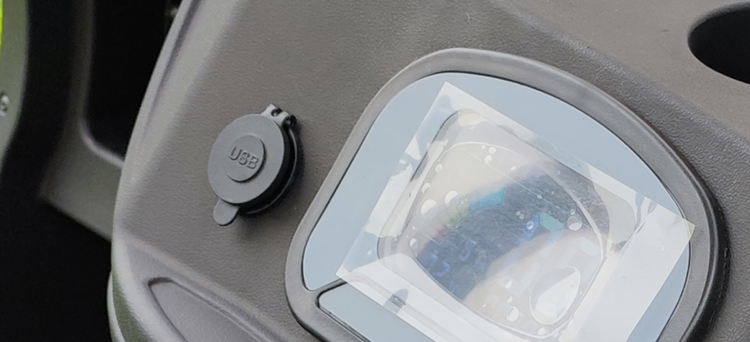

USB Port

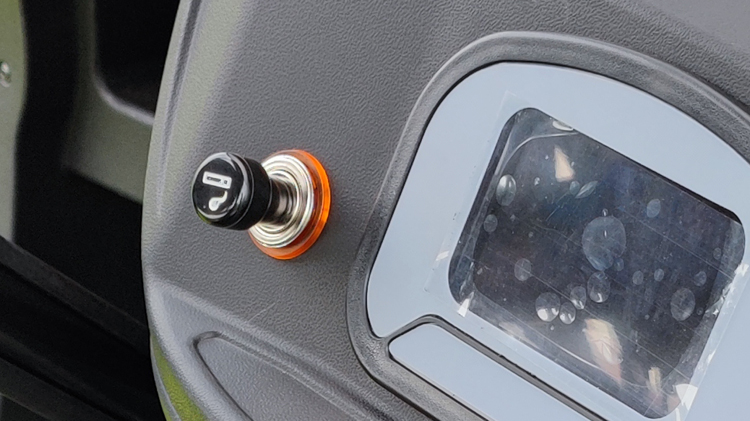

12V Plug

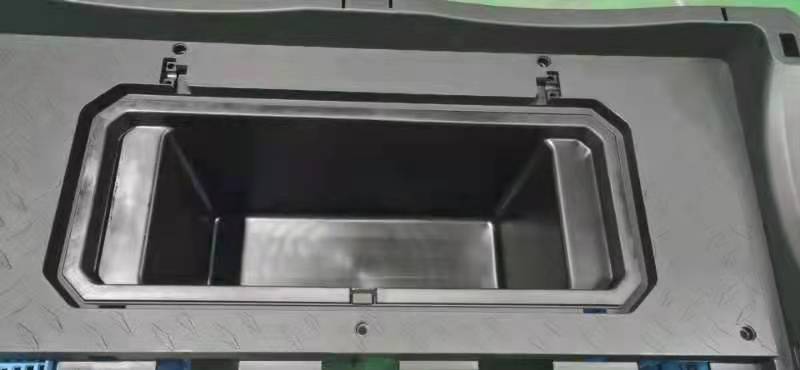

Rear Under Seat Ice Bucket

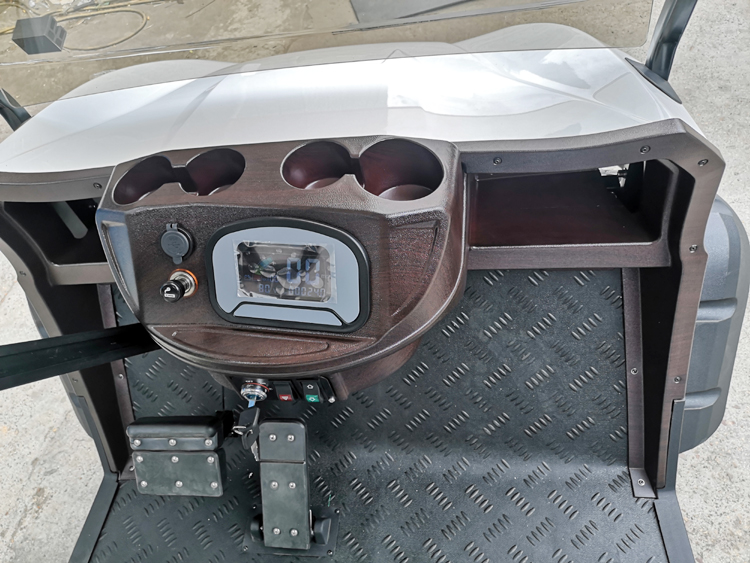

Wooden Finish

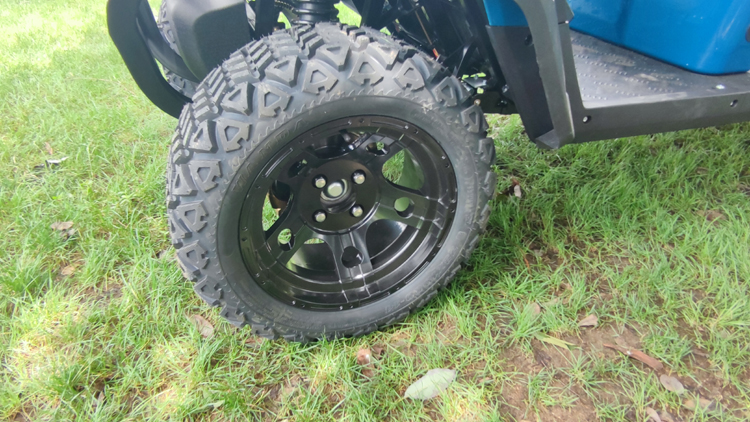

14' Wheel

Touch Screen Multimedia Player

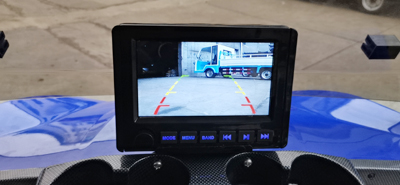

Backup Camera

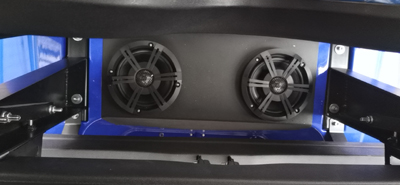

Loudspeaker

Let us know if you want anything specially!

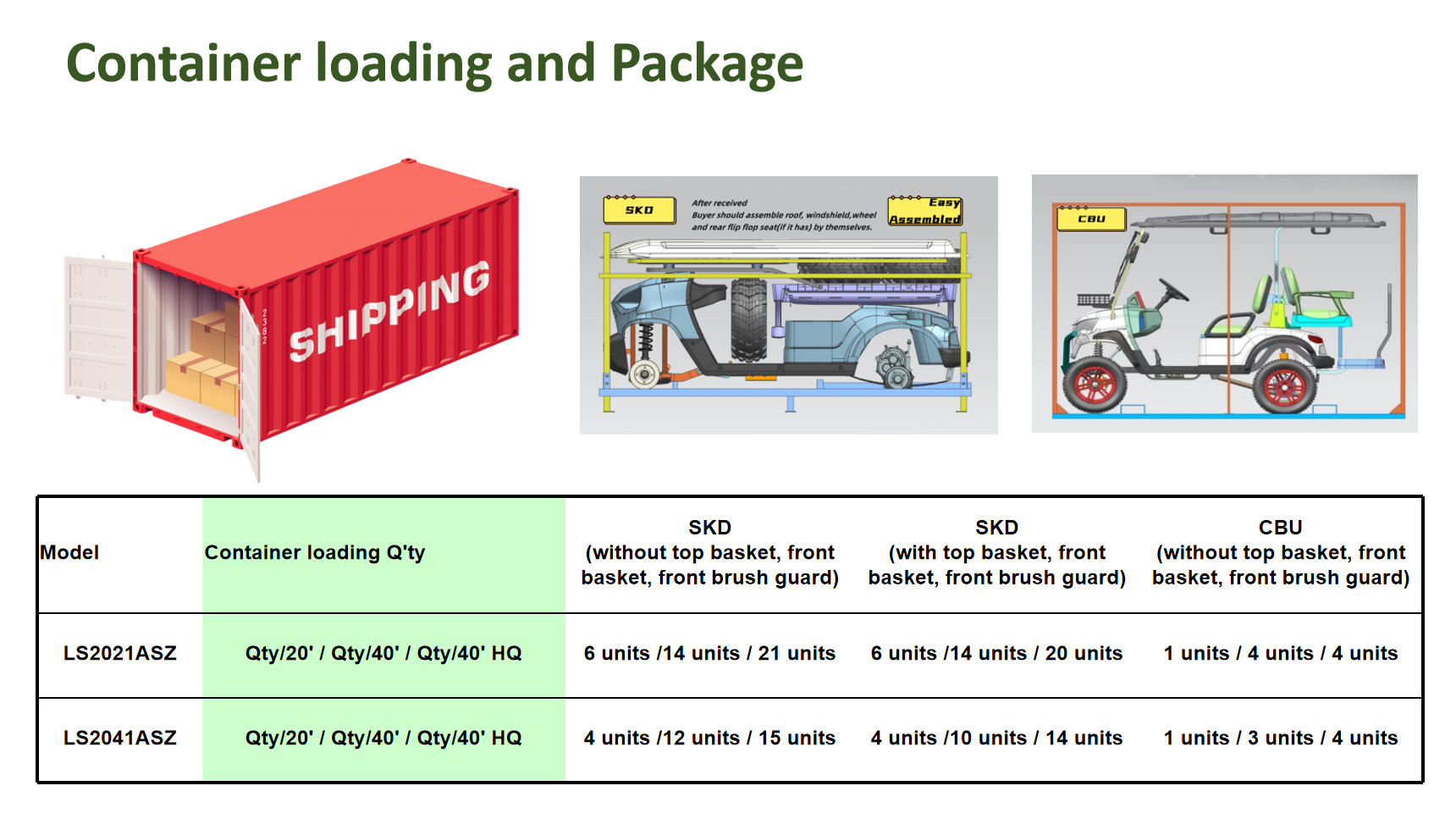

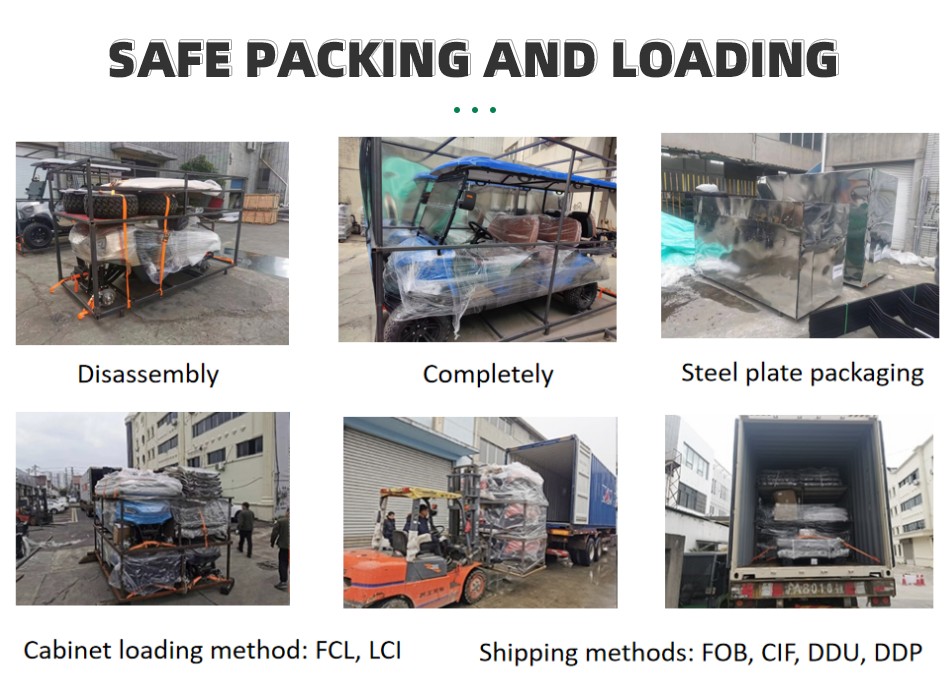

Packing & Delivery

Certifications

Frequently Asked Questions

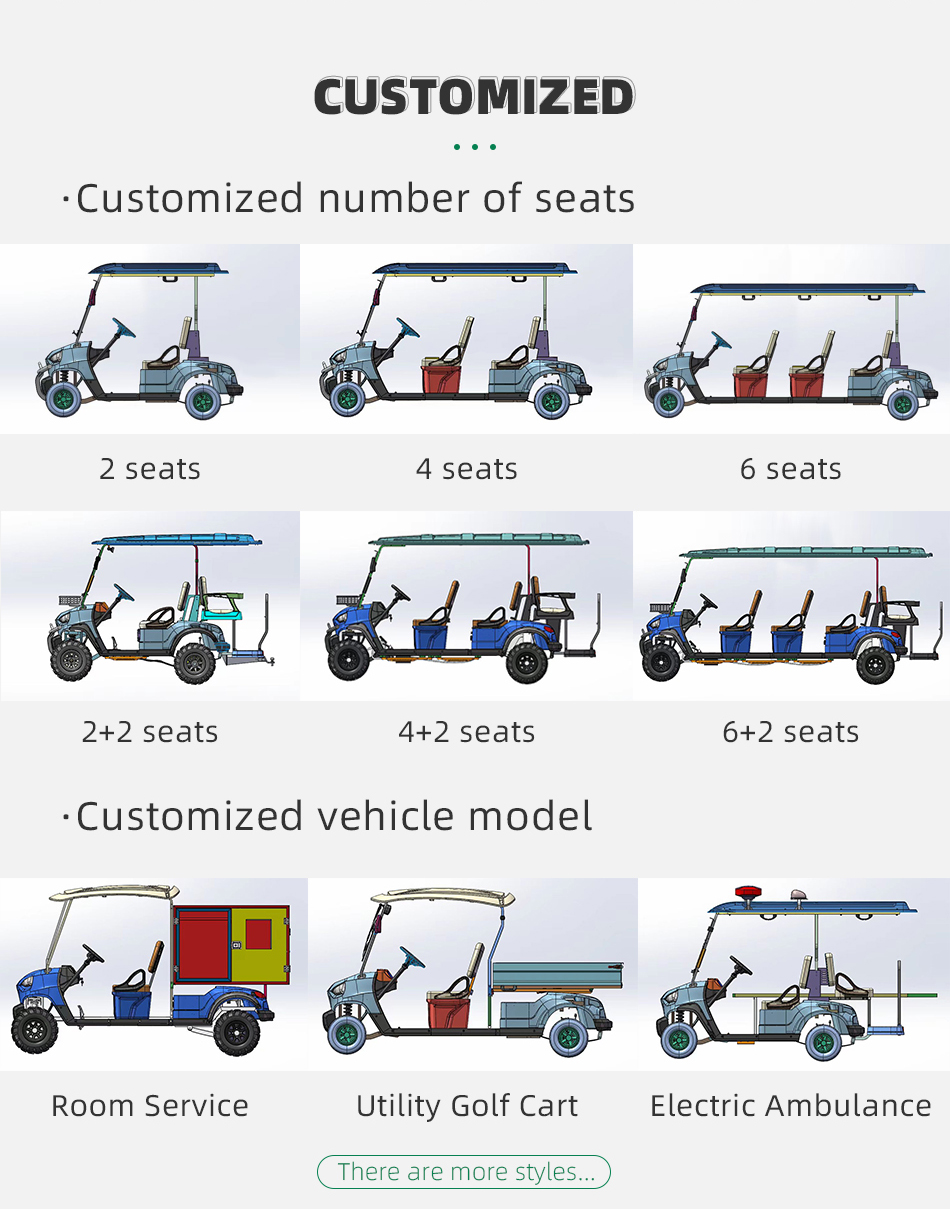

Q Do you accept customization of vehicles as per our special request?

Yes, we customize vehicles as per customer's special request with reasonable cost and lead time, as long as the customization is not related to the chassis modification.

Q What is your warranty term?

We provide a 1-year warranty. For any failed parts under warranty, if they can be repaired at your side and the repair cost is lower than the value of the part, we will cover the repair cost; otherwise, we will send replacements and cover the freight cost.

Q Do you provide after-service spare parts?

Yes, we provide all the spare parts for our vehicles, even 5 years after we stop production of the model. To make part selection easier, we also supply a parts manual.

Q Do you provide technical support?

Yes, we provide technical support by email and phone. If necessary, we can also send our engineer to your location.

Q Do you provide vehicle assembly service if we buy the vehicles in SKD or CKD way?

When the vehicle is shipped SKD, the reassembly is just bolt and nut work, which is straightforward. We do not sell vehicles CKD unless you have proper assembly capability. For larger order volumes, we can send technical staff to provide instructions.

Q What are your terms to be your agent/dealer in my country?

We have several basic requirements. Firstly, you should be in the electric vehicle business for some time. Secondly, you should have the capability to provide after-service support to your customers. Thirdly, you should have the capability to order and sell a reasonable volume of electric vehicles.
