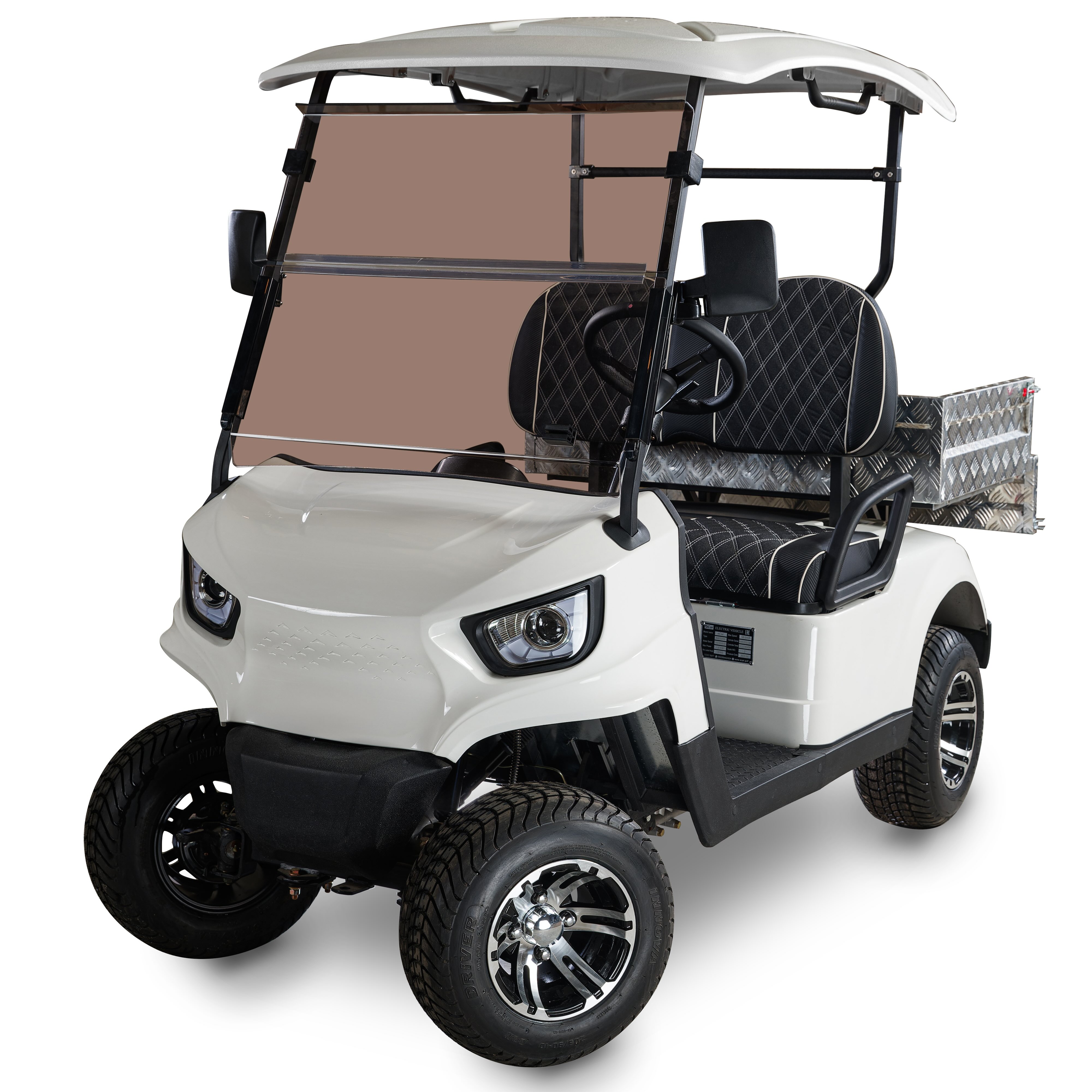

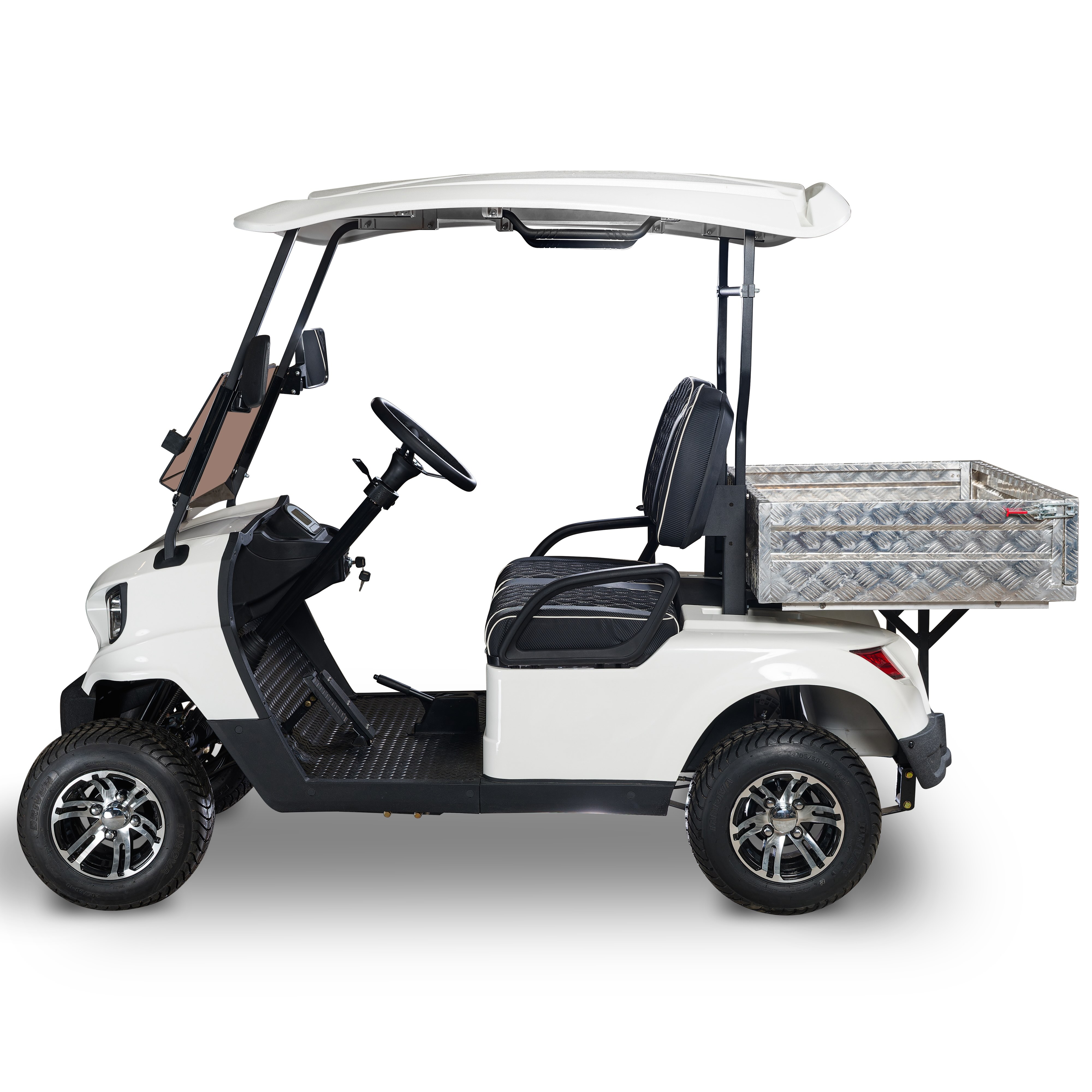

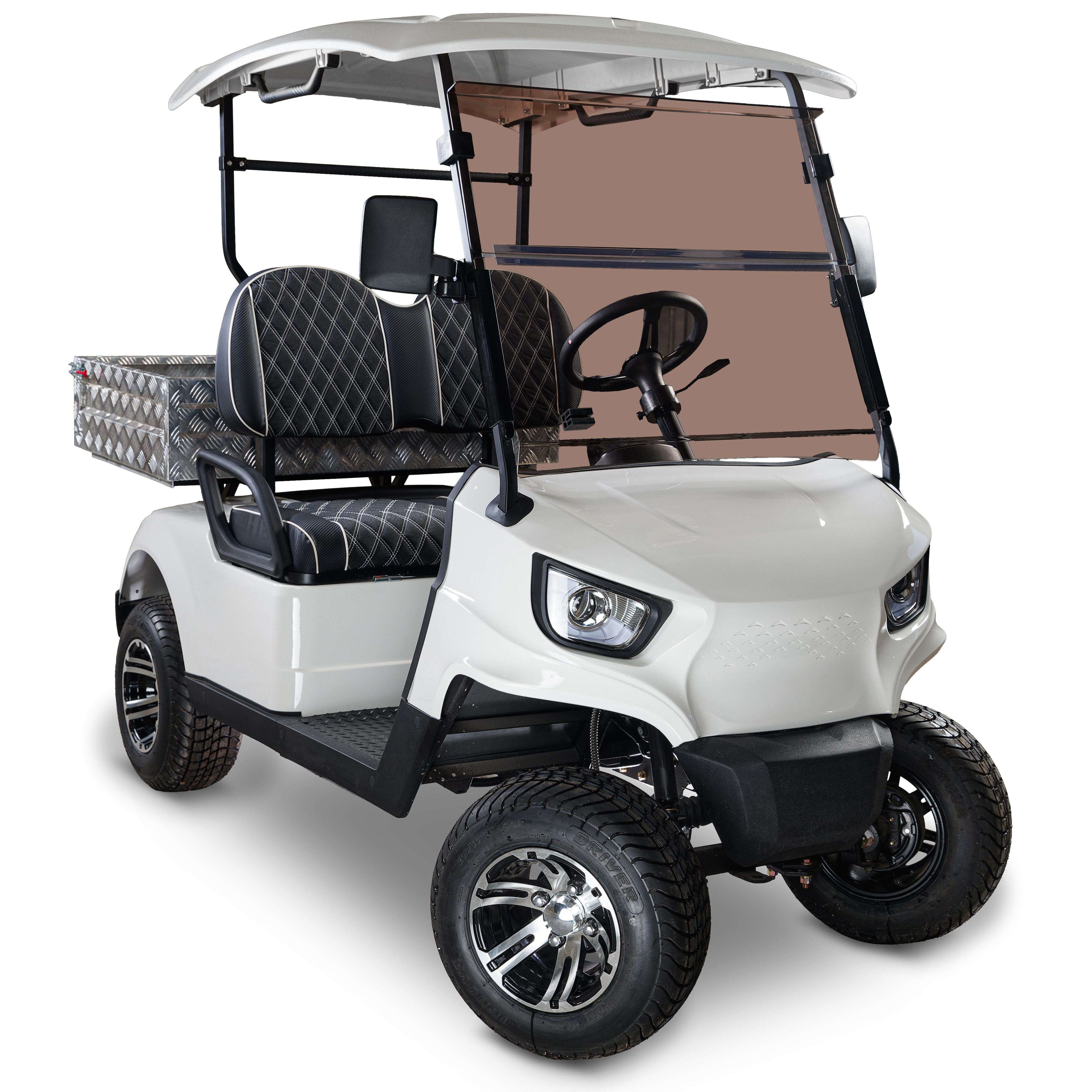

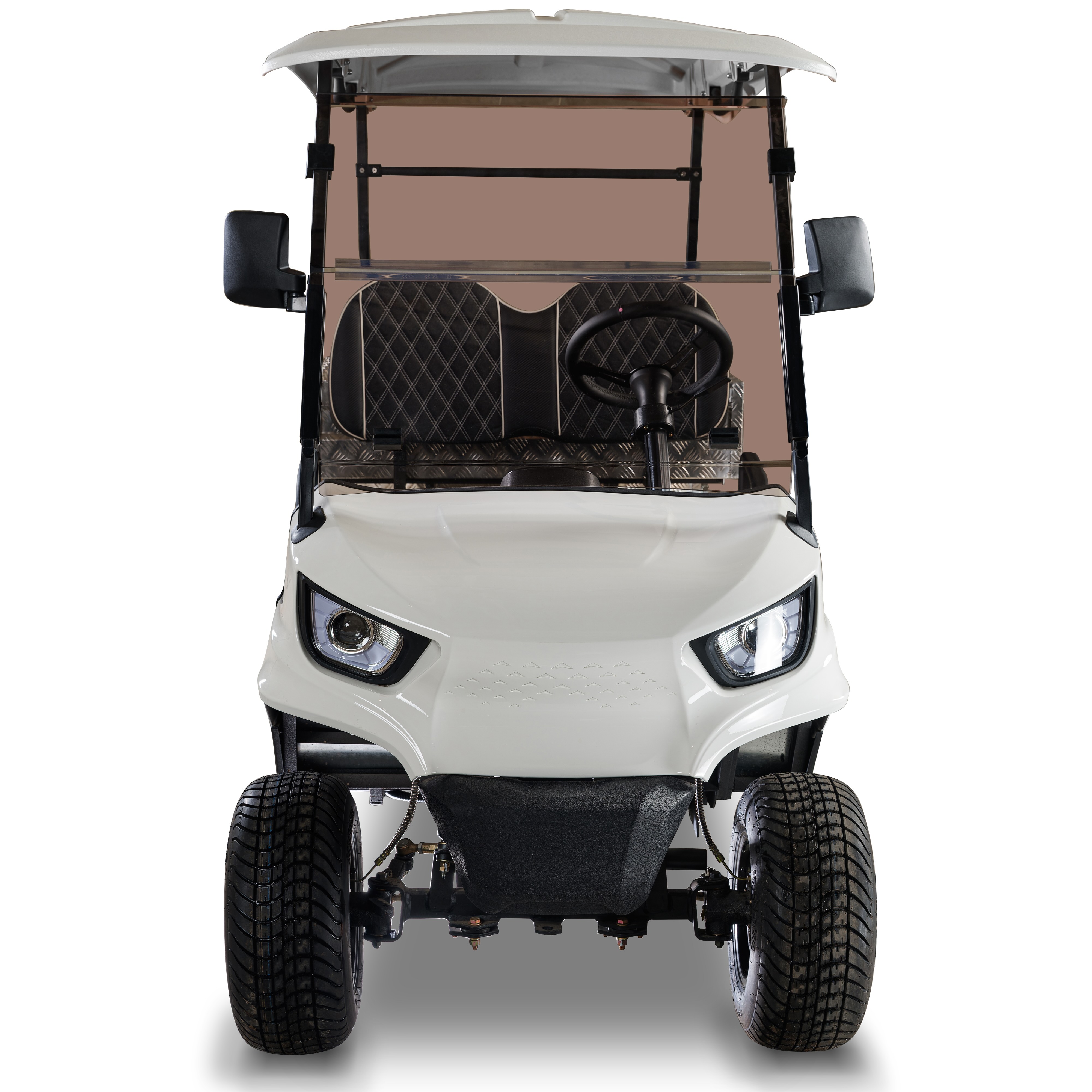

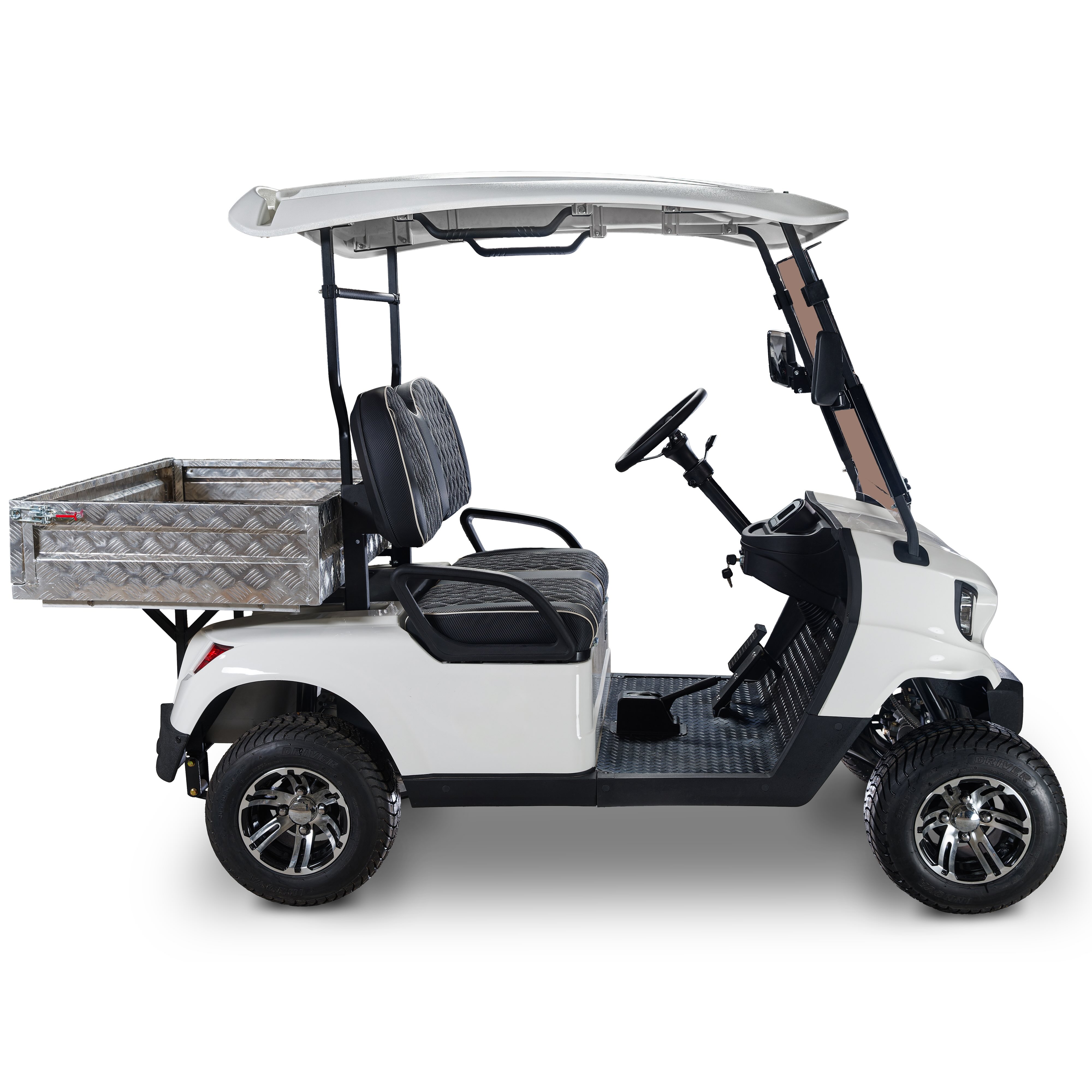

Model AW2024H is a 2-seater small electric golf cart with a rear cargo bed offered at an attractive price. Beyond traditional fleet use on golf courses, this versatile utility vehicle is perfect for hotels, resorts, residential communities, airports, ports, stations, museums, theme parks, factories, campuses, gardens, and any location requiring quiet, clean passenger transit or security patrols.
| SPECIFICATIONS OF AW2024H ELECTRIC GOLF CART | |
|---|---|
| Key Components | |
| Controller | PMSM controller |
| Motor | 5KW PMSM Motor |
| Battery | Top Brand of lead acid battery |
| Range | 60km per charge |
| Performance | |
| Passenger Capacity | 2 |
| Max. Speed | 40km/h (adjustable) |
| Min. Turning Radius | 3.5m |
| Max. Gradeability | 25% |
| Max. Loading Weight | 320kgs |
| Net Weight | 520kgs |
| Overall Dimensions | 2670 x 1180 x 1890mm |
| Body and Frame | |
| Frame (Chassis) | Welded steel framework with anti-rust treatment (acid washing, phosphating, and electro-coating) |
| Body and Roof | PP plastic front and rear body; FRP or plastic roof |
| Windshield | Organic plastic split windshield |
| Roof supports | Carbon steel, powder coated |
| Backrest and Seat | Reborn sponge, artificial leather with plastic armrests |
| Floor | Galvanized steel plate with anti-slip rubber floor mat |
| Dashboard | Black plastic dashboard equipped with 4 cup holders, 2 glove storage boxes, forward/reverse switch, battery capacity indicator, and ignition key |
| Side Trim | Aluminum alloy |
| Side Mirrors | 2 pieces, foldable standard configuration |
| Electric System | |
| Lighting & Horn | 2 headlights, 2 front turn signals, 2 LED taillights (integrating brake and turn signals), 20A voltage reducer (converting 48V to 12V), and electric horn |
| Reversing Alarm | 12V backup buzzer |
| Charger | Non-onboard charger, input 110V-240V~50Hz-60Hz, output 36V/48V, 25A |
| Steering, Brake, Transmission & Suspension | |
| Steering System | Single-stage rack and pinion steering system with automatic rocker compensating function |
| Brake System | Rear wheel mechanical brake with foot-activated parking brake |
| Accelerator | Stepless speed change |
| Driving Mode | Rear axle two-stage deceleration, motor direct drive |
| Rear Axle | Integrated, Gear ratio 12.49:1 |
| Suspension System | Front and rear leaf spring plate + cylinder hydraulic shock absorbers |
| Wheels & Tires | 10x6 Aluminum rims & 205/50-10 4PR tires |
| Body Color | |
| Standard Body Color | Pure White, Navy Blue, Coco Cola Red, Champagne, Metallic Green (Custom colors available upon request at additional cost) |

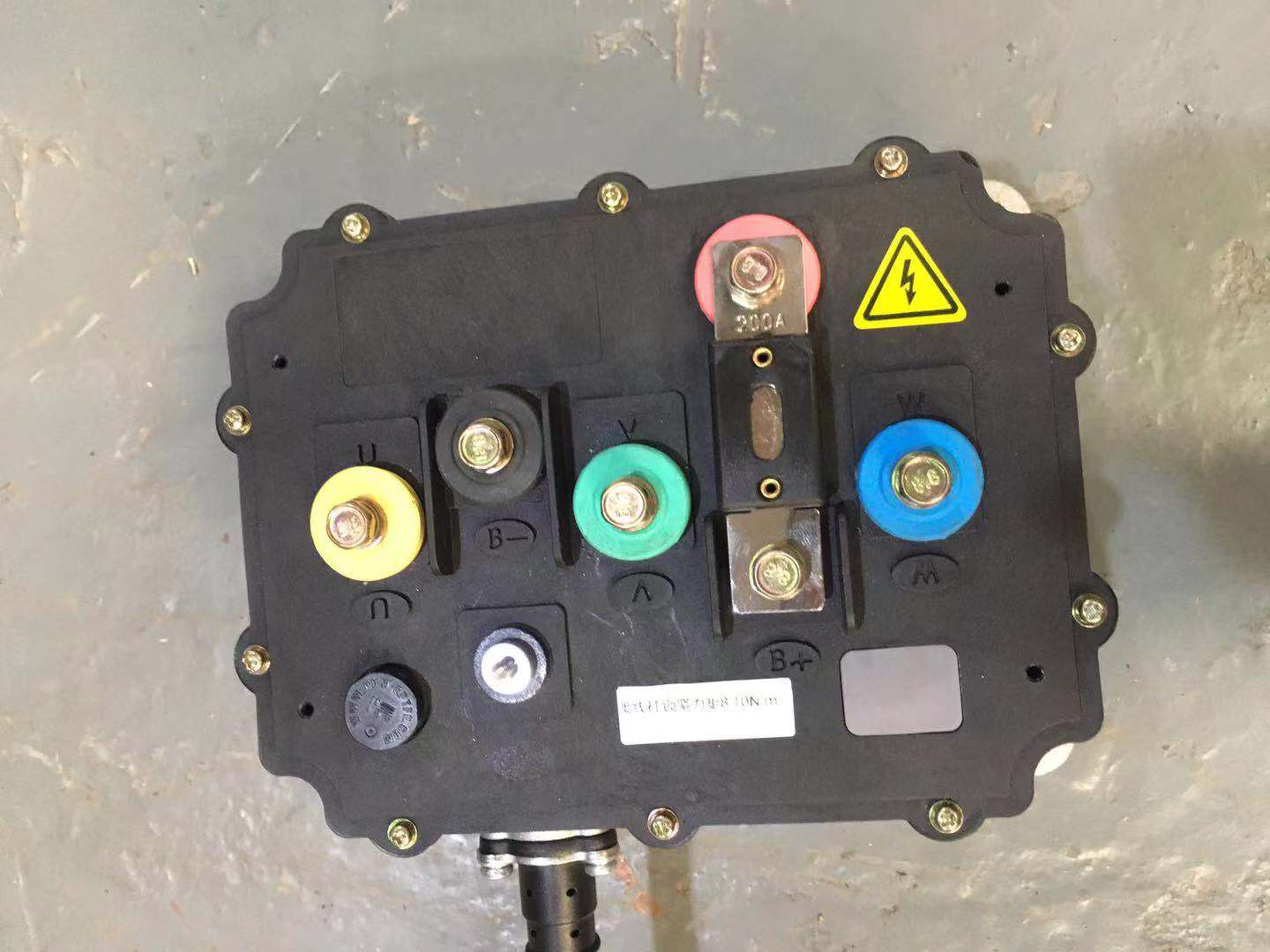

We utilize a premium PMSM controller for optimal electrical efficiency and reliable power management.

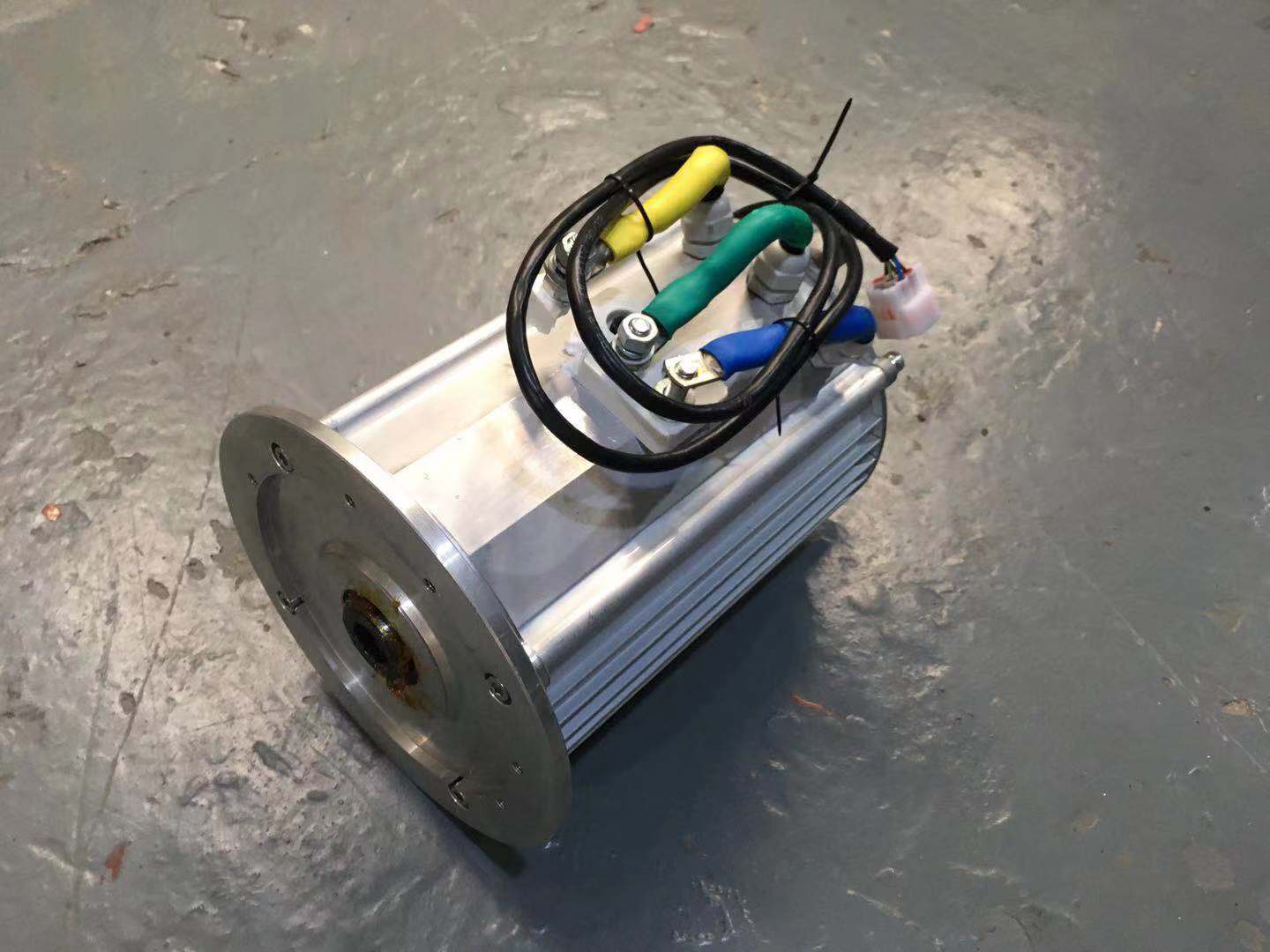

The vehicle is equipped with a 5KW PMSM motor explicitly designed to work with our controller. Compared to standard AC systems, our PMSM drivetrain yields higher efficiency (translating to longer battery range), higher speeds, greater torque, and lower temperature rise.

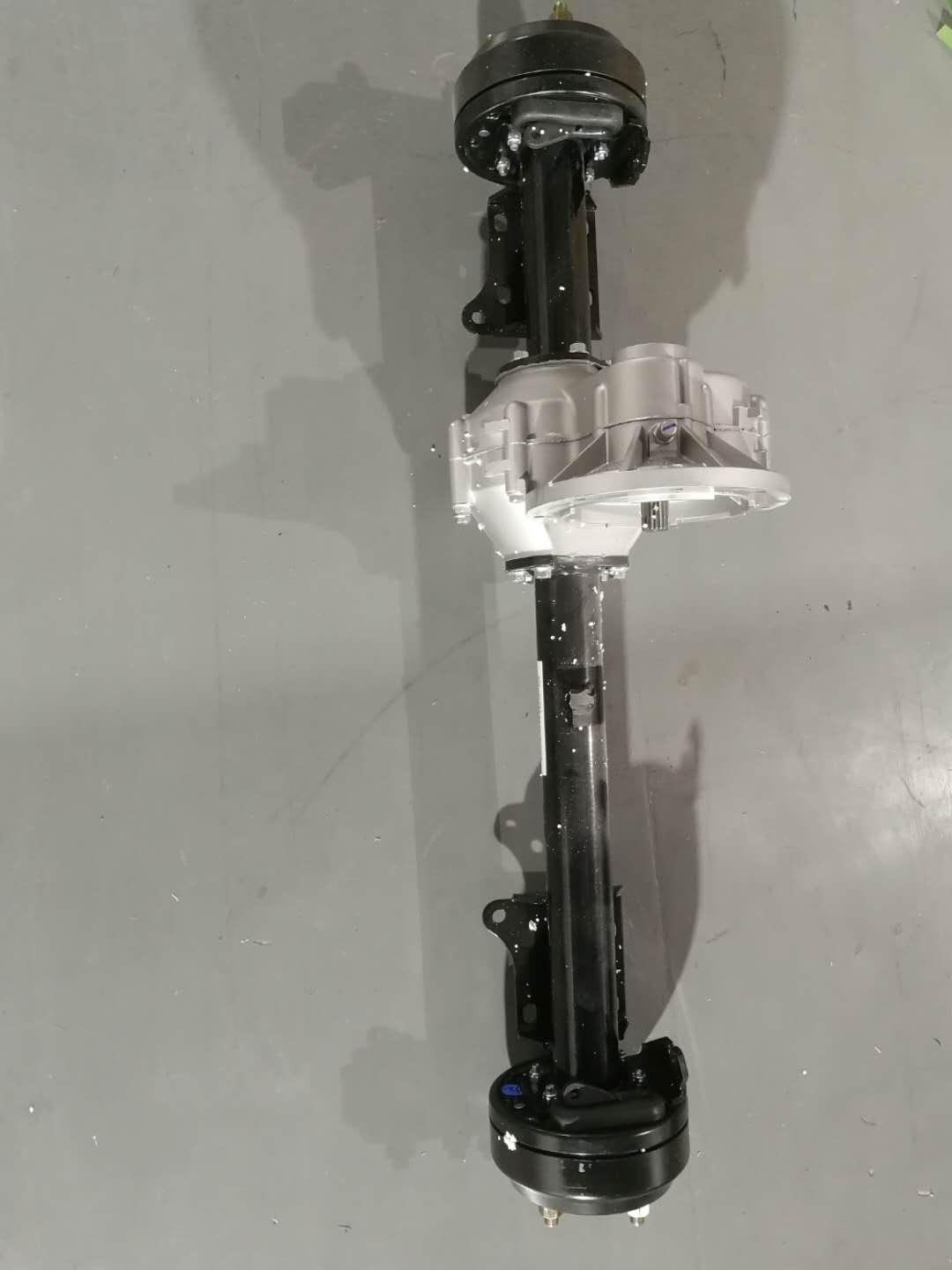

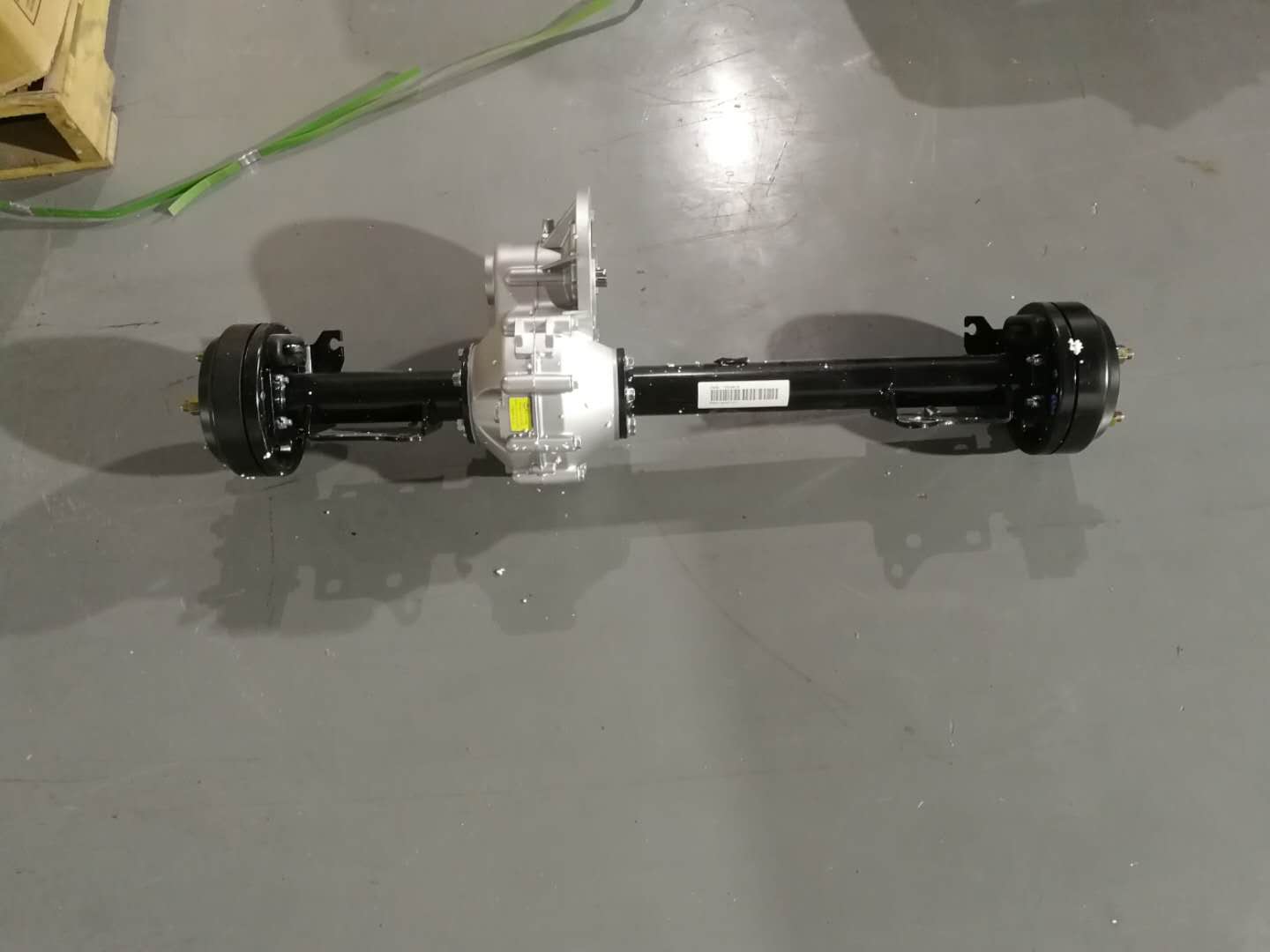

We integrate a market-proven rear axle widely accepted and praised by leading international golf cart brands.

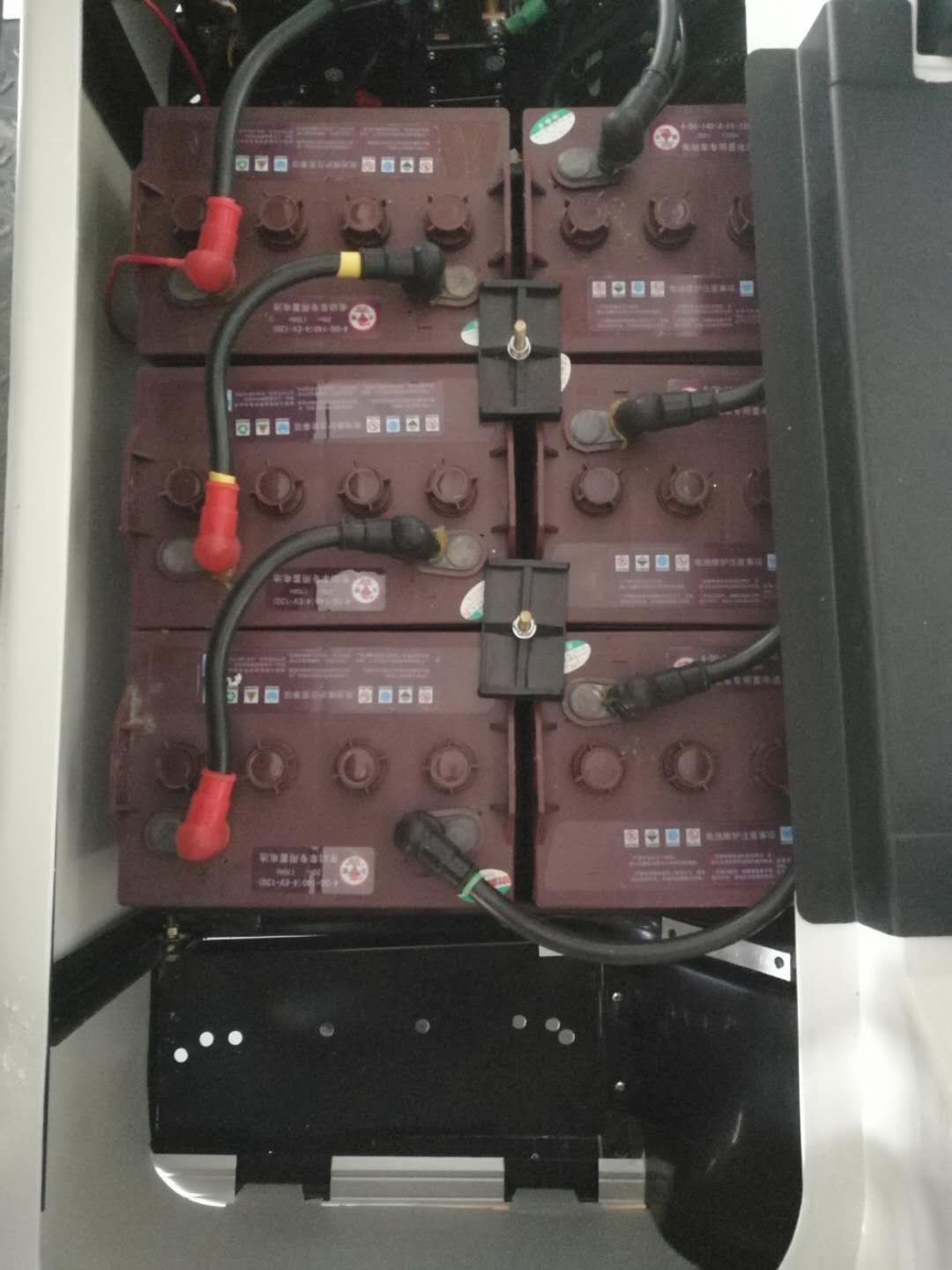

Equipped with standard-setting batteries constructed by top-tier manufacturers utilizing defense-grade construction processes.

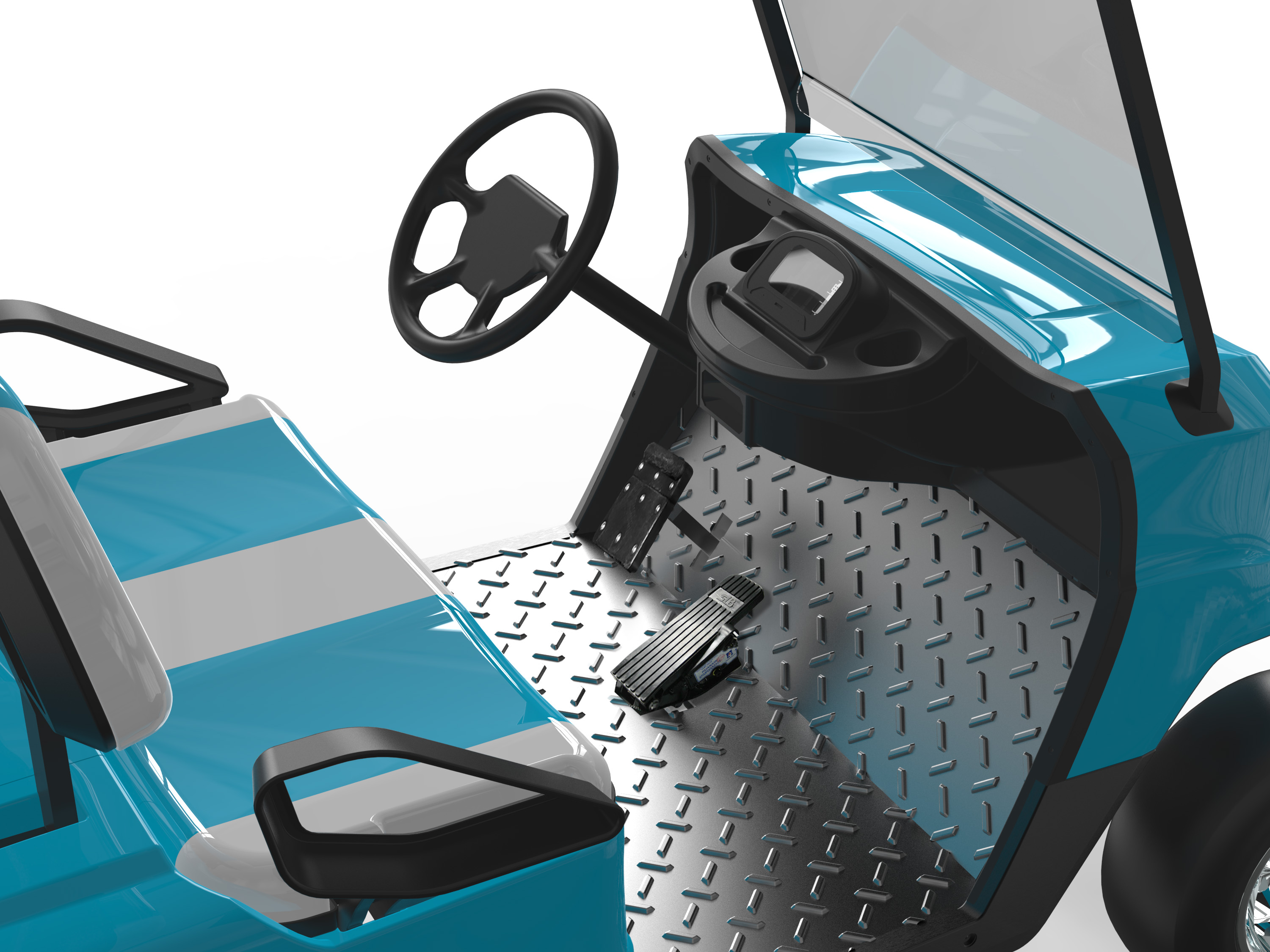

A streamlined dashboard containing all indicators, key controls, cup holders, and glove boxes right at the operator's fingertips.
Our leadership brings over 15 years of industry experience, offering an in-depth market understanding to support and grow your local business effectively.
We provide a comprehensive 13-month warranty on our electric vehicles beginning from the shipping date, including labor coverage for warranty-related issues.
We guarantee spare parts availability throughout the vehicle lifecycle, extending up to 7 years even after a model discontinues production.

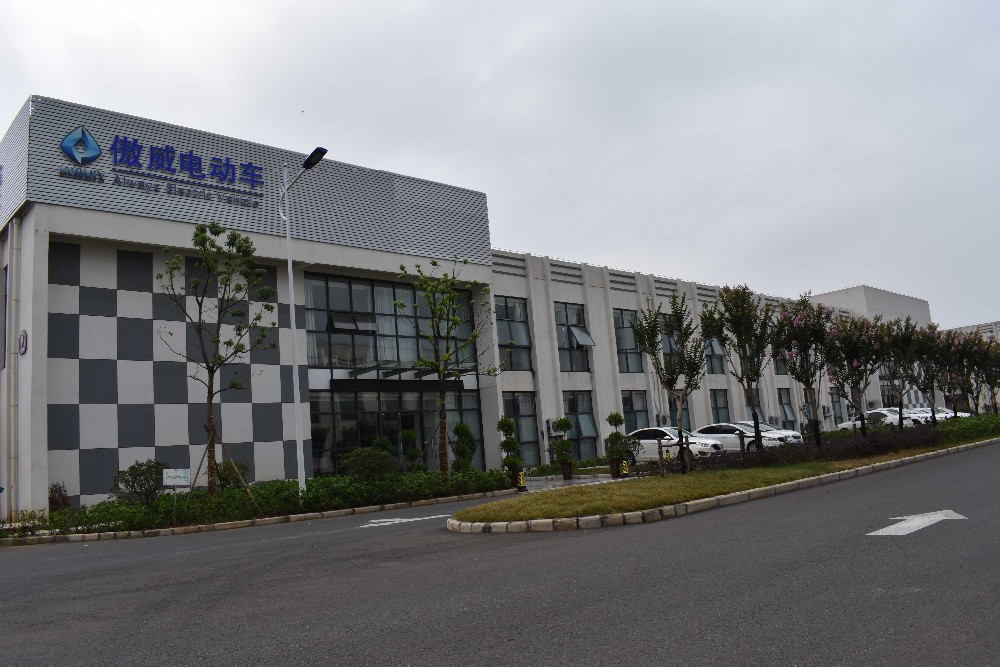

We are a leading developer and manufacturer focused on the R&D and production of low-speed electric vehicles. Our comprehensive line includes golf cars, sightseeing buses, passenger shuttles, electric fire engines, utility vehicles, and customized specialty vehicles.
Established in 2008, our team has accumulated deep industry expertise and a robust R&D infrastructure, allowing us to supply highly popular and reliable electric vehicles to both domestic and international markets.
Yes. We offer customization options based on client requests with reasonable lead times and costs, provided the adjustments do not require structural modifications to the chassis.
We provide a 1-year standard warranty. If a component fails within the warranty period and can be repaired locally at a cost lower than the part's value, we will cover the repair expenses. Otherwise, we will supply replacements and cover the shipping freight.
Yes, we supply complete spare parts catalogs for all models, extending up to 5 years after production of a specific vehicle model has ended. Detailed parts manuals are also provided for convenient selection.
Yes. We provide continuous technical support via email and phone. When required, we can also coordinate sending engineers to assist directly at your site.

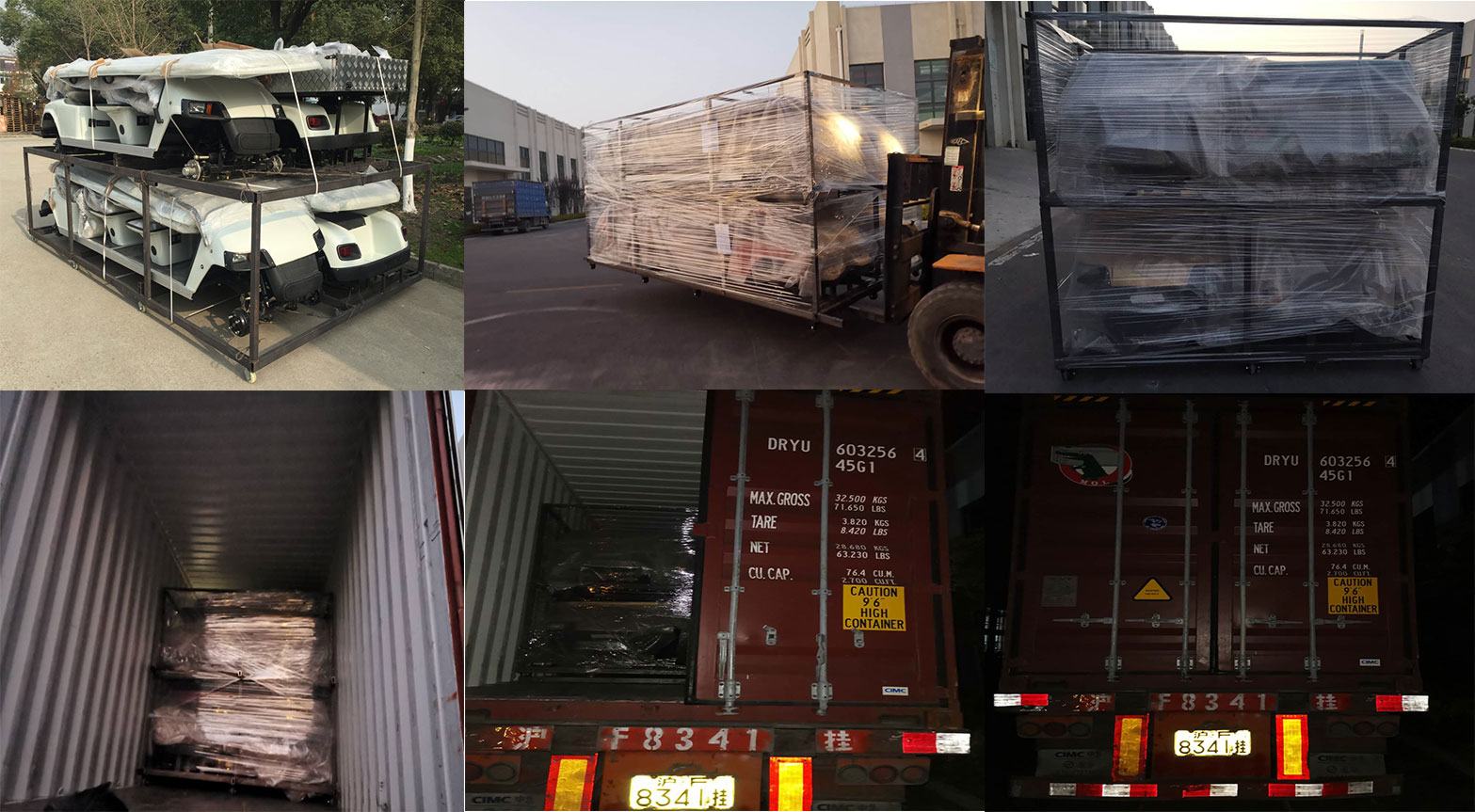

For Semi-Knocked-Down (SKD) orders, reassembly involves straightforward bolt-and-nut work. We generally restrict Completely Knocked Down (CKD) orders to distributors with established assembly capacity. For bulk volumes, we can deploy staff to deliver assembly training and instructions on-site.
Yes, we accept OEM projects provided the annual order volume meets our threshold of 300 to 500 units.
